Automatic Eagle Beak Drum Lifters* Simple & Easy Operation
* Low Maintenance Design
* Completely Automatic Operation

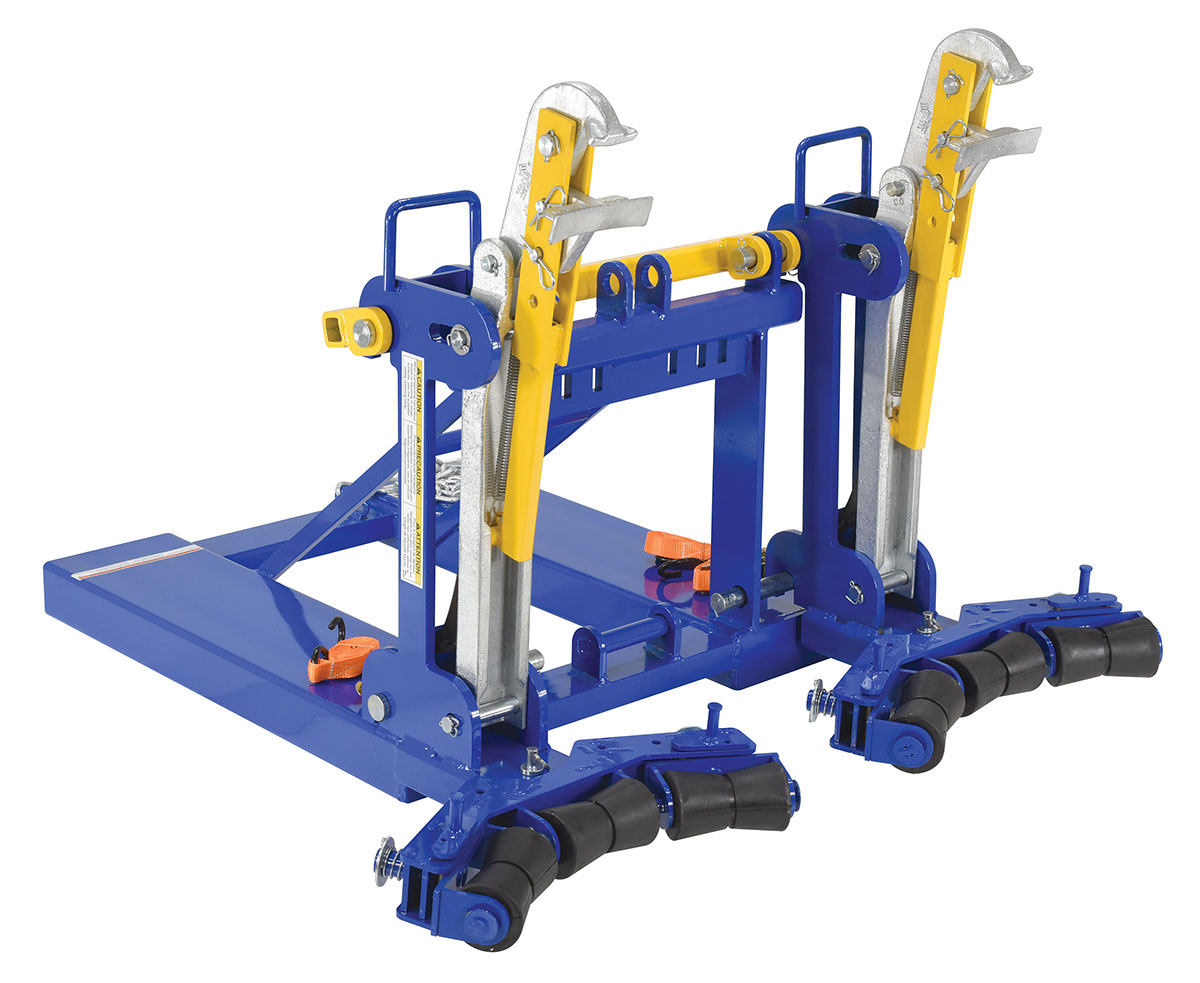

* Belt and Roller units provide a softer lifting surface, minimizing scratches

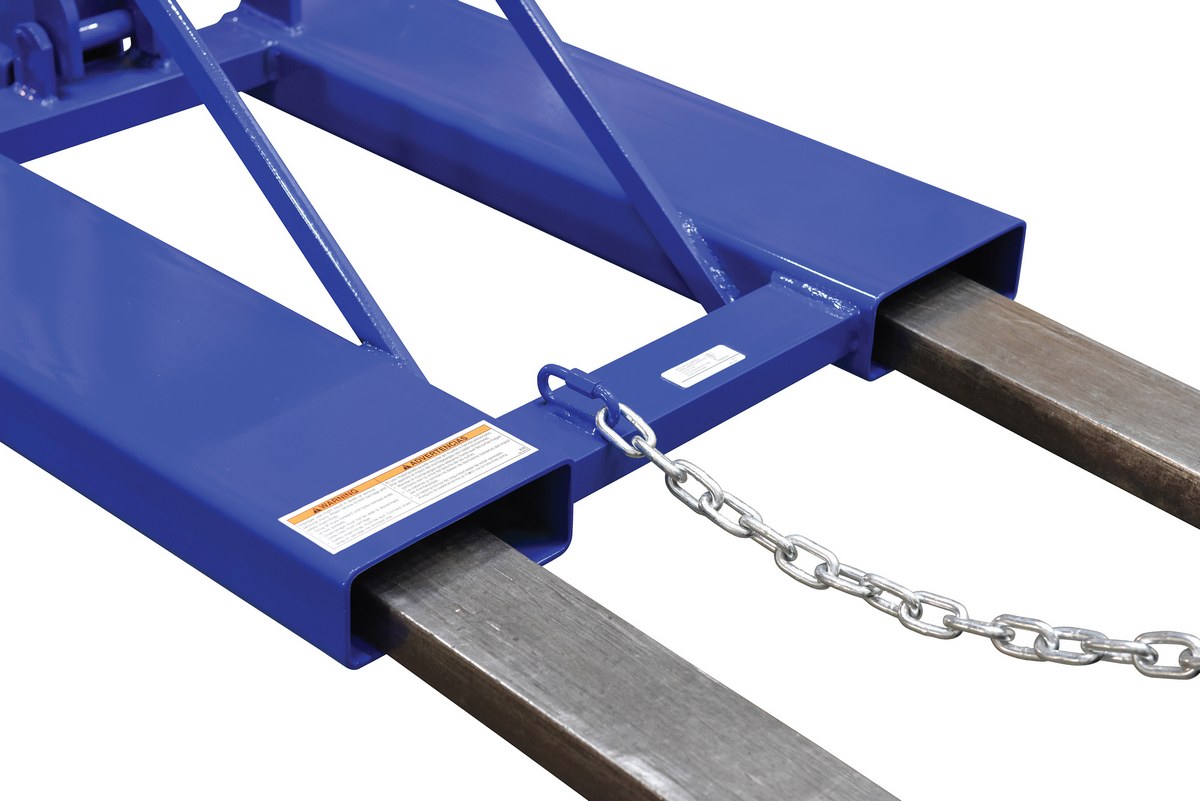

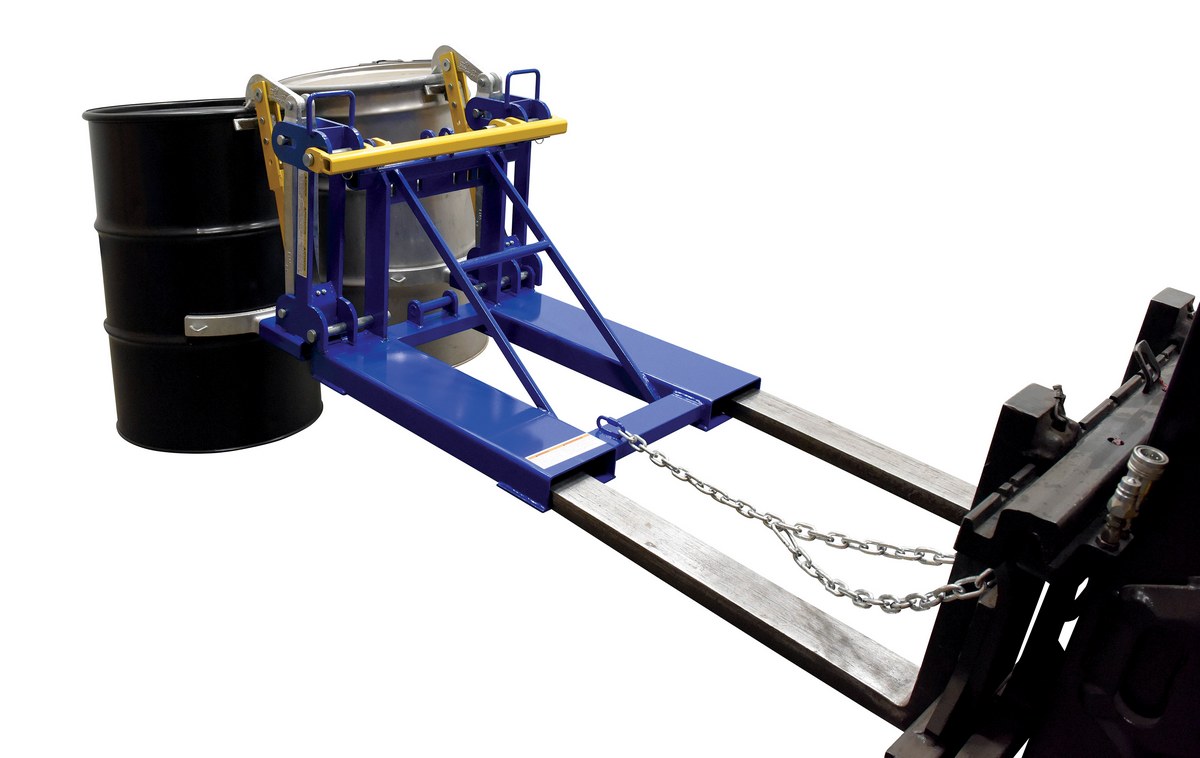

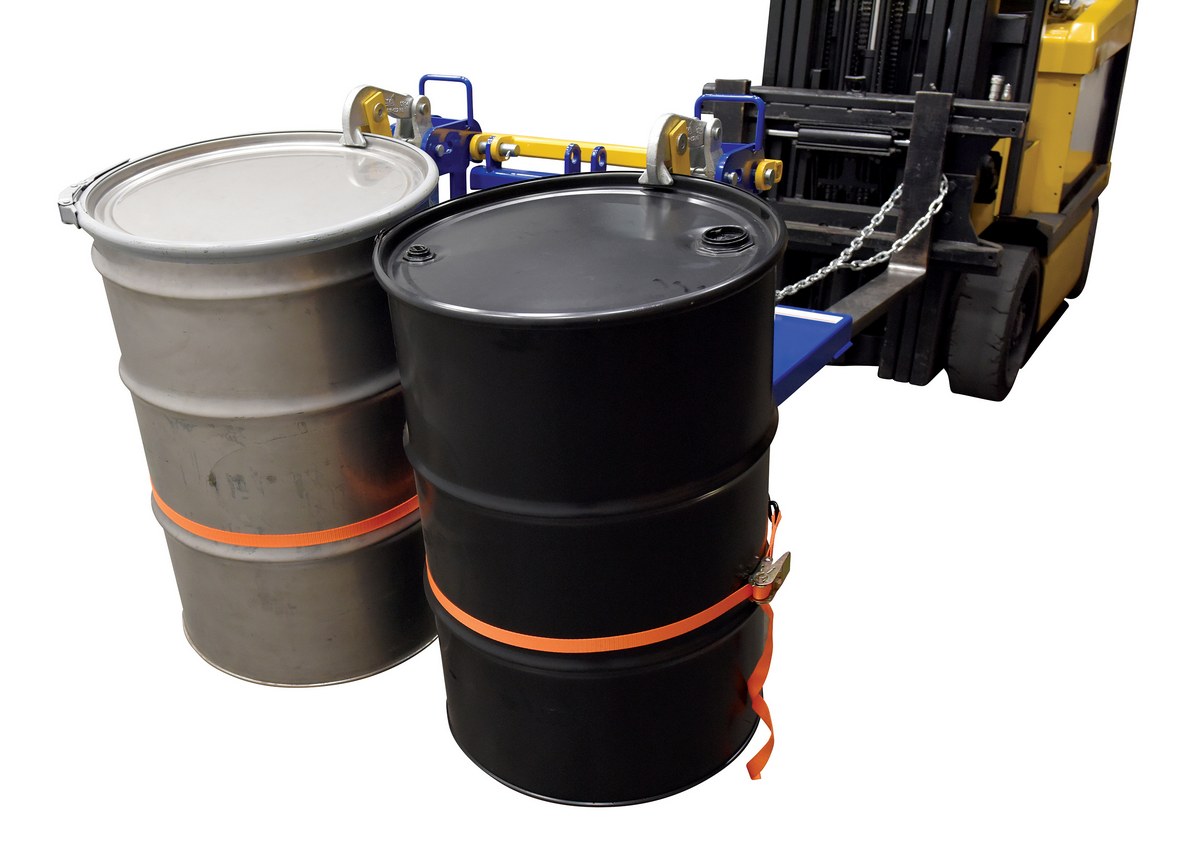

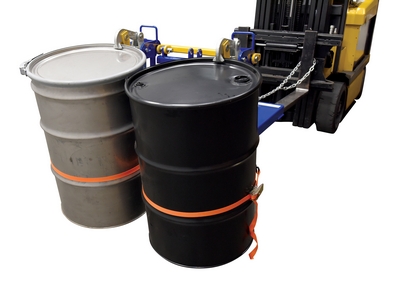

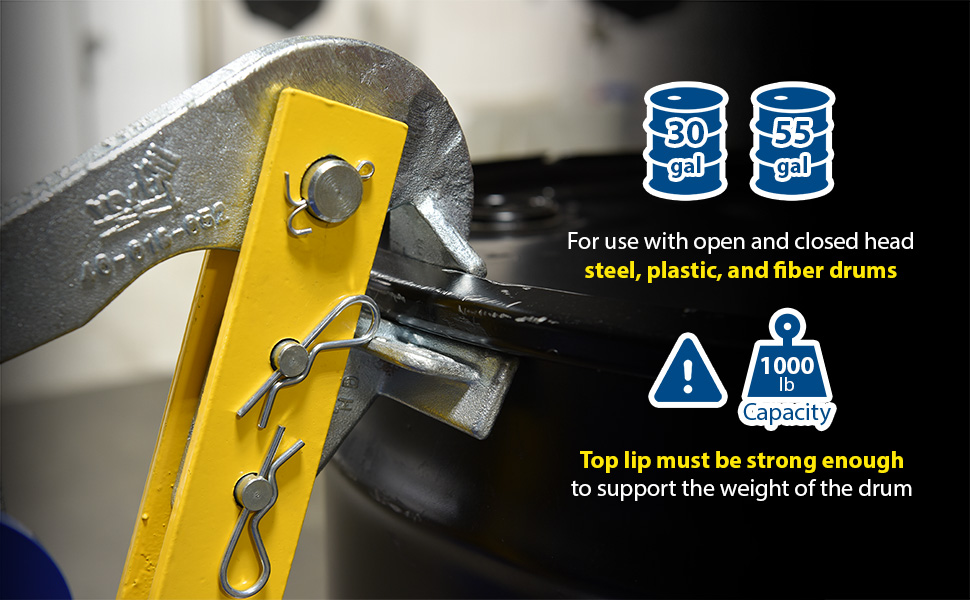

This time tested and proven design allows a fork truck operator to easily secure, move, and release drums without leaving the seat of the fork truck. For use with open (lid installed and secured) and closed head 30 and 55-gallon plastic, steel and fiber drums with a top lip strong enough to support the weight of the drum. Choose single-drum or double-drum configuration. Includes safety restraint to secure unit to the fork truck. Welded steel construction. Powder coat finish for baked in powder-coated toughness. Fork pockets measure 7-1/2" wide x 2-1/2" high usable on 20-1/2" centers. A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain. Additonal or replacement ratchet straps available, contact factory. Meets OSHA 1910-178 requirements.
Fork Mounted Drum Lifters
Plastic & Fiber Drum Adapters and Other Upgrades
Fork Mounted Drum Grippers
Fork Truck Drum Carrier/RotatorsAdditional Models In This Family
FMDL-2-LDS-B1
FMDL-2-LDS-R3
FMDL-2-LDS-R3
FMDL-2-LDS-B1
LDS-B1
LDS-R3
FMDL-2-LDS-B1
FMDL-2-LDS-B1
FMDL-1
FMDL-2
FMDL-2
FMDL-2
FMDL-2-LDS-R3
FMDL-1-LDS-B1
FMDL-1-LDS-B1
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

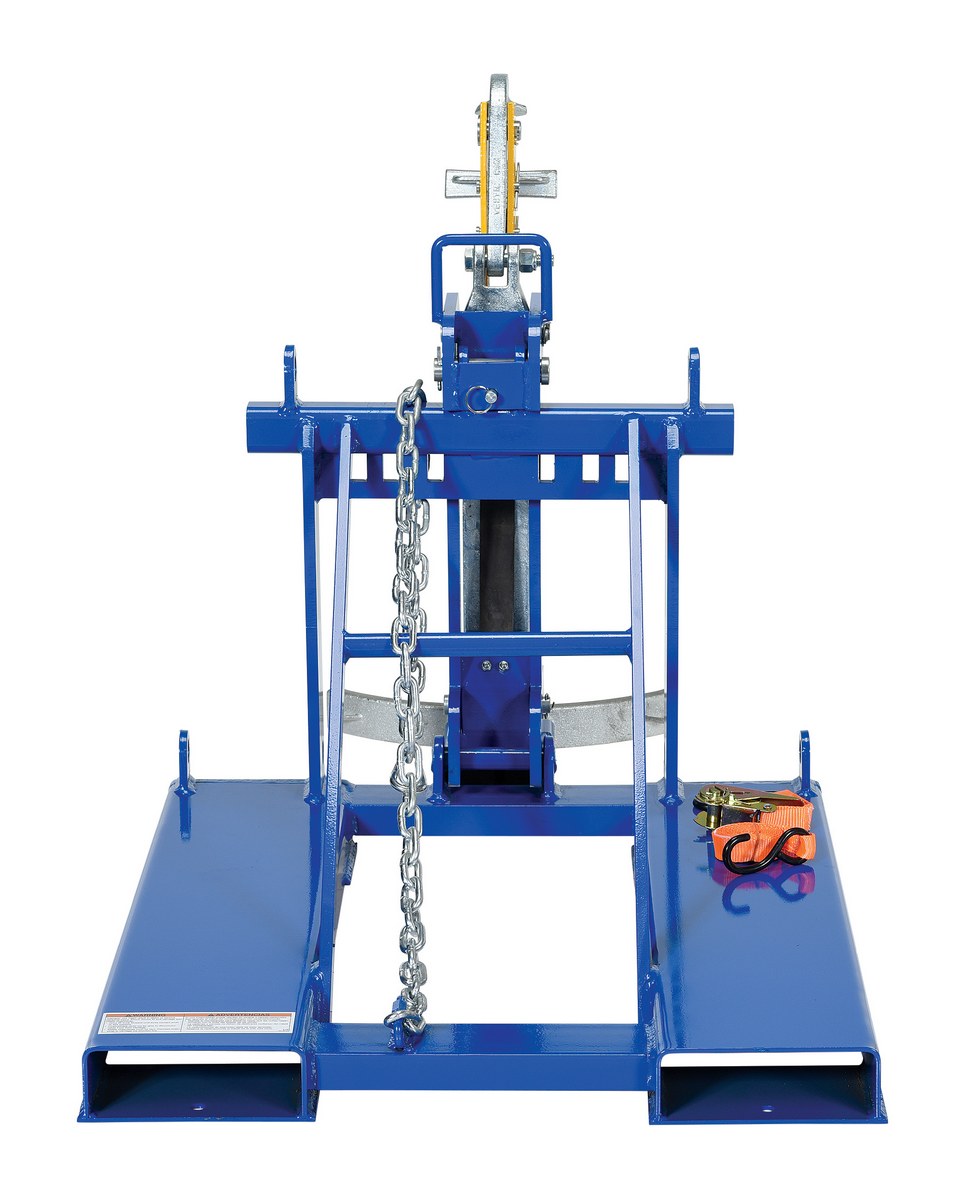

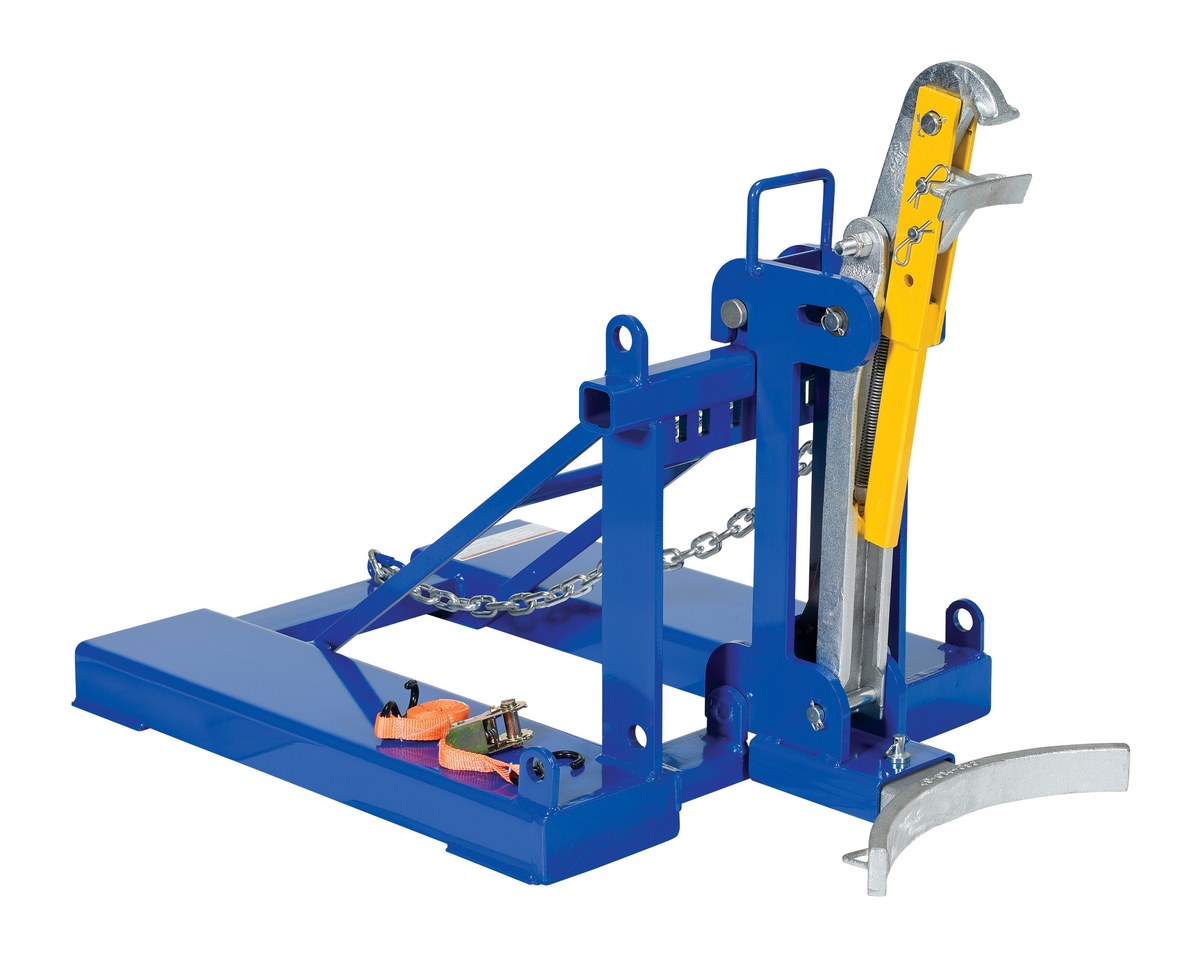

| FMDL-1 | POPULAR |  | 90 Days Limited Warranty | Steel Automatic Eagle Beak 1 Drum 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Accepts: 30 and 55-gallon drums | 227 | |

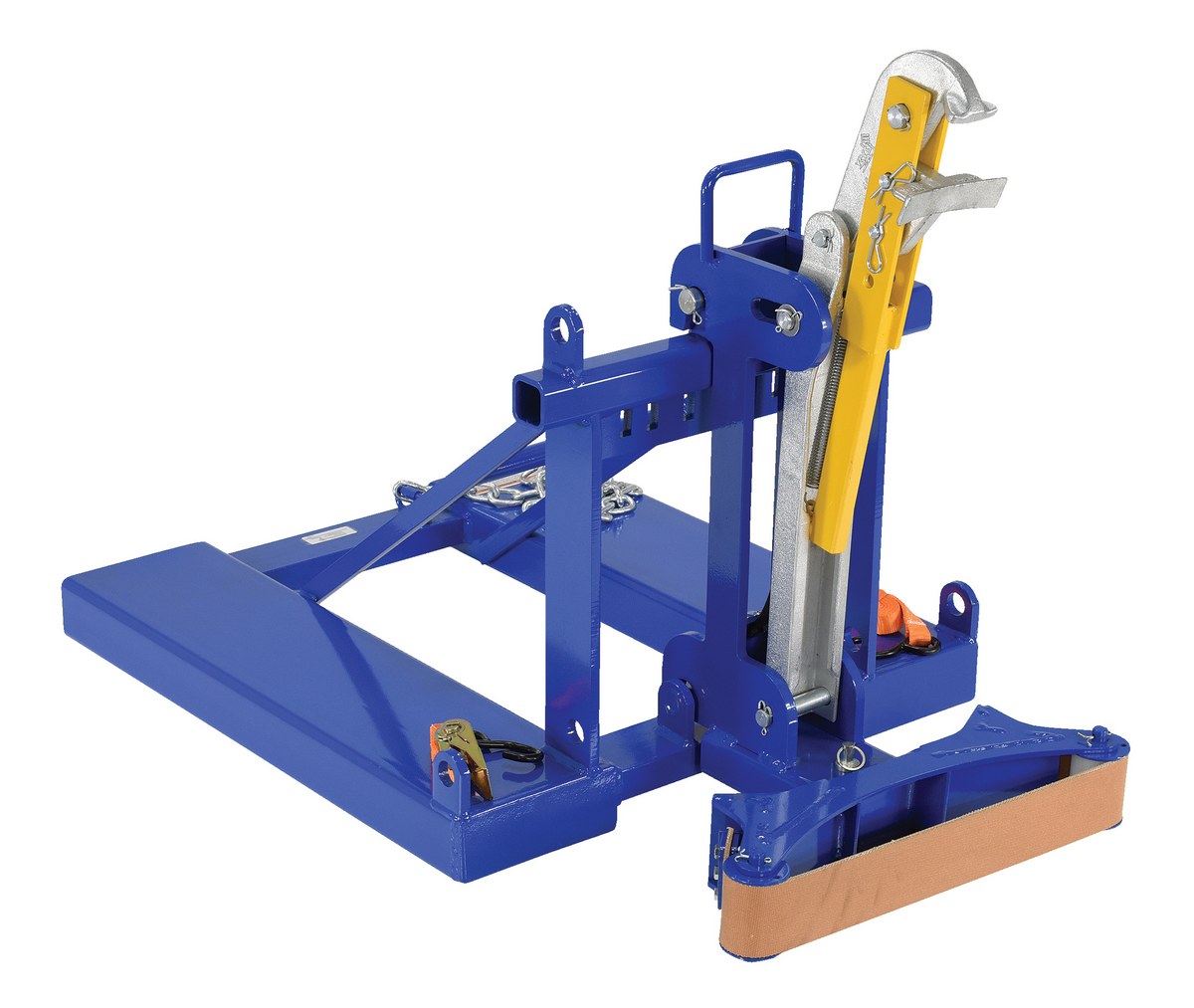

| FMDL-1-LDS-B1 | | 90 Days Limited Warranty | Steel Automatic Eagle Beak 1 Drum with Belt Saddle 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Accepts: 30 and 55-gallon drums | 227 | ||

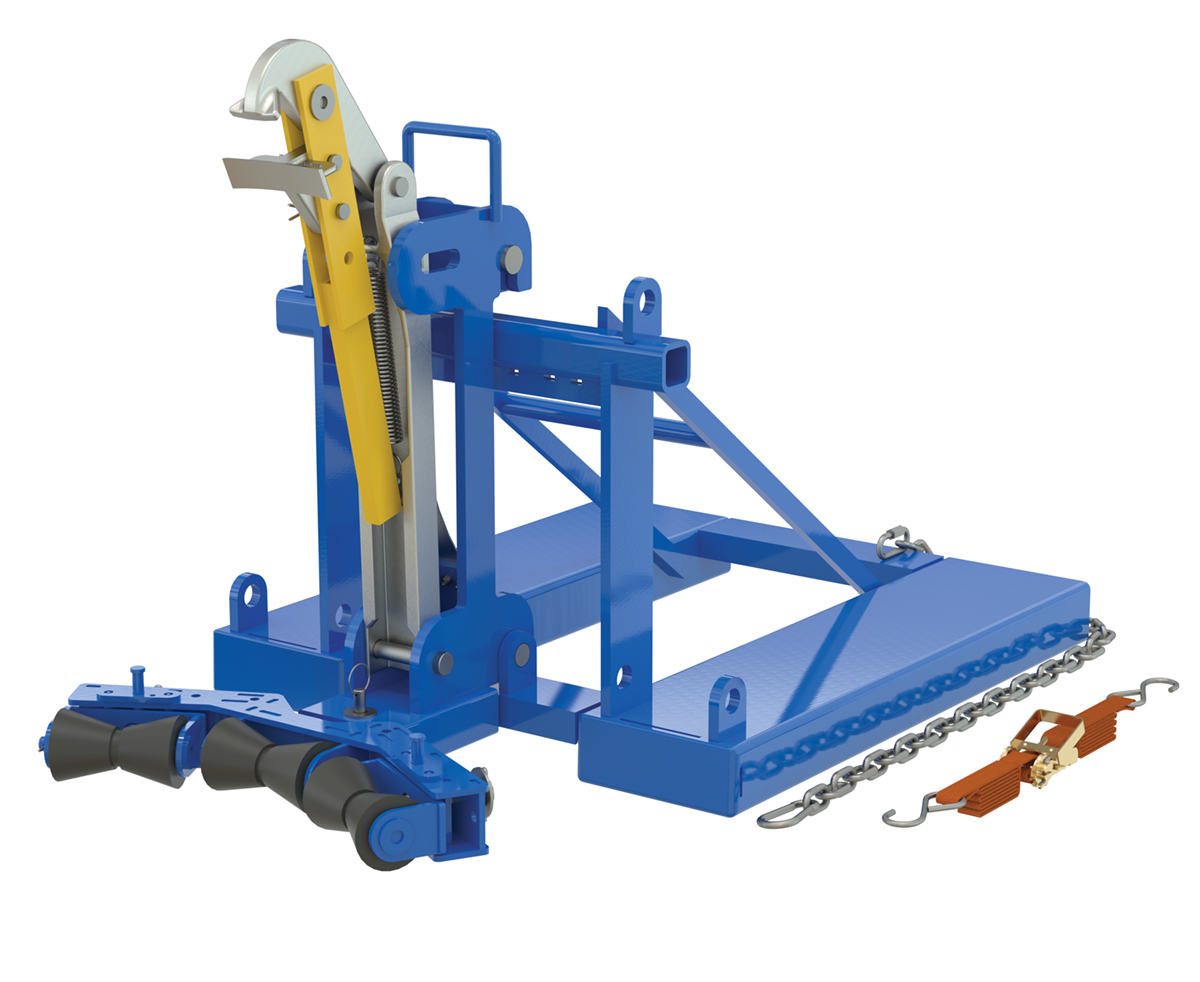

| FMDL-1-LDS-R3 |  | 90 Days Limited Warranty | Steel Automatic Eagle Beak 1 Drum with Rollers 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Accepts: 30 and 55-gallon drums | 227 | ||

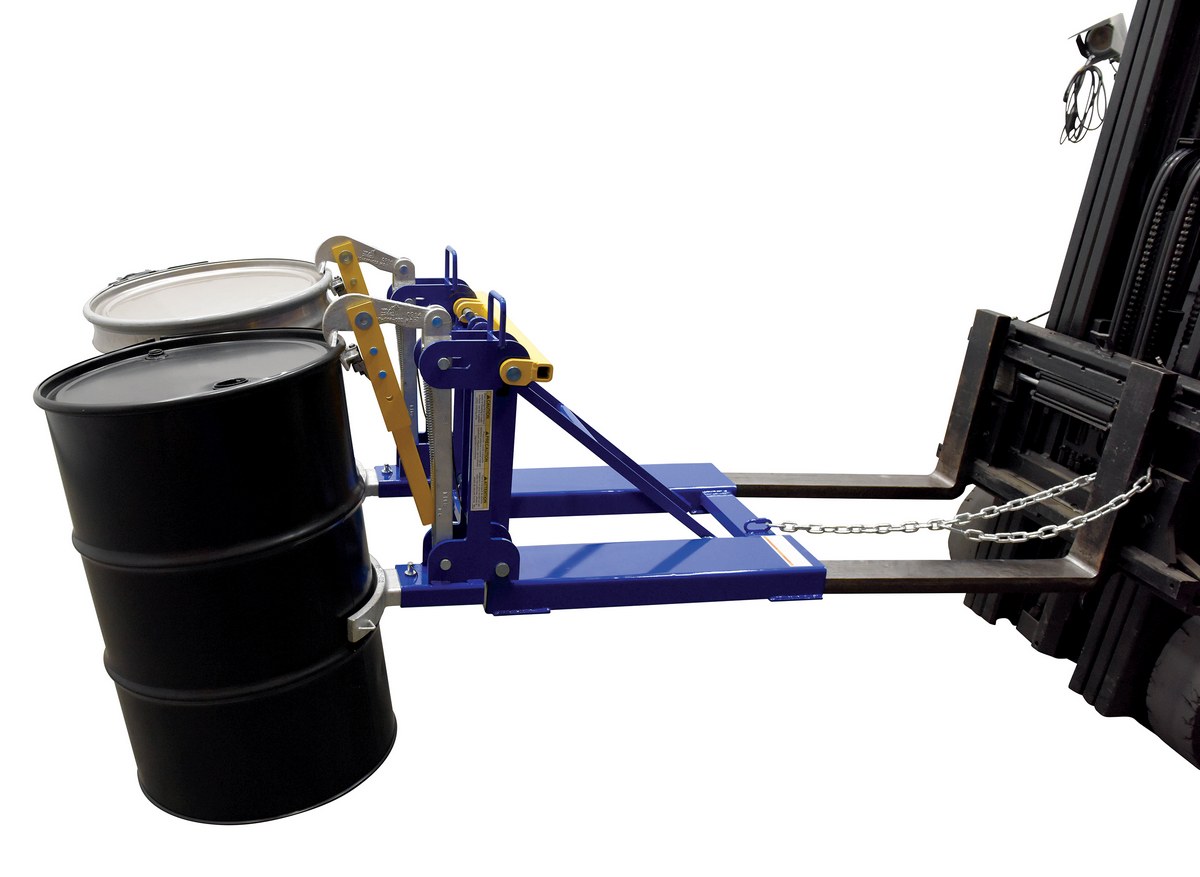

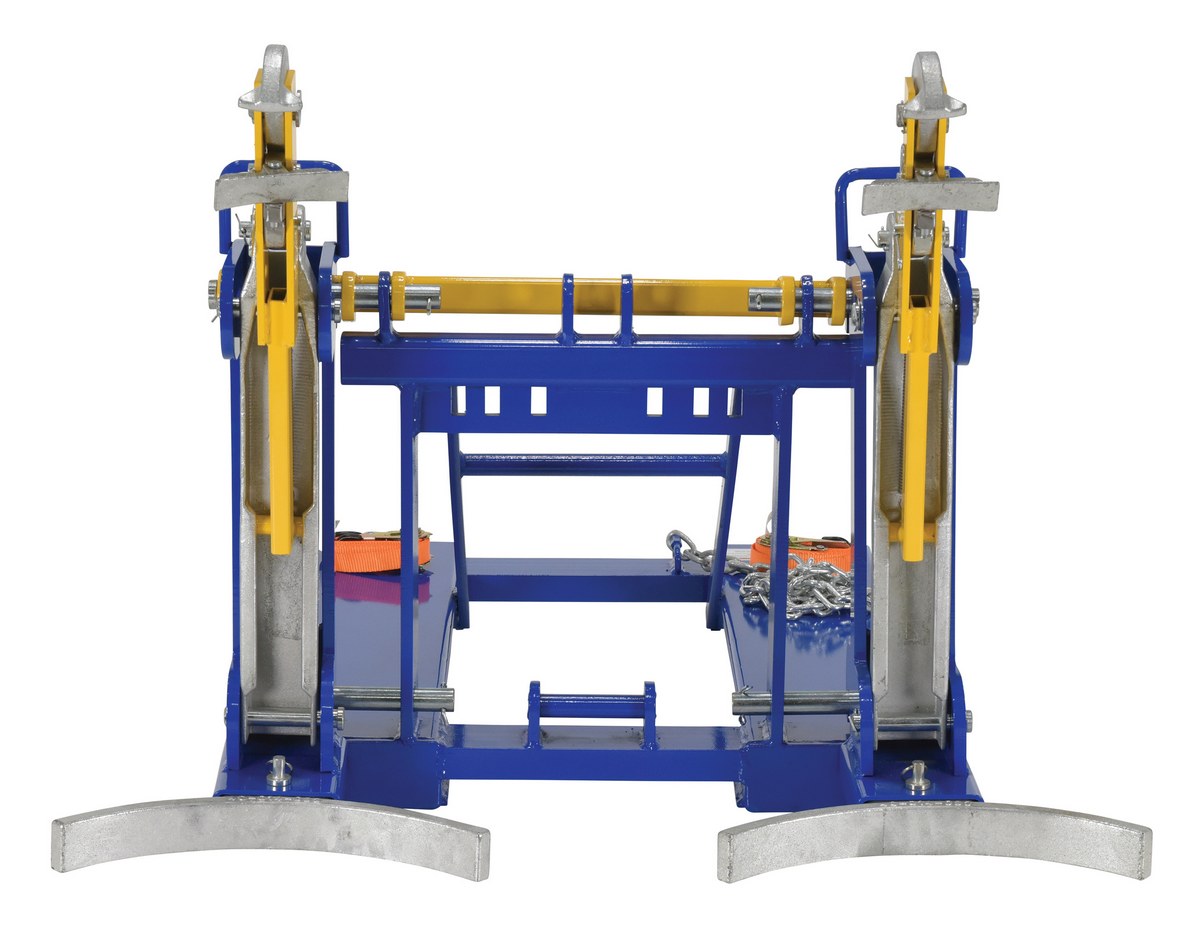

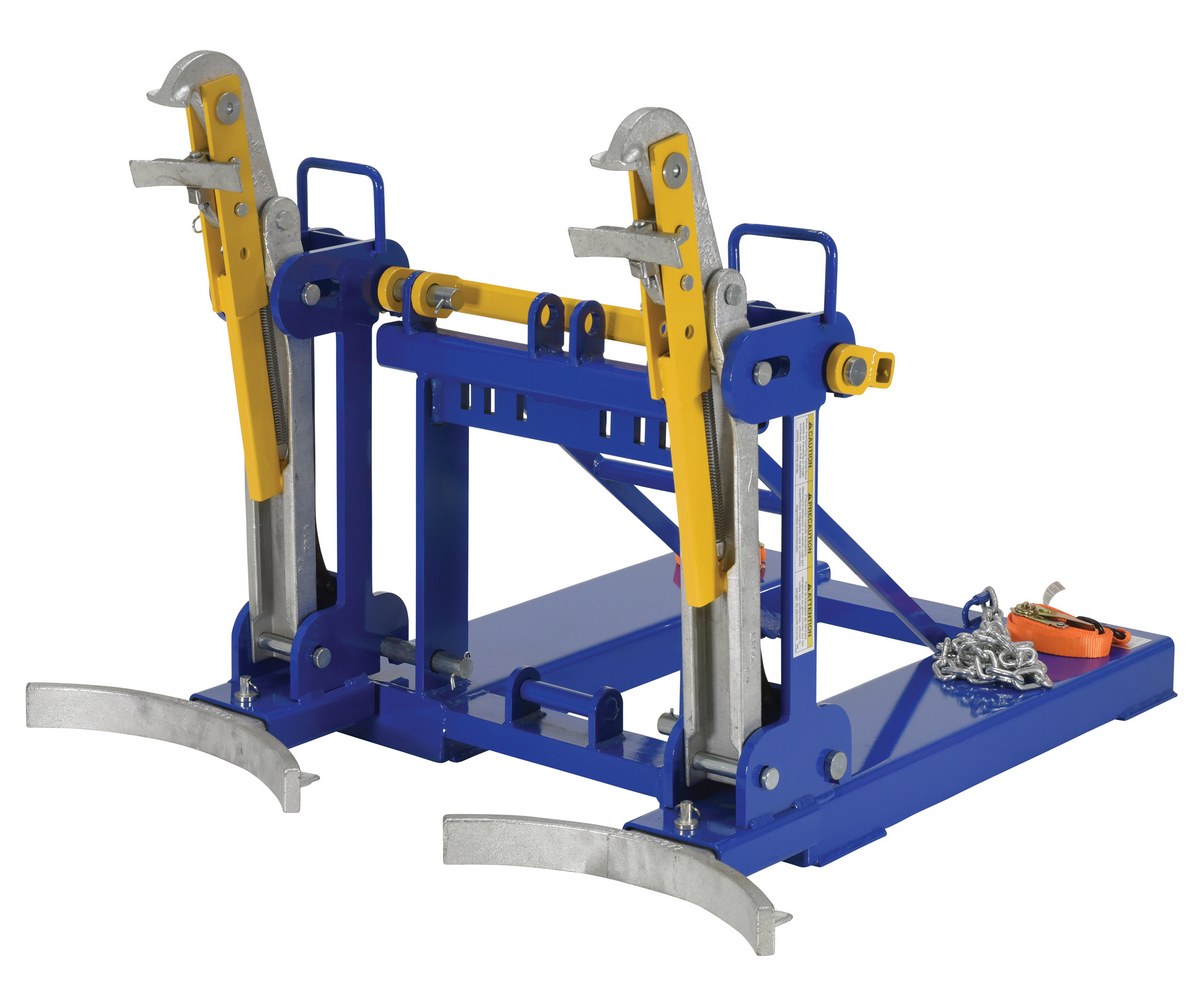

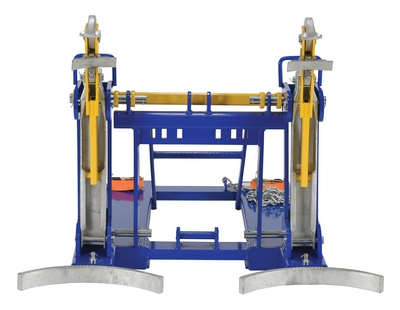

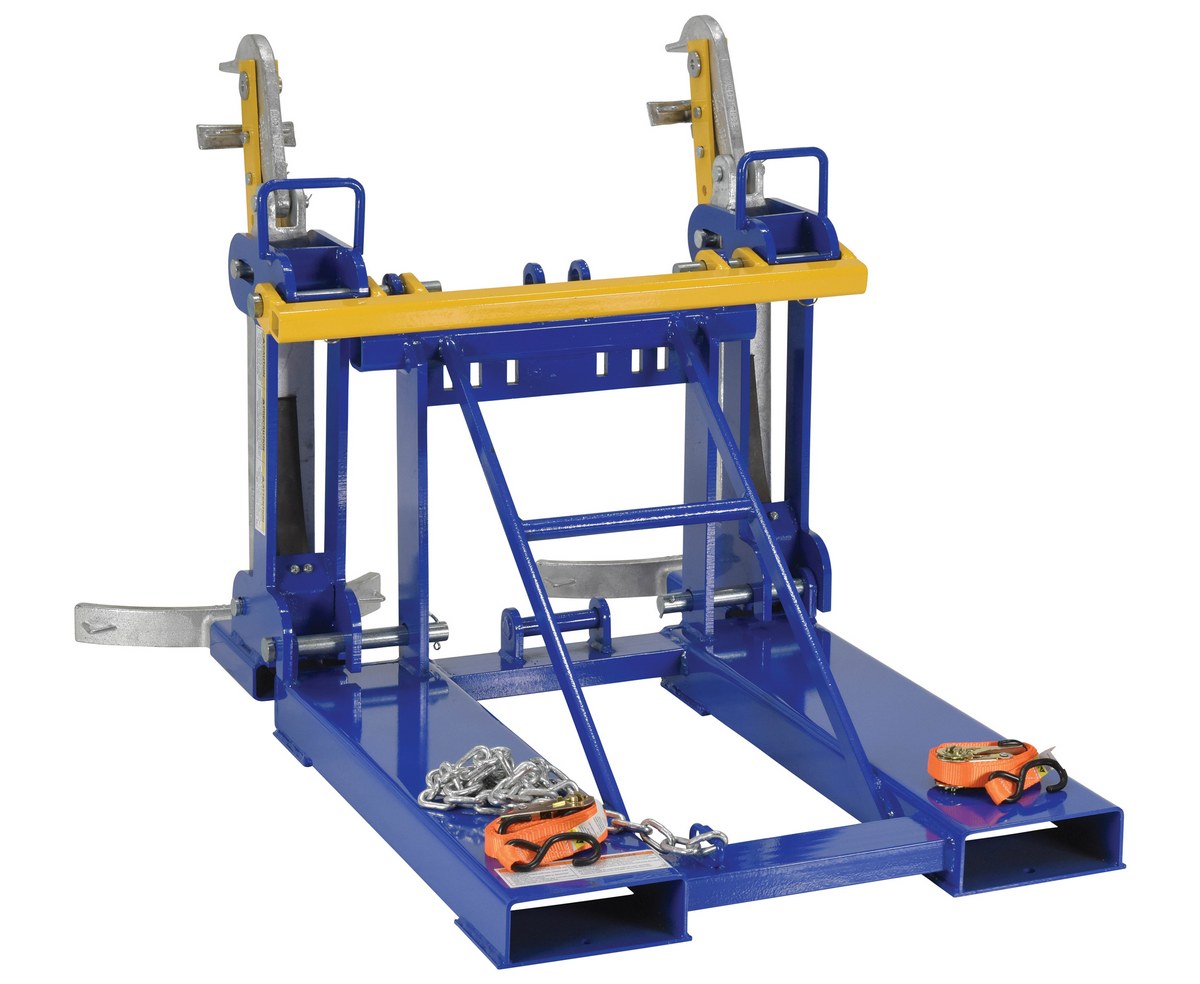

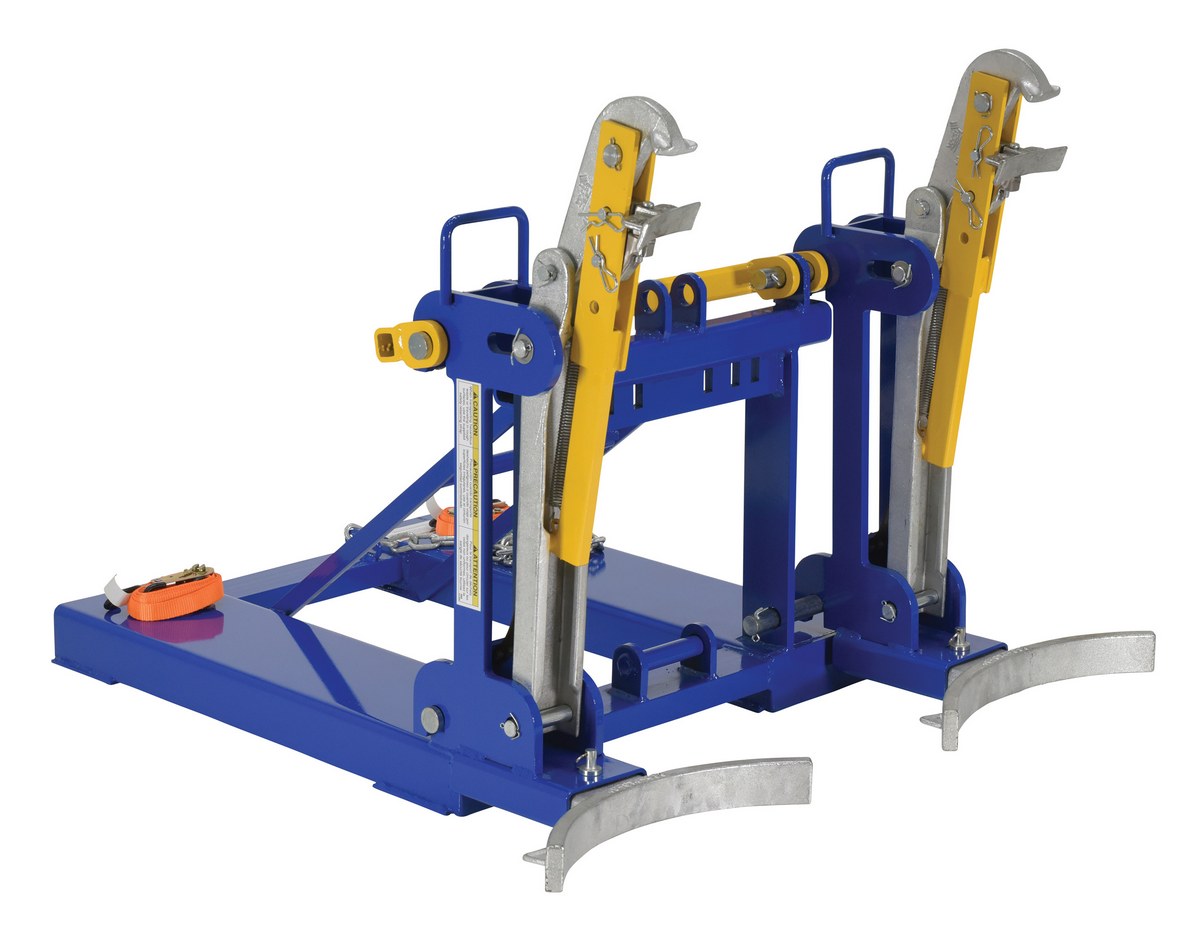

| FMDL-2 |  | 90 Days Limited Warranty | Steel Automatic Eagle Beak 2 Drum 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Accepts: 30 and 55-gallon drums | 311 | ||

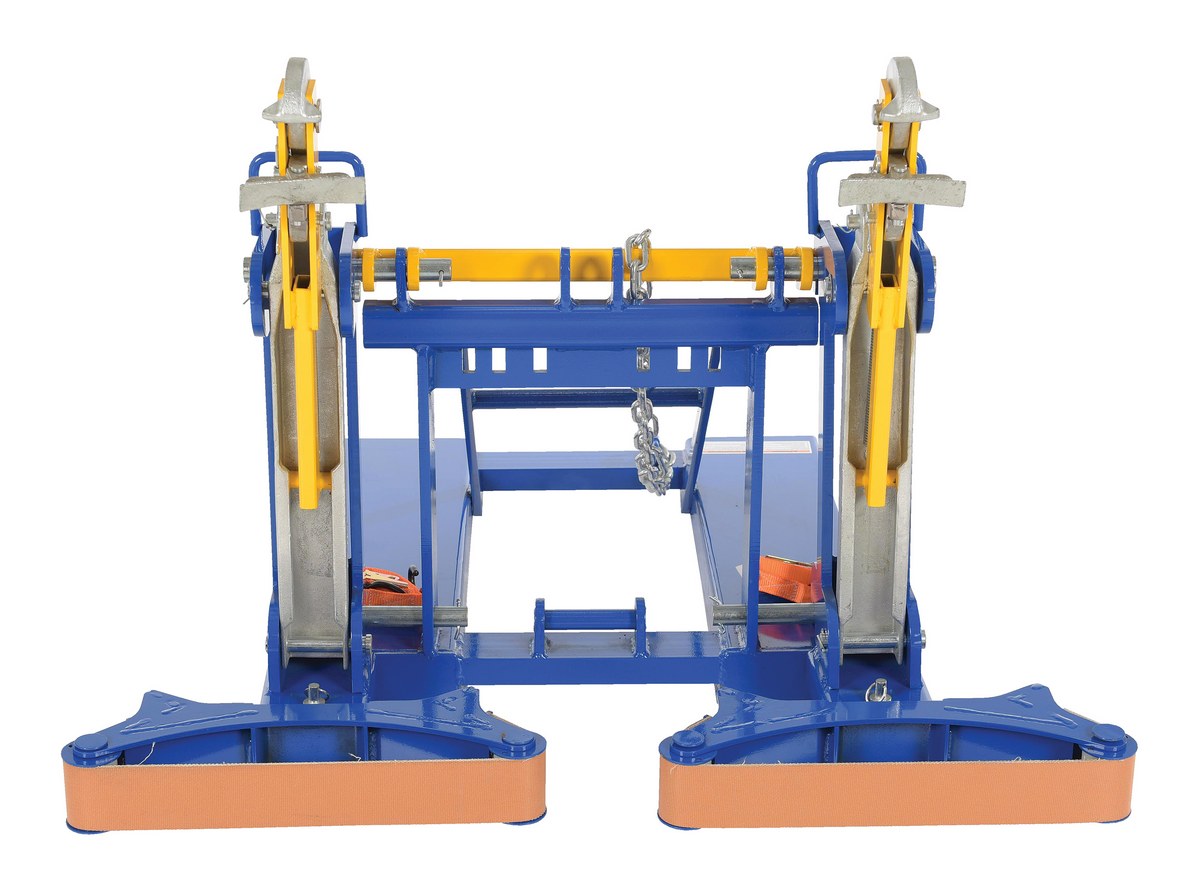

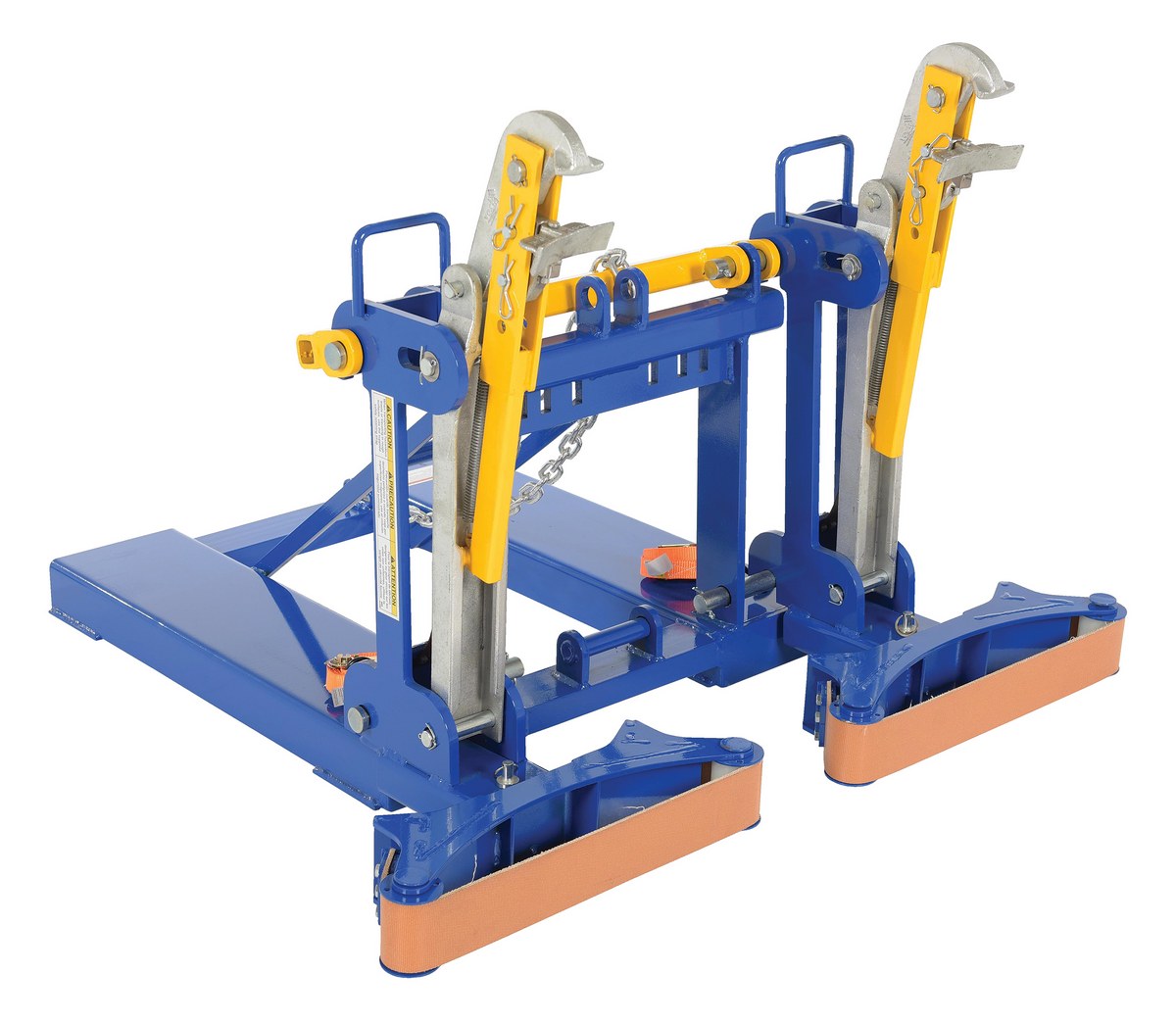

| FMDL-2-LDS-B1 | | 90 Days Limited Warranty | Steel Automatic Eagle Beak 2 Drum with Belt Saddle 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Accepts: 30 and 55-gallon drums | 311 | ||

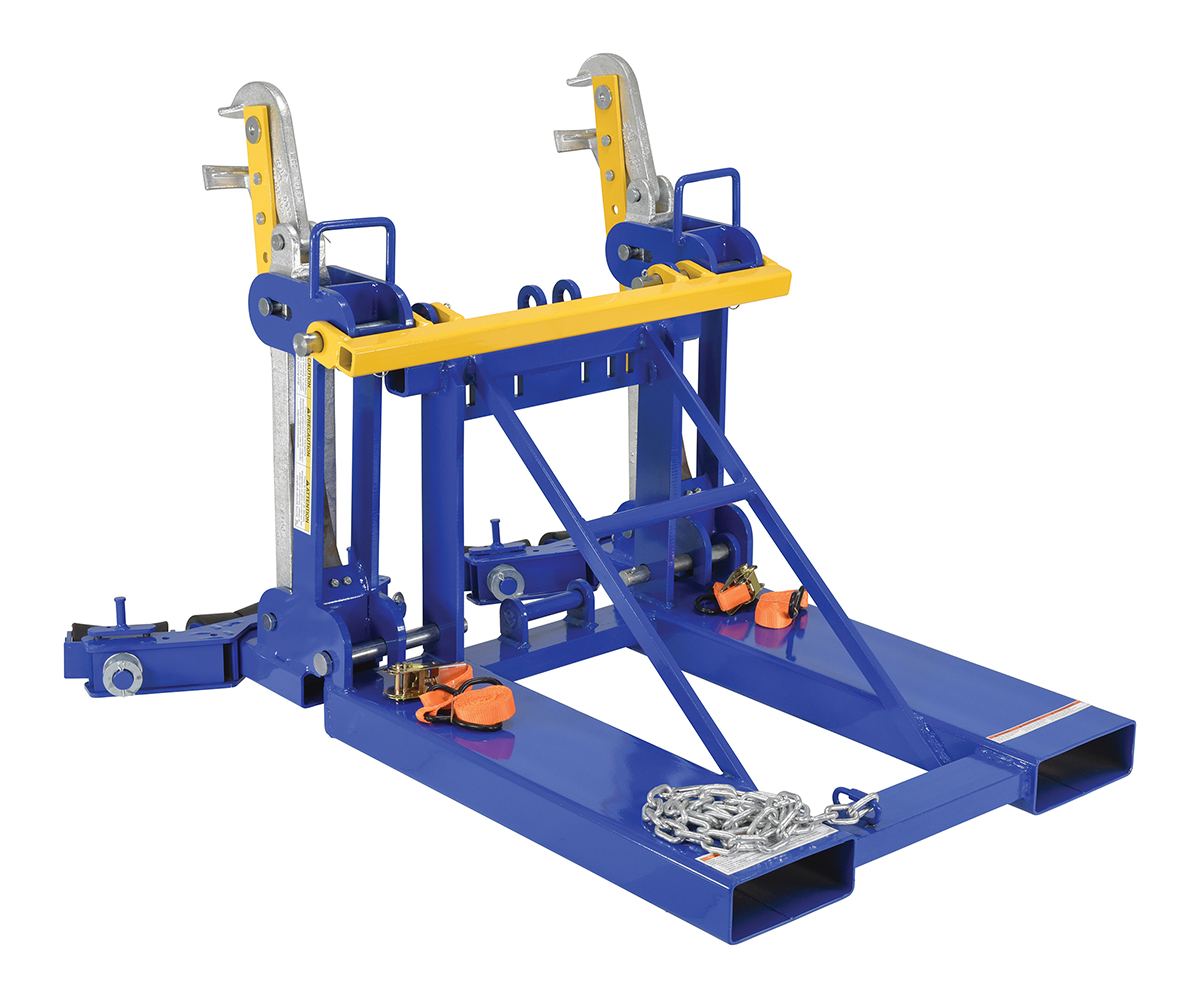

| FMDL-2-LDS-R3 | | 90 Days Limited Warranty | Steel Automatic Eagle Beak 2 Drum with Rollers 1,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Accepts: 30 and 55-gallon drums | 340 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 1,000
Accepts: 30 and 55-gallon drums
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
Uniform Capacity (lb.): 2,000
Accepts: 30 and 55-gallon drums
For More Details of the Option Click the Red Model Button

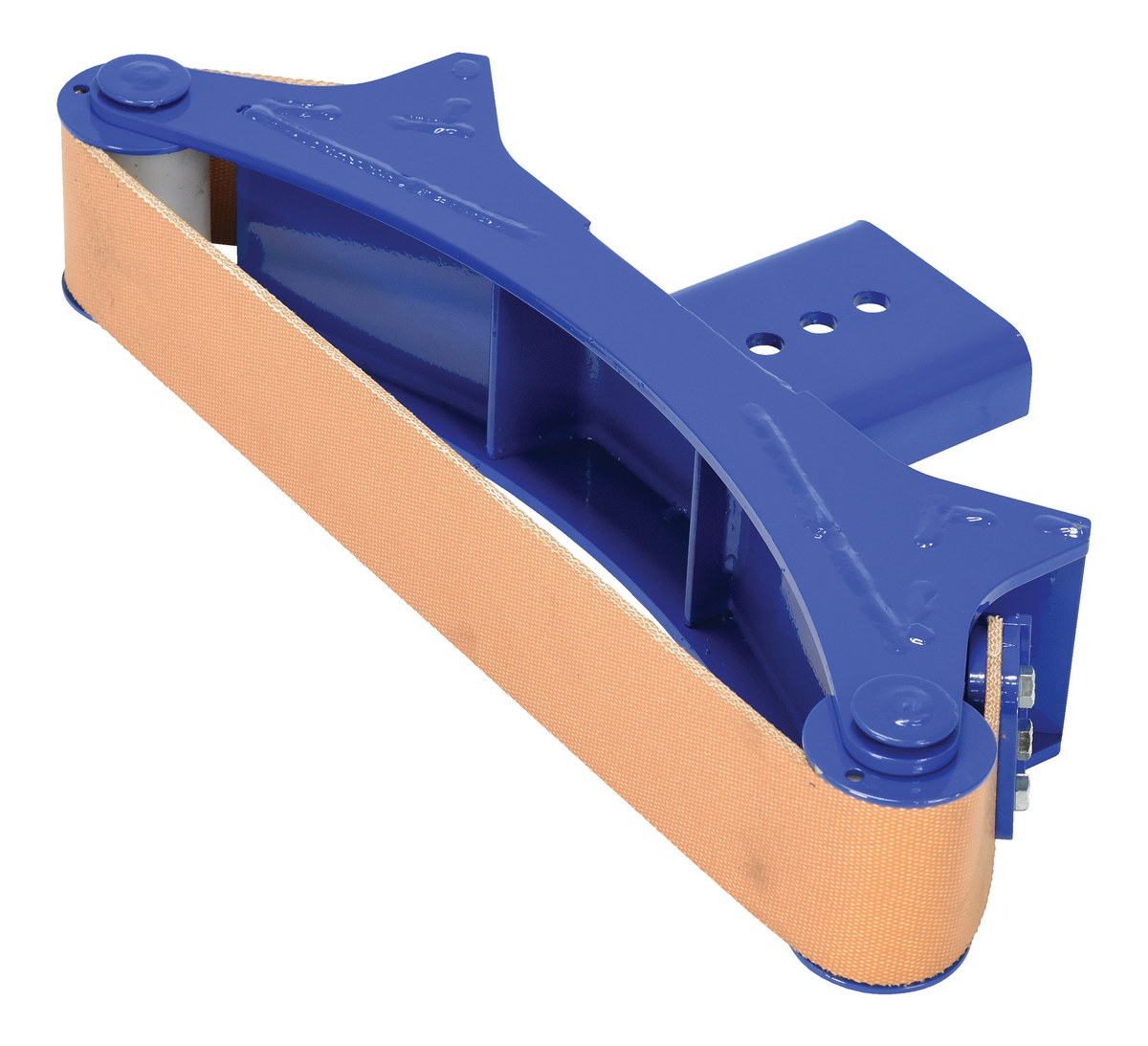

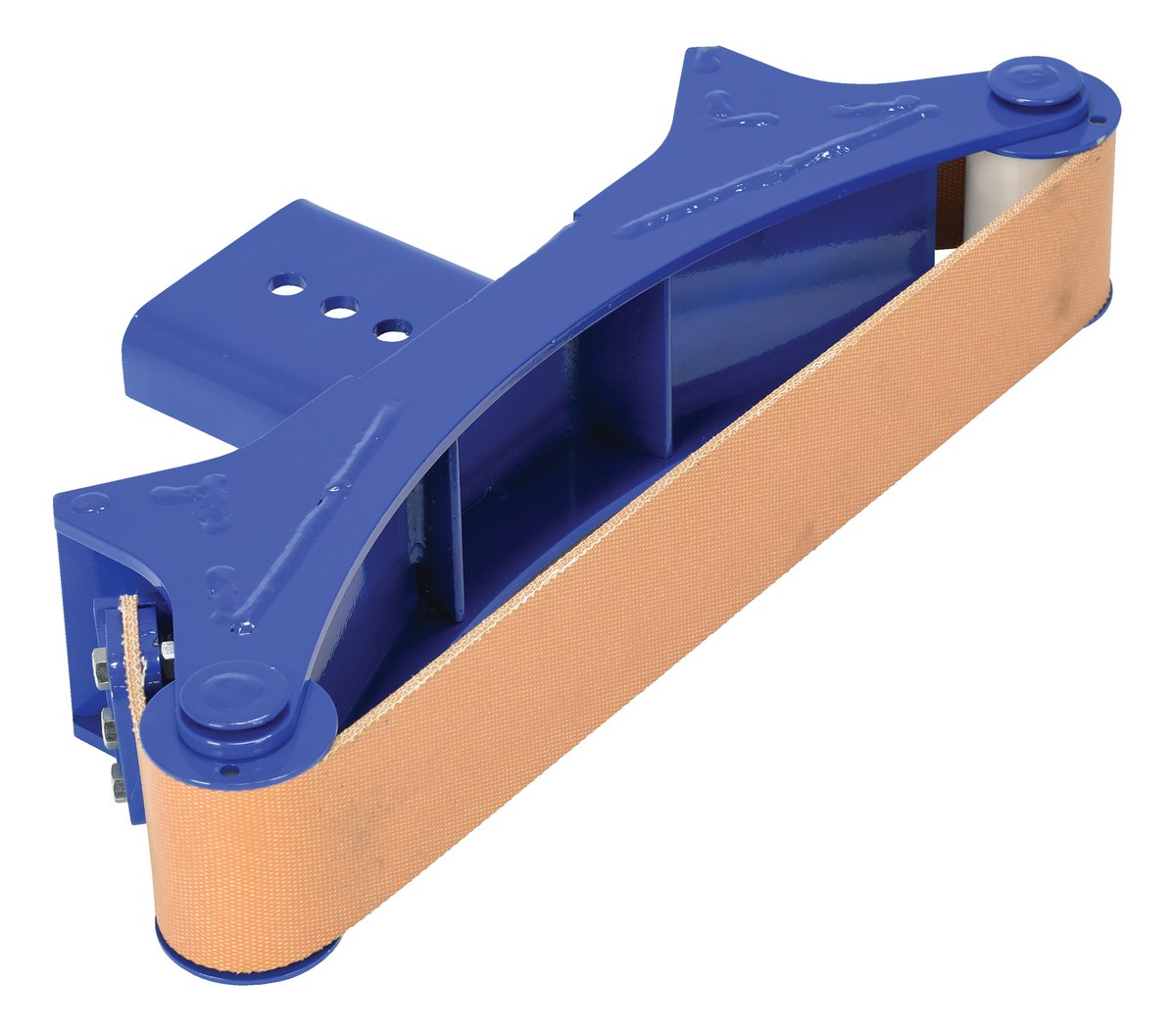

| LDS-B1 |  | 90 Days Limited Warranty | Steel Saddle Belt Attachment 2,000 Lb. Capacity For Drum Lifters Blue | Uniform Capacity (lb.): 2,000 Usable Width (in.): 16-1/4 | 28 | |

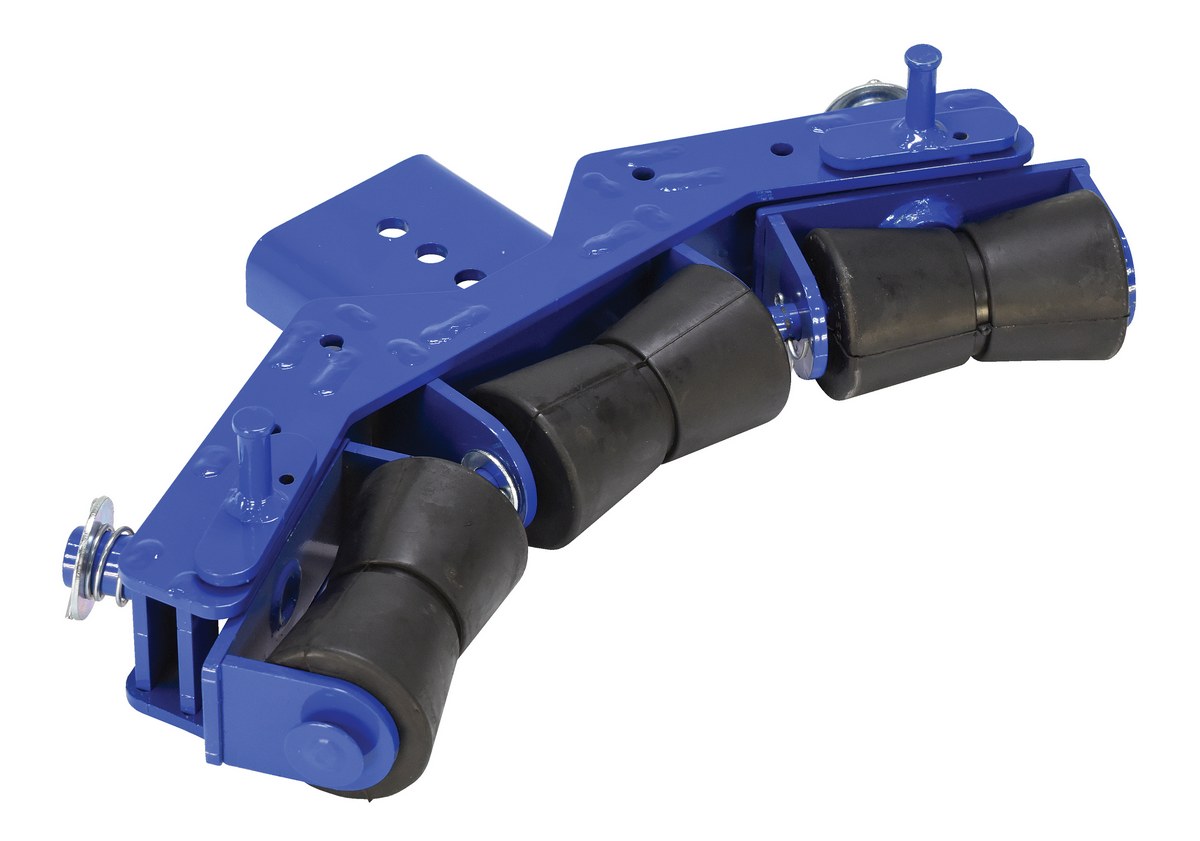

| LDS-R3 |  | 90 Days Limited Warranty | Steel Saddle Roller Attachment 1,000 Lb. Capacity For Drum Lifters Blue | Uniform Capacity (lb.): 1,000 Usable Width (in.): 16-1/16 | 28 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the purpose of the FMDL roller and belt units?
A: The roller and belt units create a softer surface when picking up drums. These units are ideal for drums that could potentially become scratched while moving the drum.
 |
|||||||||||||||||||||||||||||||||||||
