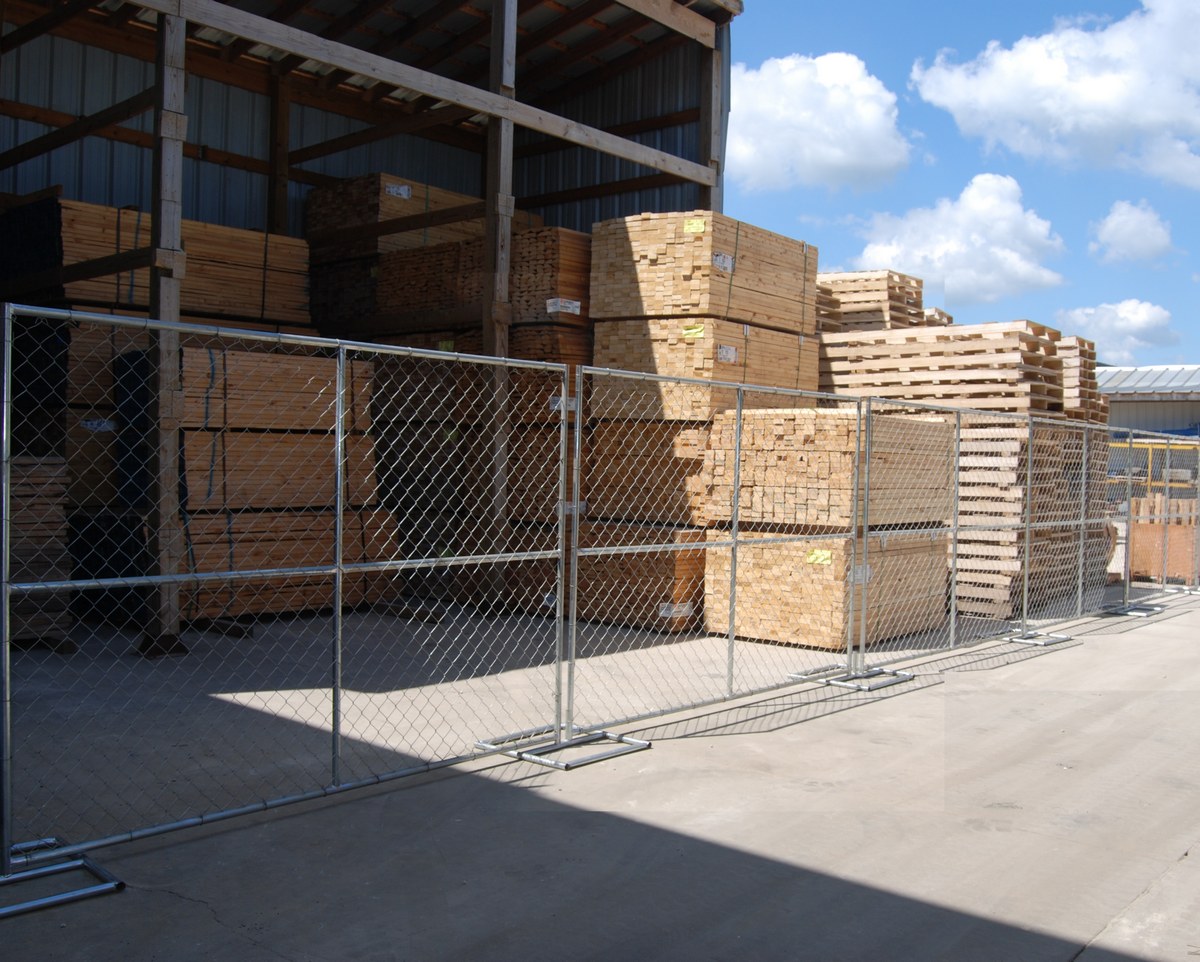

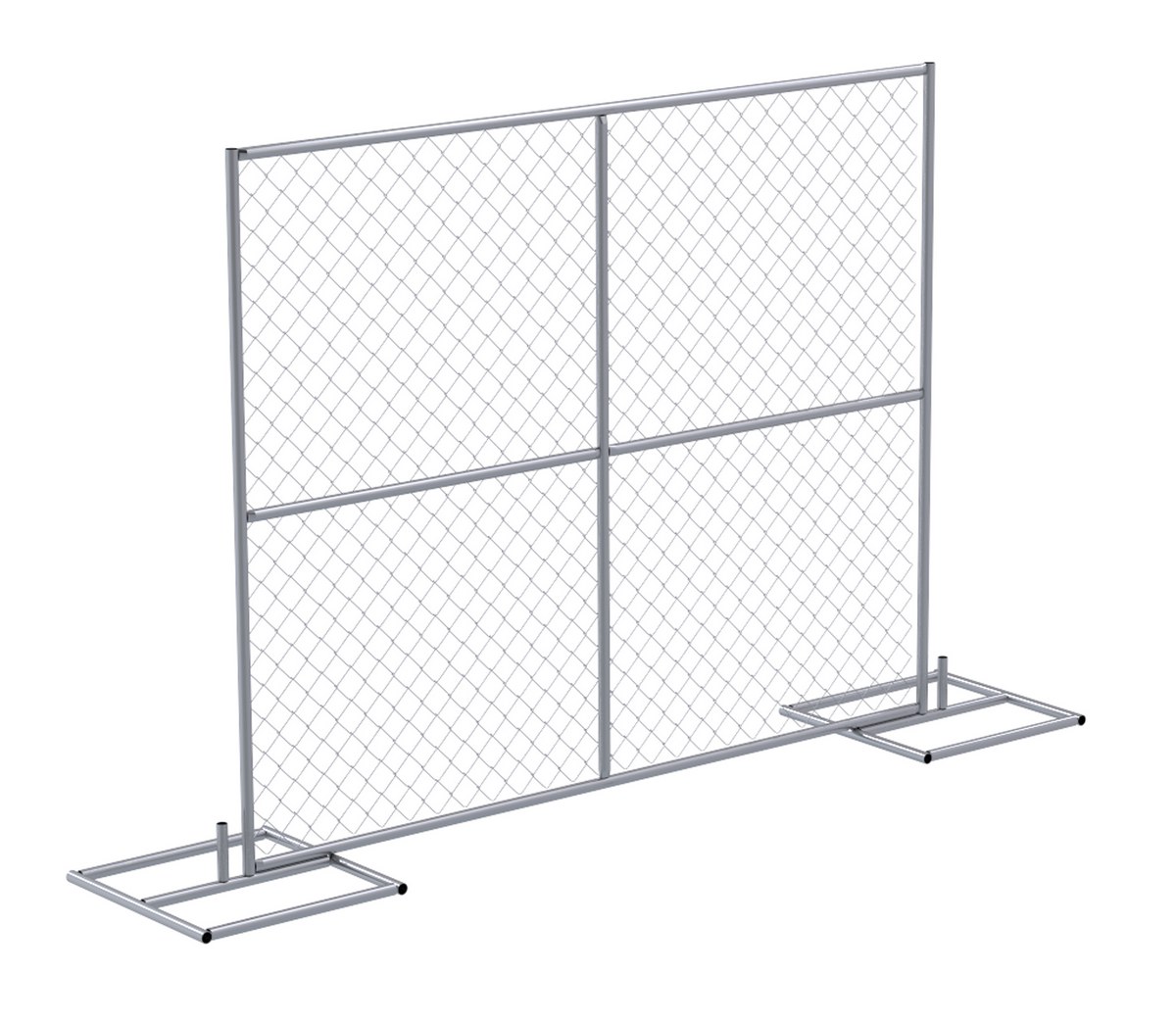

Galvanized Construction Barrier SystemsDesigned for use as a temporary construction safety barrier. Welded steel construction with a galvanized finish. Barrier panel sections are made from 1-1/4" diameter steel tubing and includes one vertical and one horizontal brace. Ten (10) gauge chain link fence is secured to barrier with steel ties. Chain link fence openings are 2-3/8" x 2-3/8". Base unit includes two receiver posts allowing for the connection of two panels. Connectors are used for securing two (2) panel sections together.
- Design temporarily secures job site from theft, hazard liability, and dumping
- Barrier panel section for construction safety barriers
- Includes one vertical and one horizontal brace
- Chain link fence is secured to barrier with steel ties
Self-Closing Steel Gates (Adjustable Width)
Crowd Control Interlocking Barriers
Aluminum Safety Railings
Steel Safety Railings w/ Welded BaseplateAdditional Models In This Family
HRAIL-CON
HRAIL-BASE
HRAIL-9072
HRAIL-PNL
HRAIL-9072
HRAIL-9072
HRAIL-A-9072
HRAIL-CON
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

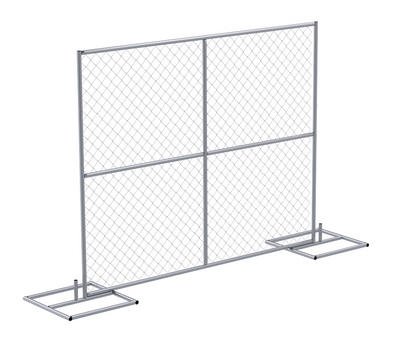

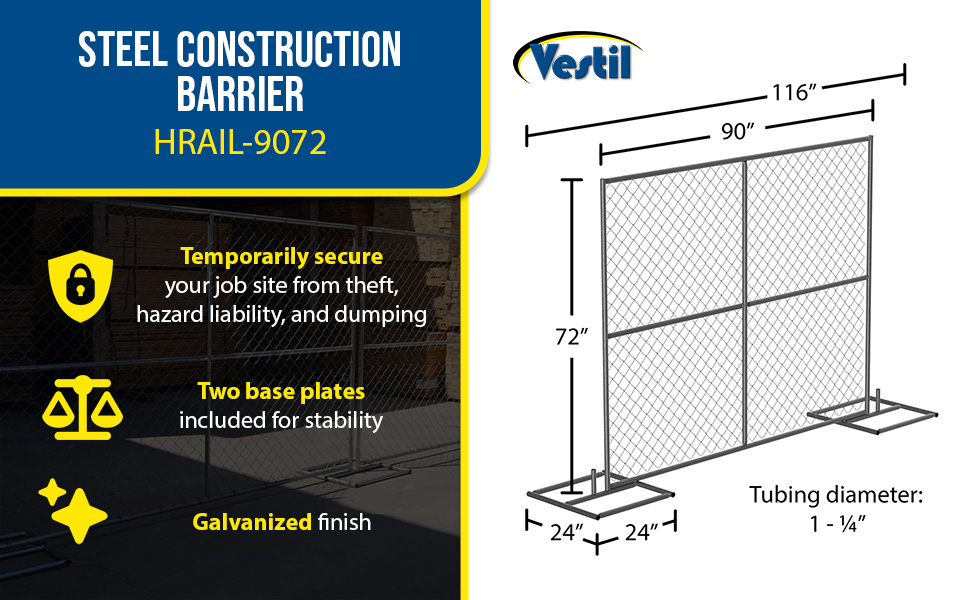

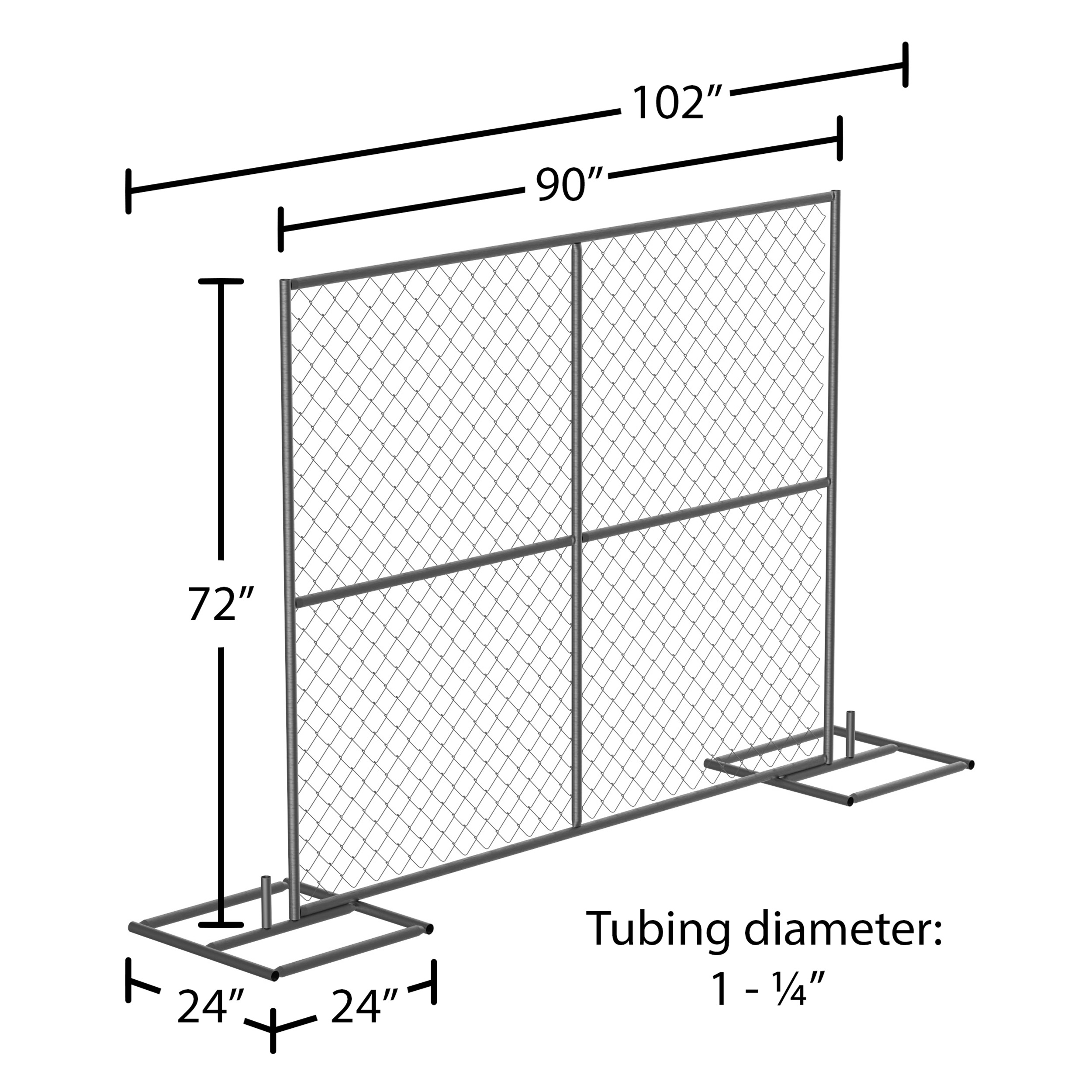

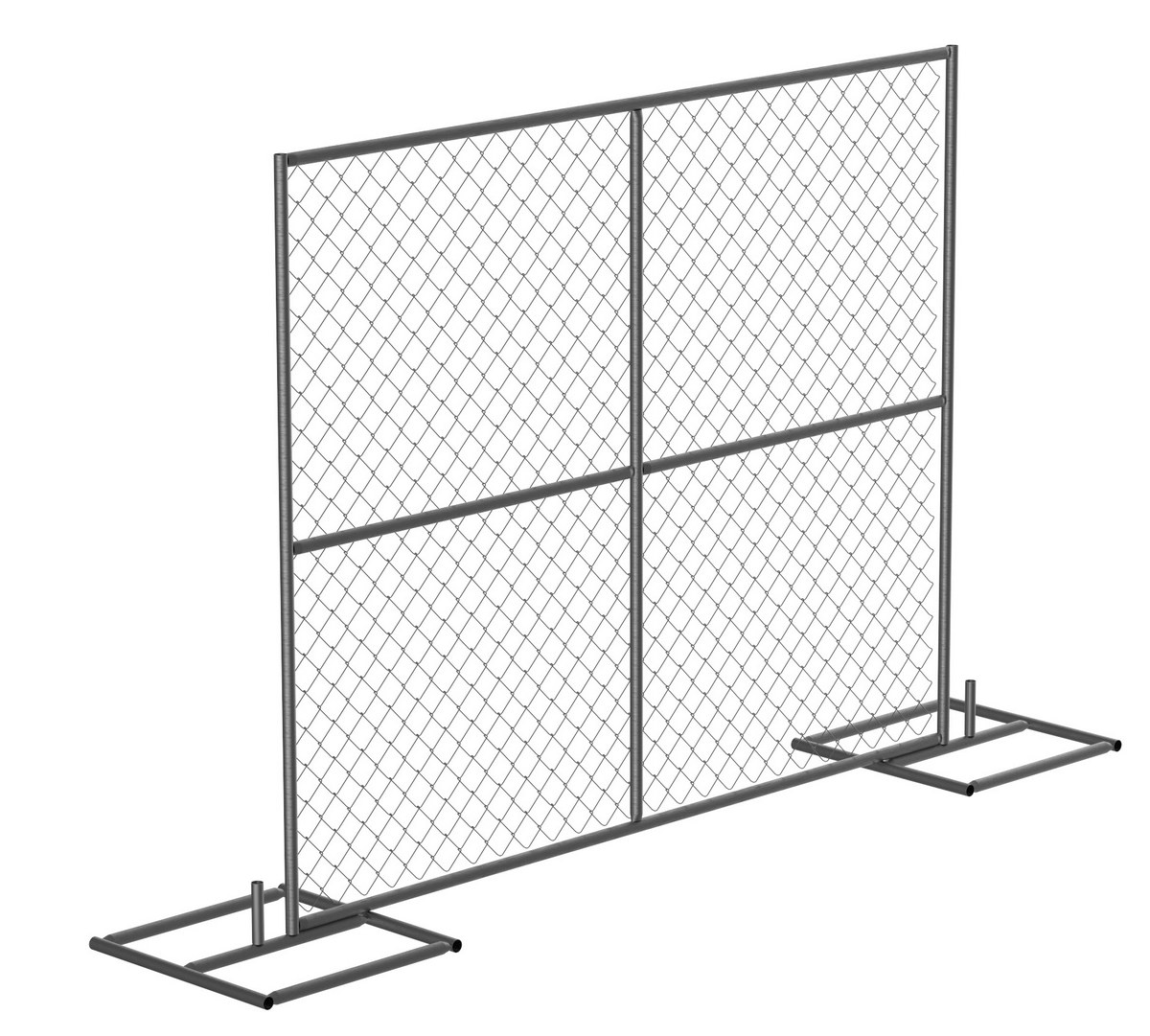

| HRAIL-9072 | | 90 Days Limited Warranty | Steel Construction Barrier System Silver | Panel and Base Tubing Diameter (in.): 1-1/4 Chain Link (Gauge): 10 | 104 | ||

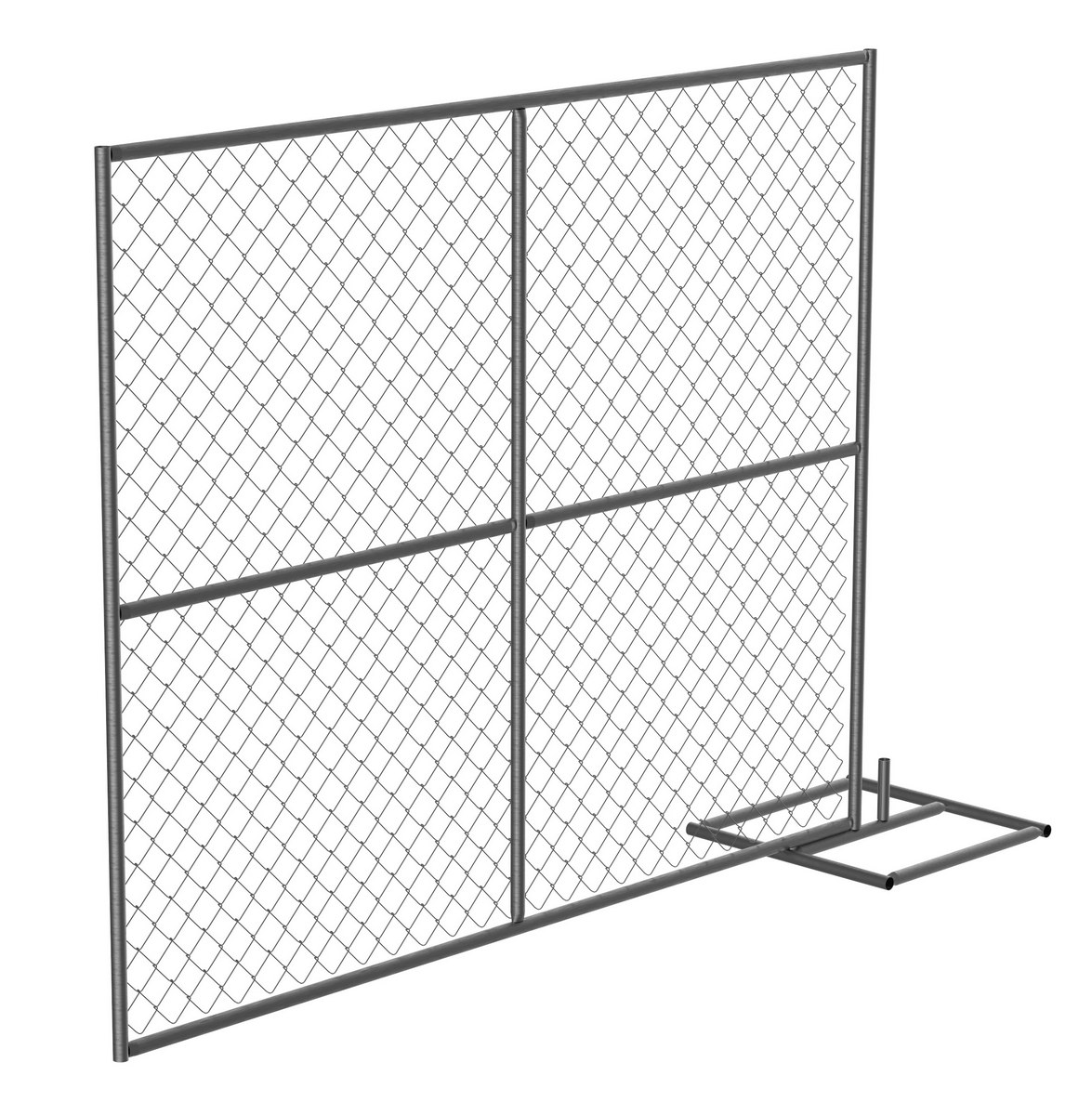

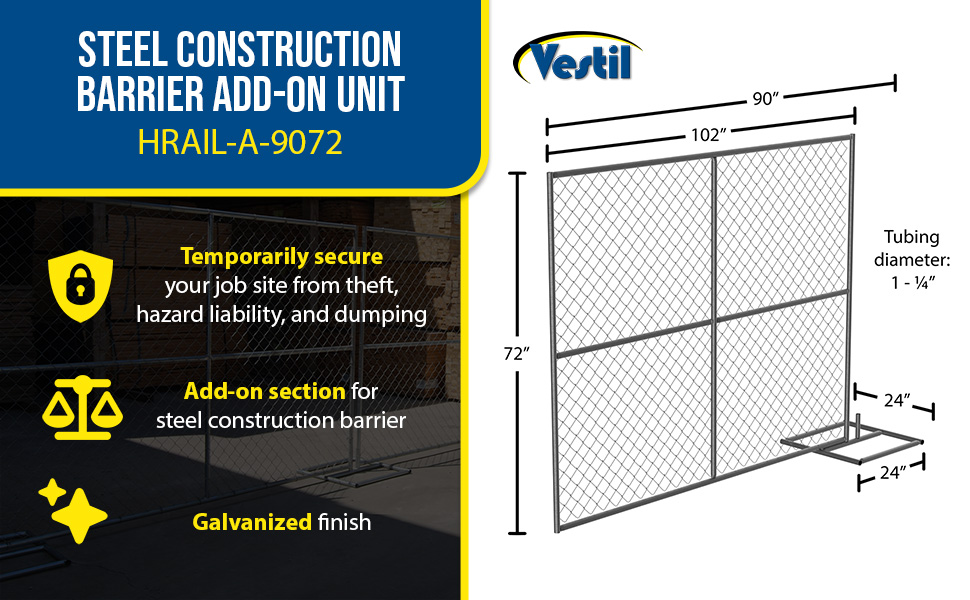

| HRAIL-A-9072 | POPULAR | | 90 Days Limited Warranty | Galvanized Steel Construction Safety Barrier Add On Unit For HRAIL-9072 | Panel and Base Tubing Diameter (in.): 1-1/4 Chain Link (Gauge): 10 | 115 | |

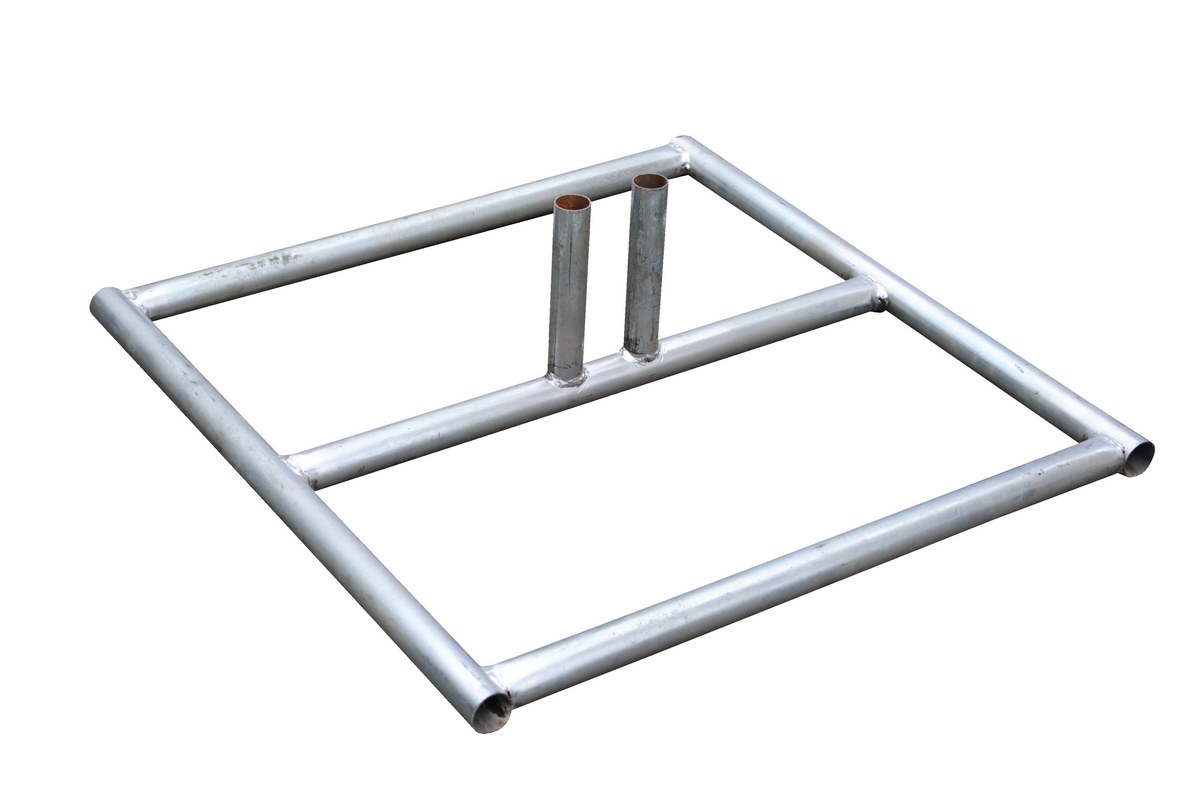

| HRAIL-BASE | | 90 Days Limited Warranty | Galvanized Steel Construction Safety Barrier Base For HRAIL Models | Base Tubing Diameter (in.): 1-1/4 Receiver Post (qty.): 2 | 7 | ||

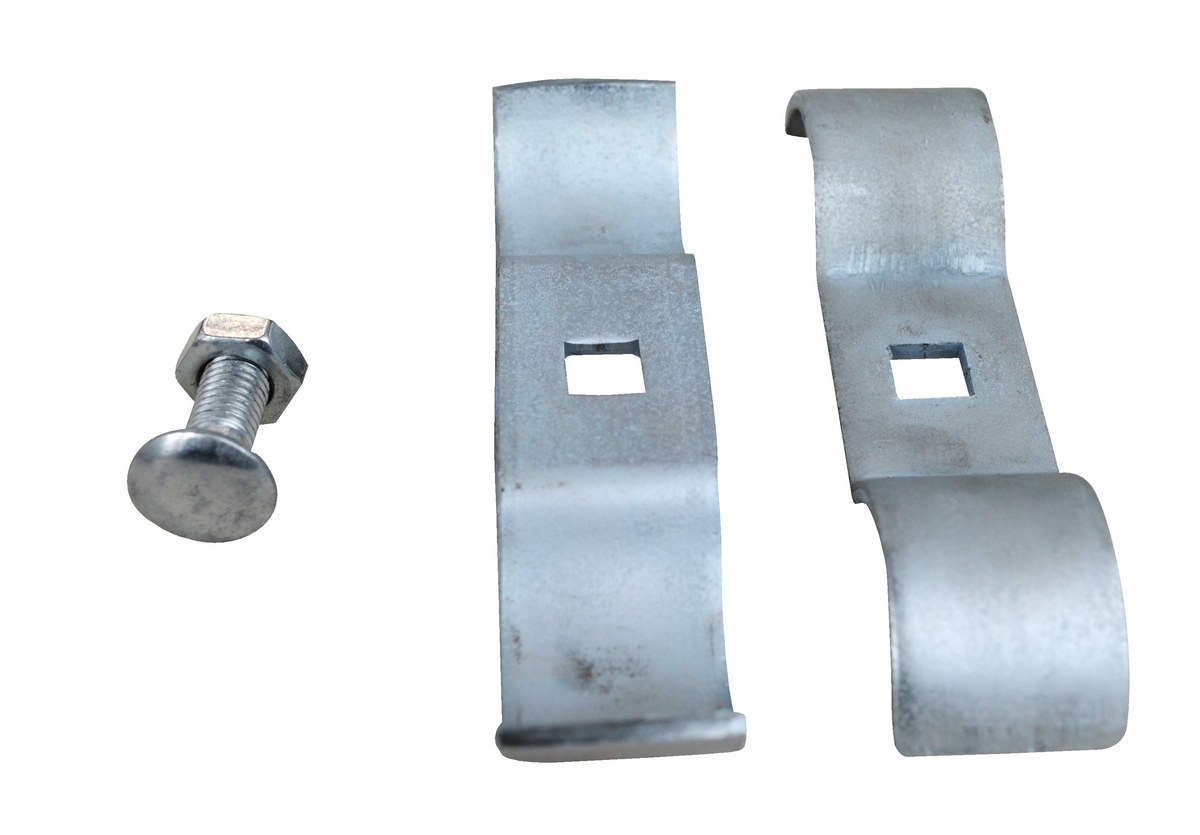

| HRAIL-CON | | 90 Days Limited Warranty | Galvanized Steel Construction Safety Barrier Connector For HRAIL Models | Recommended Use: For use with HRAIL Models Application: Connector Bracket | 3 | ||

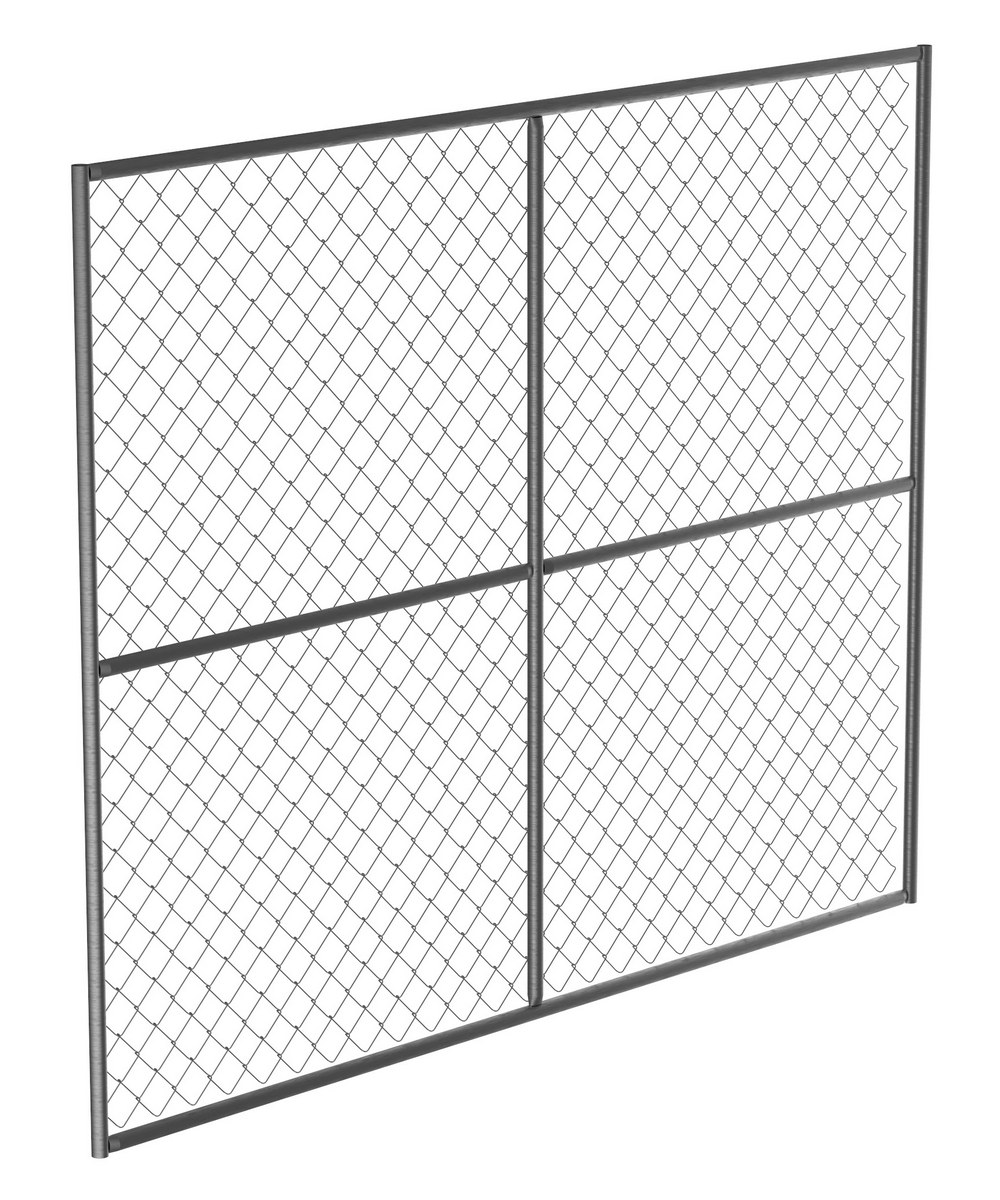

| HRAIL-PNL | | 90 Days Limited Warranty | Galvanized Steel Construction Safety Barrier Panel Unit 91"L x 72"H For HRAIL Models | Panel Tubing Diameter (in.): 1-1/4 Chain Link (Gauge): 10 | 111 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Tubing Diameter (in.): 1-1/4
Receiver Post (qty.): 2
Base Tubing Diameter (in.): 1-1/4
Receiver Post (qty.): 2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Recommended Use: For use with HRAIL Models
Application: Connector Bracket
Recommended Use: For use with HRAIL Models
Application: Connector Bracket
Unit:
Size: W x L x H
Weight:
Limited Warranty
Panel Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Panel Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Is there a temporary gate for this fence?
A: We do not have a gate for this barrier system.
Q: What is the inside diameter of the base tube on the HRAIL-BASE?
A: The inside diameter of the HRAIL-BASE is 15/16". The outside diameter is 1.10".
Q: I saw the pipe size this fits is 1-1/4". That translates into 1-5/8 outside diameter correct?
A: 1.25 L x 5.25 W x 1.125 H and weight is 2 lbs. The OD of the pipe this connector fits on is 1 1/4 in. The bold that holds the connector together can be adjusted, so I believe it will work with a 1 5/8 in OD, but it is designed for the 1 1/4 in OD round.
Q: Does this item came already assembled or does it come in separate pieces?
A: That piece is already assembled. If you need the whole "construction barrier system" it's listed under HRAIL-9072 and will need easy assembly.
 |
||||||||||||||||||||||||||||||||
Galvanized Construction Barrie... |
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
Designed for use as a temporary construction safety barrier. Welded steel construction with a galvanized finish. Barrier panel sections are made from 1-1/4" diameter steel tubing and includes one vertical and one horizontal brace. Ten (10) gauge chain link fence is secured to barrier with steel ties. Chain link fence openings are 2-3/8" x 2-3/8". Base unit includes two receiver posts allowing for the connection of two panels. Connectors are used for securing two (2) panel sections together.
|
||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
