Cargo Bars

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

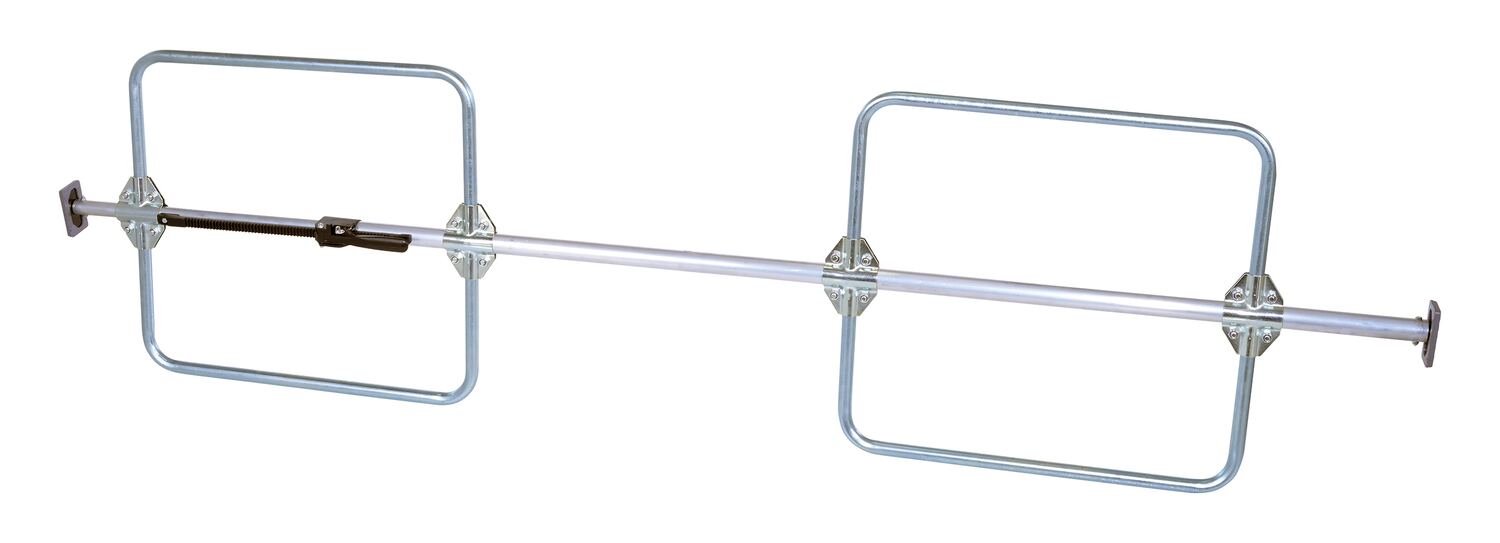

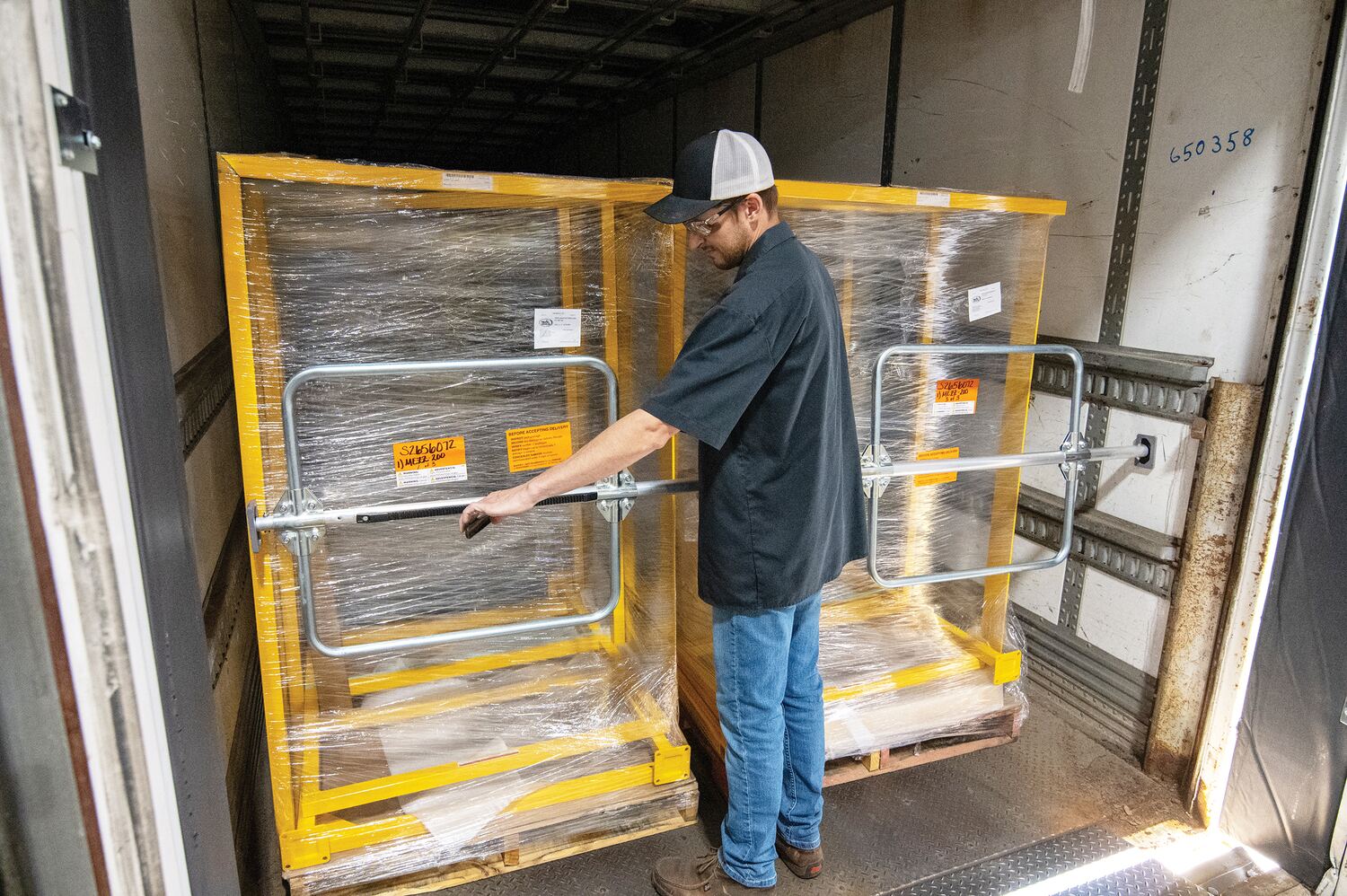

CB-H7-5_A.jpg CB-H7-5_B.jpg CB-H7-5_C.jpg CB-H7-5_D.jpg
CB-H7-5_E.jpg CB-H7-5_F.jpg CB-H7-5_G.jpg CB-H7-5_H.jpg

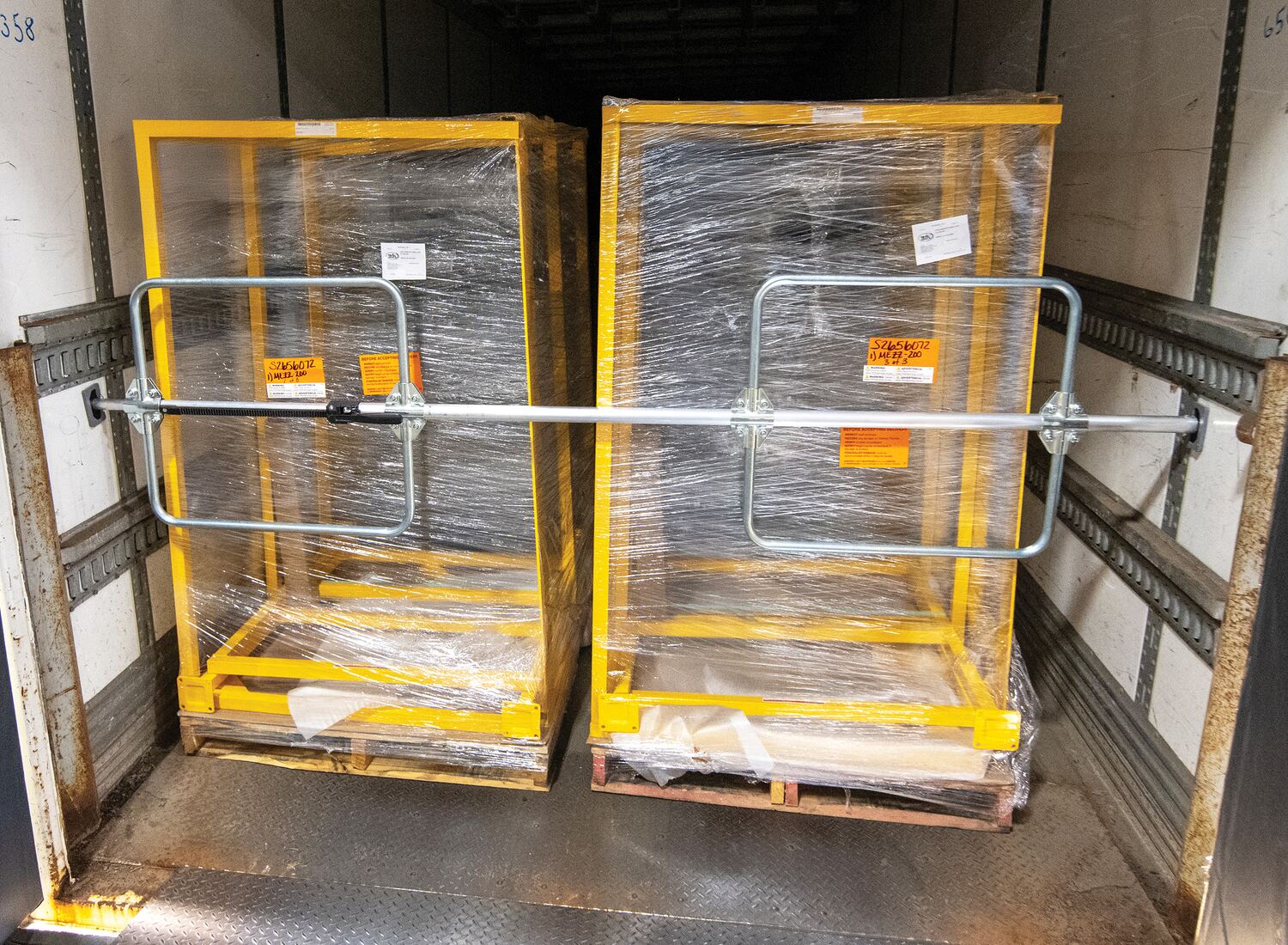

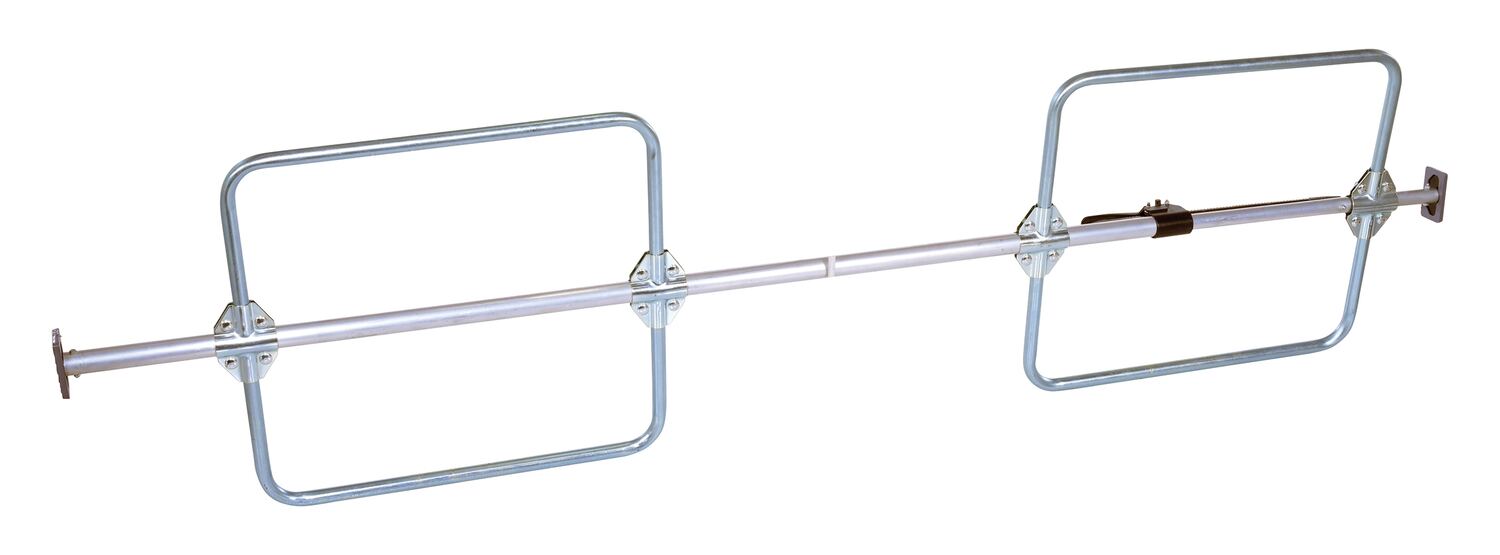

Cargo Bars

model: CB-H7-5



Cargo Bars

model: CB-H7-5

Featured Loading Dock Equipment


Pallet Cargo Decker
Aluminum Wheel Chocks
Dock Seal Draft Blockers
Dock Gates
Clearance Bars
Multi-Purpose Ramps
Trailer Stabilizing Jacks
Aluminum Mini Dockplates
Trailer Crane Bumpers
model chart
Print Friendly
Cargo Bars
SERIES: CB,EB,CL,CH
  • Keep trailer contents in place -- eliminate damaged goods

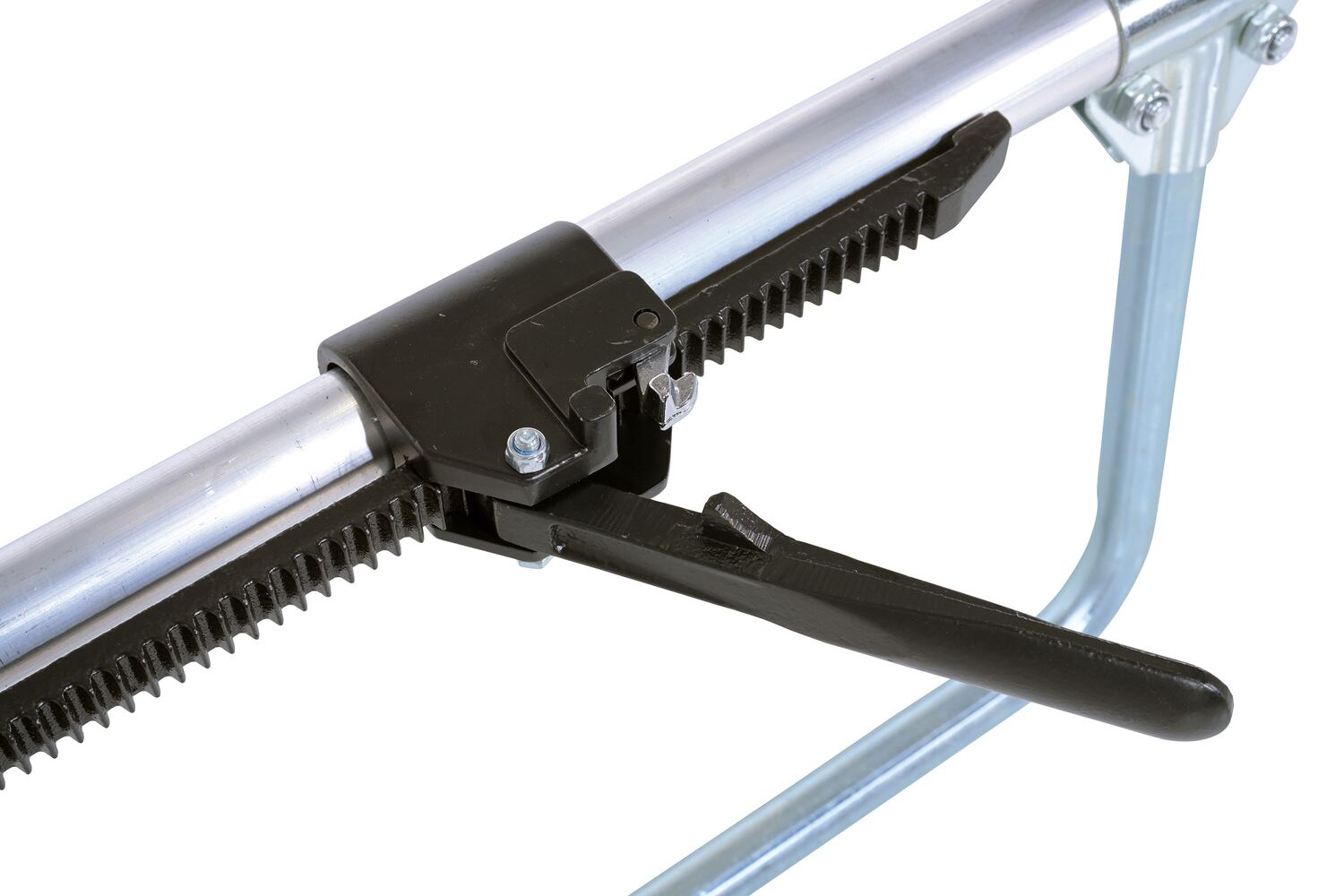

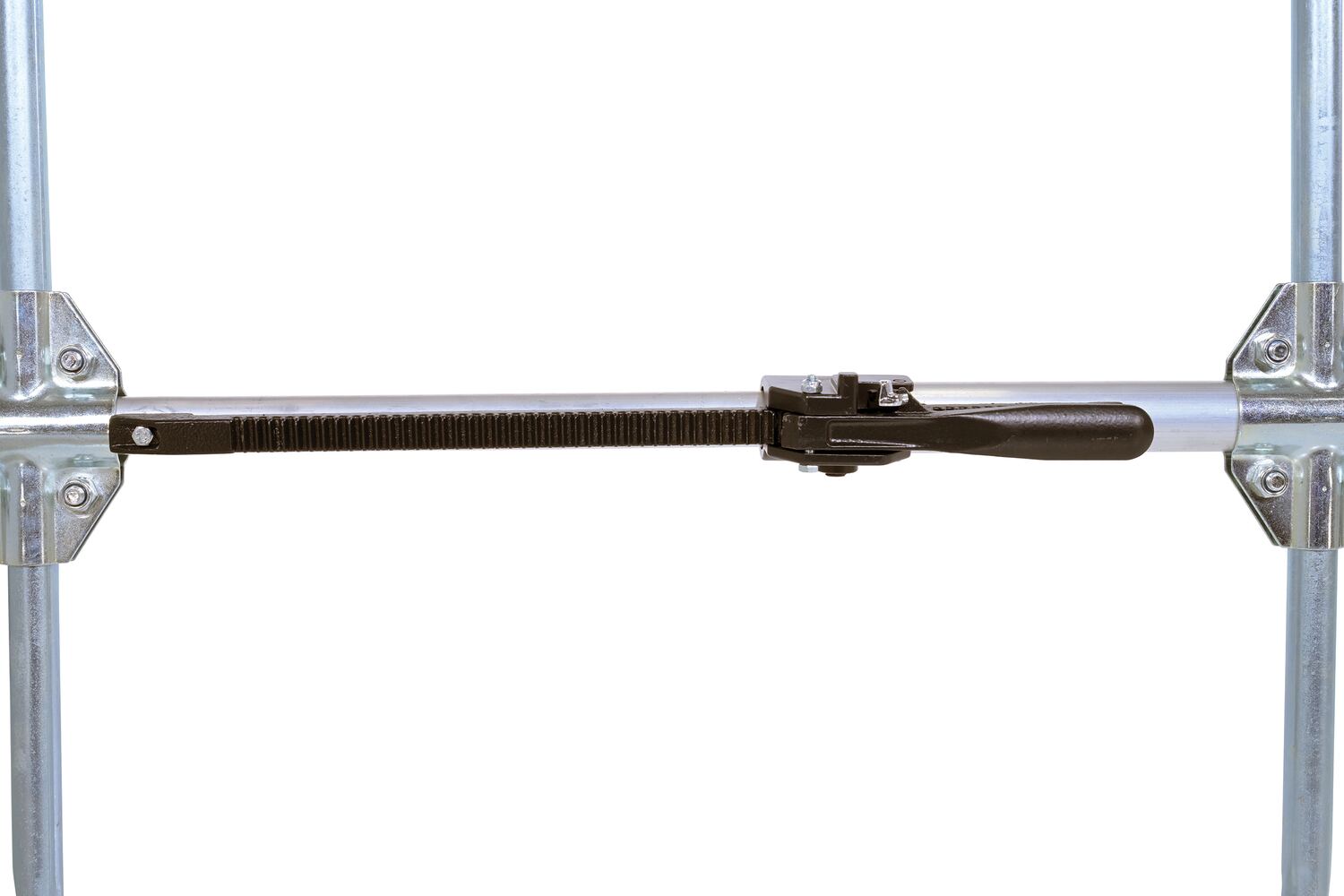

  • Simple mechanical lock - will not vibrate loose

During transport, keep trailer contents securely in place with these easy to use Cargo Bars. Constructed of 1-1/2." square tubing, unless specified. Wall construction is lightweight, yet extremely strong. Square articulating steel end plates feature rubber pads for positive gripping action. End plates measure 4" x 4" on models CL-15, CL-16, CL-17 & CL-20. End plates measure 4" x 2-3/8" on model CB-5, CB-7 & CB-7-S and 3-3/4." x 3-3/4." on model CL-18. End plates measure 2-3/8" x 3" on model CB-PU-3. Bars fit between trailer walls.

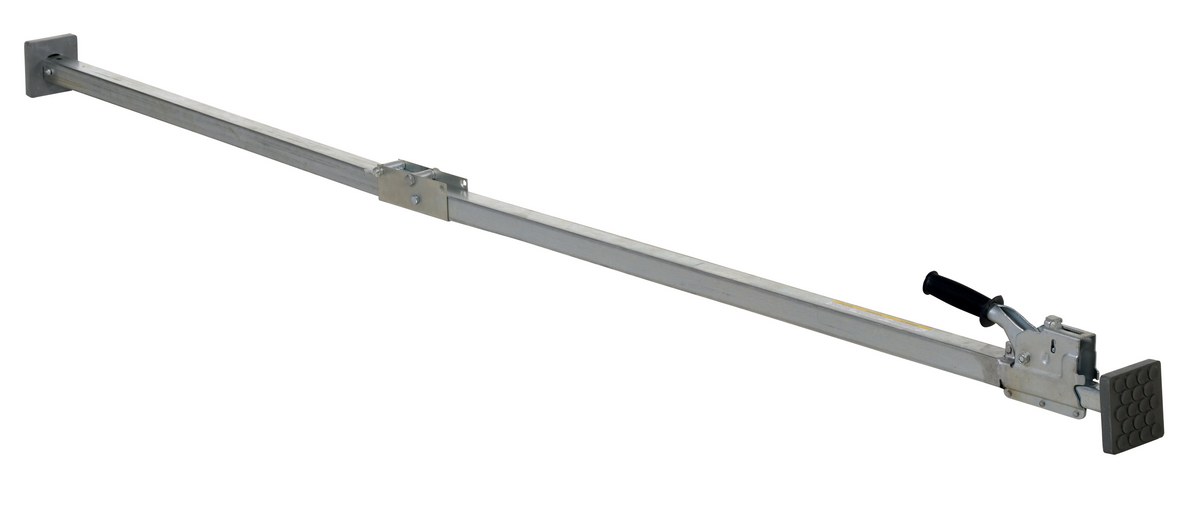

model CL-17 shown in use

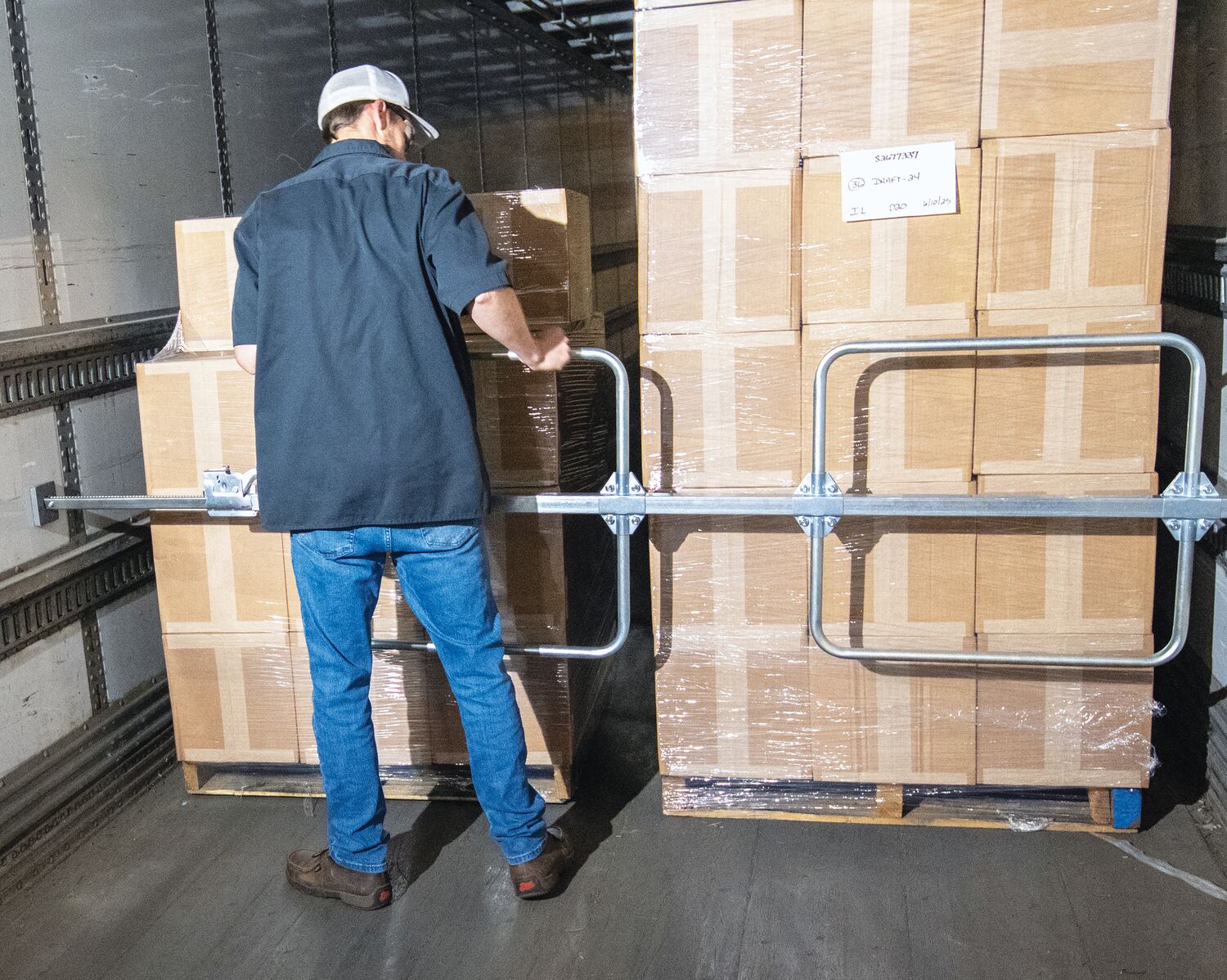

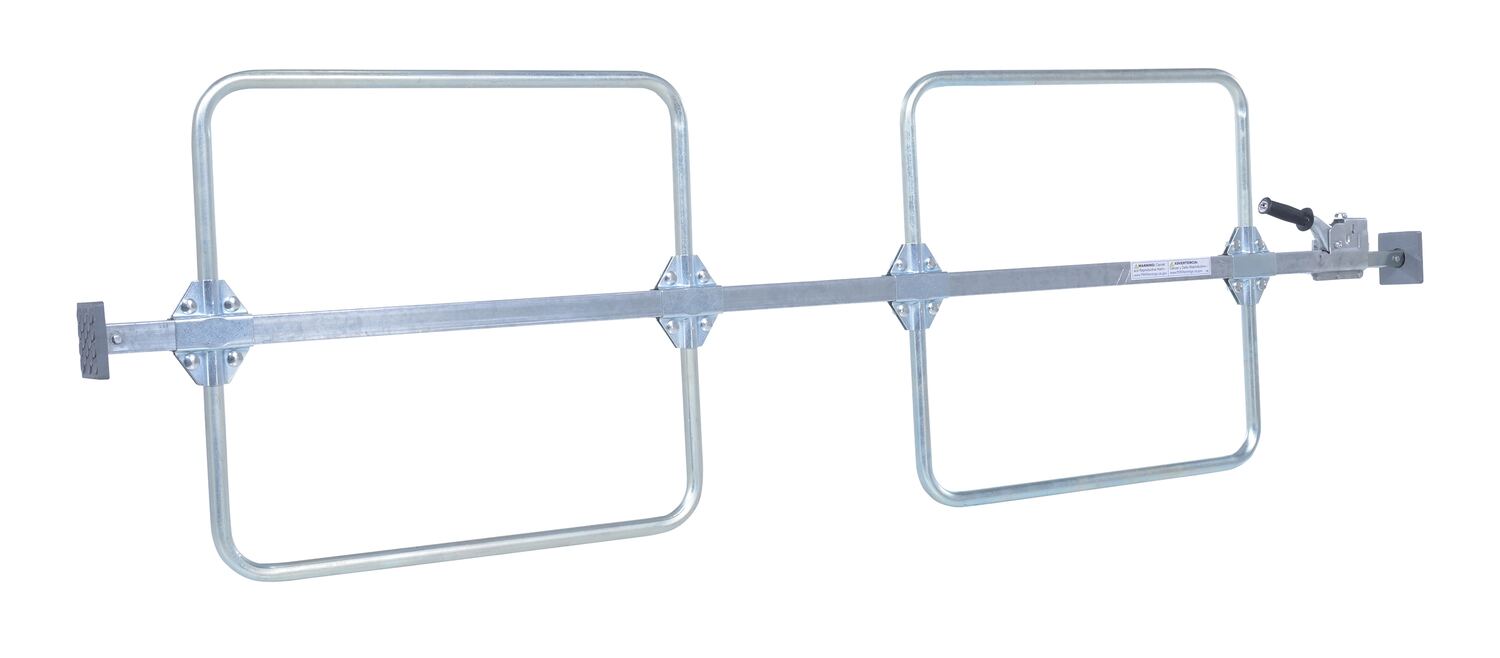

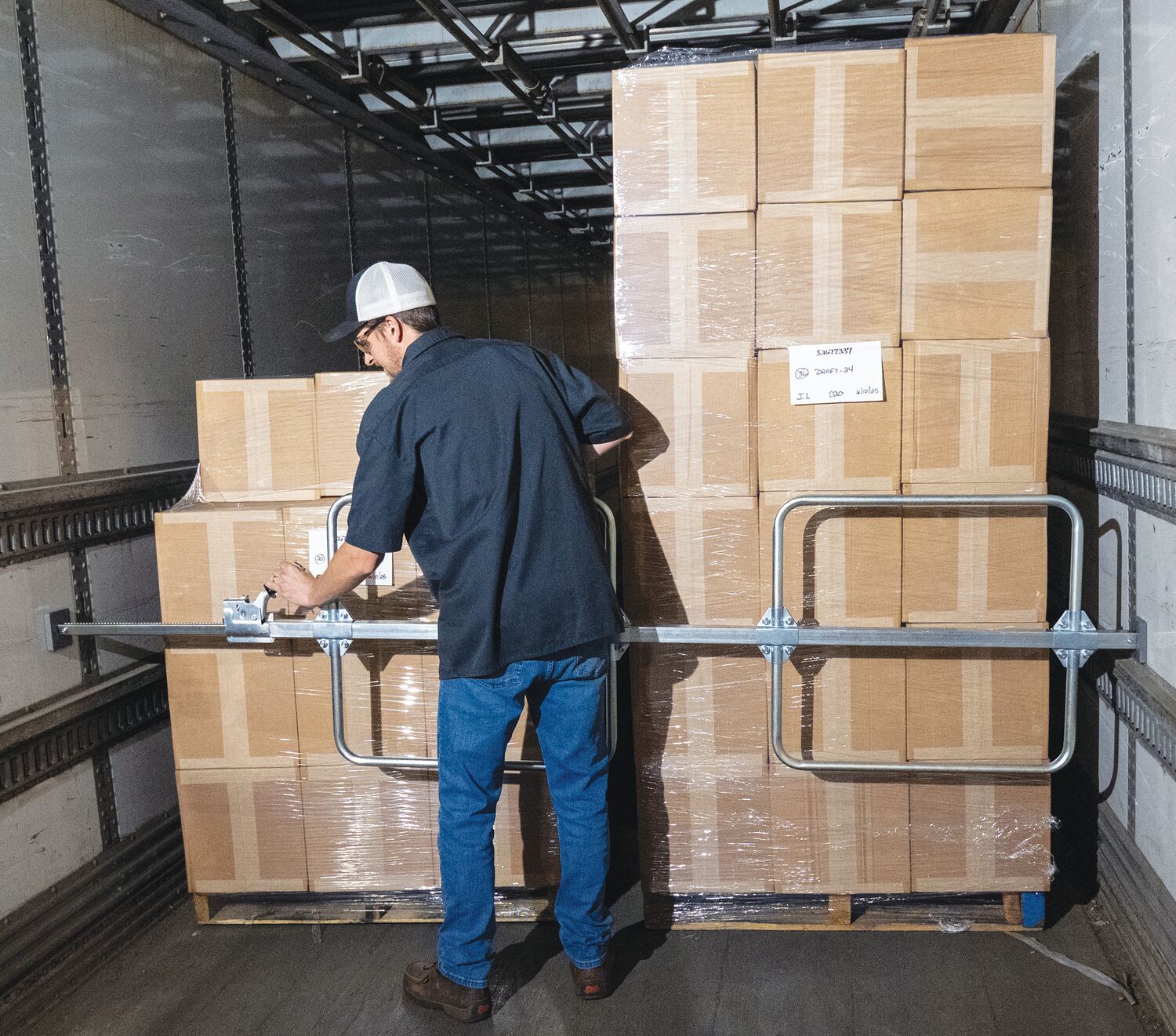

CL-H3-16Cargo Bars w/ Hoops
Sometimes trailers can't be packed tight enough to stop items from jostling, which can lead to unnecessary damage and high replacement costs. Here to put an end to those problems even before they start; is a cargo bar with hoops. The hoops provide an upper and lower level of security in addition to the horizontal presence from the cargo bar itself, while the cargo bar is expandable to fit perfectly into the space parameters of the situation. End plate is rubber padded for gripping action. Assembly is required, but hardware is included!

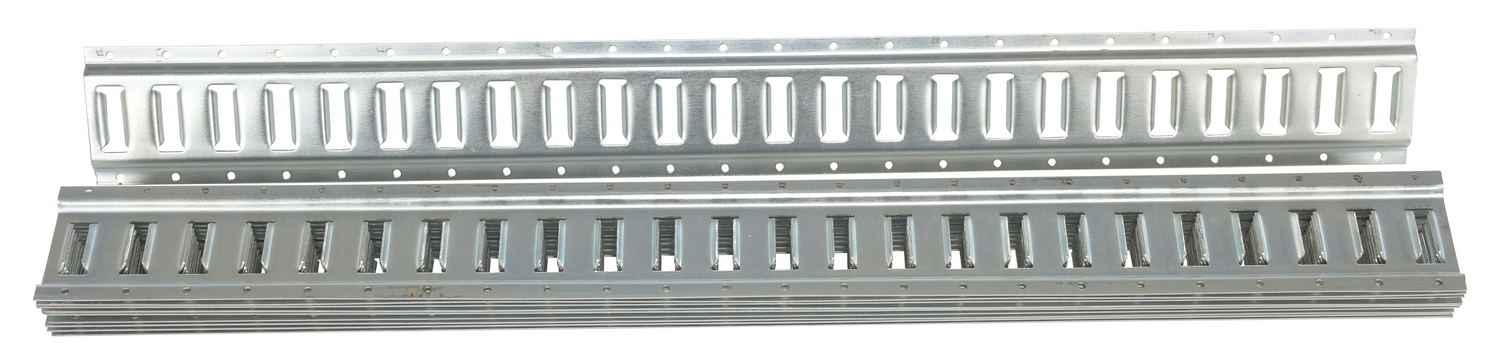

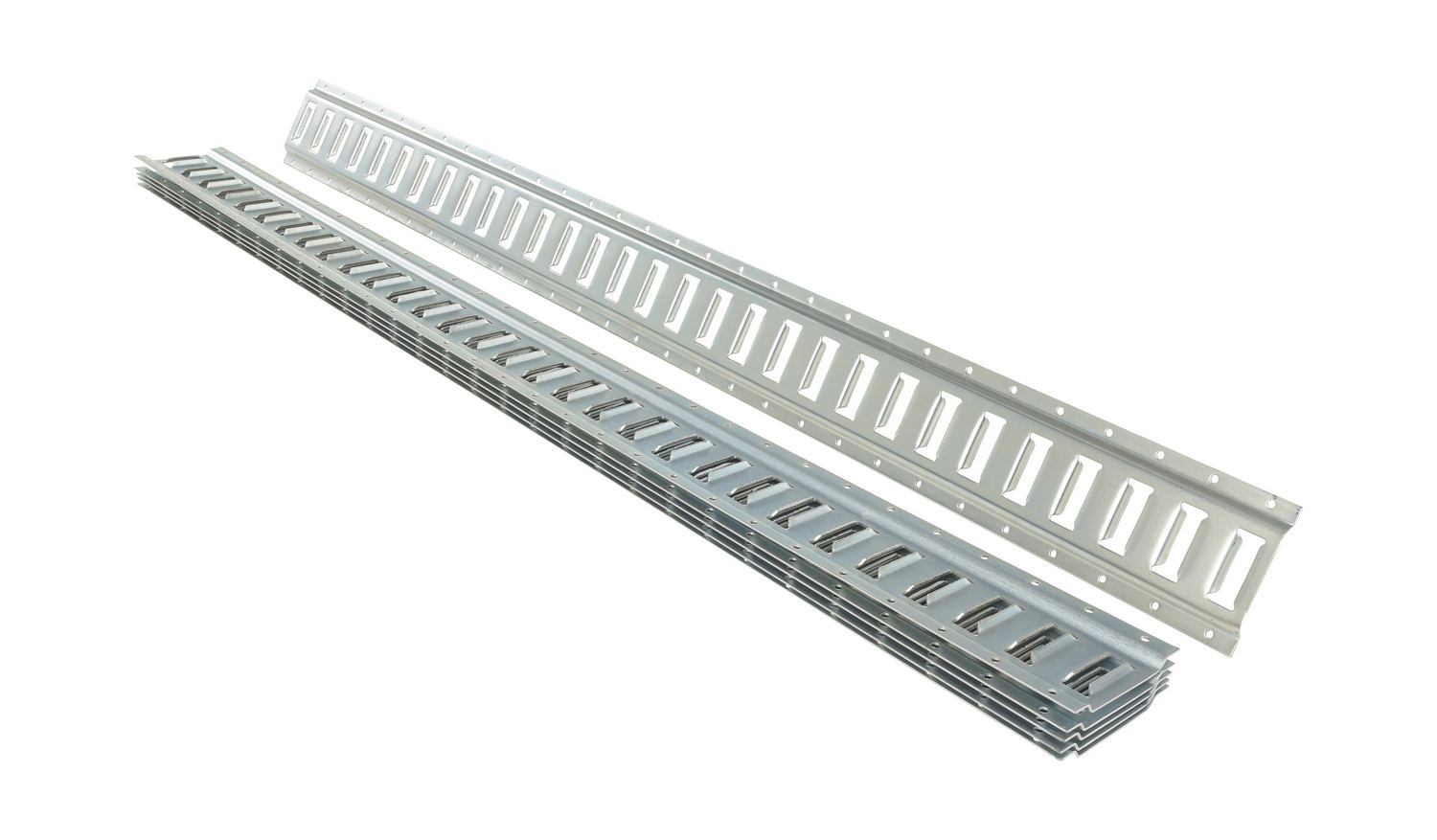

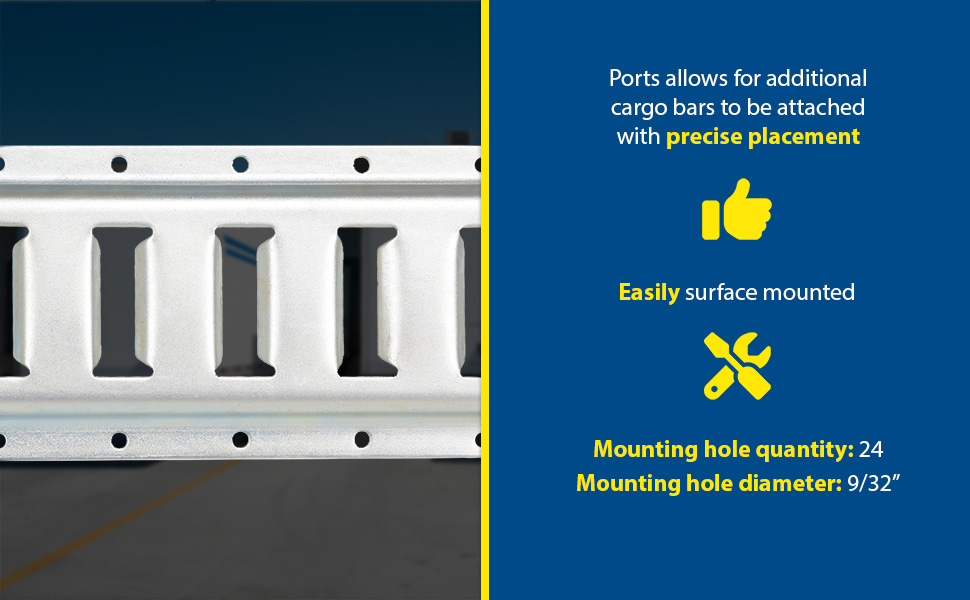

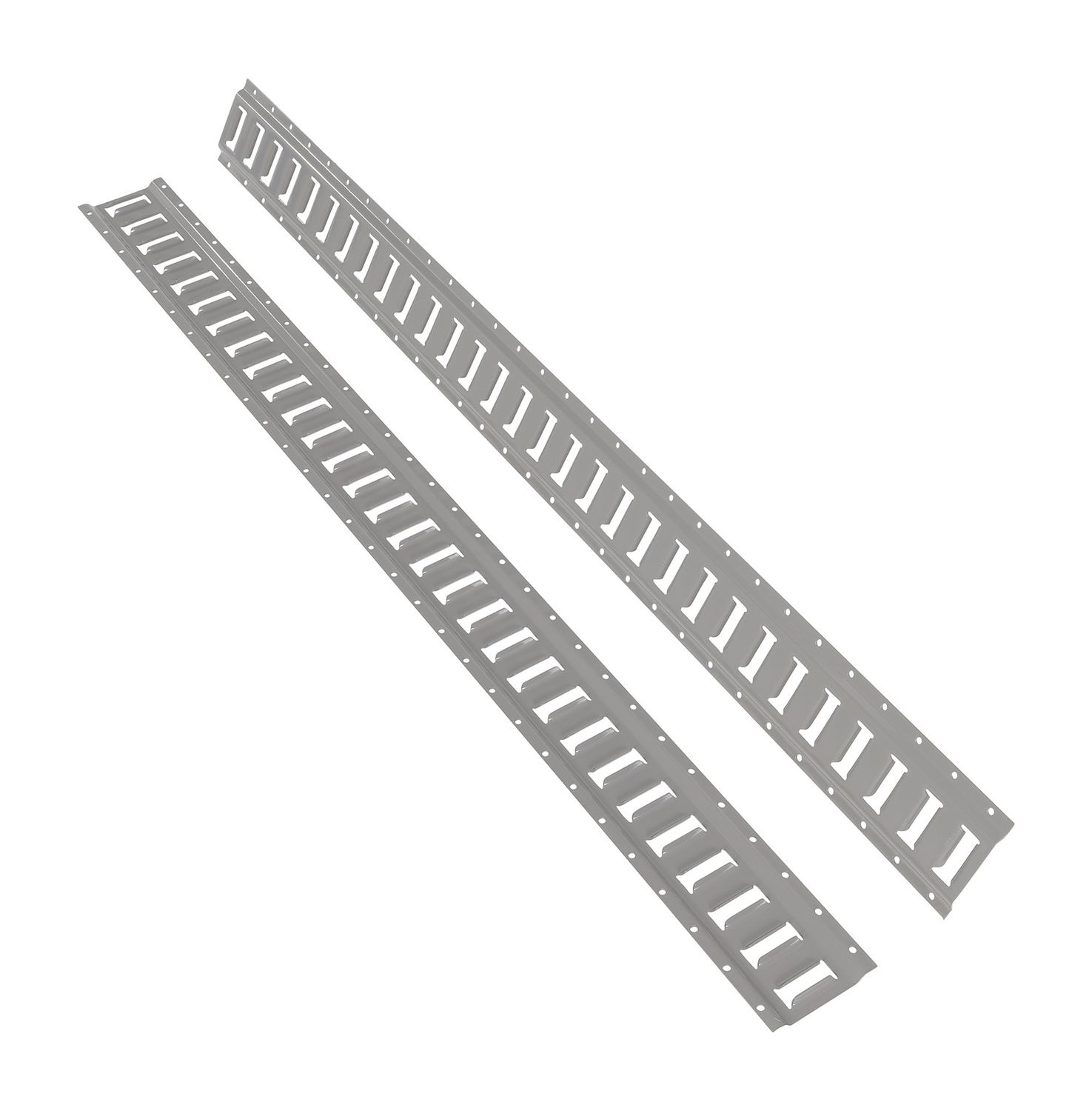

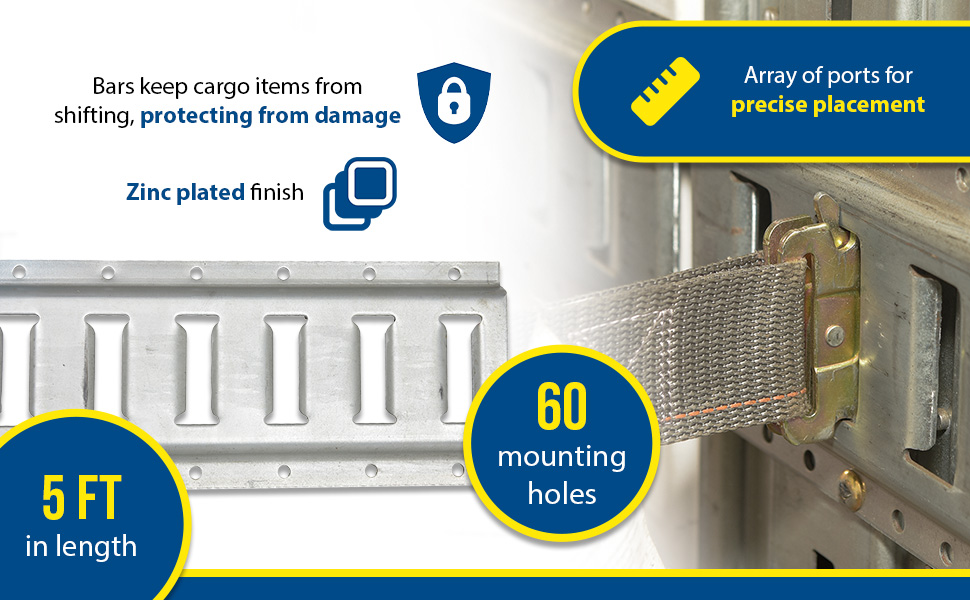

E-TRACK:
The E-track is a great benefit to shipping and cargo loads. With a steel construction the track allows additional bars to become attached to it. Once, the additional bars are in place the shifting of items becomes minimized. The track design lets the user choose from an array of ports for precise placement. E-TRACK Cargo Bar Assist Tool also available.

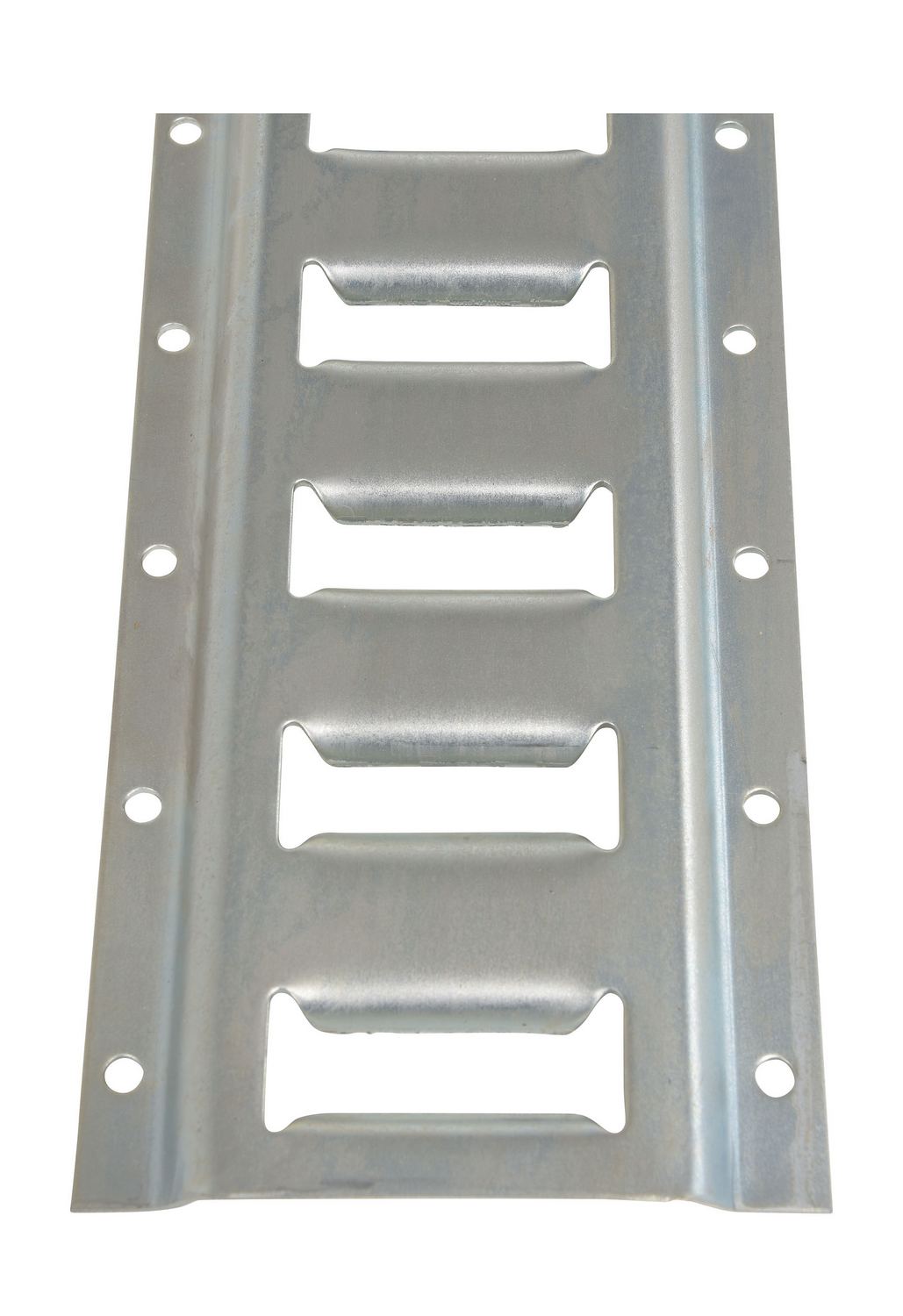

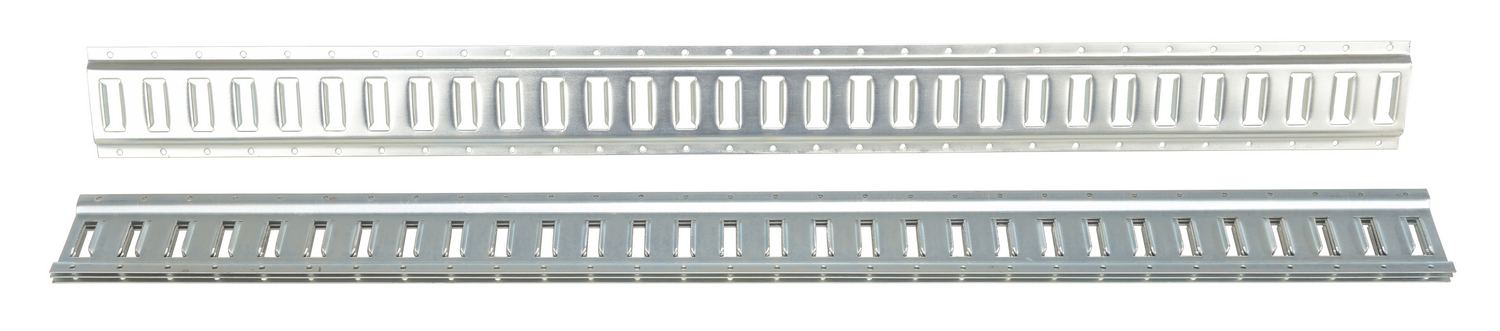

E-TRK-5-ZN-4PK_C.jpg EB-102_C.jpg
  • Keep trailer contents in place -- eliminate damaged goods
  • Simple mechanical lock - will not vibrate loose

During transport, keep trailer contents securely in place with these easy to use Cargo Bars. Constructed of 1-1/2." square tubing, unless specified. Wall construction is lightweight, yet extremely strong. Square articulating steel end plates feature rubber pads for positive gripping action. End plates measure 4" x 4" on models CL-15, CL-16, CL-17 & CL-20. End plates measure 4" x 2-3/8" on model CB-5, CB-7 & CB-7-S and 3-3/4." x 3-3/4." on model CL-18. End plates measure 2-3/8" x 3" on model CB-PU-3. Bars fit between trailer walls.


model CL-17 shown in use

CL-H3-16Cargo Bars w/ Hoops
Sometimes trailers can't be packed tight enough to stop items from jostling, which can lead to unnecessary damage and high replacement costs. Here to put an end to those problems even before they start; is a cargo bar with hoops. The hoops provide an upper and lower level of security in addition to the horizontal presence from the cargo bar itself, while the cargo bar is expandable to fit perfectly into the space parameters of the situation. End plate is rubber padded for gripping action. Assembly is required, but hardware is included!

E-TRACK:
The E-track is a great benefit to shipping and cargo loads. With a steel construction the track allows additional bars to become attached to it. Once, the additional bars are in place the shifting of items becomes minimized. The track design lets the user choose from an array of ports for precise placement. E-TRACK Cargo Bar Assist Tool also available.

E-TRK-5-ZN-4PK_C.jpg EB-102_C.jpg

Other Cargo Restraints

 Cargo Strapping Quilted Moving Pads Inflatable Dunnage Bags Pallet Cargo Decker

Additional Models In This Family
view entire Image Gallery

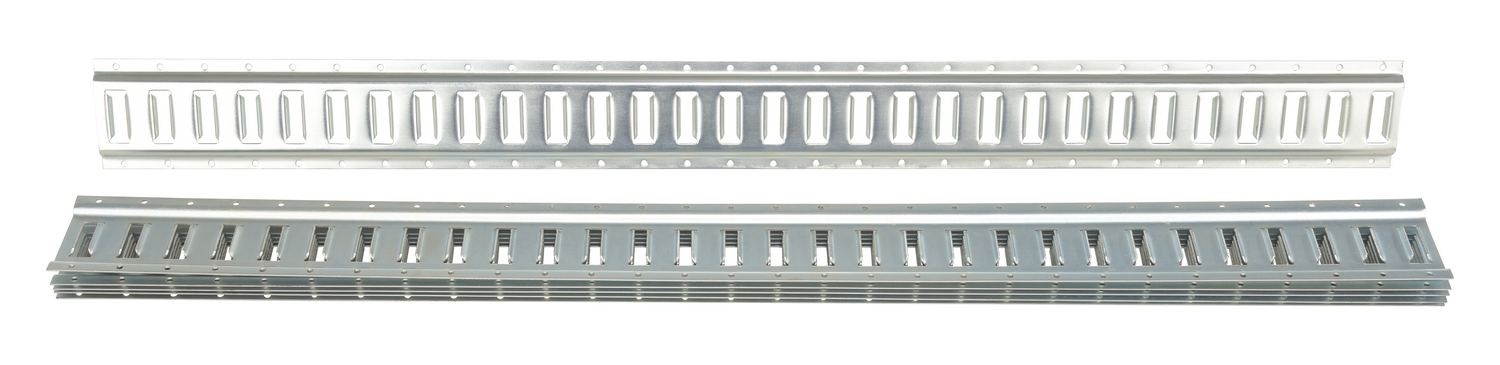

E-TRK-5-ZN-6PK

E-TRK-5-ZN-6PK

E-CLIP-W

E-CLIP-W

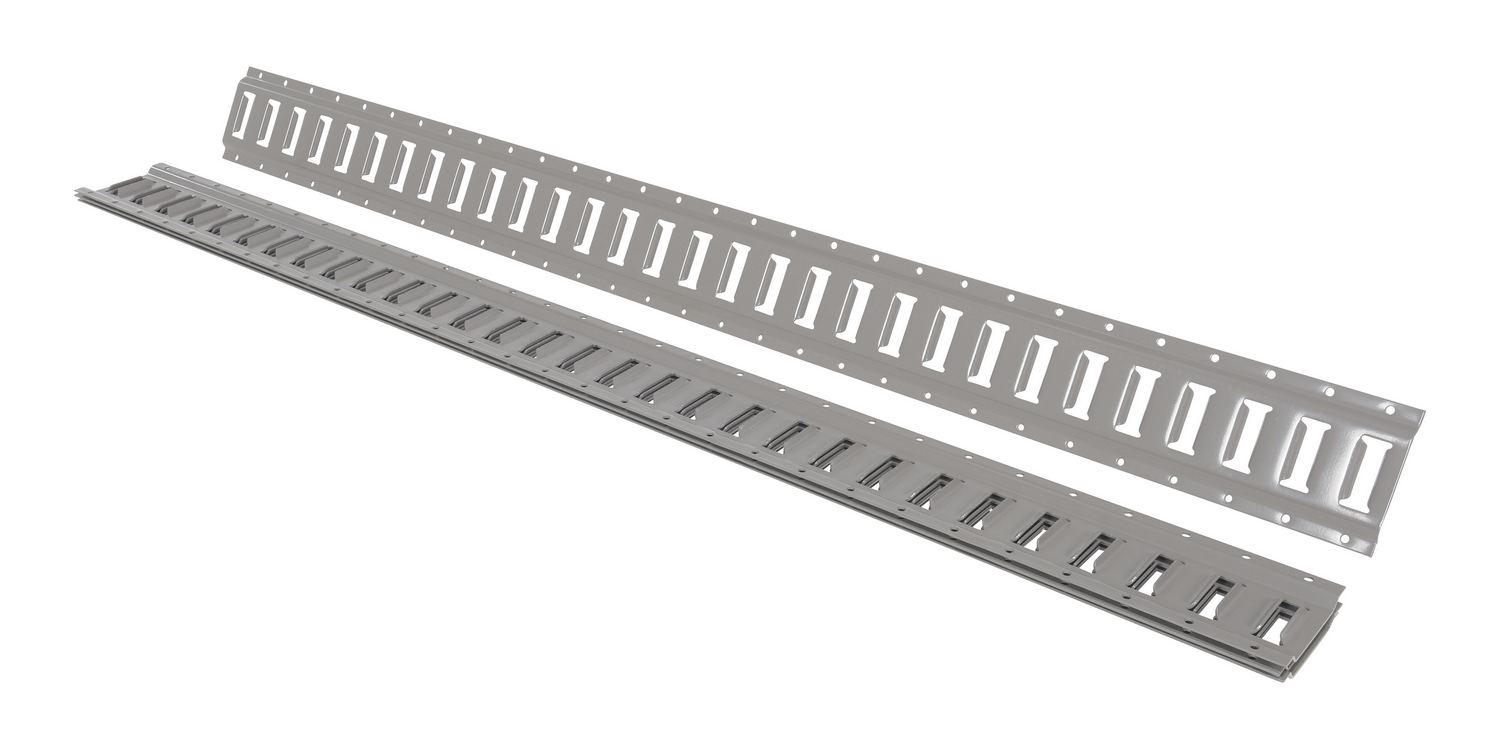

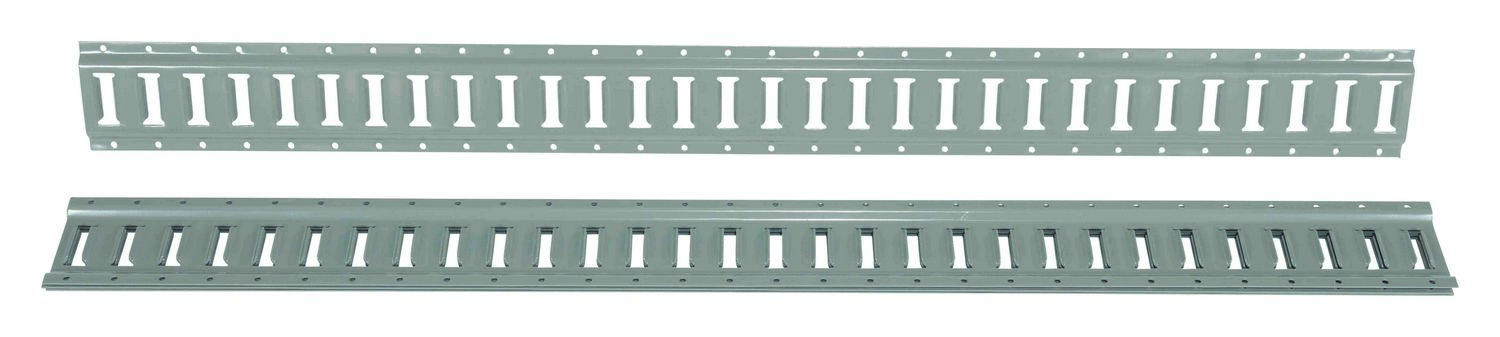

E-TRK-5-GY-4PK

E-TRK-5-GY-4PK

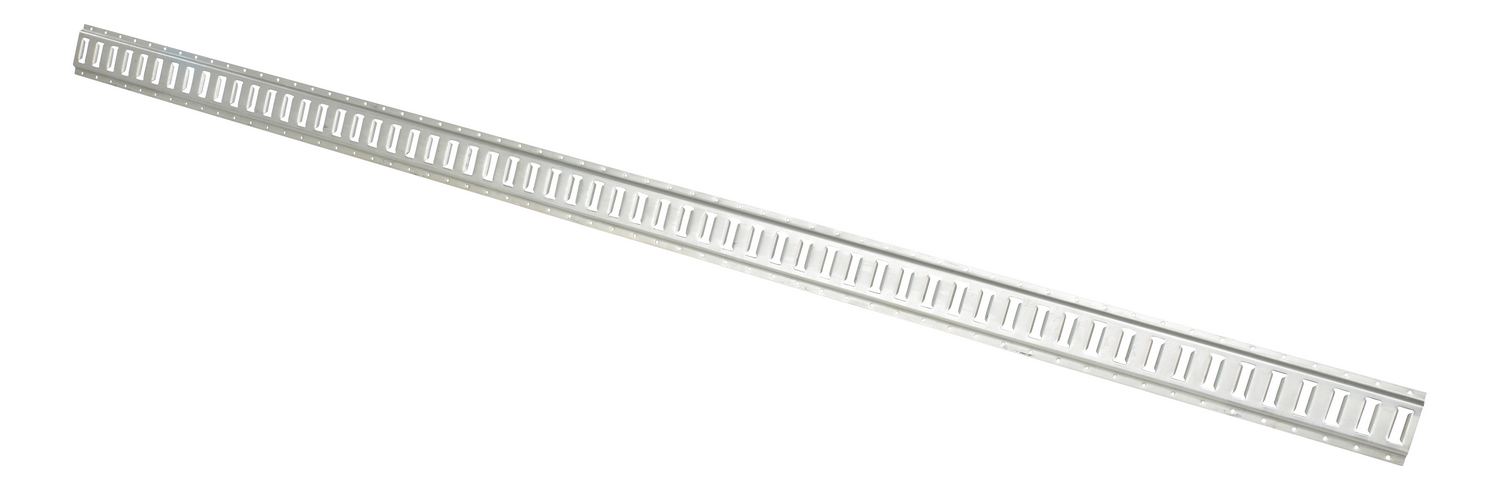

E-TRK-10-ZN-2PK

E-TRK-10-ZN-2PK

CL-H3-15

CL-H3-15

CL-15

CL-15

CL-H3-16

CL-H3-16

CH-7

CH-7

E-TRK-4-ZN-10PK

E-TRK-4-ZN-10PK

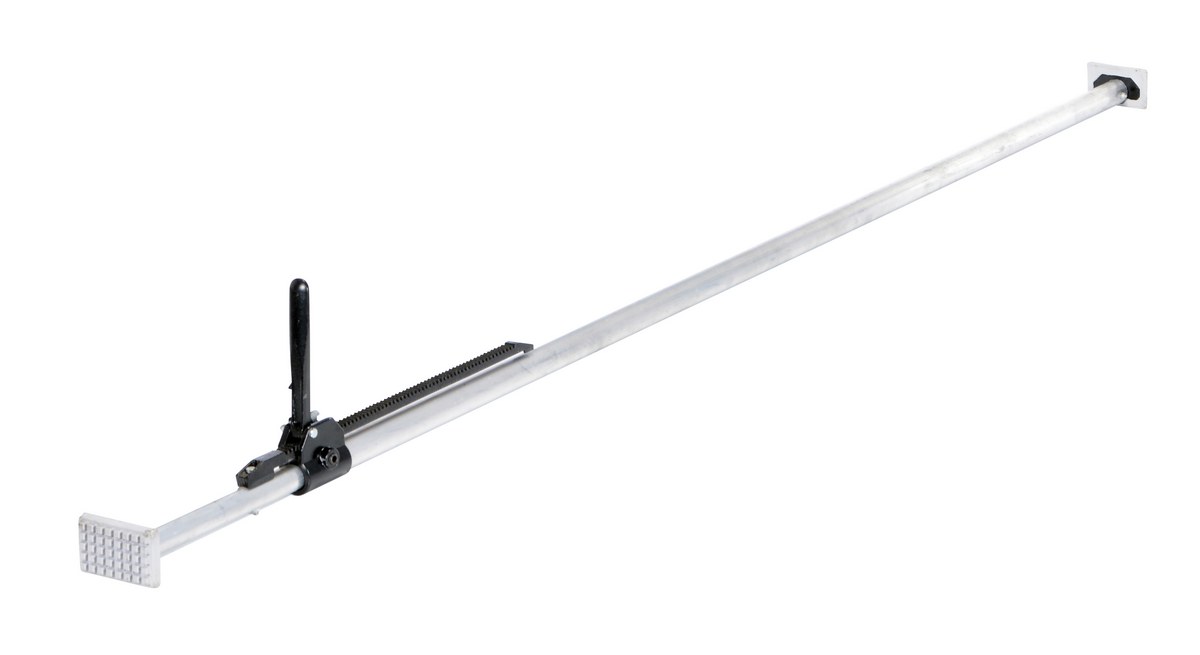

CB-7

CB-7

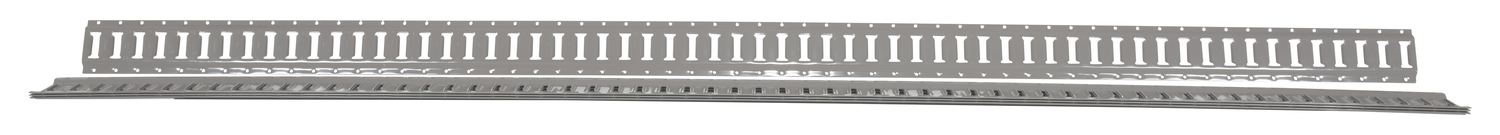

E-TRK-10-GY-4PK

E-TRK-10-GY-4PK

CL-H3-15

CL-H3-15

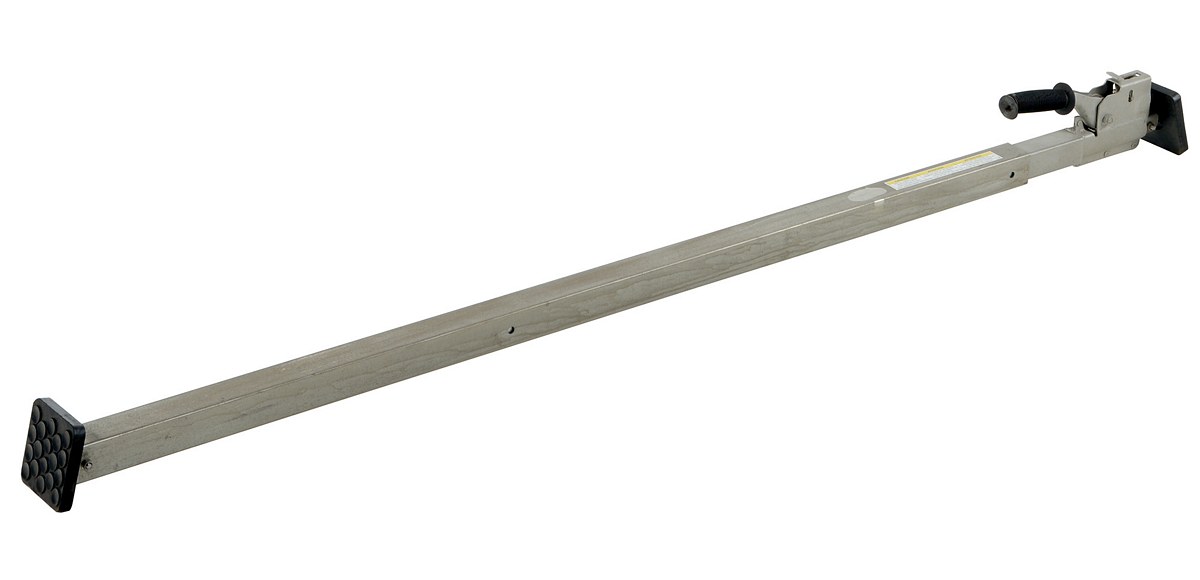

CL-18

CL-18

CL-17

CL-17

E-TRK-5-ZN-6PK

E-TRK-5-ZN-6PK

model chart
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

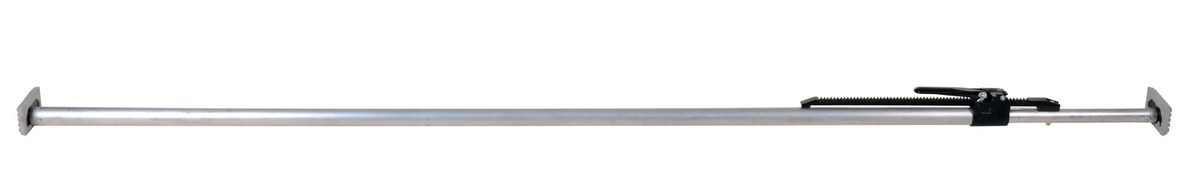

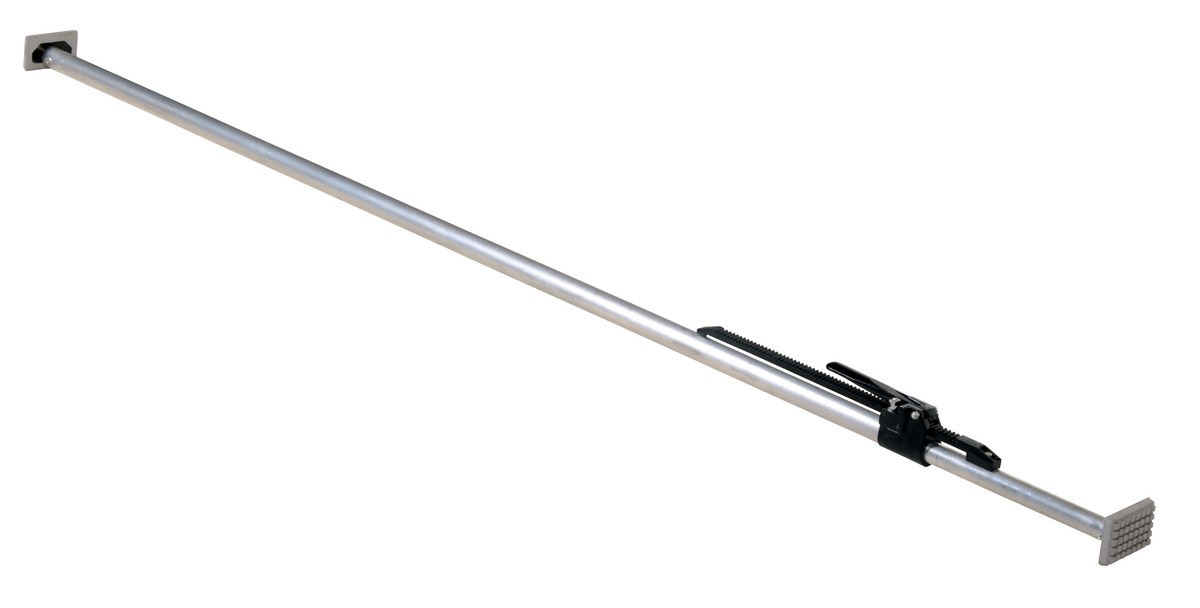

CB-5 CB-530 Days Limited WarrantyAluminum Round Cargo Bar 88 In. to 103 In. SilverRound Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		13

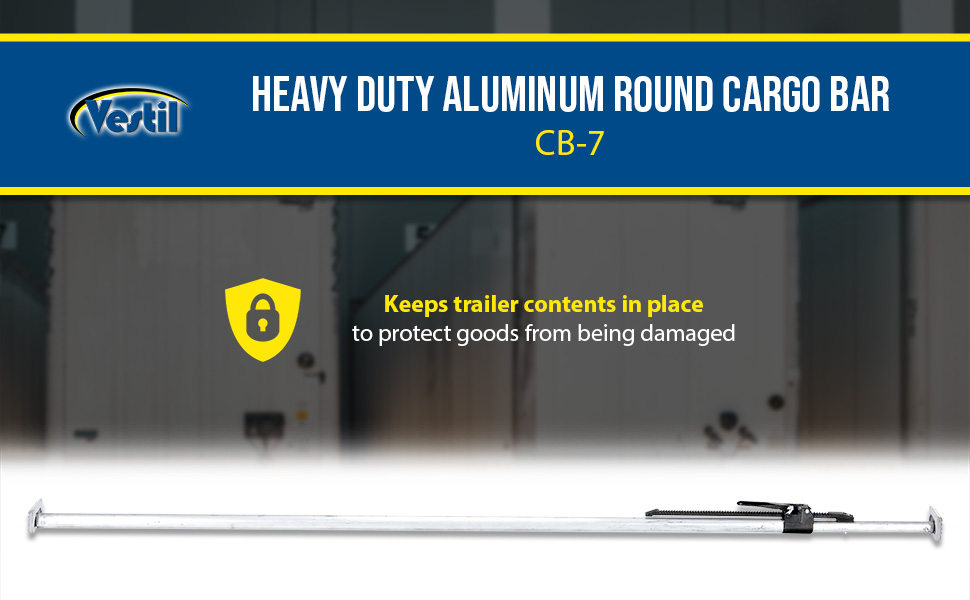

CB-7 CB-730 Days Limited WarrantyHeavy Duty Aluminum Round Cargo Bar 89 In. to 104 In. SilverRound Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		13

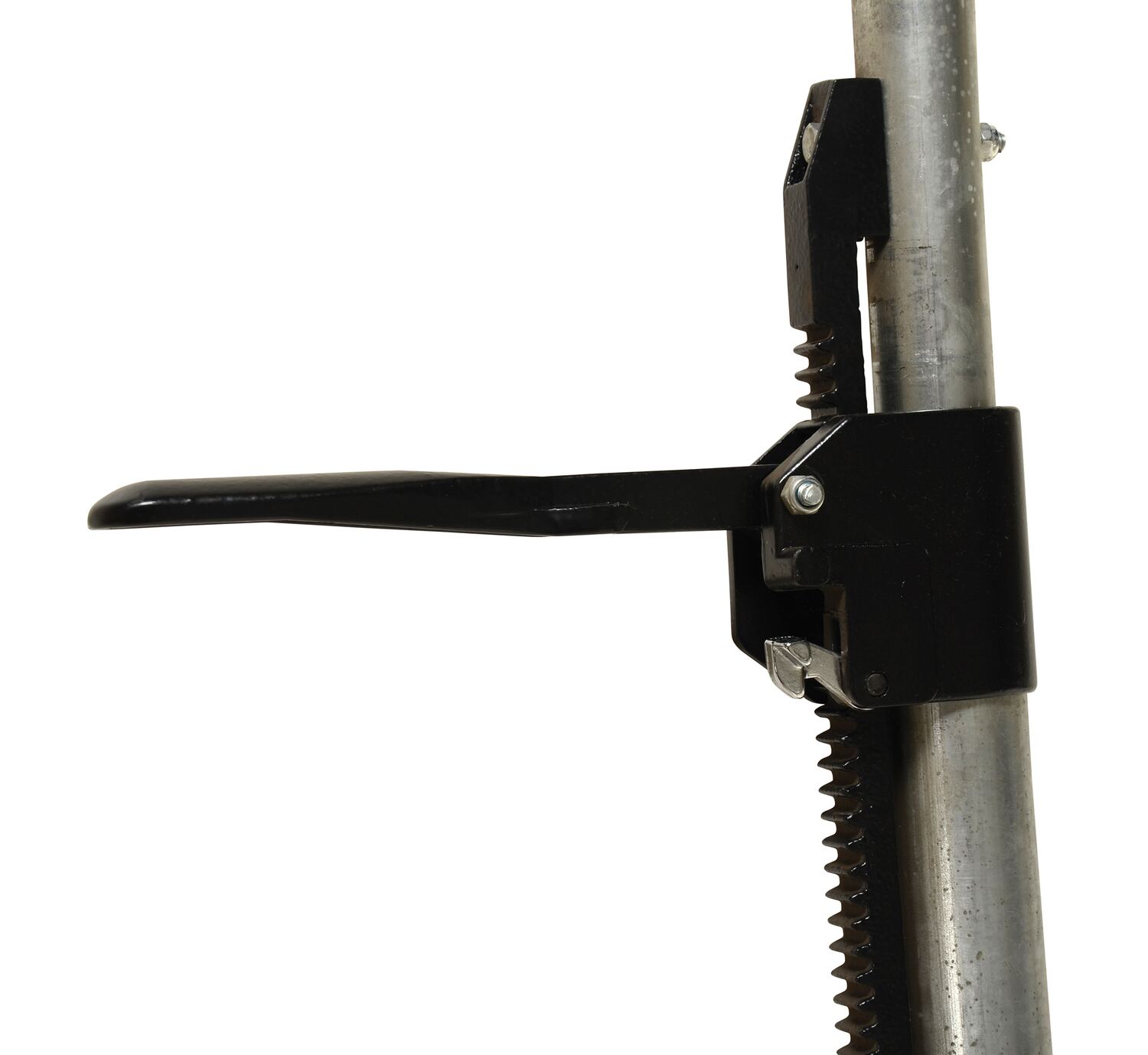

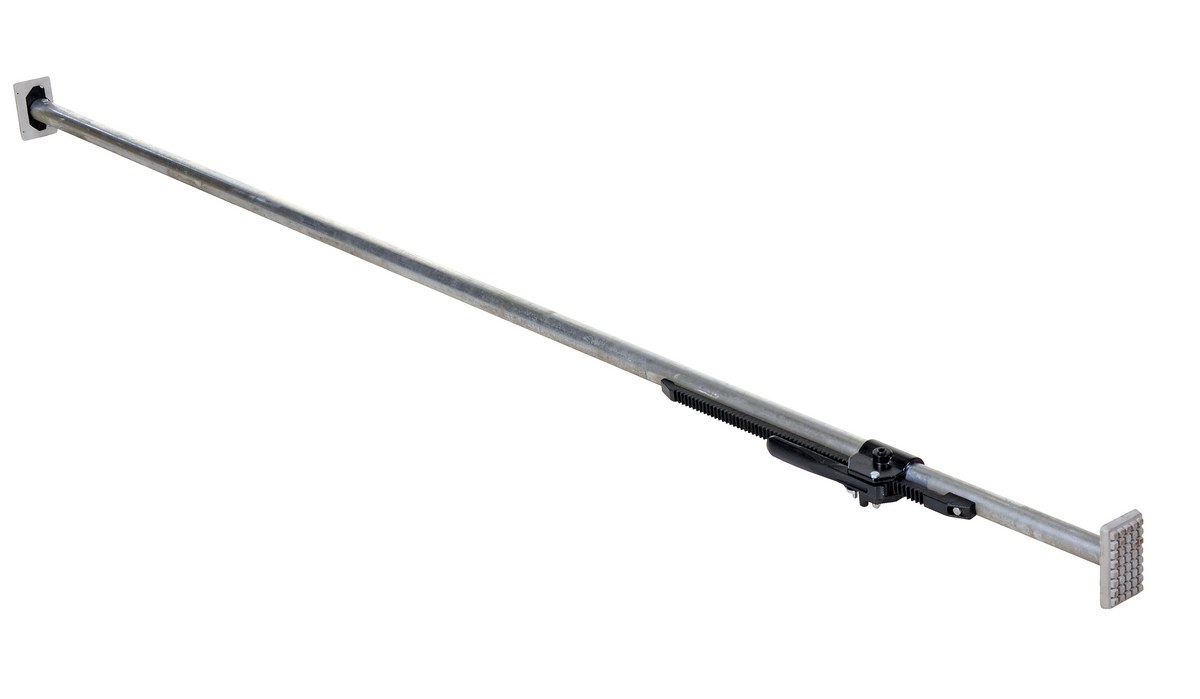

CB-7-S CB-7-S30 Days Limited WarrantyHeavy Duty Steel Round Tube Cargo Bar 89 In. to 104 In. SilverRound Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		12

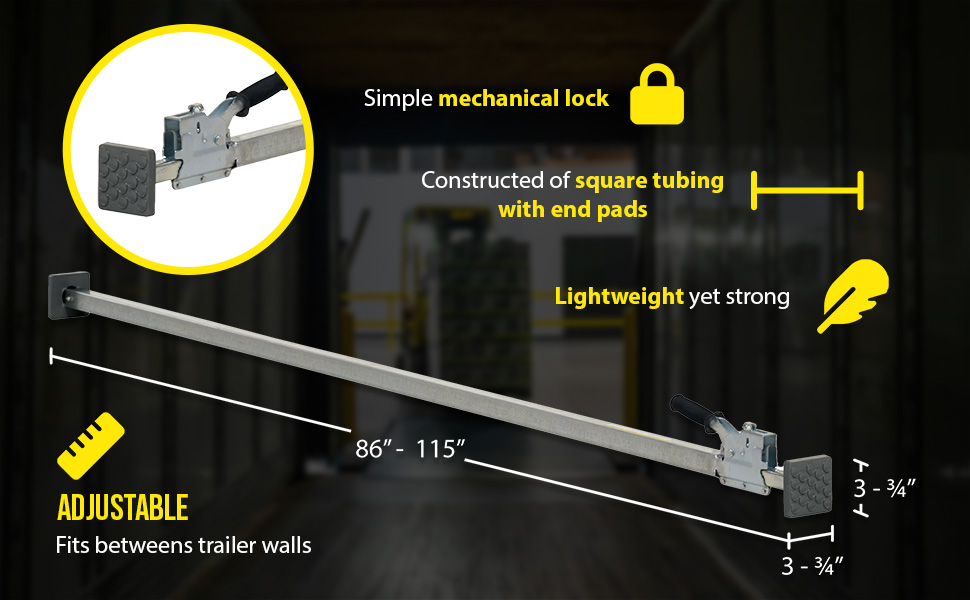

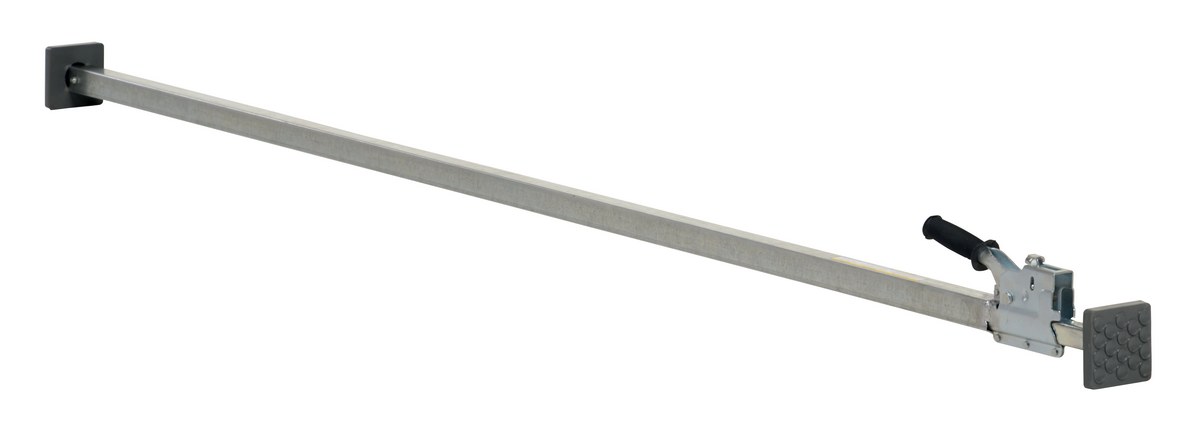

CL-15 CL-1530 Days Limited WarrantySteel One Piece Cargo Bar 87 In. to 119 In. SilverSquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		15
CL-16 CL-1630 Days Limited WarrantyGalvanized One Piece Cargo Bar 87 In. to 119 In. GraySquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		15
CL-17 CL-1730 Days Limited WarrantySteel Two Piece Folding Cargo Bar 88 In. to 116 In. GraySquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		17

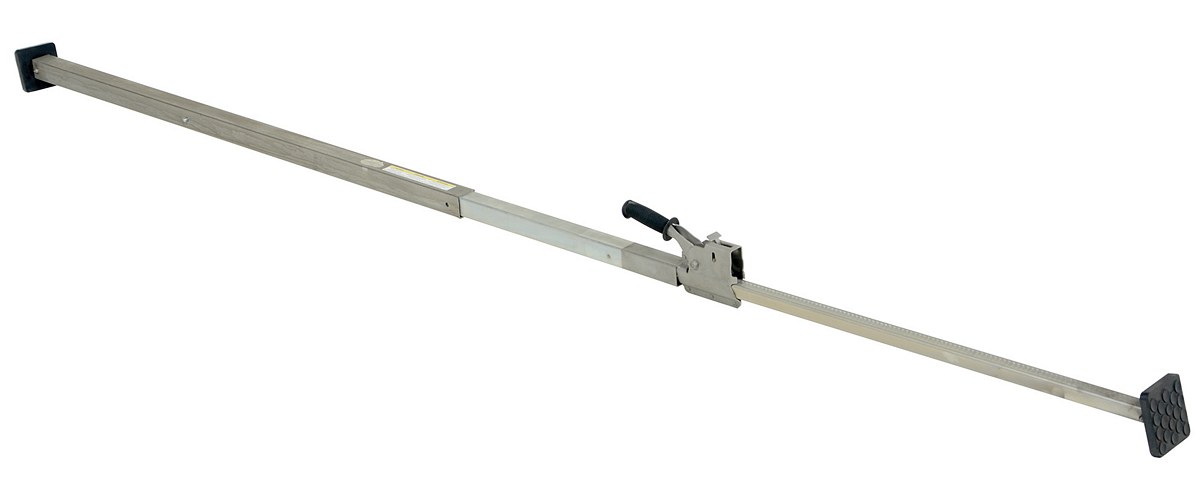

CL-18 CL-1830 Days Limited WarrantyGalvanized Two Piece Telescopic Cargo Bar 90-3/8 In. to 139-9/16 In. GraySquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		25

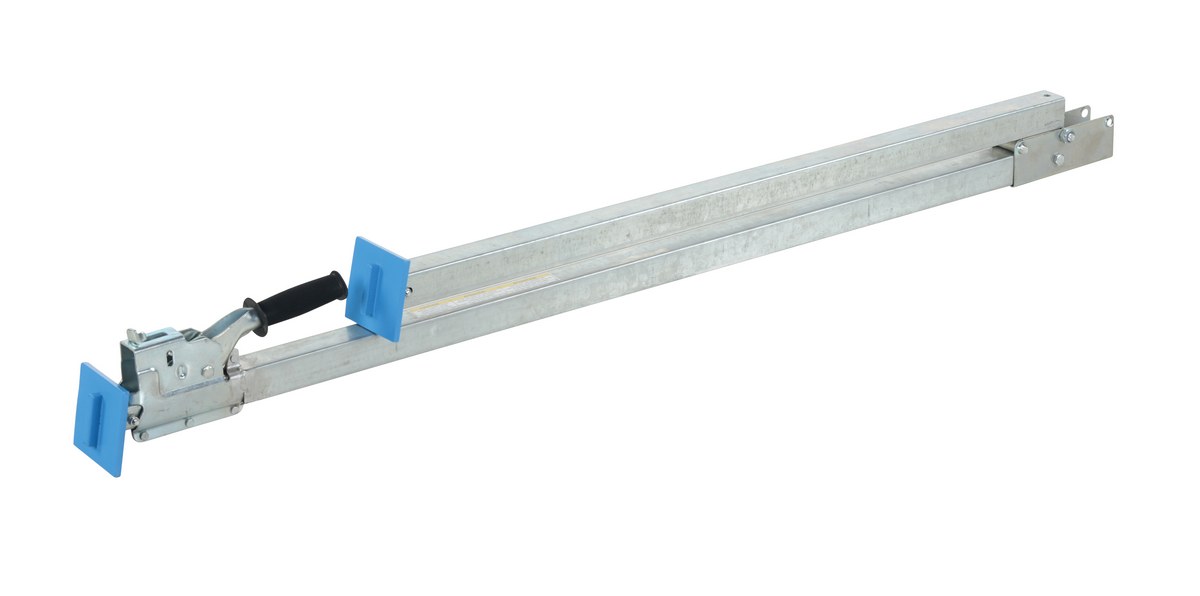

CL-20 CL-2030 Days Limited WarrantySteel Two Piece Cargo Bar for E & A Track 87 In. to 116 In. SilverSquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		18

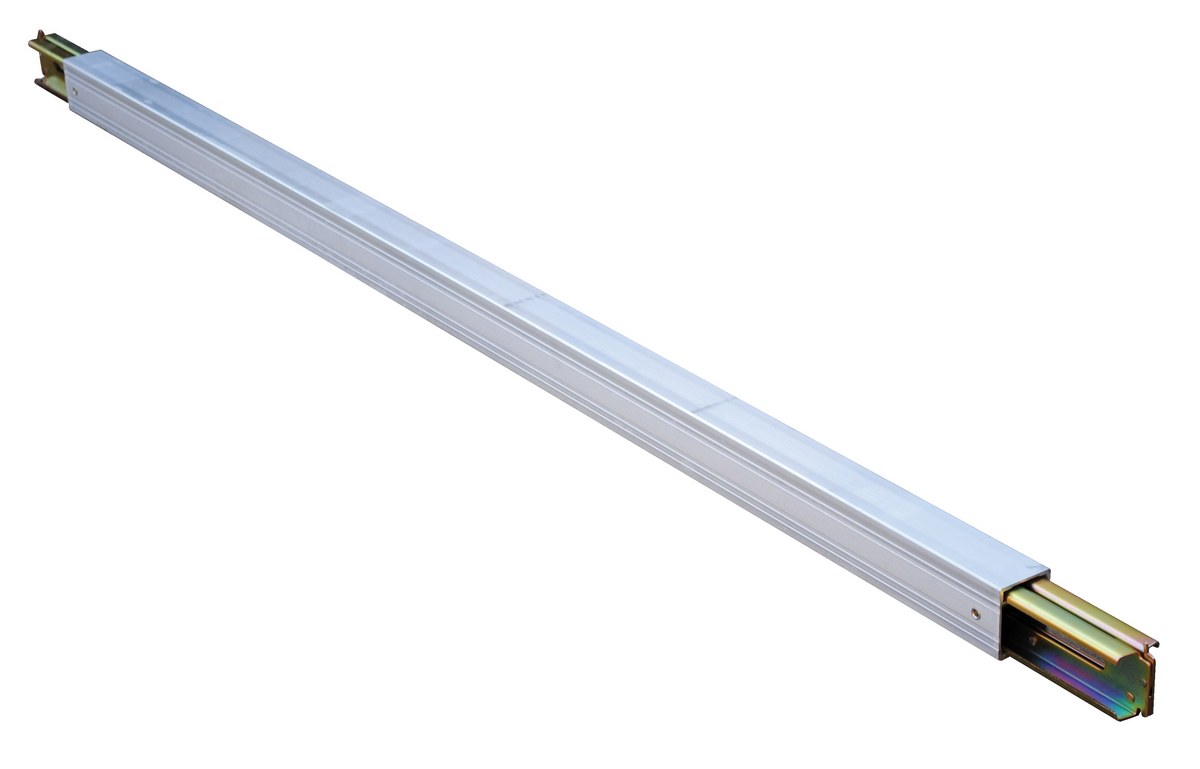

EB-96 EB-9630 Days Limited WarrantyAluminum One Piece E-Track 96 In. Extension SilverSquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		19

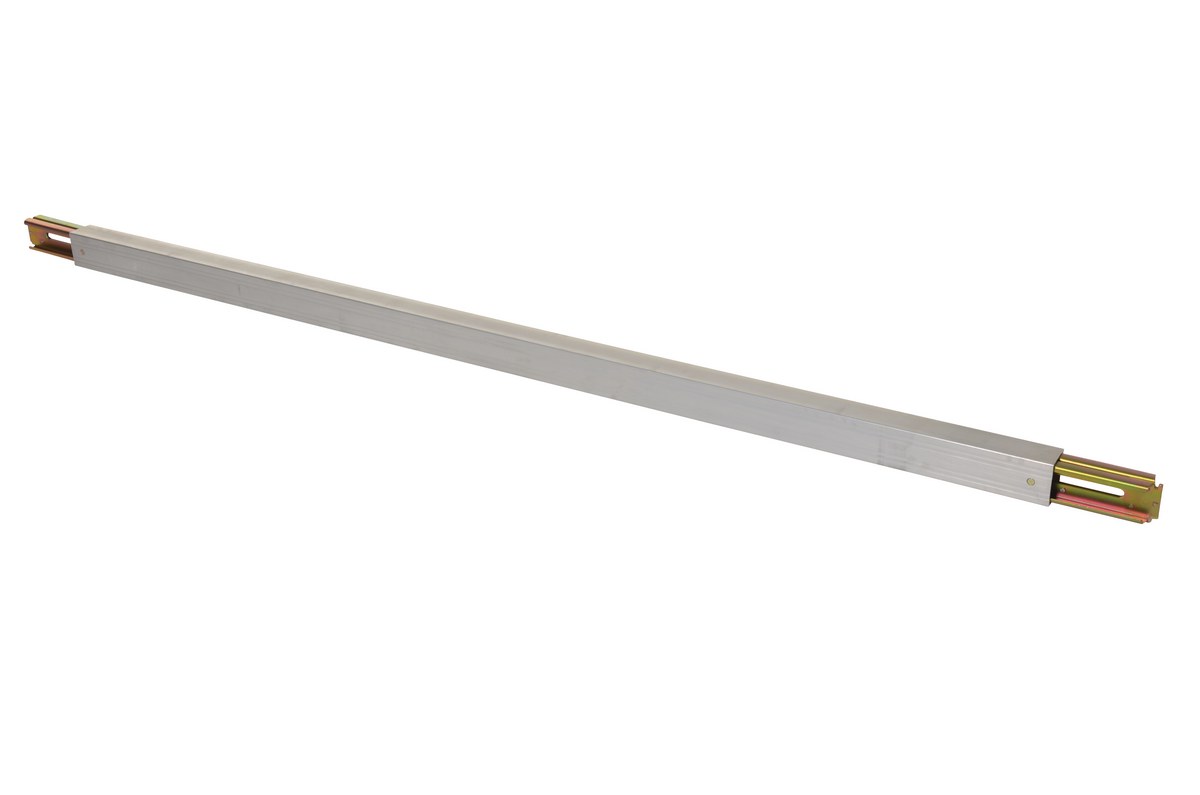

EB-102 EB-10230 Days Limited WarrantyAluminum One Piece E-Track 102 In. Extension SilverSquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		21

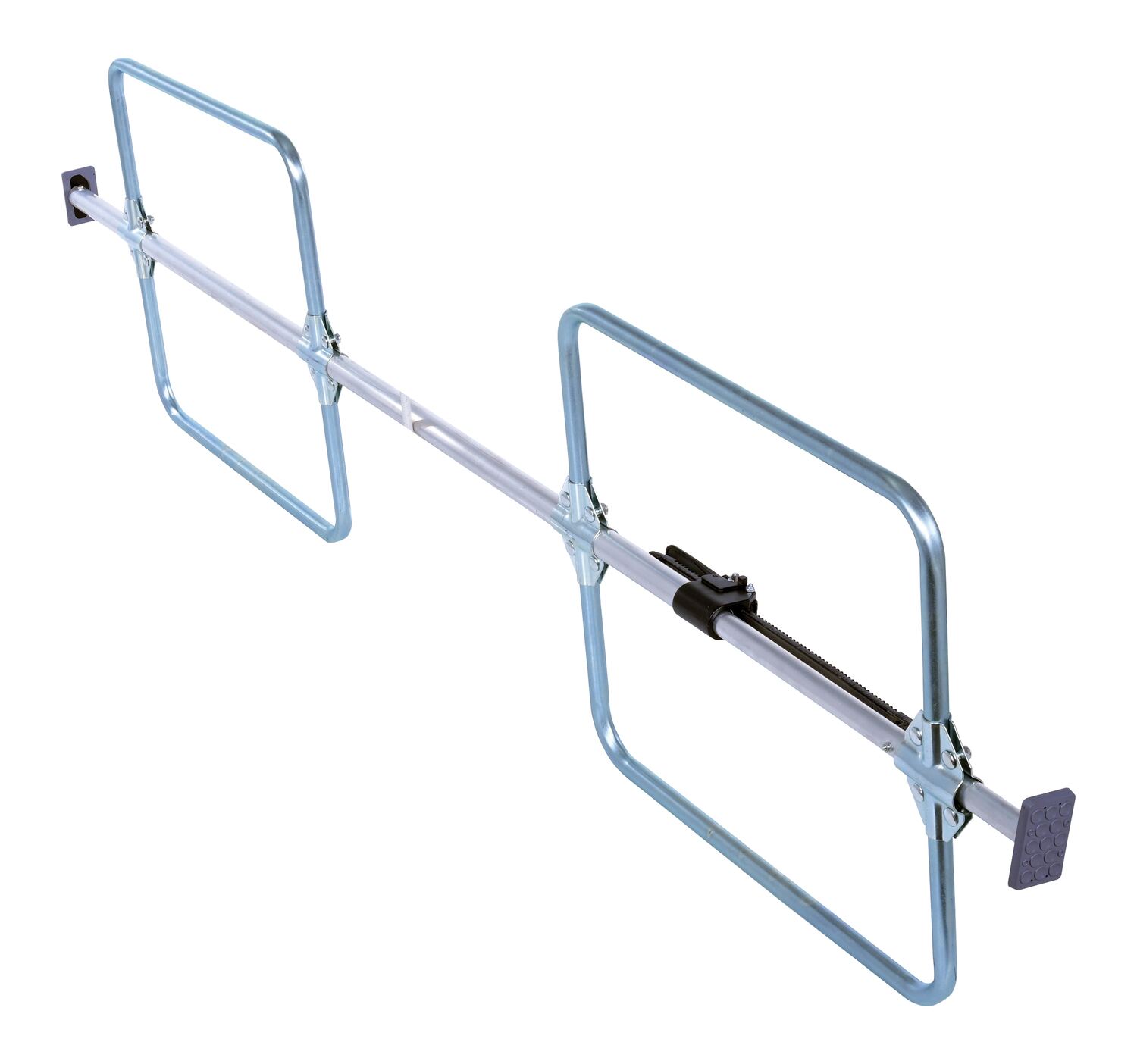

CB-H7-5 NEW CB-H7-530 Days Limited Warranty1 Piece Aluminum Galvanized Cargo Bar 103"L x 4-5/8"W 23-15/16"H With Hoops SilverNumber Of Hoops: 2
Overall Length (in.): 103		226

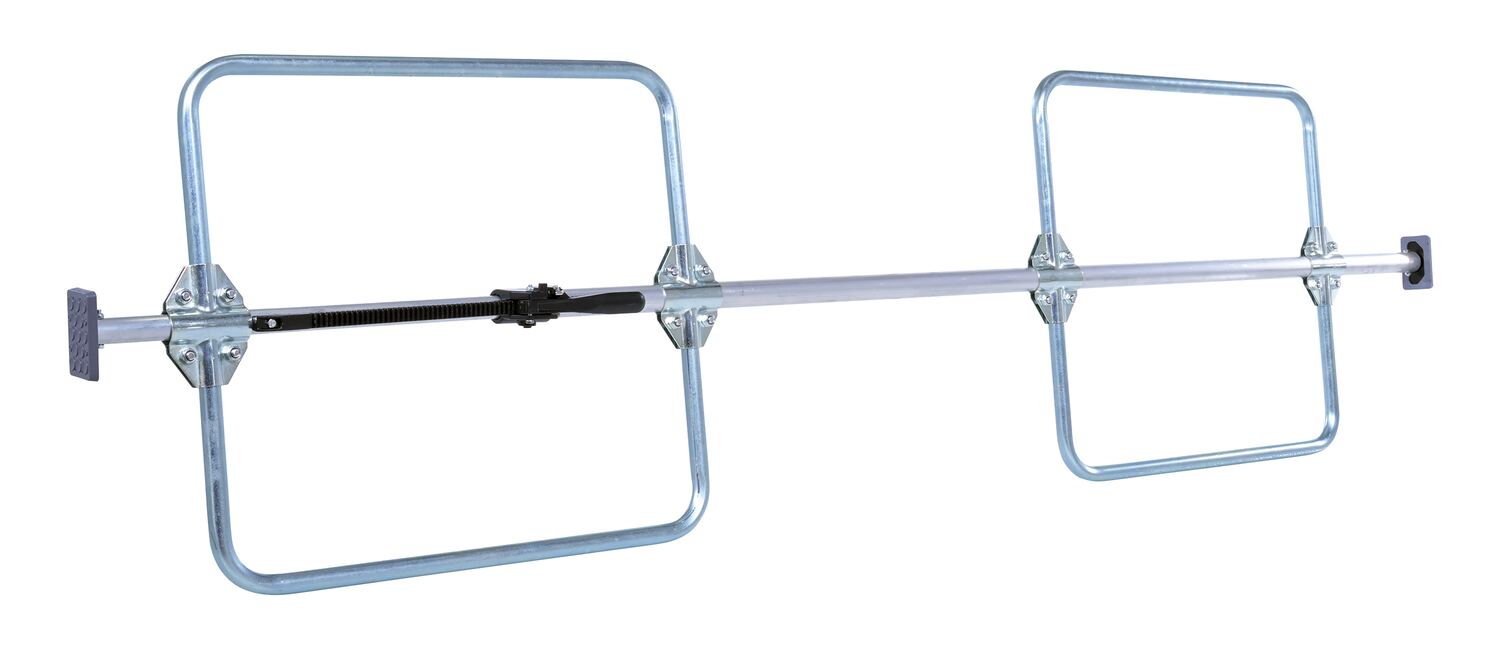

CB-H7-7 NEW CB-H7-730 Days Limited Warranty1 Piece Aluminum Galvanized Cargo Bar 104"L x 4-5/8"W 23-15/16"H With Hoops SilverNumber Of Hoops: 2
Overall Length (in.): 104		229

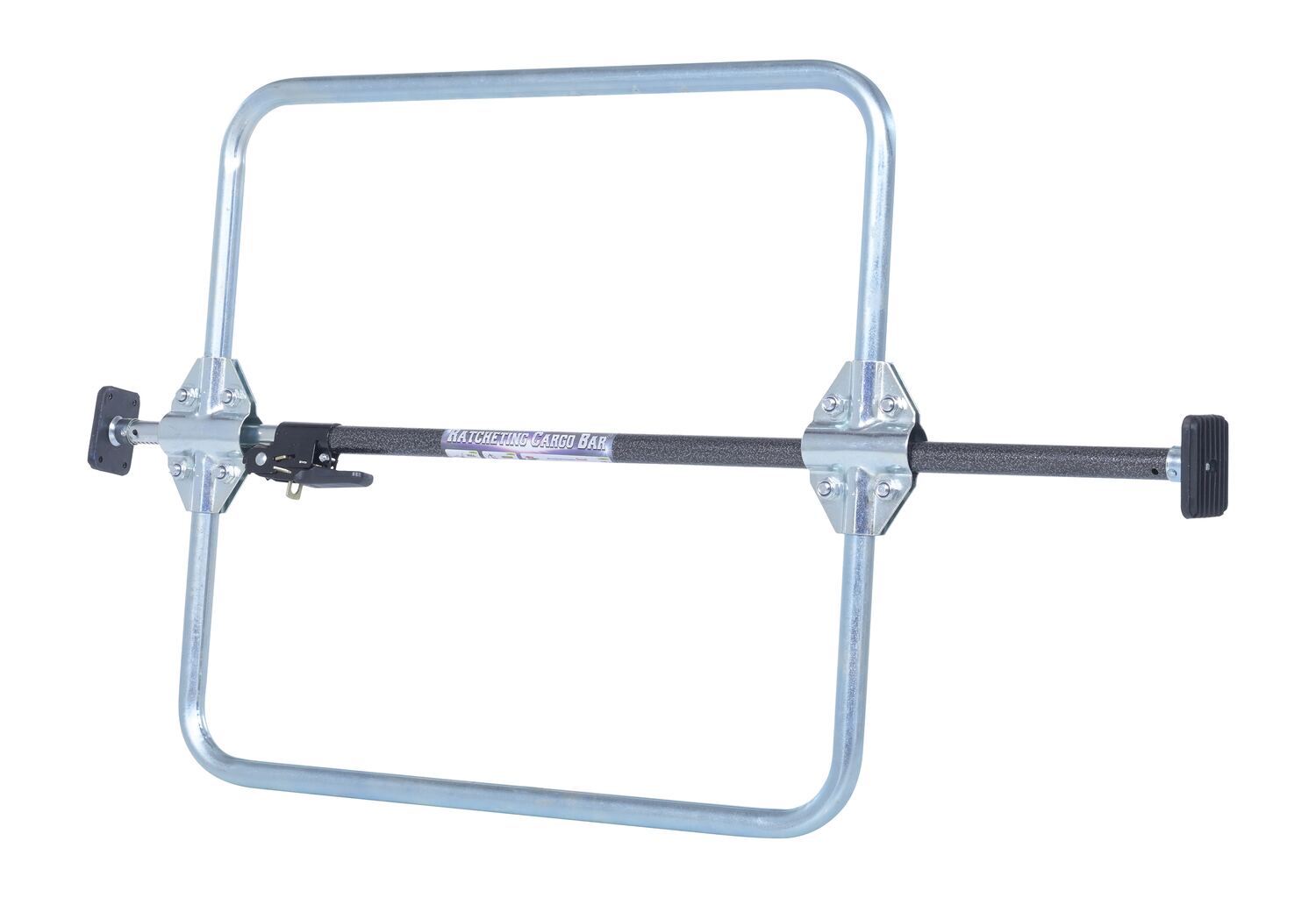

CB-H7-7-S NEW CB-H7-7-S30 Days Limited Warranty1 Piece Galvanized Steel Cargo Bar 104"L x 4-5/8"W 23-15/16"H With Hoops SilverNumber Of Hoops: 1
Overall Length (in.): 104		228

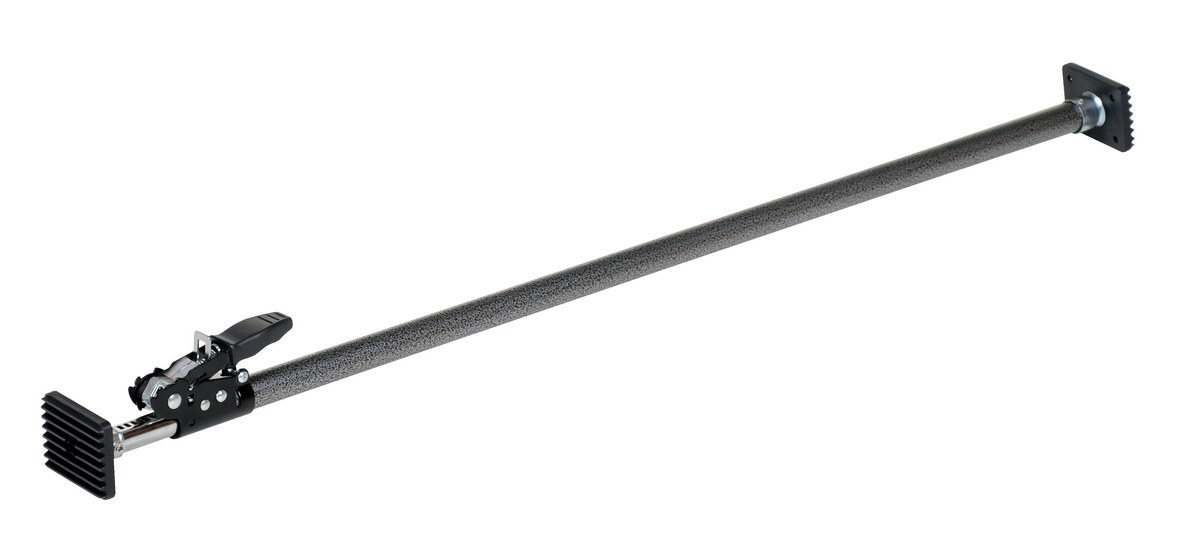

CB-PU-3 CB-PU-330 Days Limited WarrantySteel Pick-Up Truck Cargo Bar 40 In. GrayService Range (in.): 40 to 70
End Pad Width (in.): 2-3/8		5

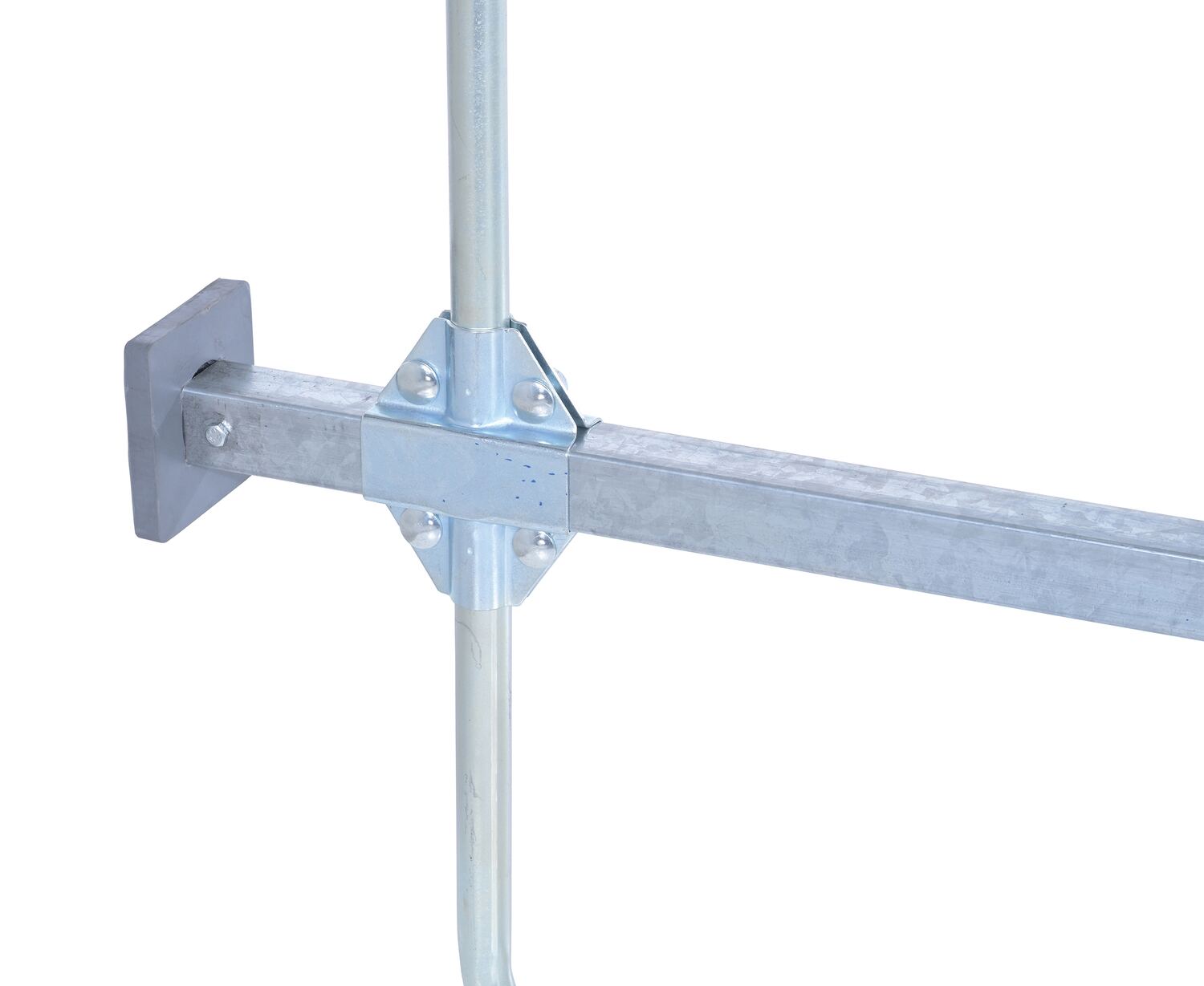

CL-H3-15 NEW CL-H3-1530 Days Limited WarrantyGalvanized Steel Cargo Bar 1 Piece 119 In. Length x 3-3/4 In. Width x 24-1/2 In. Height With Hoops SilverNumber Of Hoops: 2
Overall Length (in.): 119		231
CL-H3-16 NEW CL-H3-1630 Days Limited WarrantyGalvanized Steel Cargo Bar 1 Piece 119 In. Length x 3-3/4 In. Width x 24-1/2 In. Height With Hoops SilverNumber Of Hoops: 2
Overall Length (in.): 119		231

* E-TRK sections located under Options Tab

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

CB-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Round Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14
Round Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14

CB-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Round Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14
Round Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14

CB-7-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Round Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14
Round Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14

CL-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14

CL-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14

CL-17
Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14

CL-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14

CL-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14

EB-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14

EB-102
Unit:
Size: W x L x H
Weight:
Limited Warranty
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14
Square Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14

CB-H7-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Number Of Hoops: 2
Overall Length (in.): 103
Number Of Hoops: 2
Overall Length (in.): 103

CB-H7-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Number Of Hoops: 2
Overall Length (in.): 104
Number Of Hoops: 2
Overall Length (in.): 104

CB-H7-7-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Number Of Hoops: 1
Overall Length (in.): 104
Number Of Hoops: 1
Overall Length (in.): 104

CB-PU-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Service Range (in.): 40 to 70
End Pad Width (in.): 2-3/8
Service Range (in.): 40 to 70
End Pad Width (in.): 2-3/8

CL-H3-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Number Of Hoops: 2
Overall Length (in.): 119
Number Of Hoops: 2
Overall Length (in.): 119

CL-H3-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Number Of Hoops: 2
Overall Length (in.): 119
Number Of Hoops: 2
Overall Length (in.): 119
For More Details of the Option Click the Red Model Button

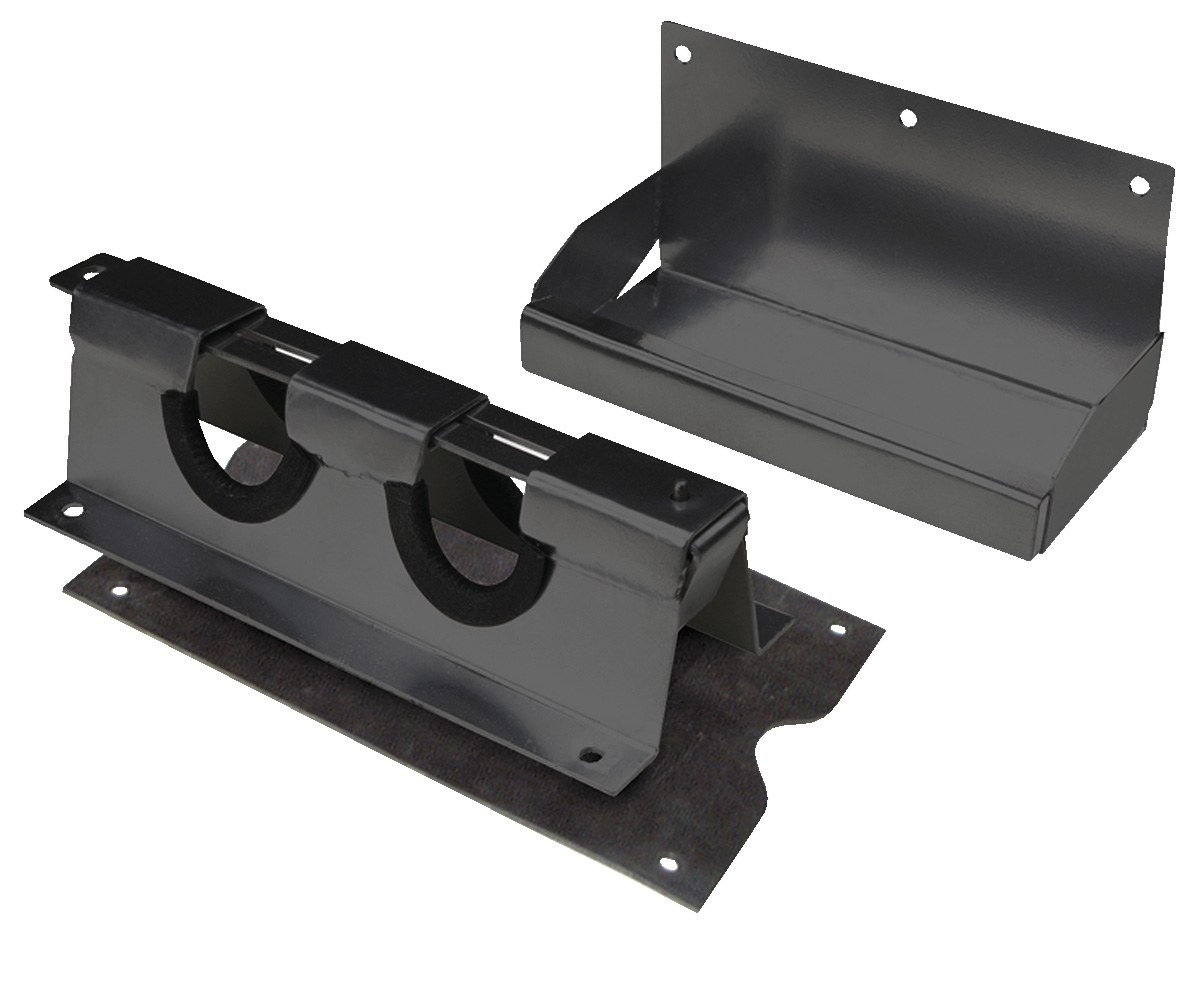

CB-HLDR CB-HLDR90 Days Limited WarrantySteel Cargo Bar Holder 11 In. BlackAdjustment Method: Bracket Mounted
Max Foot Pad Size (in.): 4 x 4		7

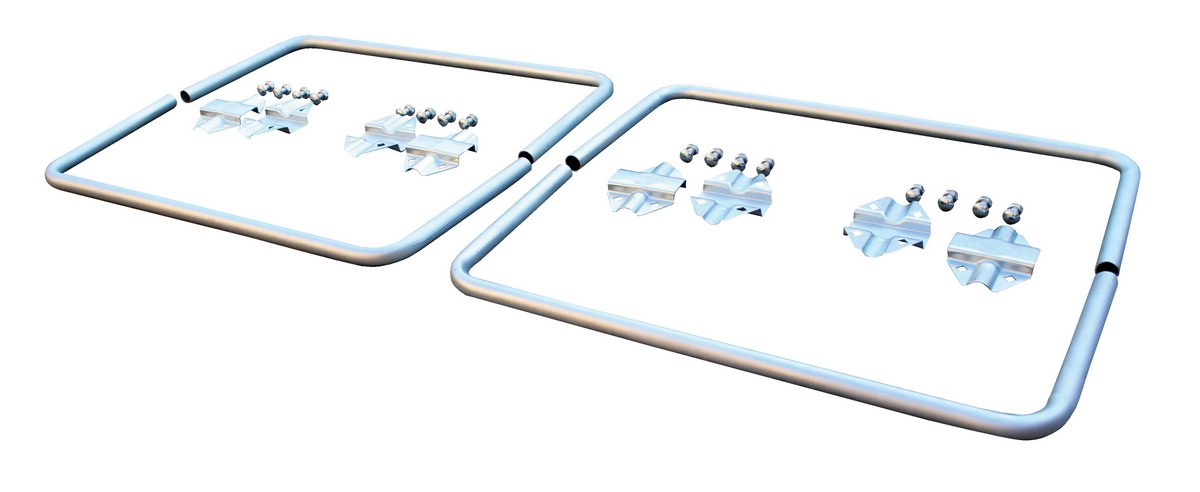

CH-3 CH-330 Days Limited WarrantyGalvanized Steel Cargo Bar Hoops for CL Series 1.5 In. Projection-
15

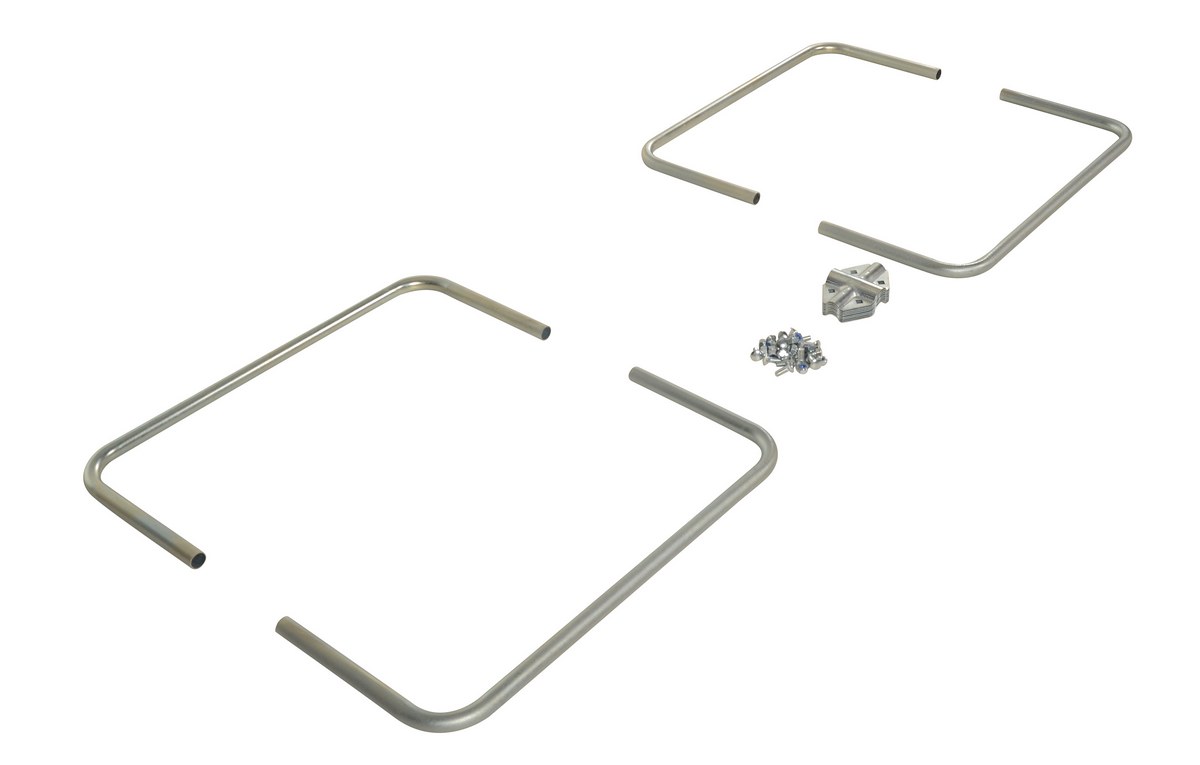

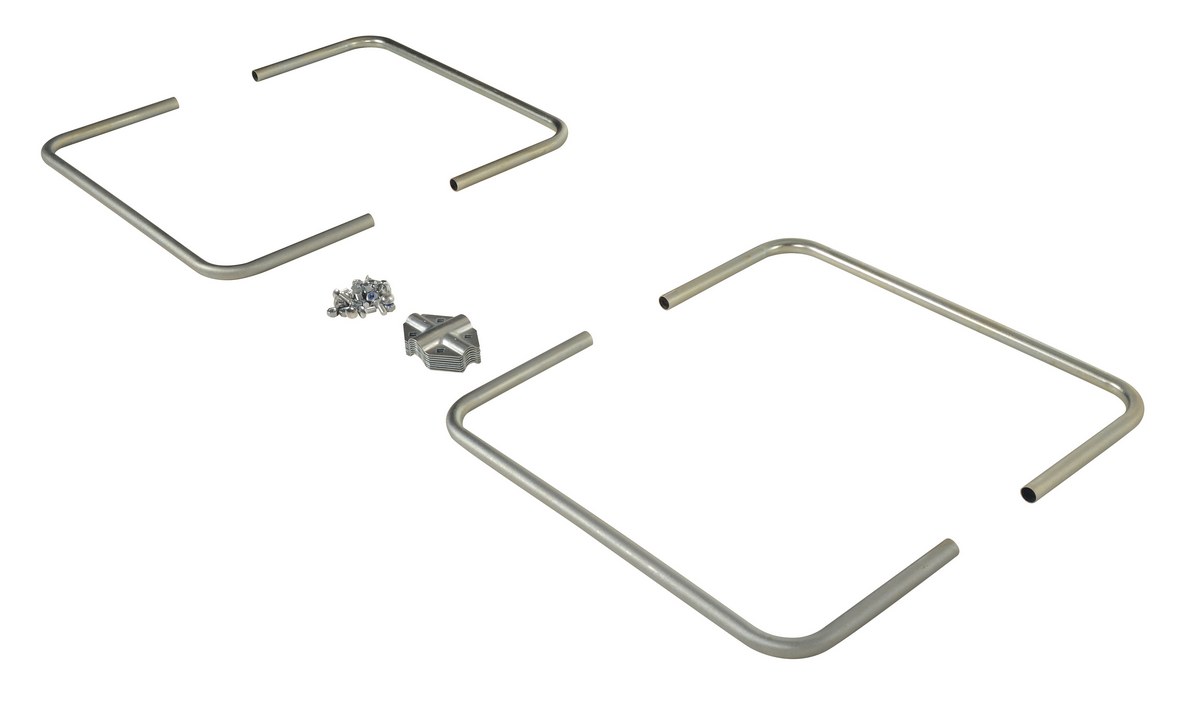

CH-7 CH-730 Days Limited WarrantyGalvanized Steel Cargo Bar Hoops for CB Series 1 In. Projection-
16

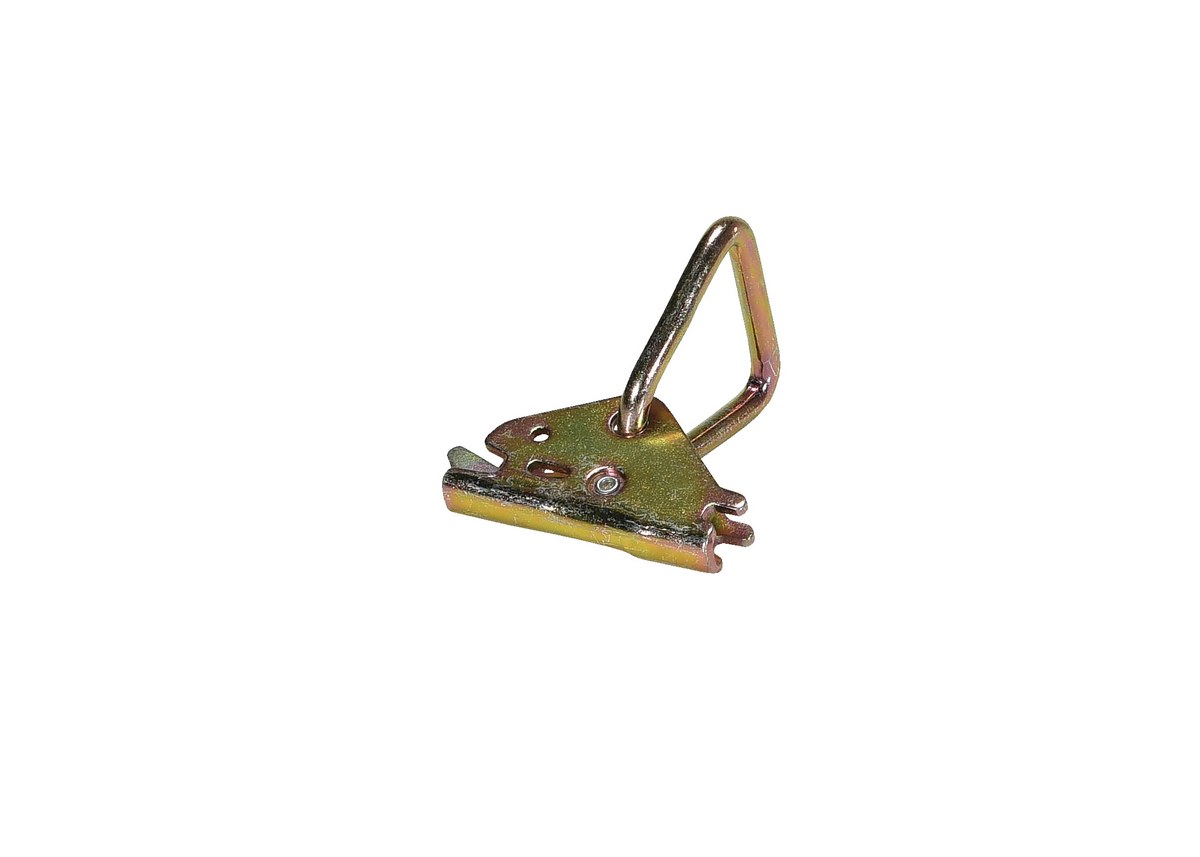

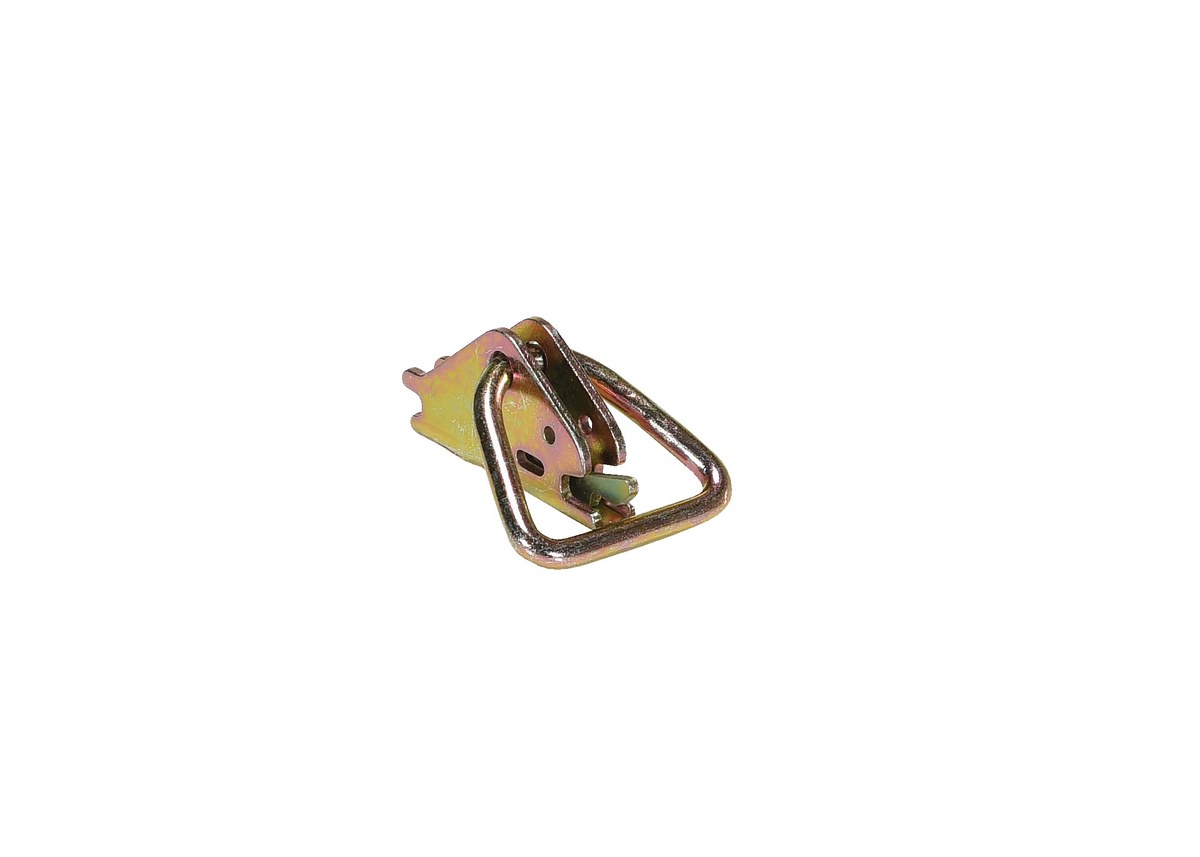

E-CLIP-D E-CLIP-D30 Days Limited WarrantyMetal "D" Ring Tie Off For Attachment To E-Track Models GoldGauge: 10
Length (in): 4.5		1

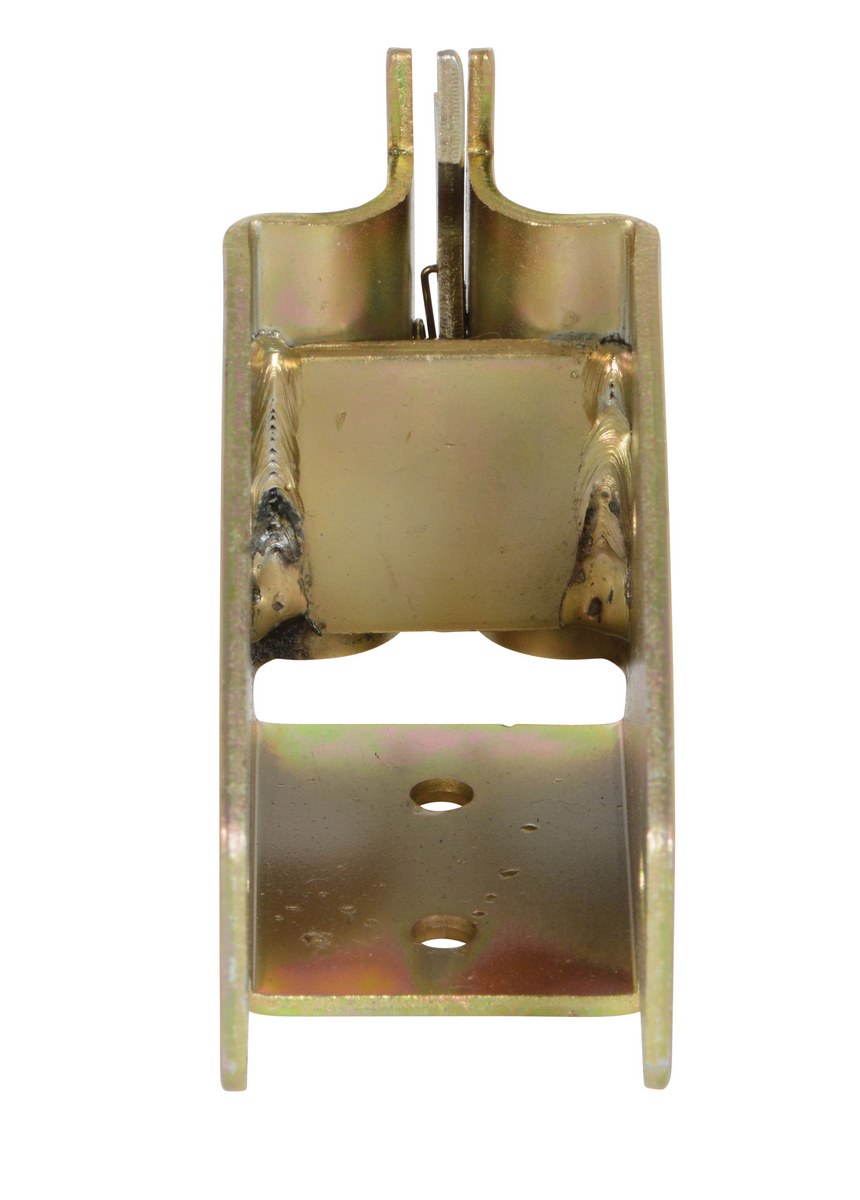

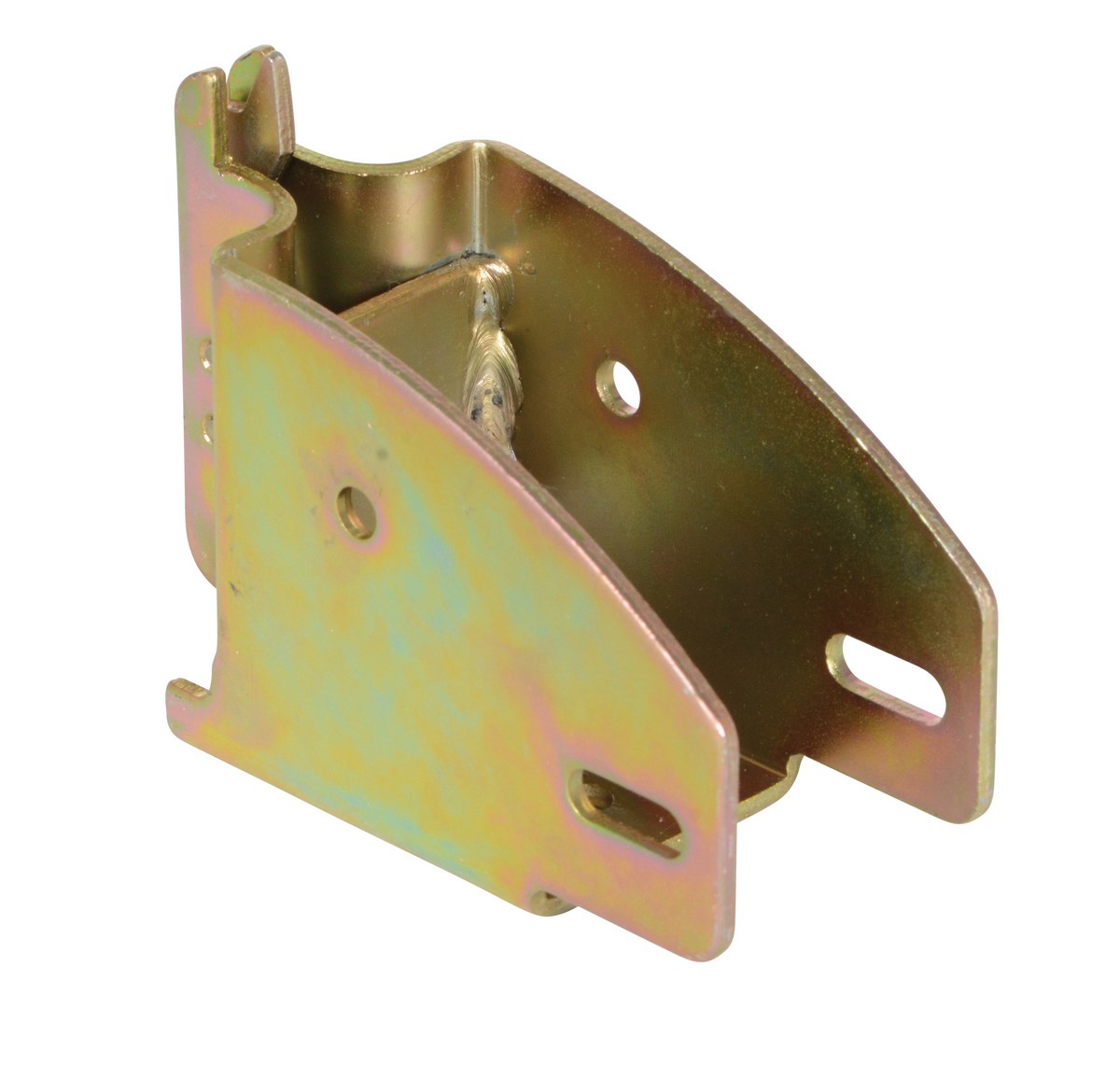

E-CLIP-W E-CLIP-W30 Days Limited WarrantyMetal Beam E-Socket Support For Standard 2 In. x 4 In. Wood Board GoldClamping Diameter (in): 1.5
Opening Height (in): 4.375		2

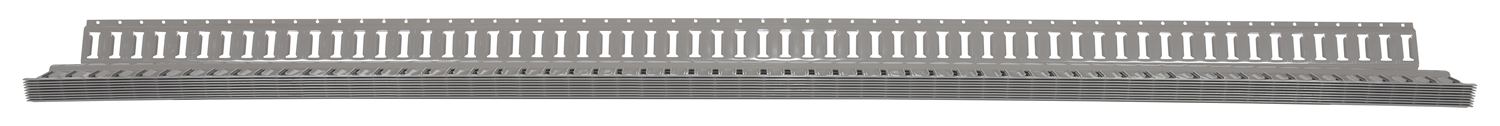

E-TRK-10-GY-10PK E-TRK-10-GY-10PK90 Days Limited WarrantySteel E-Track 10 Ft. Length 10 Pack GrayMounting Hole Quantity: 120
Mounting Hole Diameter (in.): 9/32		184

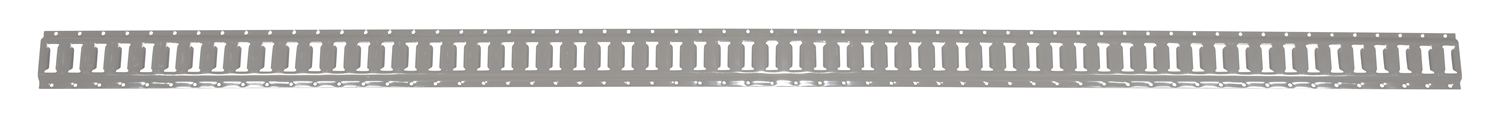

E-TRK-10-GY-1PK E-TRK-10-GY-1PK90 Days Limited WarrantySteel E-Track 10 Ft. Length 1 Pack GrayMounting Hole Quantity: 120
Mounting Hole Diameter (in.): 9/32		40

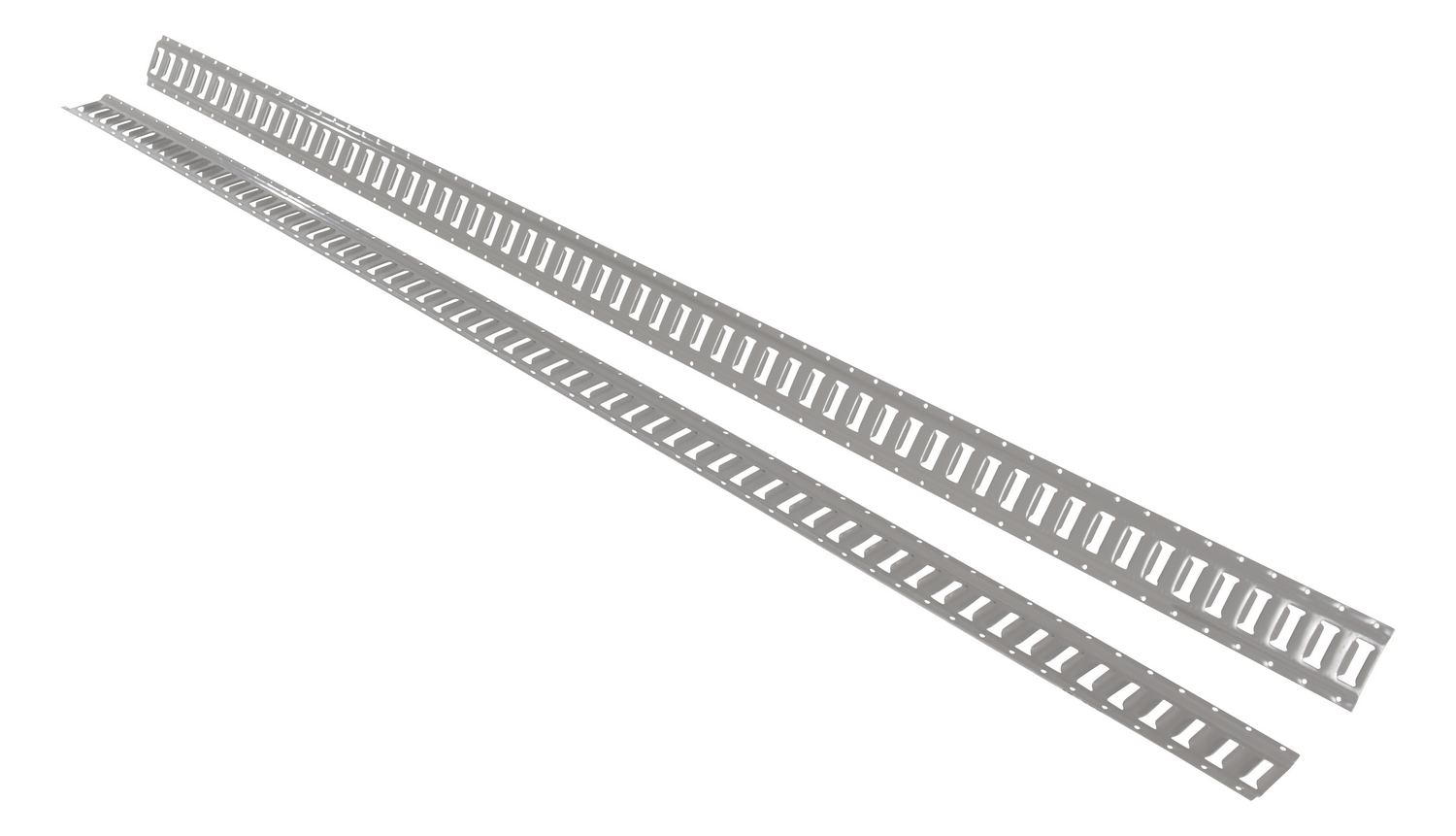

E-TRK-10-GY-2PK E-TRK-10-GY-2PK90 Days Limited WarrantySteel E-Track 10 Ft. Length 2 Pack GrayMounting Hole Quantity: 120
Mounting Hole Diameter (in.): 9/32		56

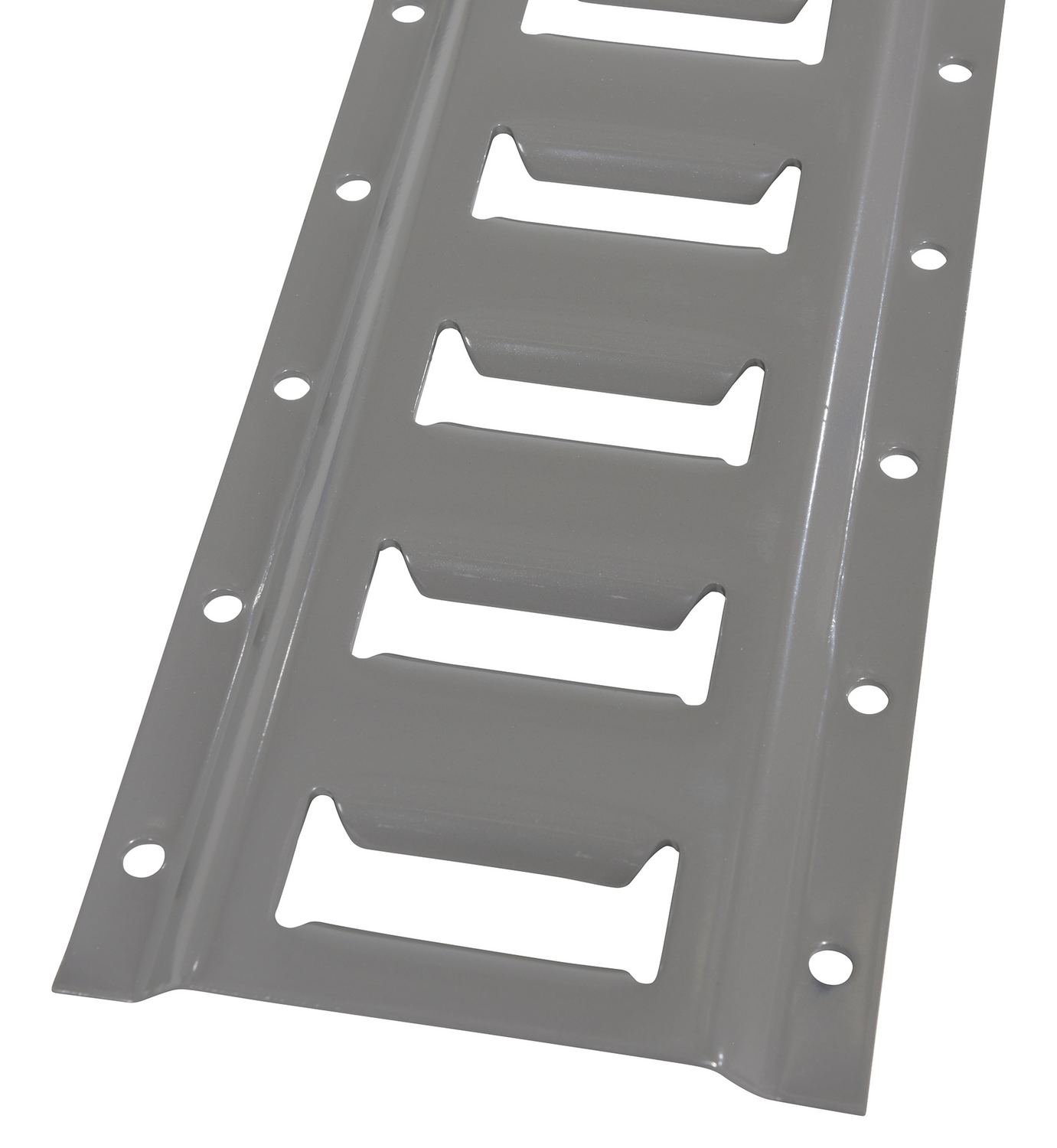

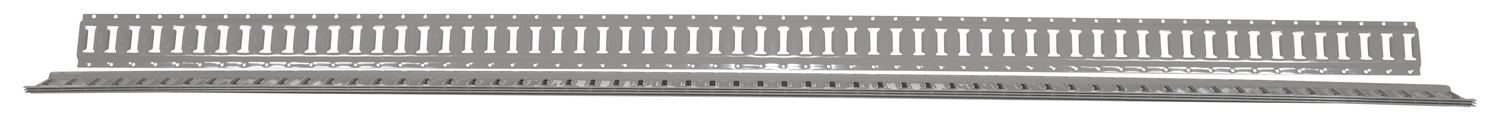

E-TRK-10-GY-4PK E-TRK-10-GY-4PK90 Days Limited WarrantySteel E-Track 10 Ft. Length 4 Pack GrayMounting Hole Quantity: 120
Mounting Hole Diameter (in.): 9/32		88
E-TRK-10-GY-6PK E-TRK-10-GY-6PK90 Days Limited WarrantySteel E-Track 10 Ft. Length 6 Pack GrayMounting Hole Quantity: 120
Mounting Hole Diameter (in.): 9/32		120

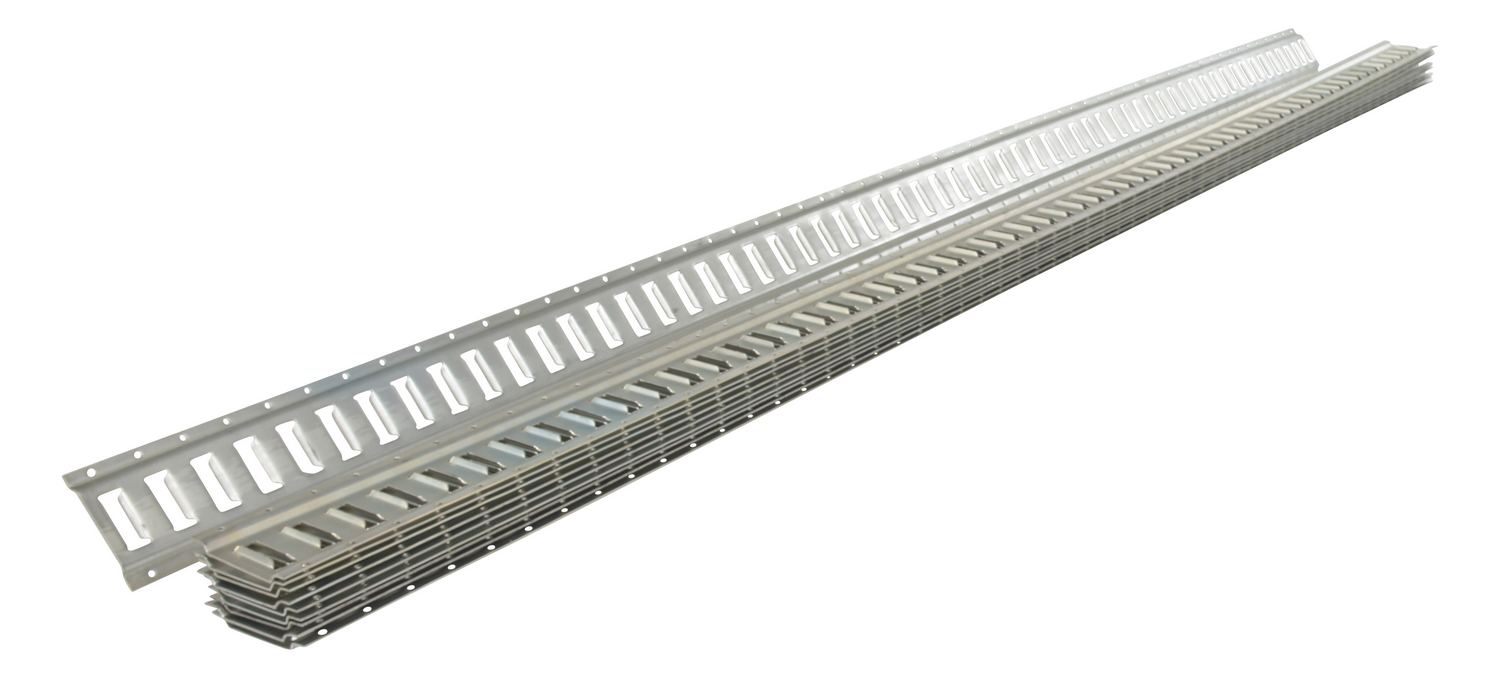

E-TRK-10-ZN-10PK E-TRK-10-ZN-10PK90 Days Limited WarrantySteel Zinc Plated E-Track 10 Ft. Length 10 Pack GrayMounting Hole Quantity: 120
Mounting Hole Diameter (in.): 9/32		184

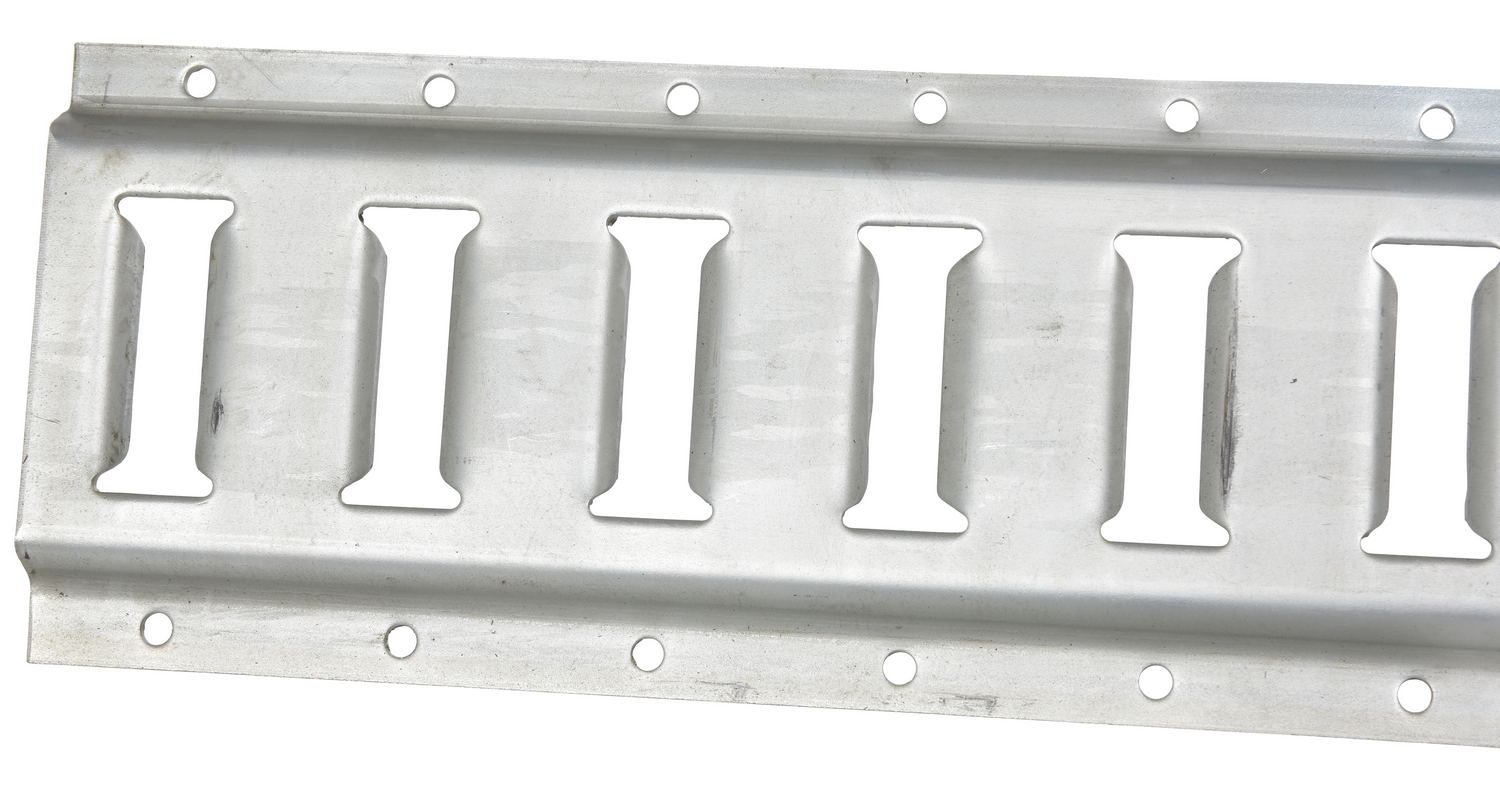

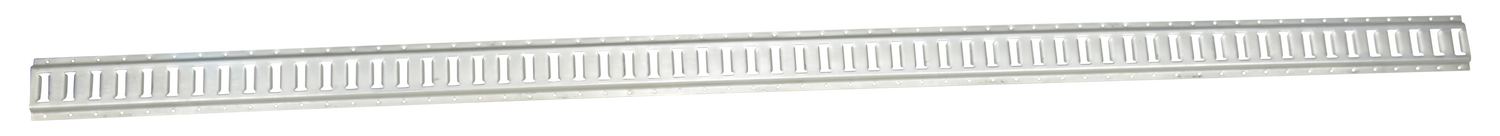

E-TRK-10-ZN-1PK E-TRK-10-ZN-1PK90 Days Limited WarrantySteel Zinc Plated E-Track 10 Ft. Length 1 Pack GrayMounting Hole Quantity: 120
Mounting Hole Diameter (in.): 9/32		40
E-TRK-10-ZN-2PK E-TRK-10-ZN-2PK90 Days Limited WarrantySteel Zinc Plated E-Track 10 Ft. Length 2 Pack GrayMounting Hole Quantity: 120
Mounting Hole Diameter (in.): 9/32		56

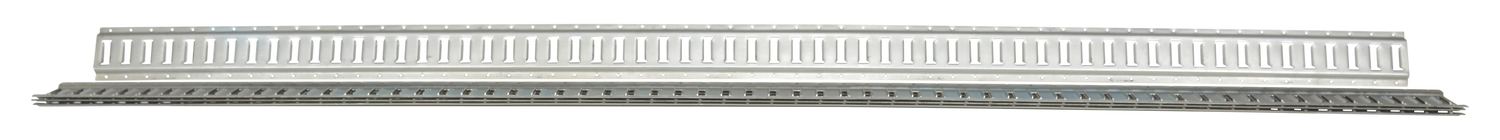

E-TRK-10-ZN-4PK E-TRK-10-ZN-4PK90 Days Limited WarrantySteel Zinc Plated E-Track 10 Ft. Length 4 Pack GrayMounting Hole Quantity: 120
Mounting Hole Diameter (in.): 9/32		88

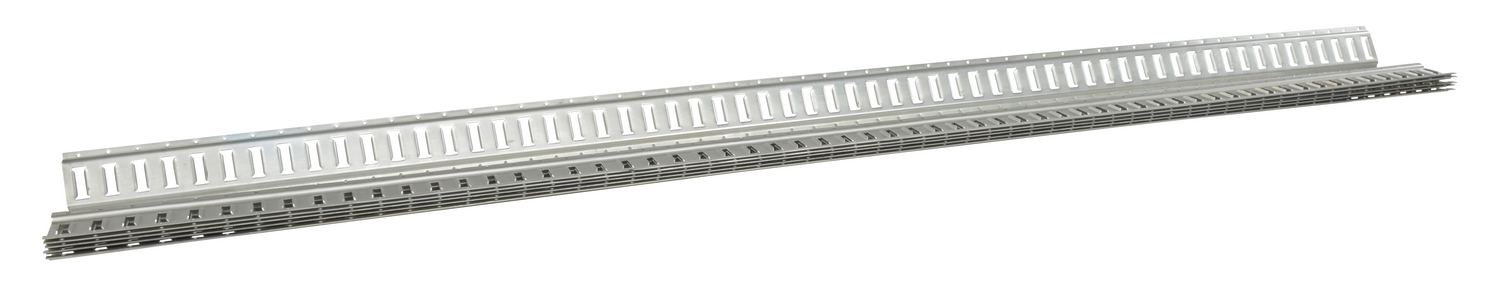

E-TRK-10-ZN-6PK E-TRK-10-ZN-6PK90 Days Limited WarrantySteel Zinc Plated E-Track 10 Ft. Length 6 Pack GrayMounting Hole Quantity: 120
Mounting Hole Diameter (in.): 9/32		120

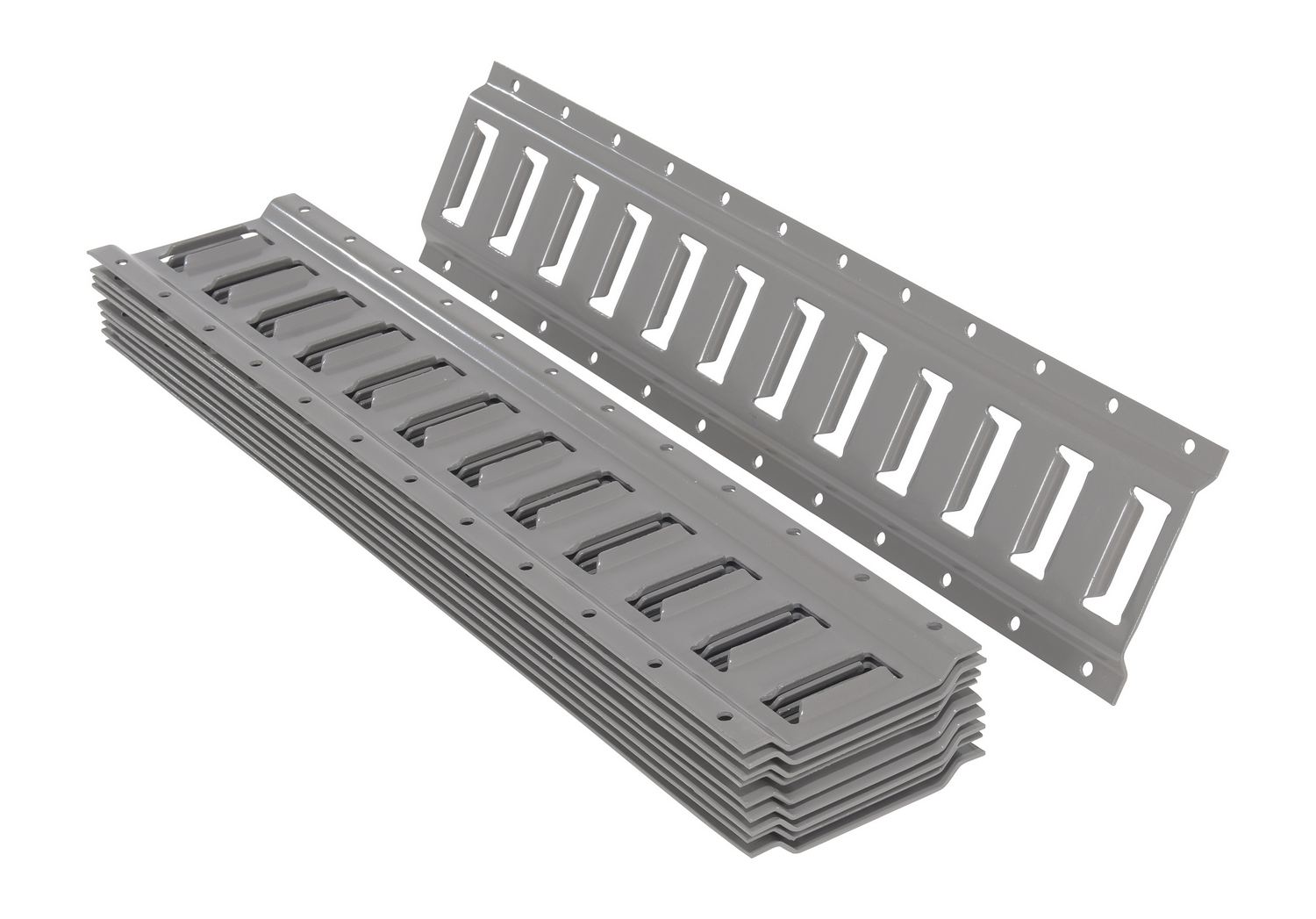

E-TRK-2-GY-10PK E-TRK-2-GY-10PK90 Days Limited WarrantySteel E-Track 2 Ft. Length 10 Pack GrayMounting Hole Quantity: 24
Mounting Hole Diameter (in.): 9/32		30

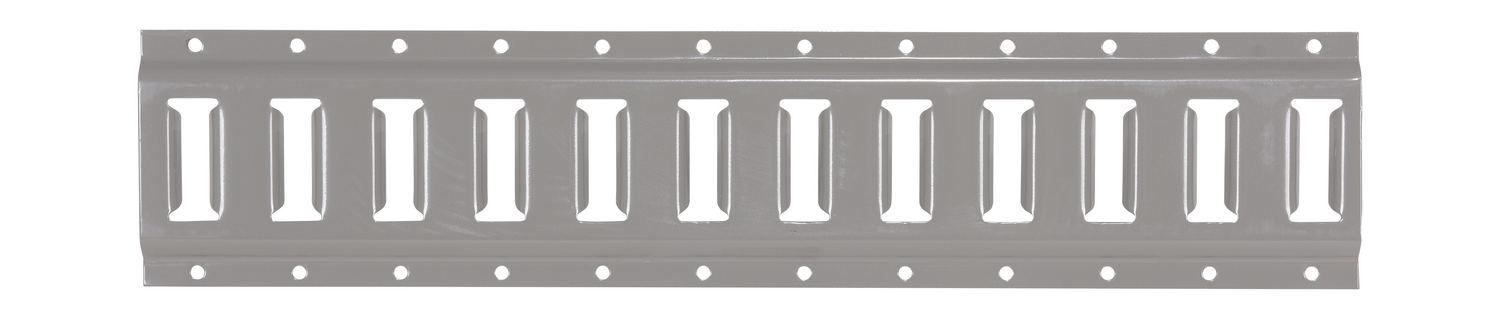

E-TRK-2-GY-1PK E-TRK-2-GY-1PK90 Days Limited WarrantySteel E-Track 2 Ft. Length 1 Pack GrayMounting Hole Quantity: 24
Mounting Hole Diameter (in.): 9/32		3

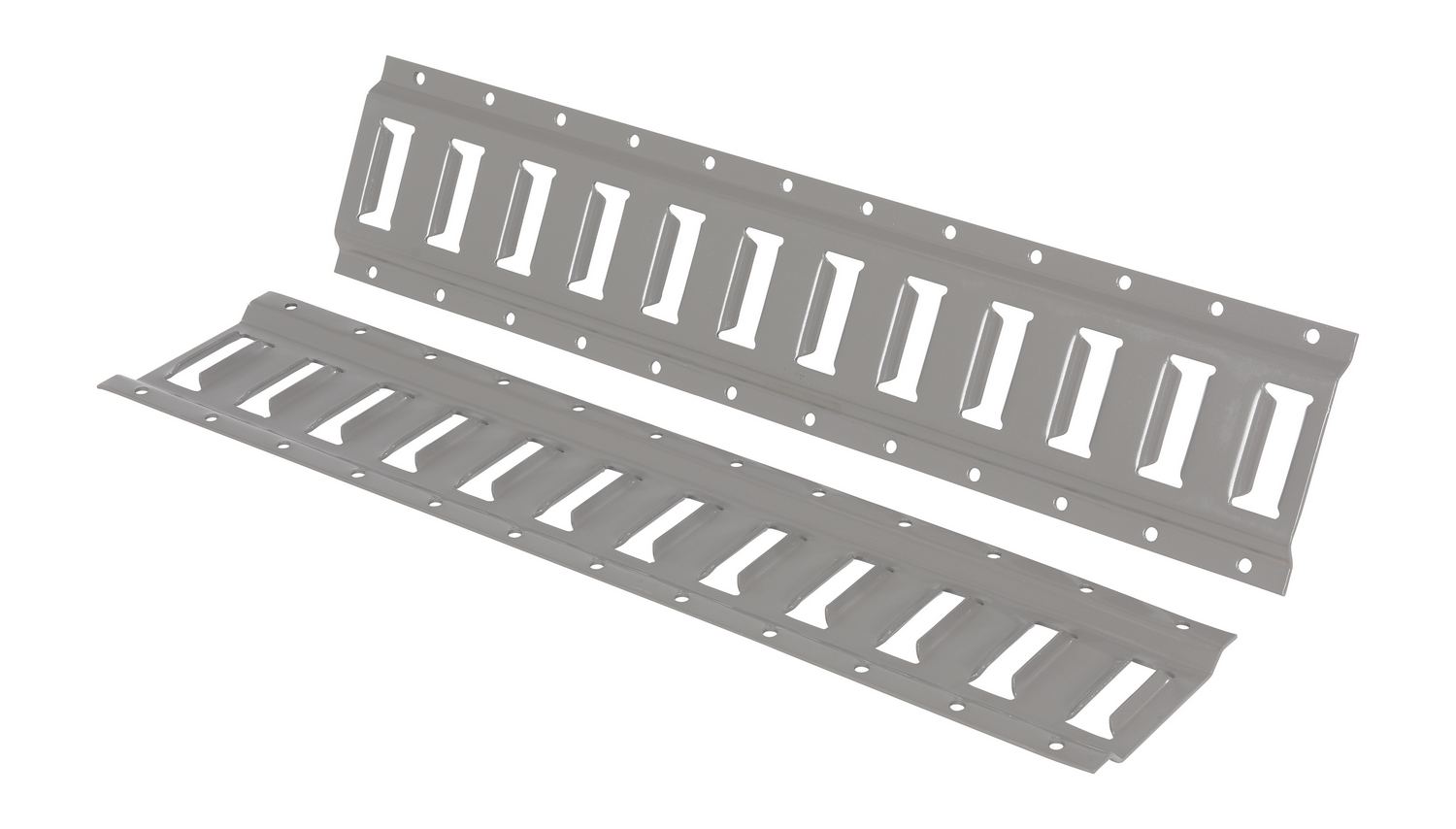

E-TRK-2-GY-2PK E-TRK-2-GY-2PK90 Days Limited WarrantySteel E-Track 2 Ft. Length 2 Pack GrayMounting Hole Quantity: 24
Mounting Hole Diameter (in.): 9/32		6

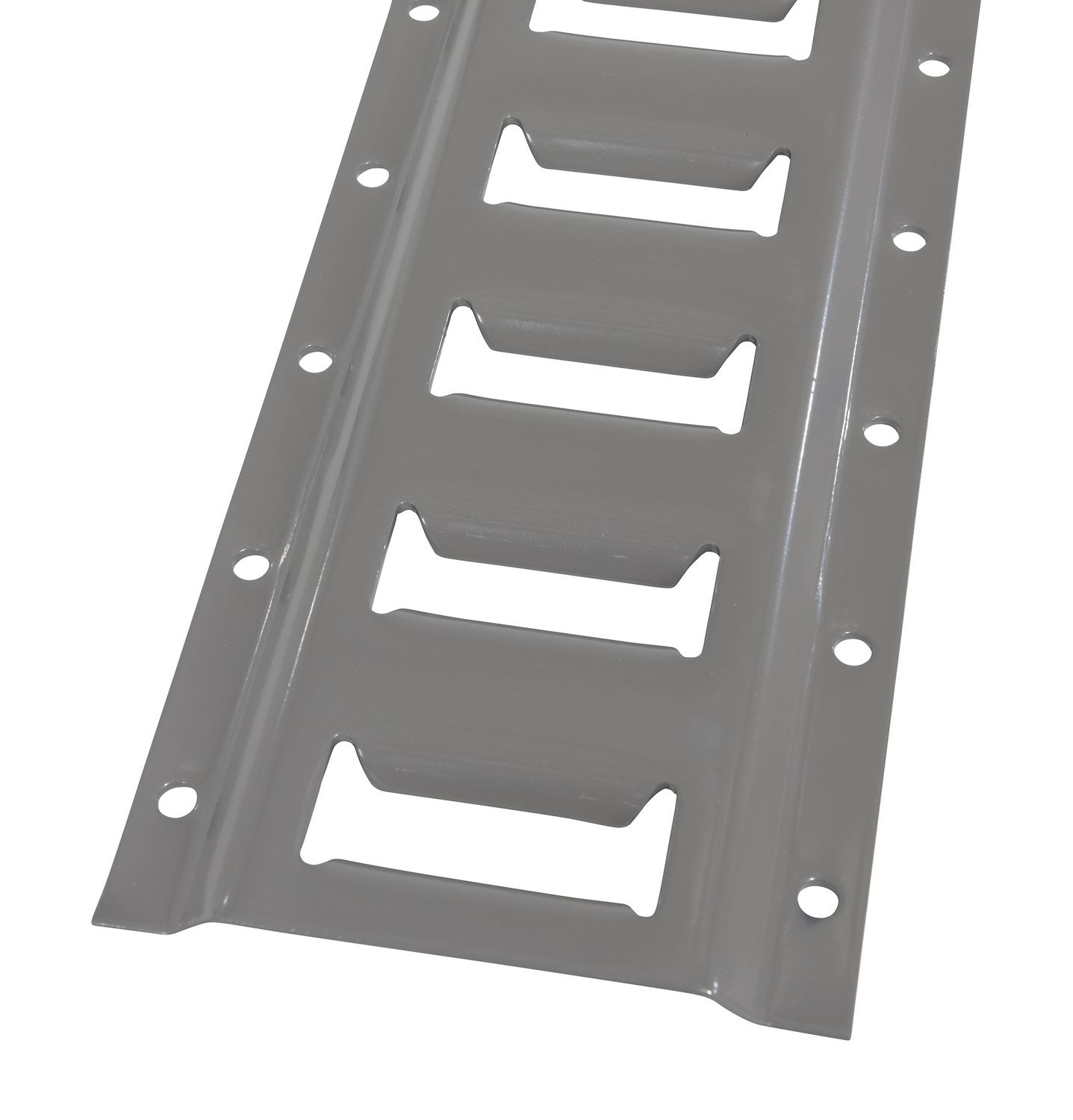

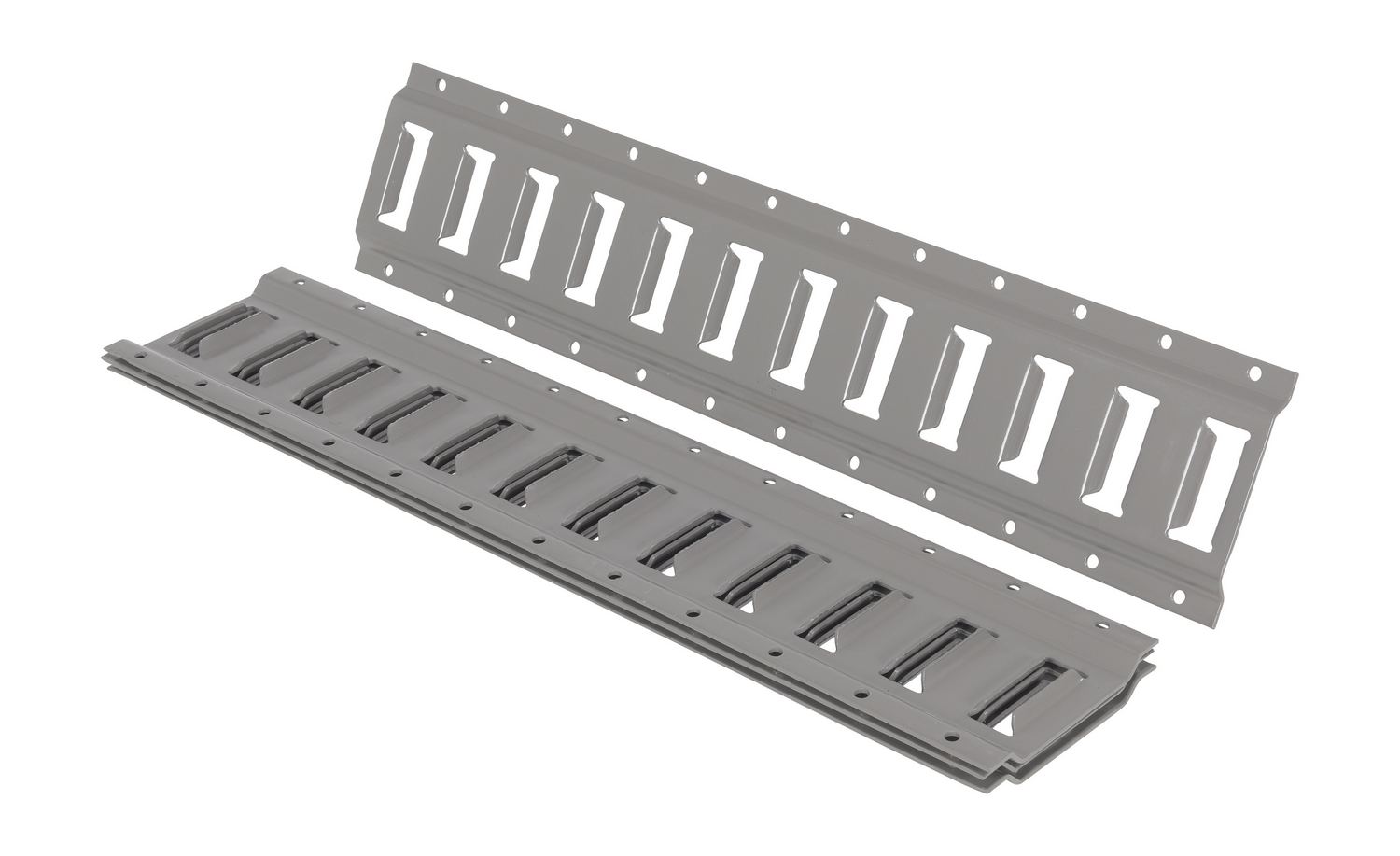

E-TRK-2-GY-4PK E-TRK-2-GY-4PK90 Days Limited WarrantySteel E-Track 2 Ft. Length 4 Pack GrayMounting Hole Quantity: 24
Mounting Hole Diameter (in.): 9/32		12

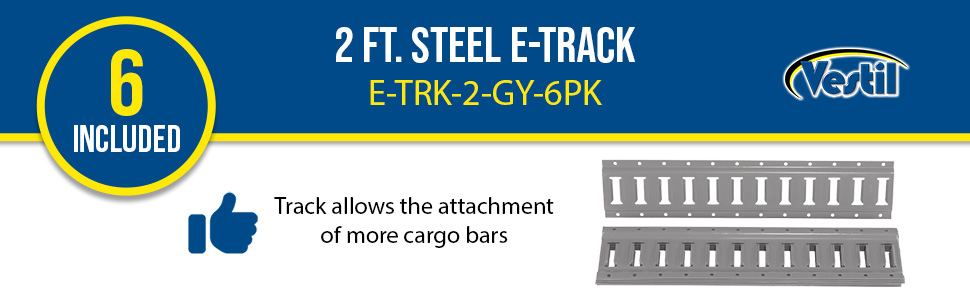

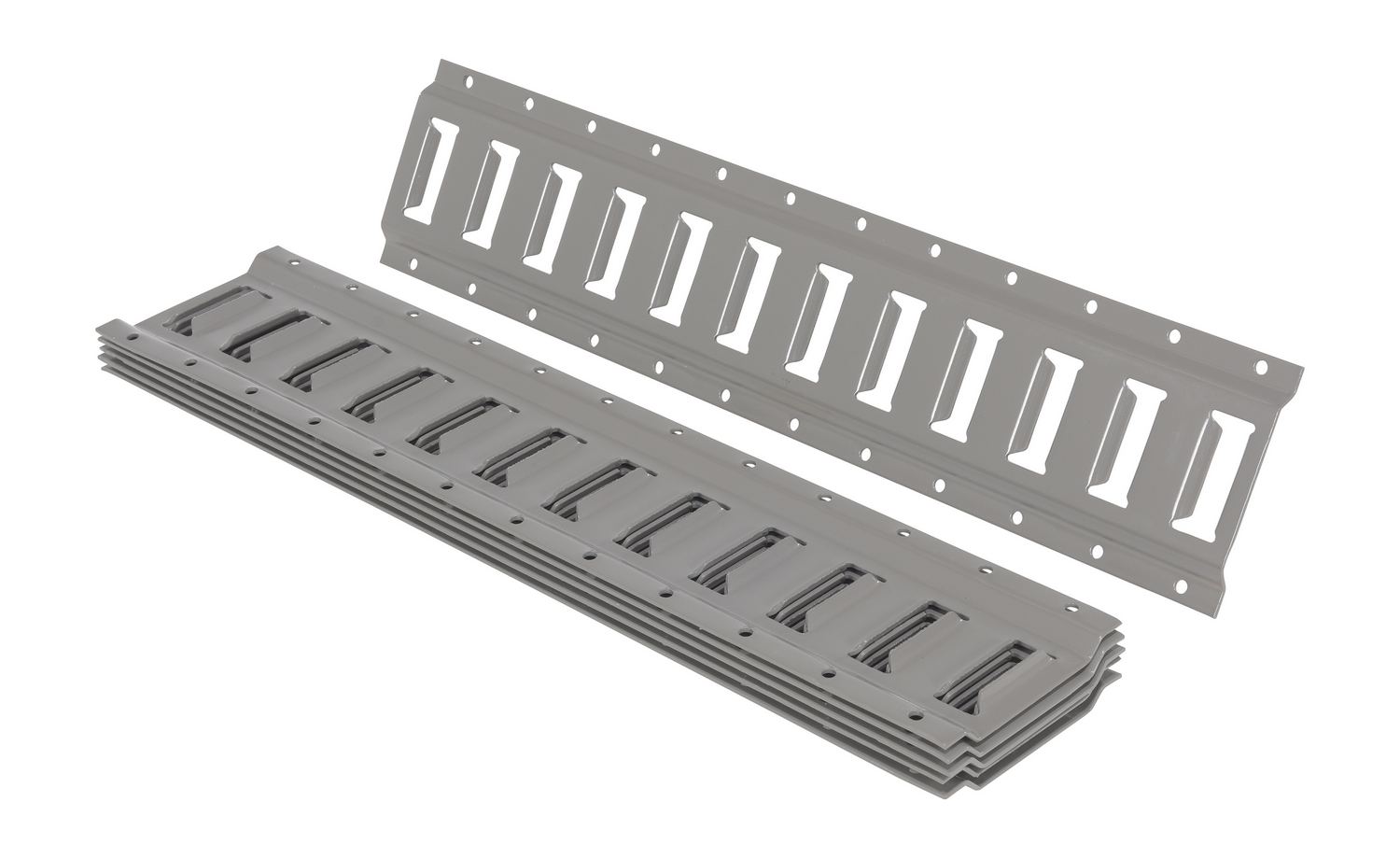

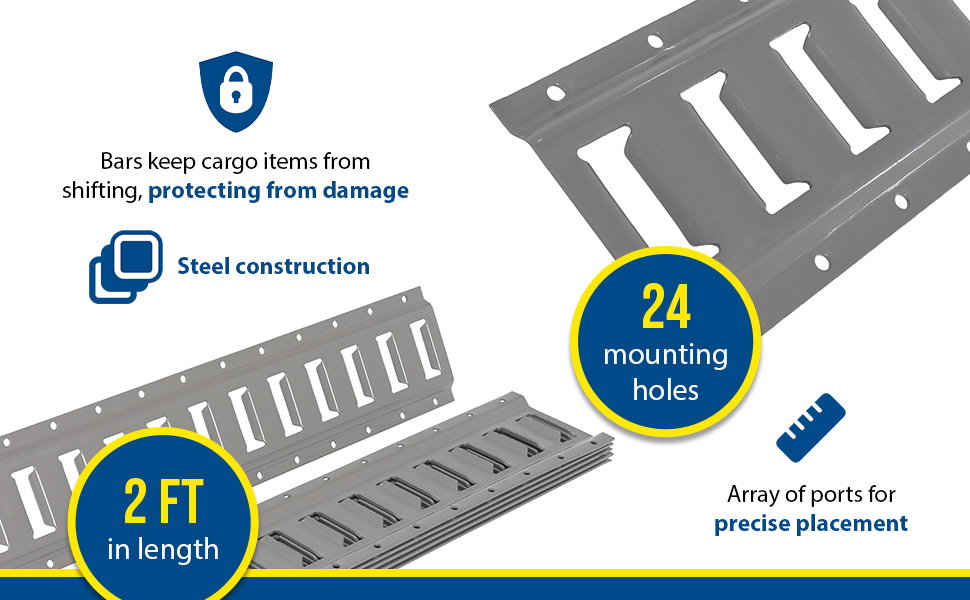

E-TRK-2-GY-6PK E-TRK-2-GY-6PK90 Days Limited WarrantySteel E-Track 2 Ft. Length 6 Pack GrayMounting Hole Quantity: 24
Mounting Hole Diameter (in.): 9/32		18

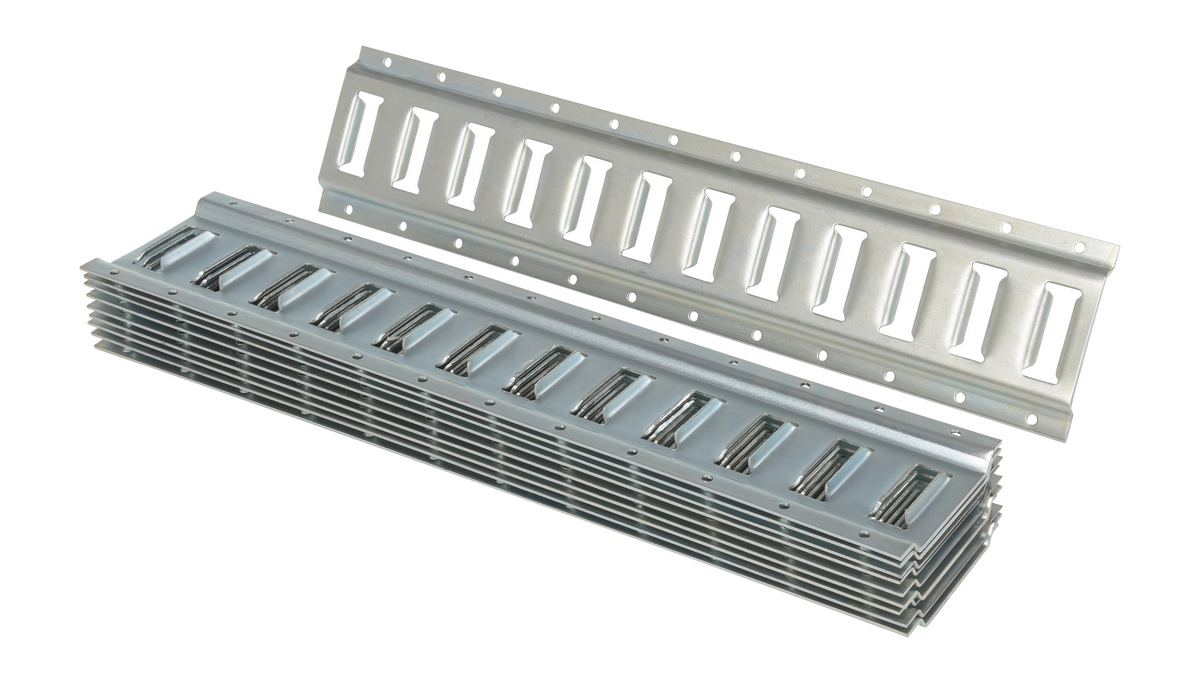

E-TRK-2-ZN-10PK E-TRK-2-ZN-10PK90 Days Limited WarrantySteel Zinc Plated E-Track 2 Ft. Length 10 Pack GrayMounting Hole Quantity: 24
Mounting Hole Diameter (in.): 9/32		30

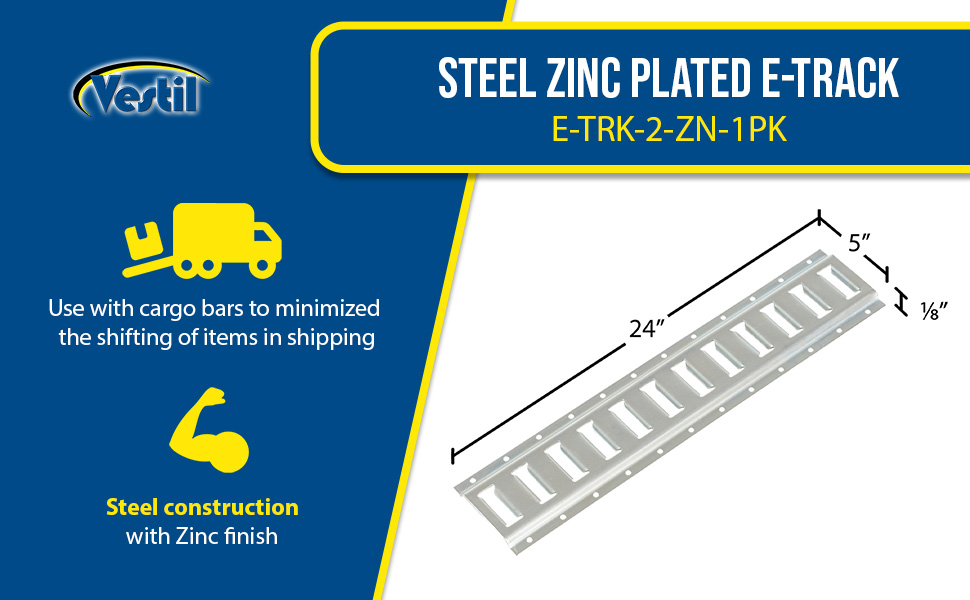

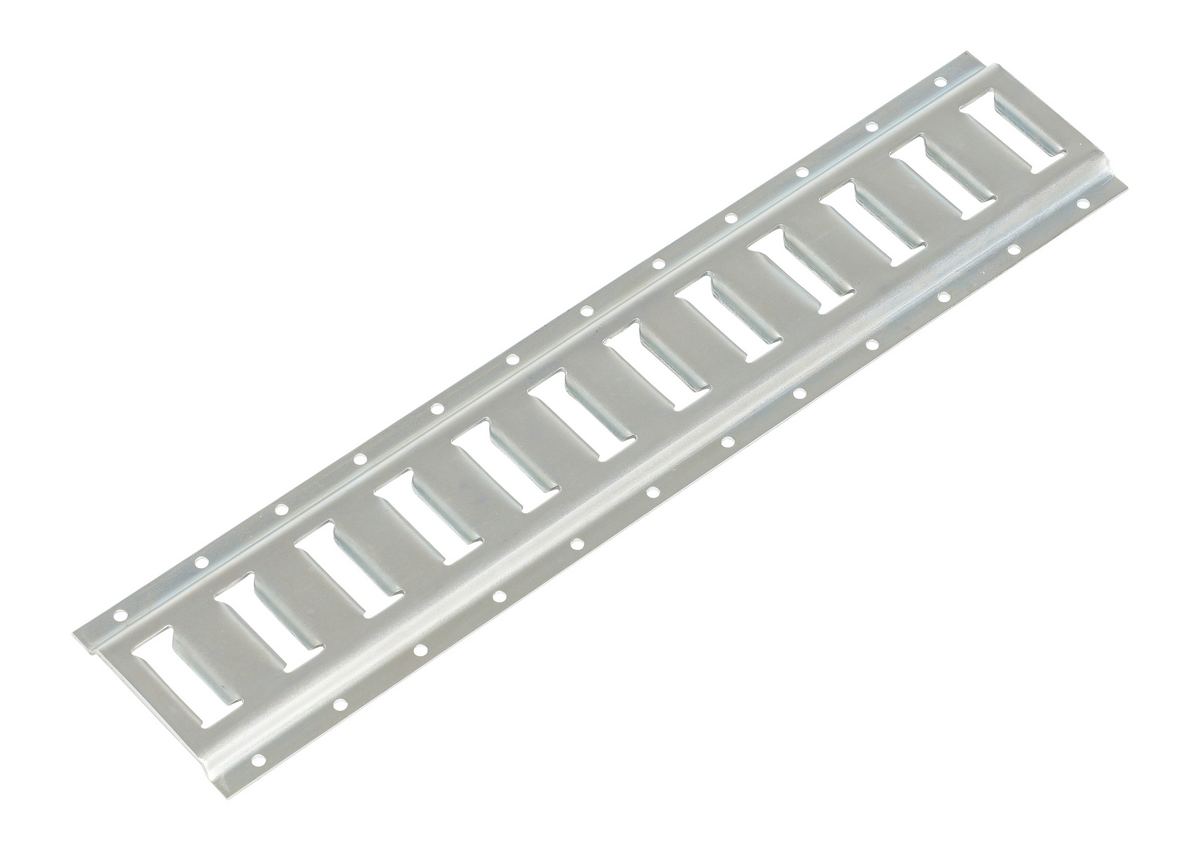

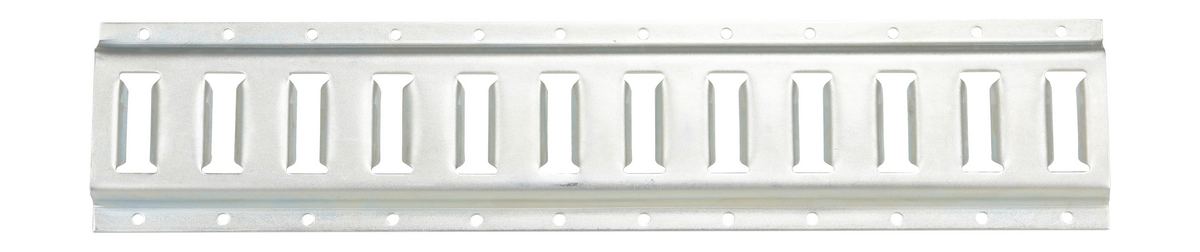

E-TRK-2-ZN-1PK E-TRK-2-ZN-1PK90 Days Limited WarrantySteel Zinc Plated E-Track 2 Ft. Length 1 Pack GrayMounting Hole Quantity: 24
Mounting Hole Diameter (in.): 9/32		3

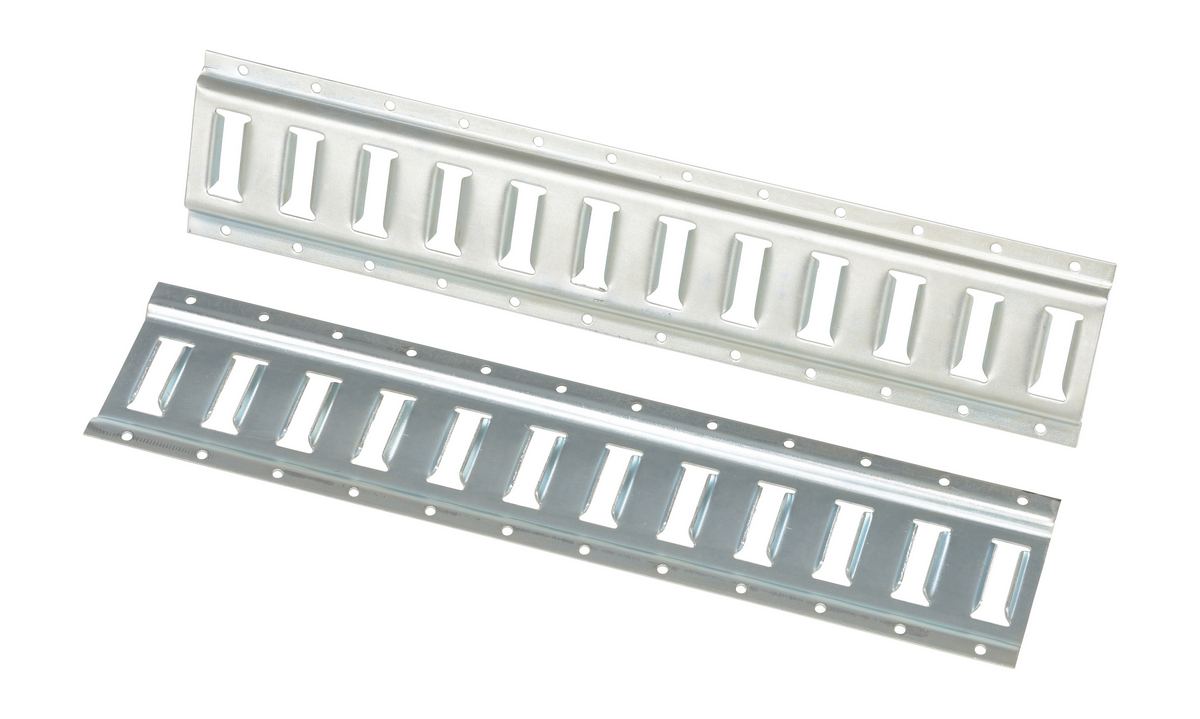

E-TRK-2-ZN-2PK E-TRK-2-ZN-2PK90 Days Limited WarrantySteel Zinc Plated E-Track 2 Ft. Length 2 Pack GrayMounting Hole Quantity: 24
Mounting Hole Diameter (in.): 9/32		6
E-TRK-2-ZN-4PK E-TRK-2-ZN-4PK90 Days Limited WarrantySteel Zinc Plated E-Track 2 Ft. Length 4 Pack GrayMounting Hole Quantity: 24
Mounting Hole Diameter (in.): 9/32		12

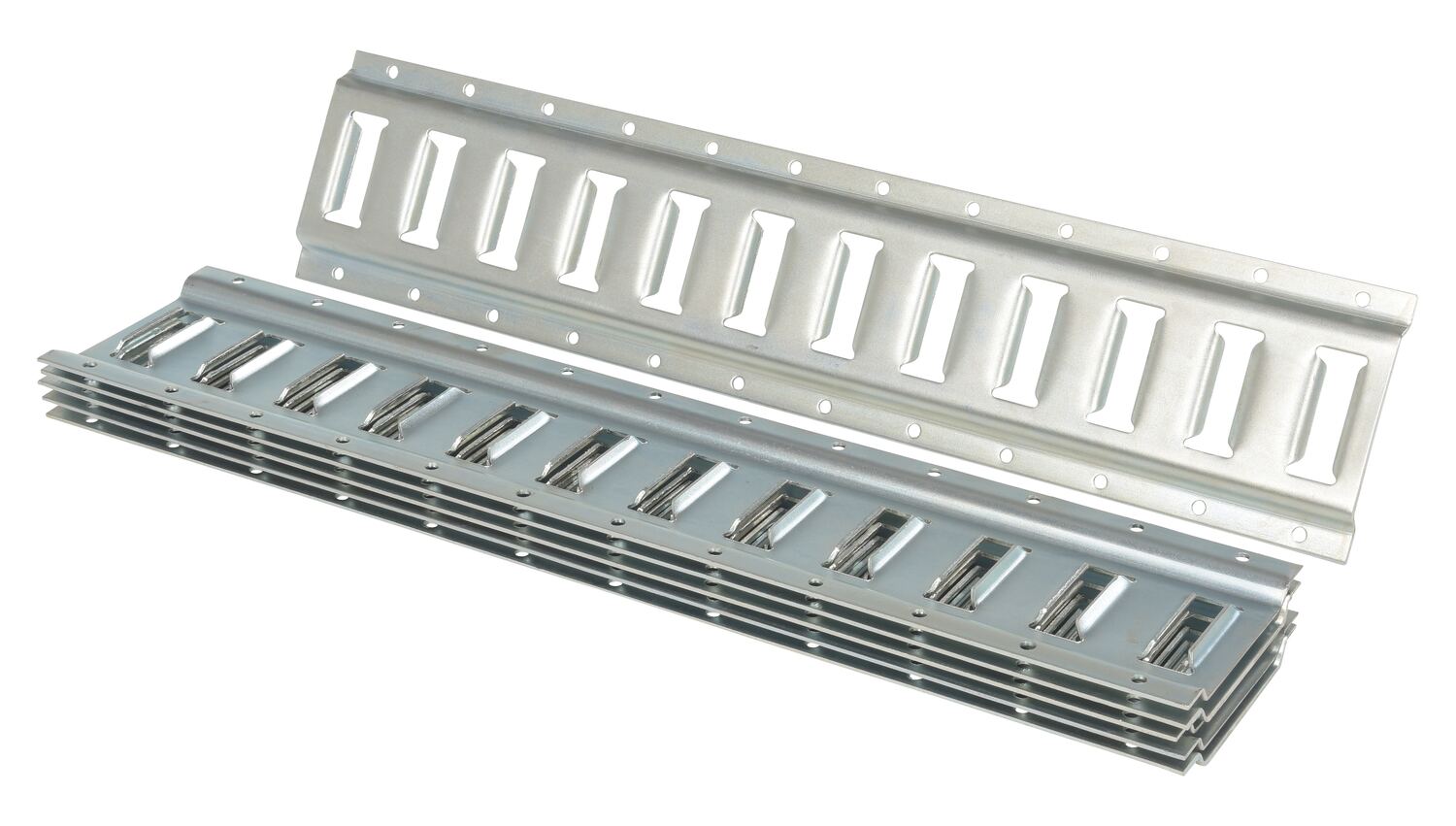

E-TRK-2-ZN-6PK E-TRK-2-ZN-6PK90 Days Limited WarrantySteel Zinc Plated E-Track 2 Ft. Length 6 Pack GrayMounting Hole Quantity: 24
Mounting Hole Diameter (in.): 9/32		18

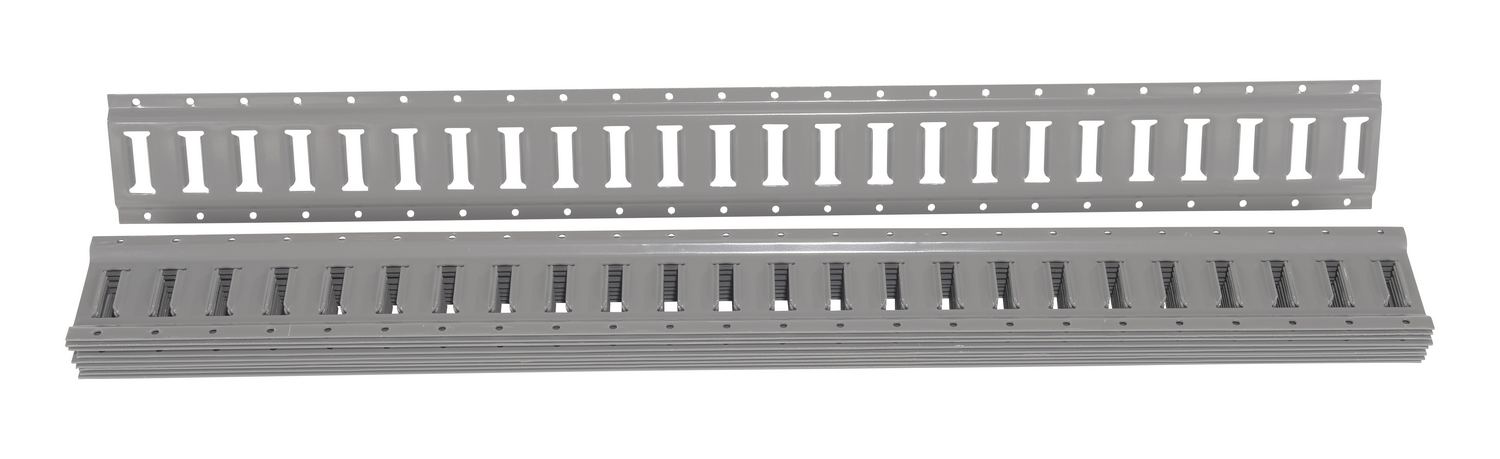

E-TRK-4-GY-10PK E-TRK-4-GY-10PK90 Days Limited WarrantySteel E-Track 4 Ft. Length 10 Pack GrayMounting Hole Quantity: 48
Mounting Hole Diameter (in.): 9/32		60

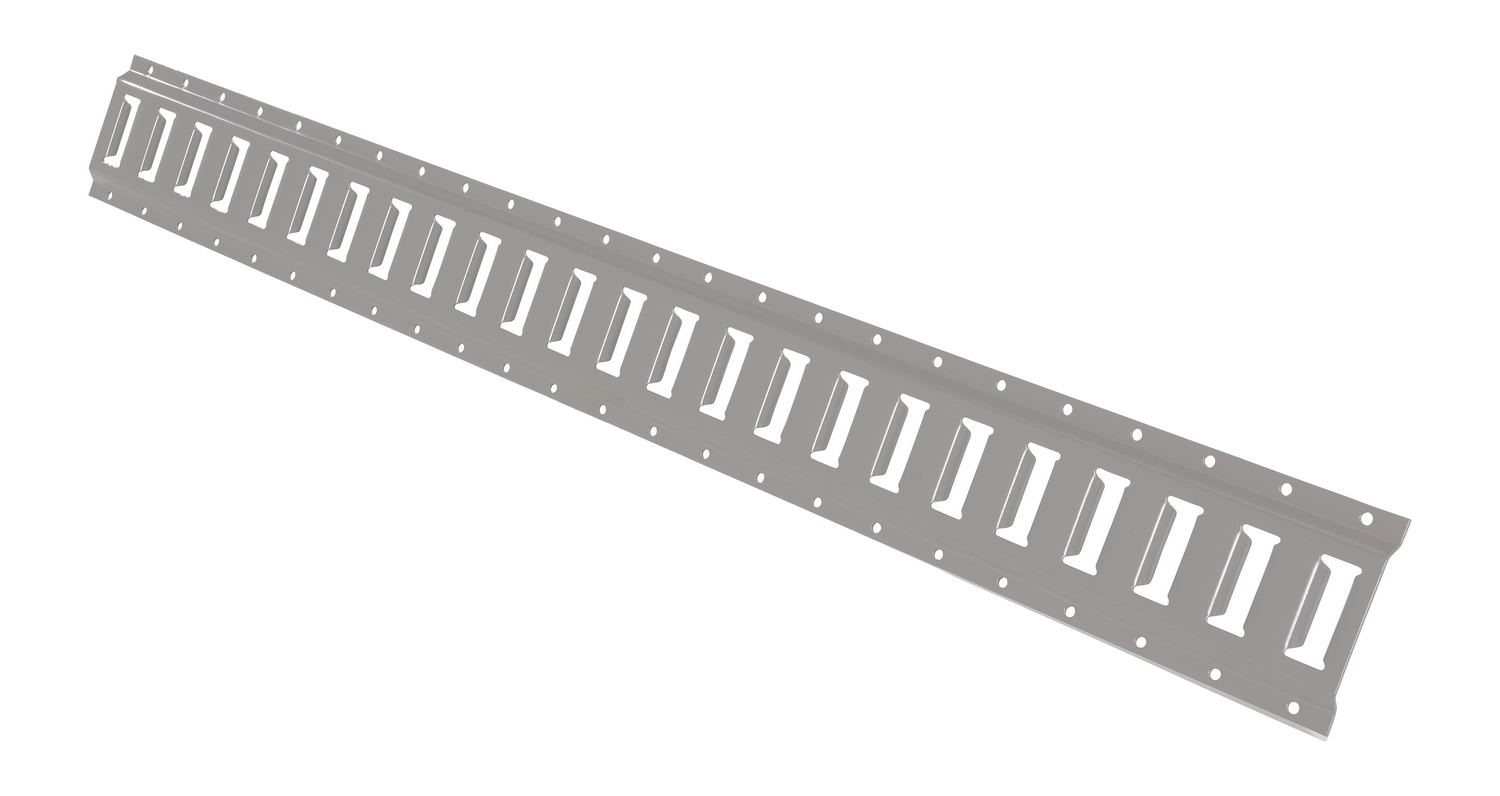

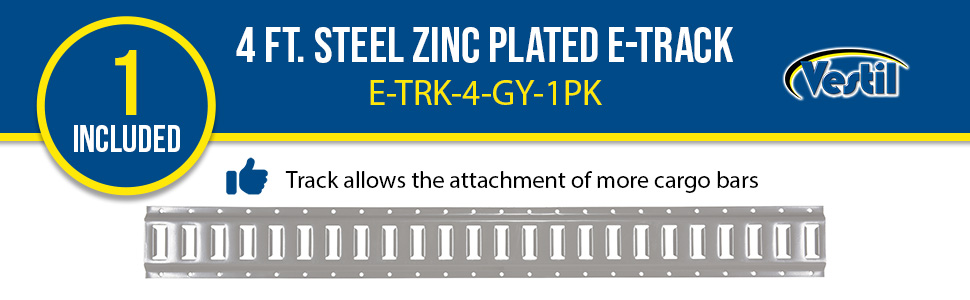

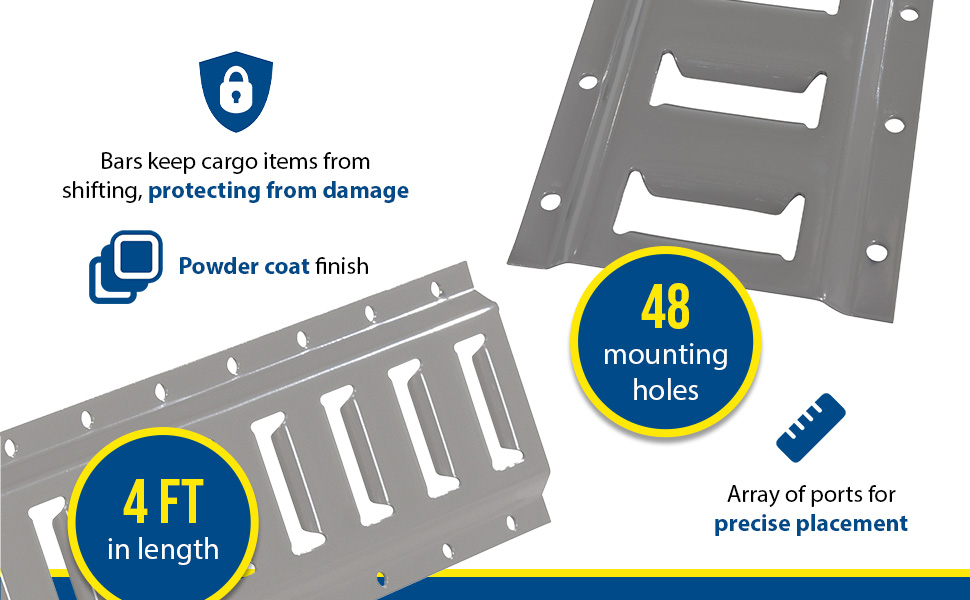

E-TRK-4-GY-1PK E-TRK-4-GY-1PK90 Days Limited WarrantySteel E-Track 4 Ft. Length 1 Pack GrayMounting Hole Quantity: 48
Mounting Hole Diameter (in.): 9/32		6

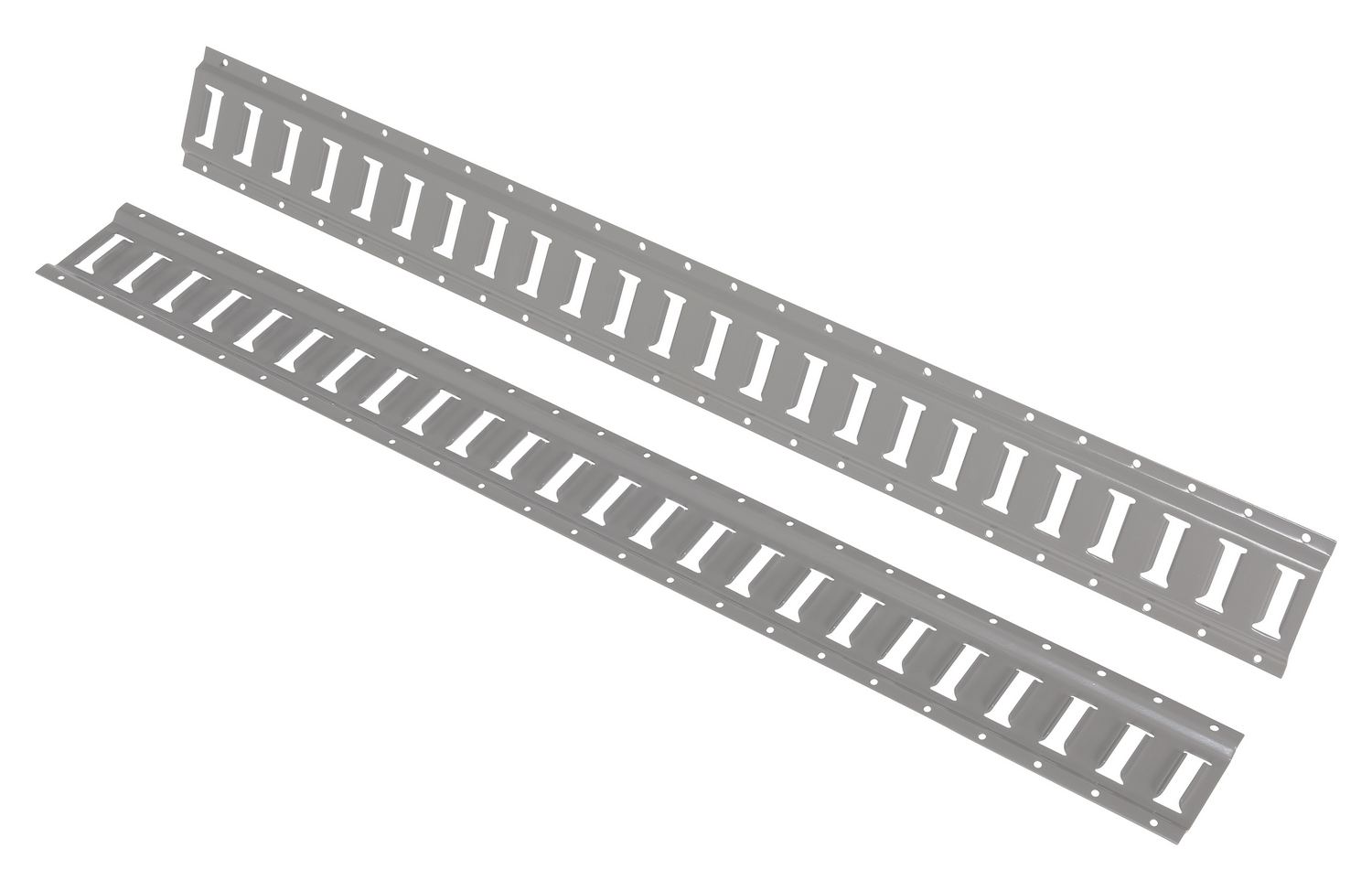

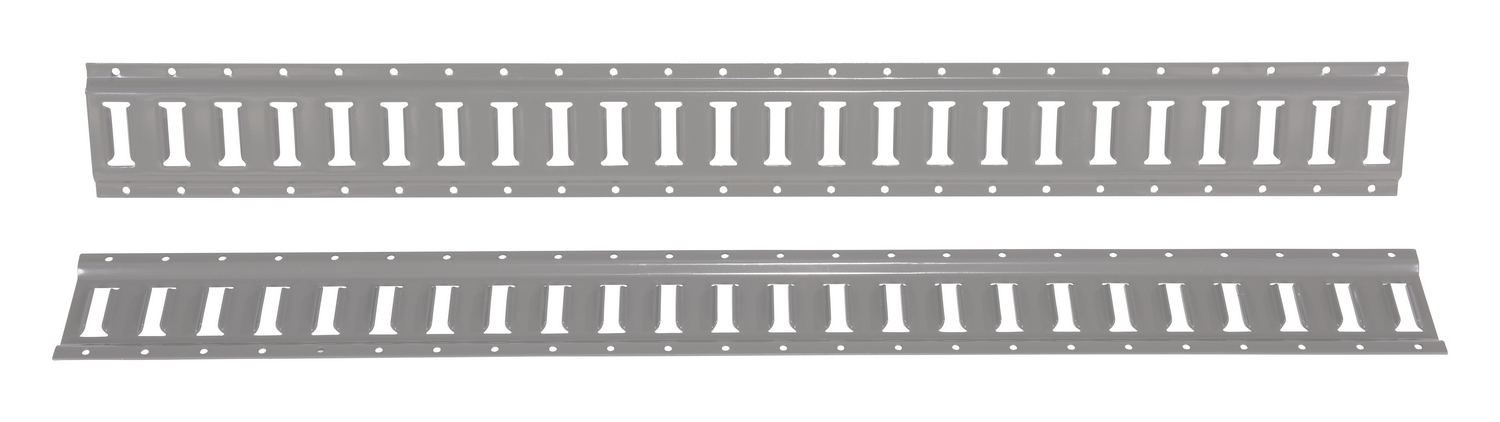

E-TRK-4-GY-2PK E-TRK-4-GY-2PK90 Days Limited WarrantySteel E-Track 4 Ft. Length 2 Pack GrayMounting Hole Quantity: 48
Mounting Hole Diameter (in.): 9/32		12

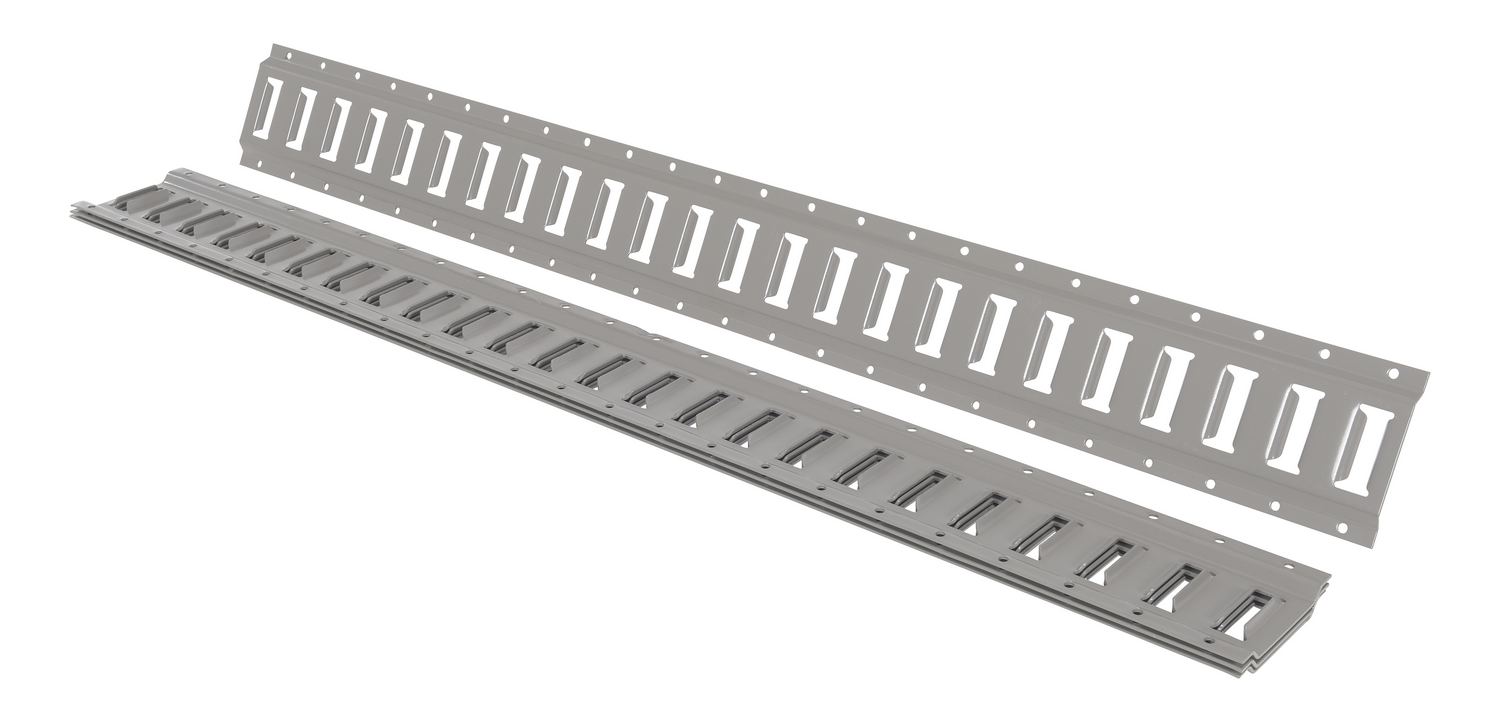

E-TRK-4-GY-4PK E-TRK-4-GY-4PK90 Days Limited WarrantySteel E-Track 4 Ft. Length 4 Pack GrayMounting Hole Quantity: 48
Mounting Hole Diameter (in.): 9/32		24

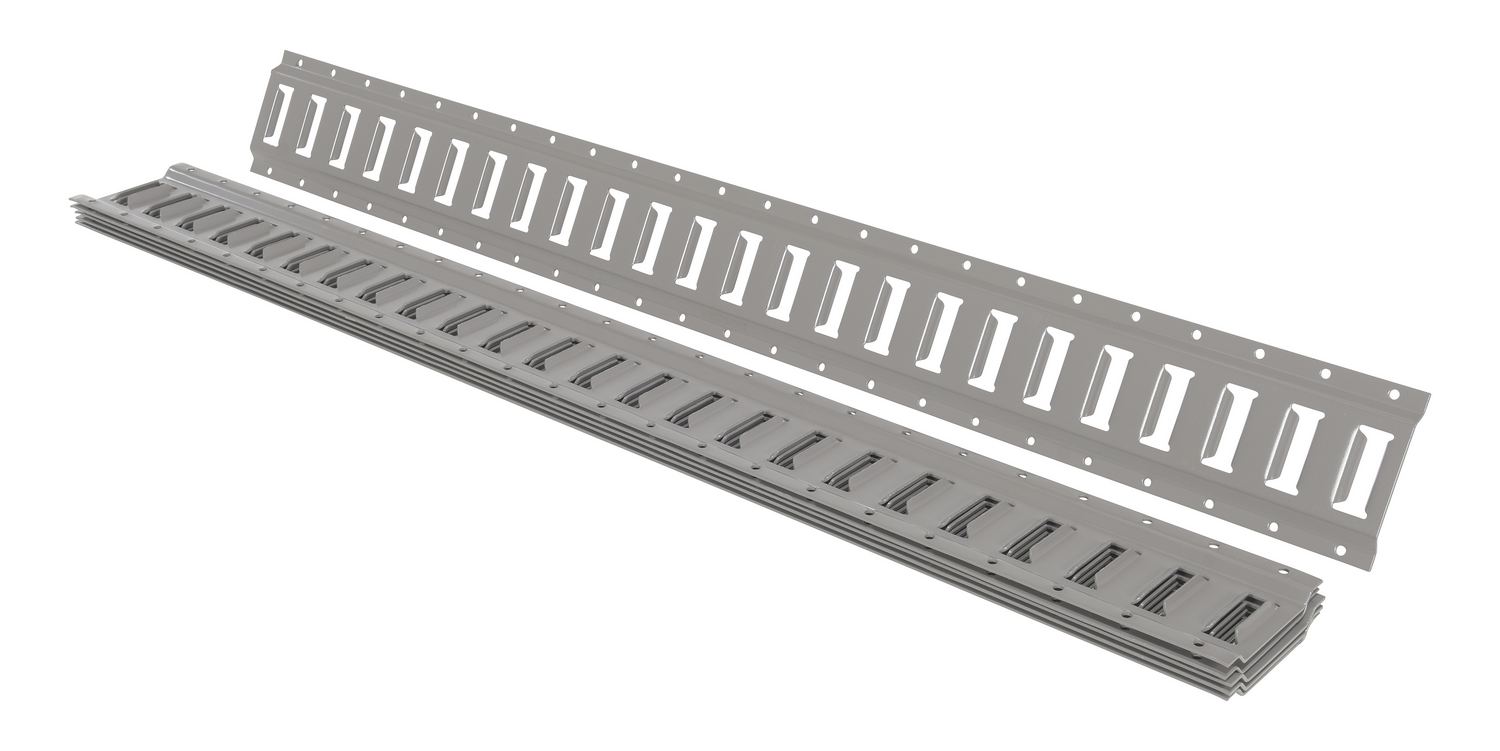

E-TRK-4-GY-6PK E-TRK-4-GY-6PK90 Days Limited WarrantySteel E-Track 4 Ft. Length 6 Pack GrayMounting Hole Quantity: 48
Mounting Hole Diameter (in.): 9/32		36

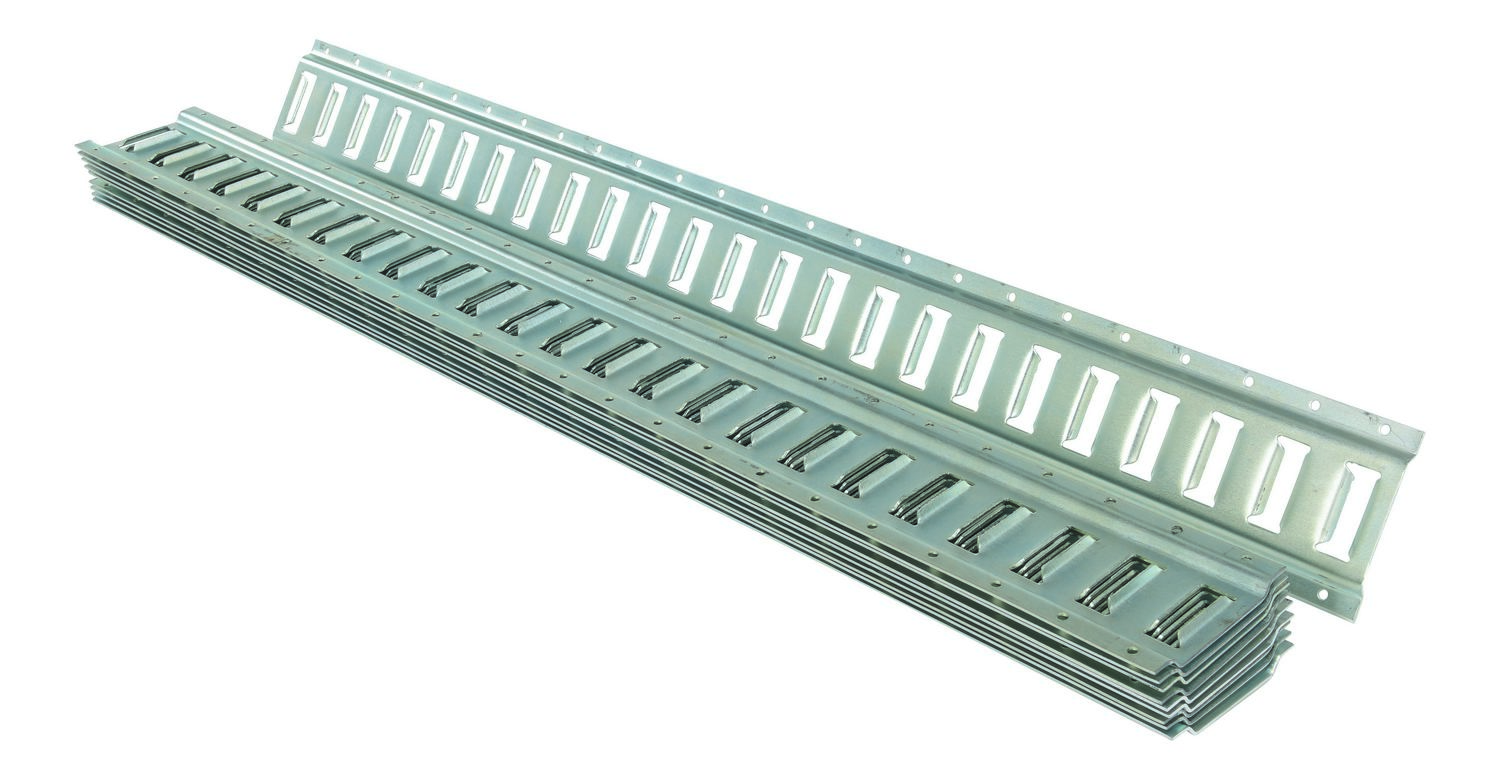

E-TRK-4-ZN-10PK E-TRK-4-ZN-10PK90 Days Limited WarrantySteel Zinc Plated E-Track 4 Ft. Length 10 Pack GrayMounting Hole Quantity: 48
Mounting Hole Diameter (in.): 9/32		60

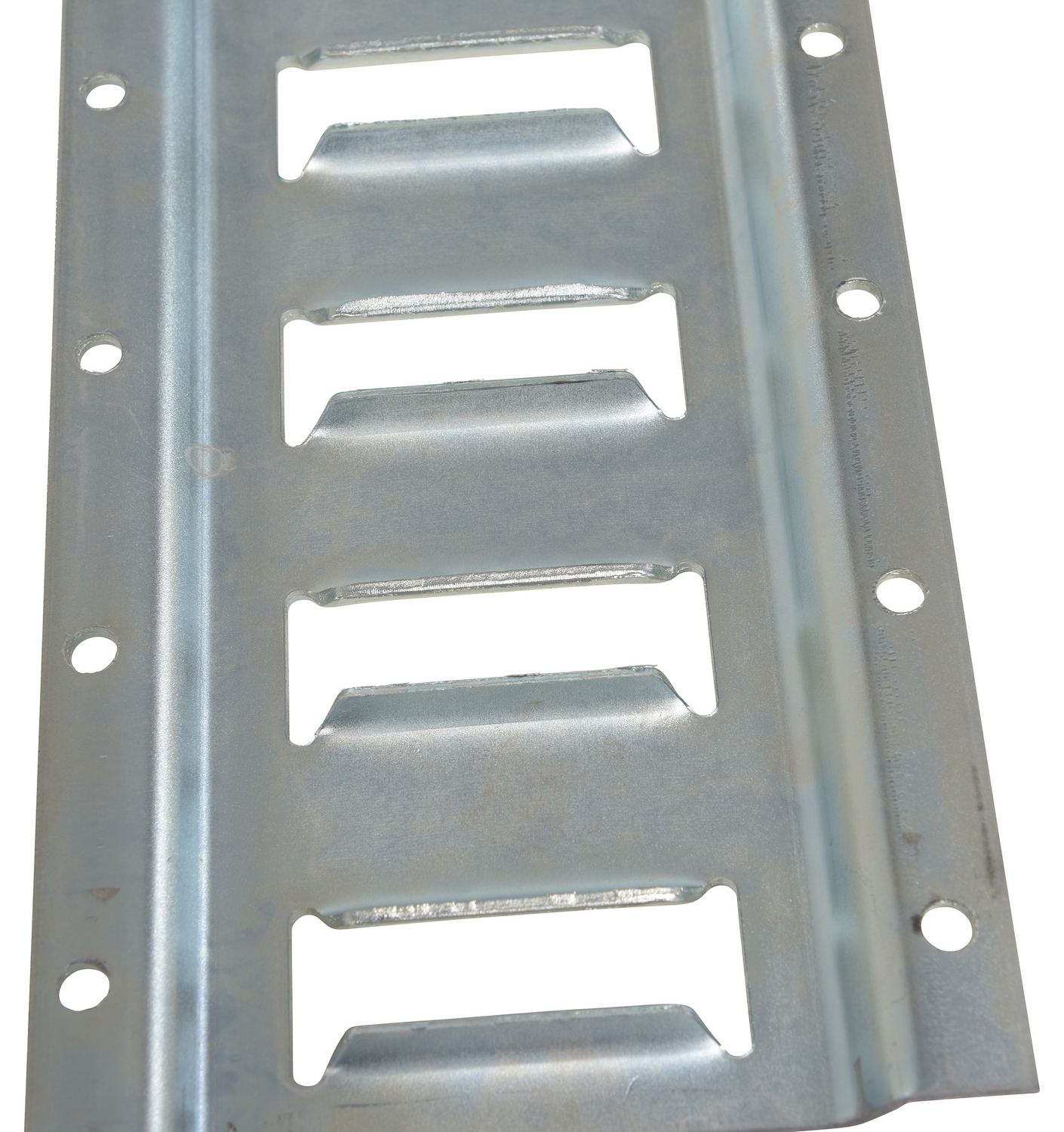

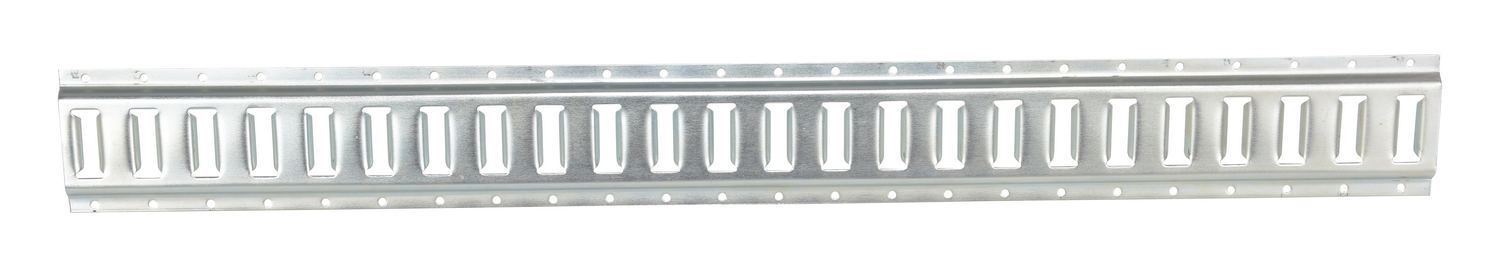

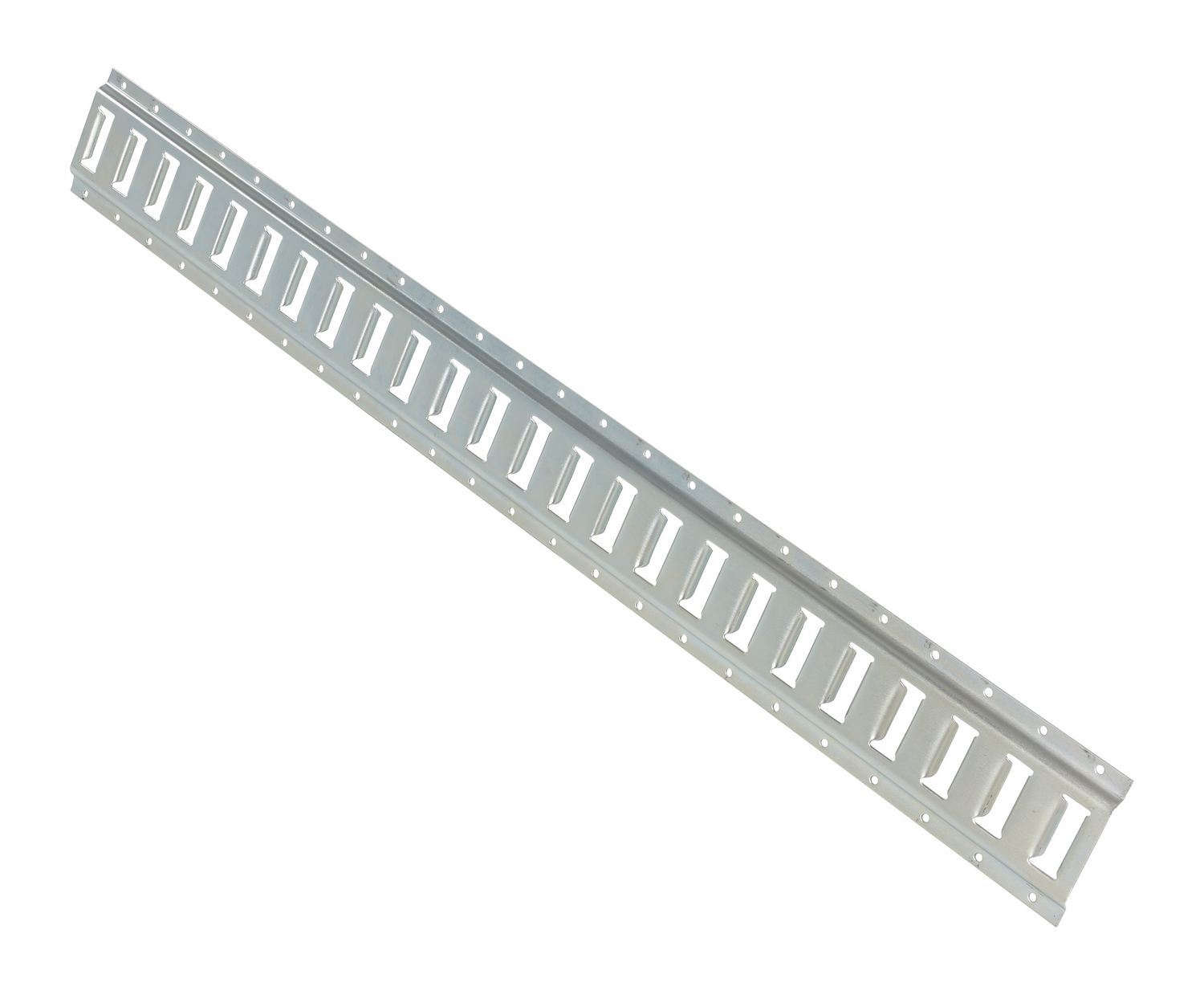

E-TRK-4-ZN-1PK E-TRK-4-ZN-1PK90 Days Limited WarrantySteel Zinc Plated E-Track 4 Ft. Length 1 Pack GrayMounting Hole Quantity: 48
Mounting Hole Diameter (in.): 9/32		6
E-TRK-4-ZN-2PK E-TRK-4-ZN-2PK90 Days Limited WarrantySteel Zinc Plated E-Track 4 Ft. Length 2 Pack GrayMounting Hole Quantity: 48
Mounting Hole Diameter (in.): 9/32		12

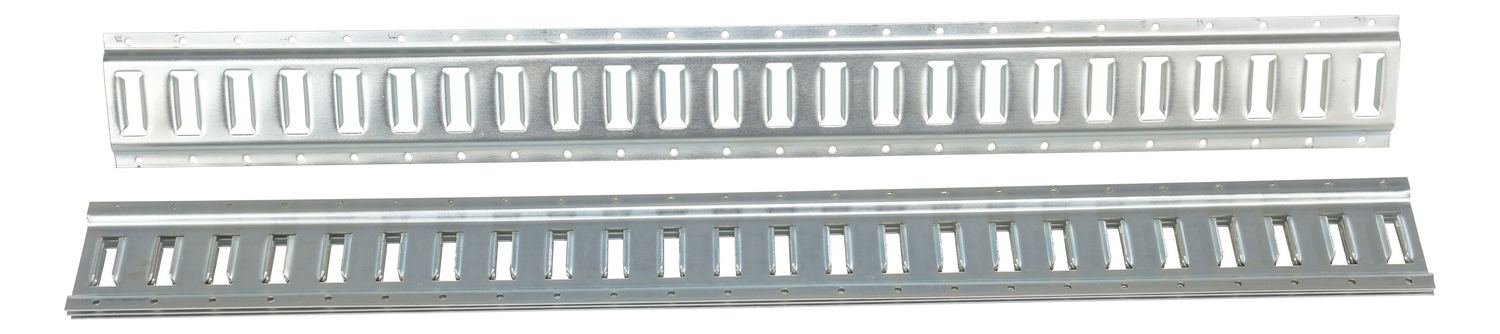

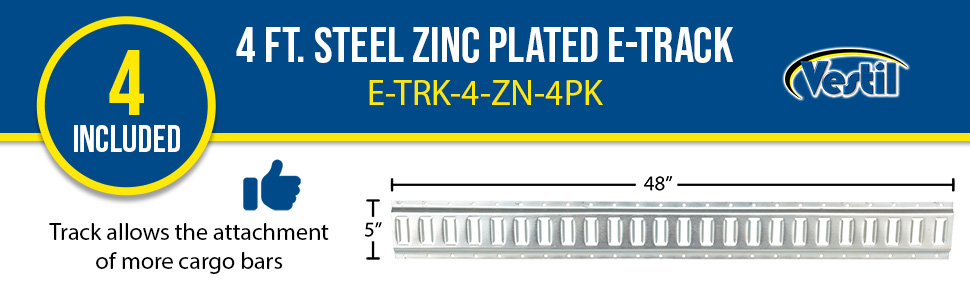

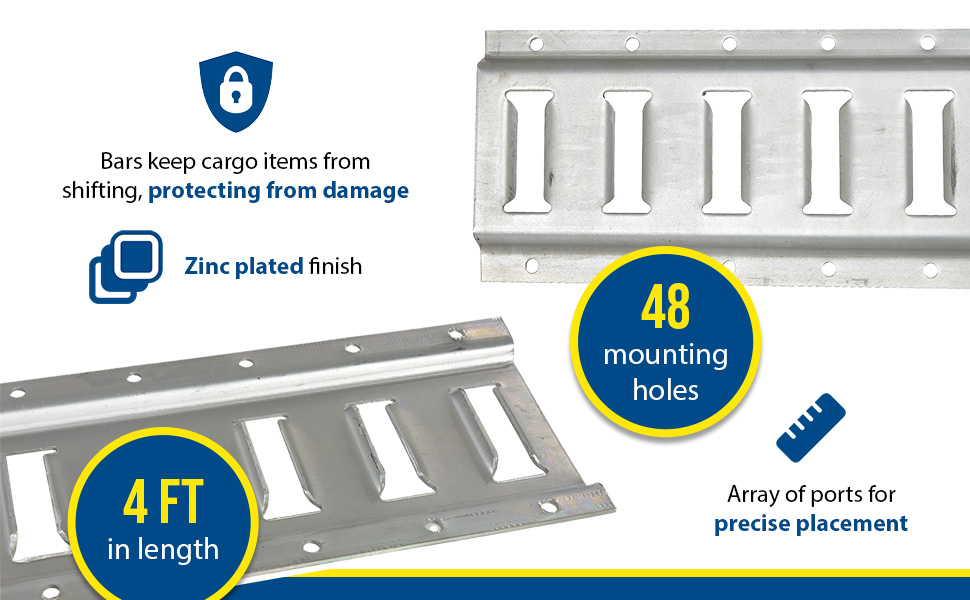

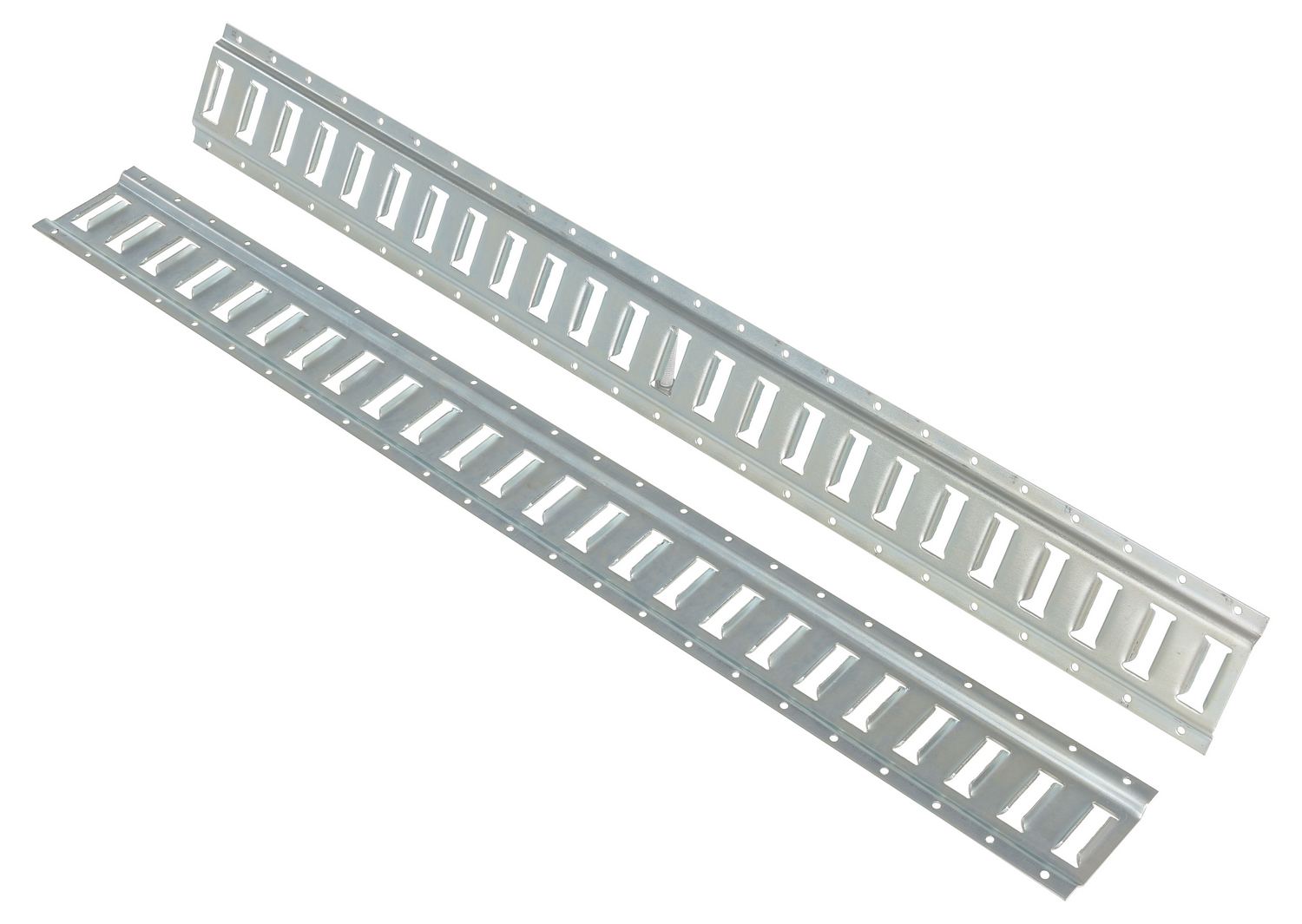

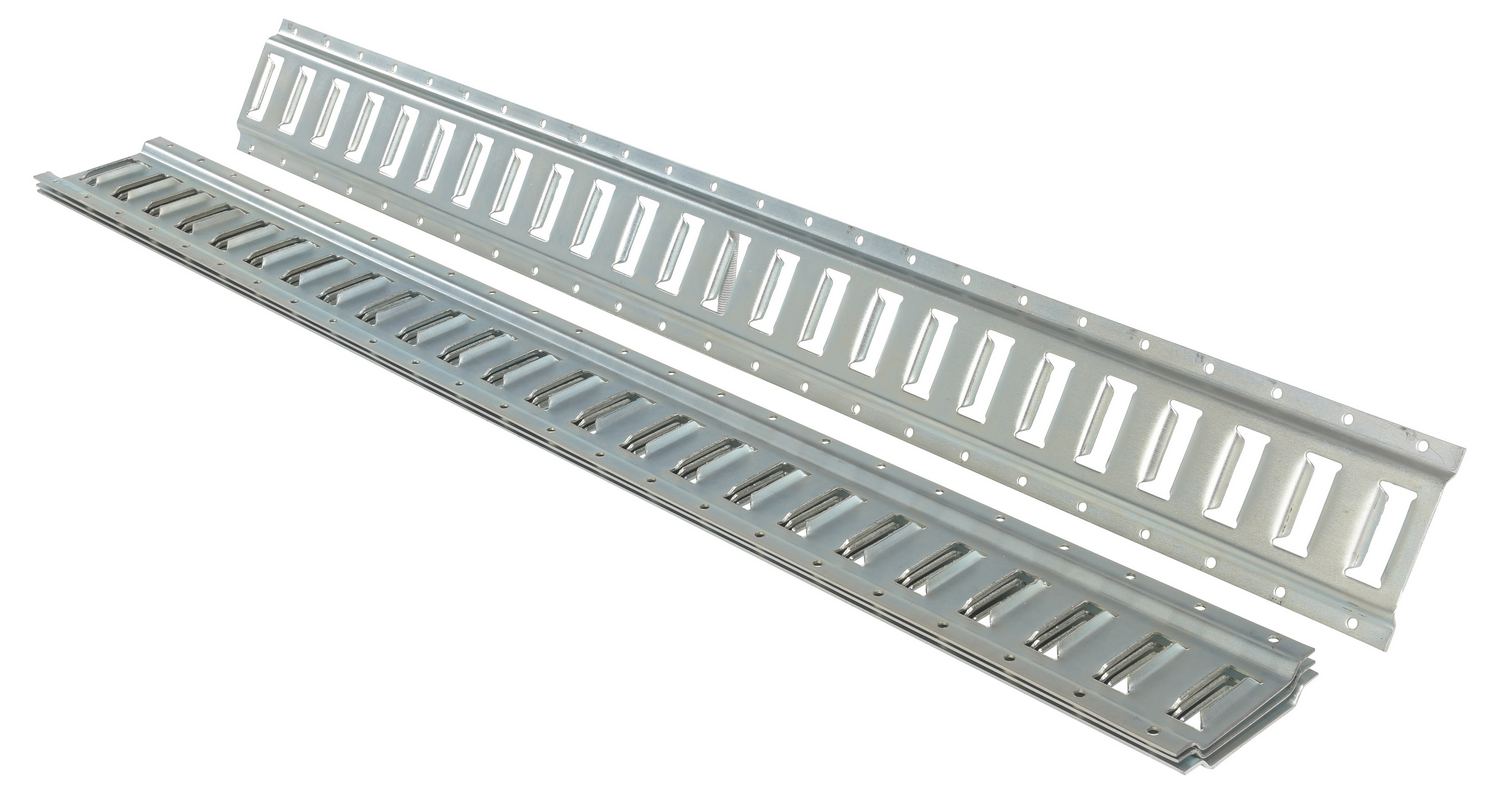

E-TRK-4-ZN-4PK E-TRK-4-ZN-4PK90 Days Limited WarrantySteel Zinc Plated E-Track 4 Ft. Length 4 Pack GrayMounting Hole Quantity: 48
Mounting Hole Diameter (in.): 9/32		24

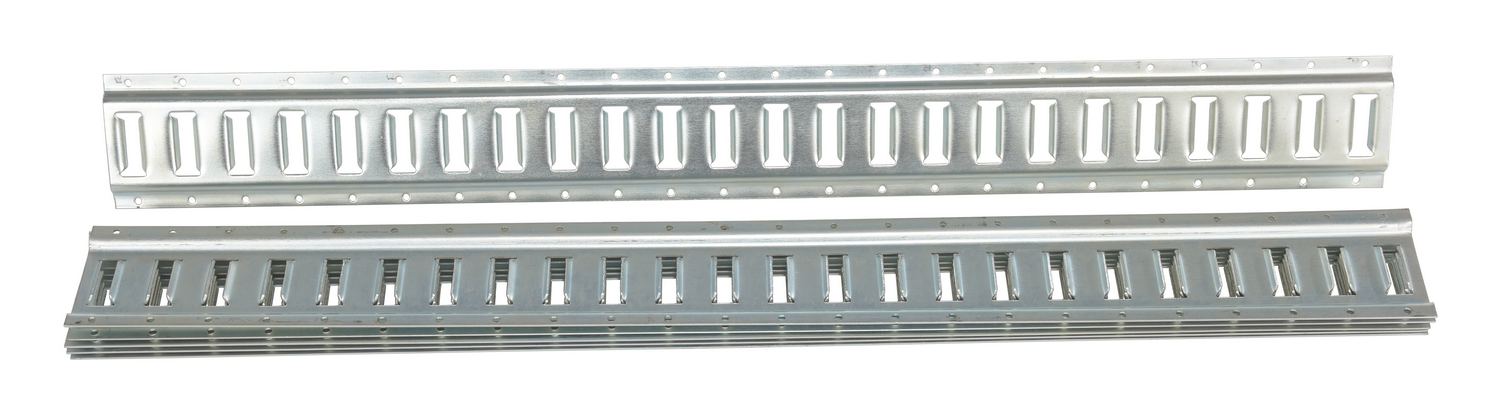

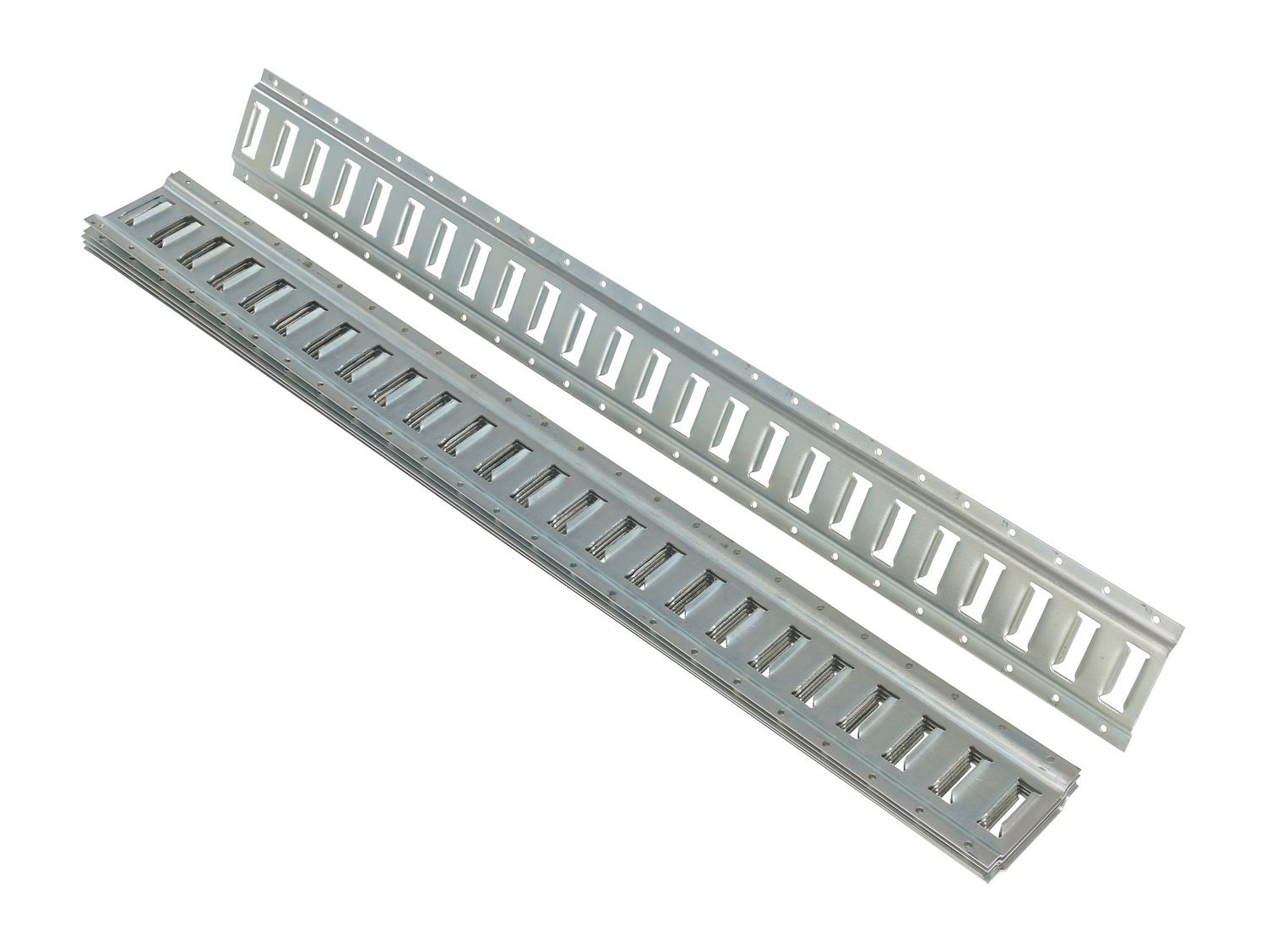

E-TRK-4-ZN-6PK E-TRK-4-ZN-6PK90 Days Limited WarrantySteel Zinc Plated E-Track 4 Ft. Length 6 Pack GrayMounting Hole Quantity: 48
Mounting Hole Diameter (in.): 9/32		36
E-TRK-5-GY-10PK E-TRK-5-GY-10PK90 Days Limited WarrantySteel E-Track 5 Ft. Length 10 Pack GrayMounting Hole Quantity: 60
Mounting Hole Diameter (in.): 9/32		80
E-TRK-5-GY-1PK E-TRK-5-GY-1PK90 Days Limited WarrantySteel E-Track 5 Ft. Length 1 Pack GrayMounting Hole Quantity: 60
Mounting Hole Diameter (in.): 9/32		8
E-TRK-5-GY-2PK E-TRK-5-GY-2PK90 Days Limited WarrantySteel E-Track 5 Ft. Length 2 Pack GrayMounting Hole Quantity: 60
Mounting Hole Diameter (in.): 9/32		16
E-TRK-5-GY-4PK E-TRK-5-GY-4PK90 Days Limited WarrantySteel E-Track 5 Ft. Length 4 Pack GrayMounting Hole Quantity: 60
Mounting Hole Diameter (in.): 9/32		32
E-TRK-5-GY-6PK E-TRK-5-GY-6PK90 Days Limited WarrantySteel E-Track 5 Ft. Length 6 Pack GrayMounting Hole Quantity: 60
Mounting Hole Diameter (in.): 9/32		48
E-TRK-5-ZN-10PK E-TRK-5-ZN-10PK90 Days Limited WarrantySteel Zinc Plated E-Track 5 Ft. Length 10 Pack GrayMounting Hole Quantity: 60
Mounting Hole Diameter (in.): 9/32		80
E-TRK-5-ZN-1PK E-TRK-5-ZN-1PK90 Days Limited WarrantySteel Zinc Plated E-Track 5 Ft. Length 1 Pack GrayMounting Hole Quantity: 60
Mounting Hole Diameter (in.): 9/32		8
E-TRK-5-ZN-2PK E-TRK-5-ZN-2PK90 Days Limited WarrantySteel Zinc Plated E-Track 5 Ft. Length 2 Pack GrayMounting Hole Quantity: 60
Mounting Hole Diameter (in.): 9/32		16
E-TRK-5-ZN-4PK E-TRK-5-ZN-4PK90 Days Limited WarrantySteel Zinc Plated E-Track 5 Ft. Length 4 Pack GrayMounting Hole Quantity: 60
Mounting Hole Diameter (in.): 9/32		32
E-TRK-5-ZN-6PK E-TRK-5-ZN-6PK90 Days Limited WarrantySteel Zinc Plated E-Track 5 Ft. Length 6 Pack GrayMounting Hole Quantity: 60
Mounting Hole Diameter (in.): 9/32		48
E-TRK-CBAT E-TRK-CBAT E-TRACK Cargo Bar Assist Tool 7
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Cargo Bars PDF's will open in a new window when clicked.

Manuals


EB-96 & -102
Owners Manual

CL
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


CB-5

CB-7

CB-7-S

CB-HLDR

CH-3

CH-7

CL-15

CL-16

CL-17

CL-18

CL-20

EB-96

EB-102

Testing Certificates


CB-H7-5

CB-H7-7

CB-H7-7-S

CB-HLDR

CB-PU-3

CL-16

CL-17

CL-H3-15

CL-H3-16

E-CLIP-D

E-CLIP-W

E-TRK-10-GY-10PK

E-TRK-10-GY-1PK

E-TRK-10-GY-2PK

E-TRK-10-GY-4PK

E-TRK-10-GY-6PK

E-TRK-10-ZN-10PK

E-TRK-10-ZN-1PK

E-TRK-10-ZN-2PK

E-TRK-10-ZN-4PK

E-TRK-10-ZN-6PK

E-TRK-2-GY-10PK

E-TRK-2-GY-1PK

E-TRK-2-GY-2PK

E-TRK-2-GY-4PK

E-TRK-2-GY-6PK

E-TRK-2-ZN-10PK

E-TRK-2-ZN-1PK

E-TRK-2-ZN-2PK

E-TRK-2-ZN-4PK

E-TRK-2-ZN-6PK

E-TRK-4-GY-10PK

E-TRK-4-GY-1PK

E-TRK-4-GY-2PK

E-TRK-4-GY-4PK

E-TRK-4-GY-6PK

E-TRK-4-ZN-10PK

E-TRK-4-ZN-1PK

E-TRK-4-ZN-2PK

E-TRK-4-ZN-4PK

E-TRK-4-ZN-6PK

E-TRK-5-GY-10PK

E-TRK-5-GY-1PK

E-TRK-5-GY-2PK

E-TRK-5-GY-4PK

E-TRK-5-GY-6PK

E-TRK-5-ZN-10PK

E-TRK-5-ZN-1PK

E-TRK-5-ZN-2PK

E-TRK-5-ZN-4PK

E-TRK-5-ZN-6PK

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Cargo Bars Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Truck Mounted Strap Winches
Product

Truck Mounted Strap Winches

E-TRACK Cargo Bar Assist Tool
Product

E-TRACK Cargo Bar Assist Tool

Pallet Cargo Decker
Product

Pallet Cargo Decker

Inflatable Dunnage Bags
Product

Inflatable Dunnage Bags

Cargo Strapping
Product

Cargo Strapping

Lockable Load Binders
Product

Lockable Load Binders





Cargo Bars



  • Keep trailer contents in place -- eliminate damaged goods
  • Simple mechanical lock - will not vibrate loose

During transport, keep trailer contents securely in place with these easy to use Cargo Bars. Constructed of 1-1/2." square tubing, unless specified. Wall construction is lightweight, yet extremely strong. Square articulating steel end plates feature rubber pads for positive gripping action. End plates measure 4" x 4" on models CL-15, CL-16, CL-17 & CL-20. End plates measure 4" x 2-3/8" on model CB-5, CB-7 & CB-7-S and 3-3/4." x 3-3/4." on model CL-18. End plates measure 2-3/8" x 3" on model CB-PU-3. Bars fit between trailer walls.


model CL-17 shown in use

CL-H3-16Cargo Bars w/ Hoops
Sometimes trailers can't be packed tight enough to stop items from jostling, which can lead to unnecessary damage and high replacement costs. Here to put an end to those problems even before they start; is a cargo bar with hoops. The hoops provide an upper and lower level of security in addition to the horizontal presence from the cargo bar itself, while the cargo bar is expandable to fit perfectly into the space parameters of the situation. End plate is rubber padded for gripping action. Assembly is required, but hardware is included!

E-TRACK:
The E-track is a great benefit to shipping and cargo loads. With a steel construction the track allows additional bars to become attached to it. Once, the additional bars are in place the shifting of items becomes minimized. The track design lets the user choose from an array of ports for precise placement. E-TRACK Cargo Bar Assist Tool also available.

E-TRK-5-ZN-4PK_C.jpg EB-102_C.jpg

Model # Description Attributes Net Wt.
(lbs)
CB-5 CB-5Aluminum Round Cargo Bar 88 In. to 103 In. SilverRound Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		13
CB-7 CB-7Heavy Duty Aluminum Round Cargo Bar 89 In. to 104 In. SilverRound Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		13
CB-7-S CB-7-SHeavy Duty Steel Round Tube Cargo Bar 89 In. to 104 In. SilverRound Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		12
CB-PU-3 CB-PU-3Steel Pick-Up Truck Cargo Bar 40 In. GrayService Range (in.): 40 to 70
End Pad Width (in.): 2-3/8		5
CL-15 CL-15Steel One Piece Cargo Bar 87 In. to 119 In. SilverSquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		15
CL-16 CL-16Galvanized One Piece Cargo Bar 87 In. to 119 In. GraySquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		15
CL-17 CL-17Steel Two Piece Folding Cargo Bar 88 In. to 116 In. GraySquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		17
CL-18 CL-18Galvanized Two Piece Telescopic Cargo Bar 90-3/8 In. to 139-9/16 In. GraySquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		25
CL-20 CL-20Steel Two Piece Cargo Bar for E & A Track 87 In. to 116 In. SilverSquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		18
EB-102 EB-102Aluminum One Piece E-Track 102 In. Extension SilverSquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		21
EB-96 EB-96Aluminum One Piece E-Track 96 In. Extension SilverSquare Tubing Size (in.): 1-1/2
Wall Construction (gauge): 14		19
CB-H7-5 CB-H7-51 Piece Aluminum Galvanized Cargo Bar 103"L x 4-5/8"W 23-15/16"H With Hoops SilverNumber Of Hoops: 2
Overall Length (in.): 103		10
CB-H7-7 CB-H7-71 Piece Aluminum Galvanized Cargo Bar 104"L x 4-5/8"W 23-15/16"H With Hoops SilverNumber Of Hoops: 2
Overall Length (in.): 104		13
CB-H7-7-S CB-H7-7-S1 Piece Galvanized Steel Cargo Bar 104"L x 4-5/8"W 23-15/16"H With Hoops SilverNumber Of Hoops: 1
Overall Length (in.): 104		12
CL-H3-15 CL-H3-15Galvanized Steel Cargo Bar 1 Piece 119 In. Length x 3-3/4 In. Width x 24-1/2 In. Height With Hoops SilverNumber Of Hoops: 2
Overall Length (in.): 119		15
CL-H3-16 CL-H3-16Galvanized Steel Cargo Bar 1 Piece 119 In. Length x 3-3/4 In. Width x 24-1/2 In. Height With Hoops SilverNumber Of Hoops: 2
Overall Length (in.): 119		15

Options


E-TRK-CBAT E-TRK-CBAT E-TRACK Cargo Bar Assist Tool 7

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
