Mezzanine Ladders (face mounted/retractable)The Mezzanine Ladders are used for infrequent usage to access mezzanines. They are ratcheted into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder. The mezzanine ladder allows for quick installation with mounting bracket provided for bolt-on installation or welded installation. Steps are 24-1/4" wide. Collapsed distance from wall is approximately 15-1/2" for all models. Customer must provide their mezzanine height at time of purchase. Baked in Powder coat blue finish for added toughness. Meets or exceeds all OSHA requirements. Ships knockdown, some assembly required. Survey sheet available for mezzanine heights of 60" to 120".
The Powered Mezzanine Ladders are used for infrequent usage to access mezzanines. They are quickly powered into climbing angle and back into stored position. The wheels roll on the ground when ratcheted and the handrails mechanically rise into climb position when ladder locks into position. Quickly extend and retract the ladder with the hand held pendant. The mezzanine ladder allows for quick installation. The unit keeps a small distance from wall for compact storage. Customer must provide their mezzanine height at time of purchase. Baked in Powder coat blue finish for added toughness.
- Great for condensed work areas
- Treaded step design for sure footing
- Attached casters provide simple maneuvering
- Collapsible handrail
Modular Style Stairways
Rolling Warehouse Ladders (6-11 Step)
Semi-Trailer Access Ladder
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

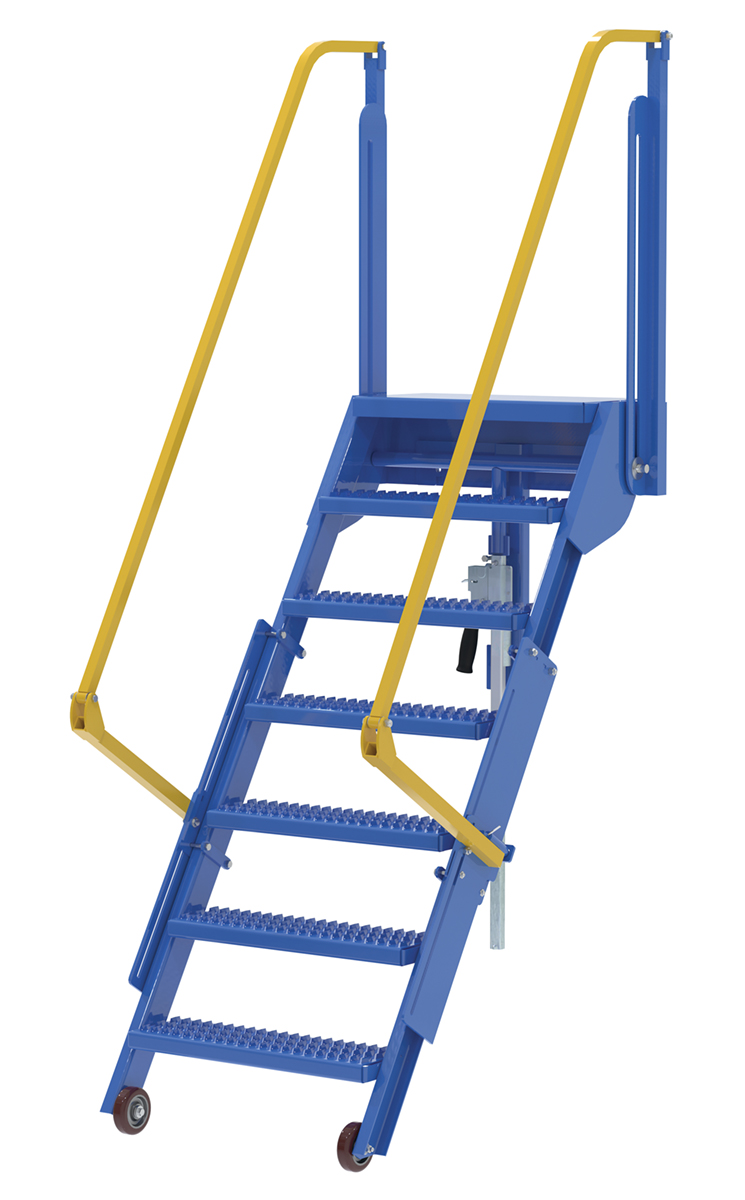

| LAD-FM-60 | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder 60 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity Blue | Uniform Capacity (lb.): 350 Incline Angle (degree): 58 | 274 | |

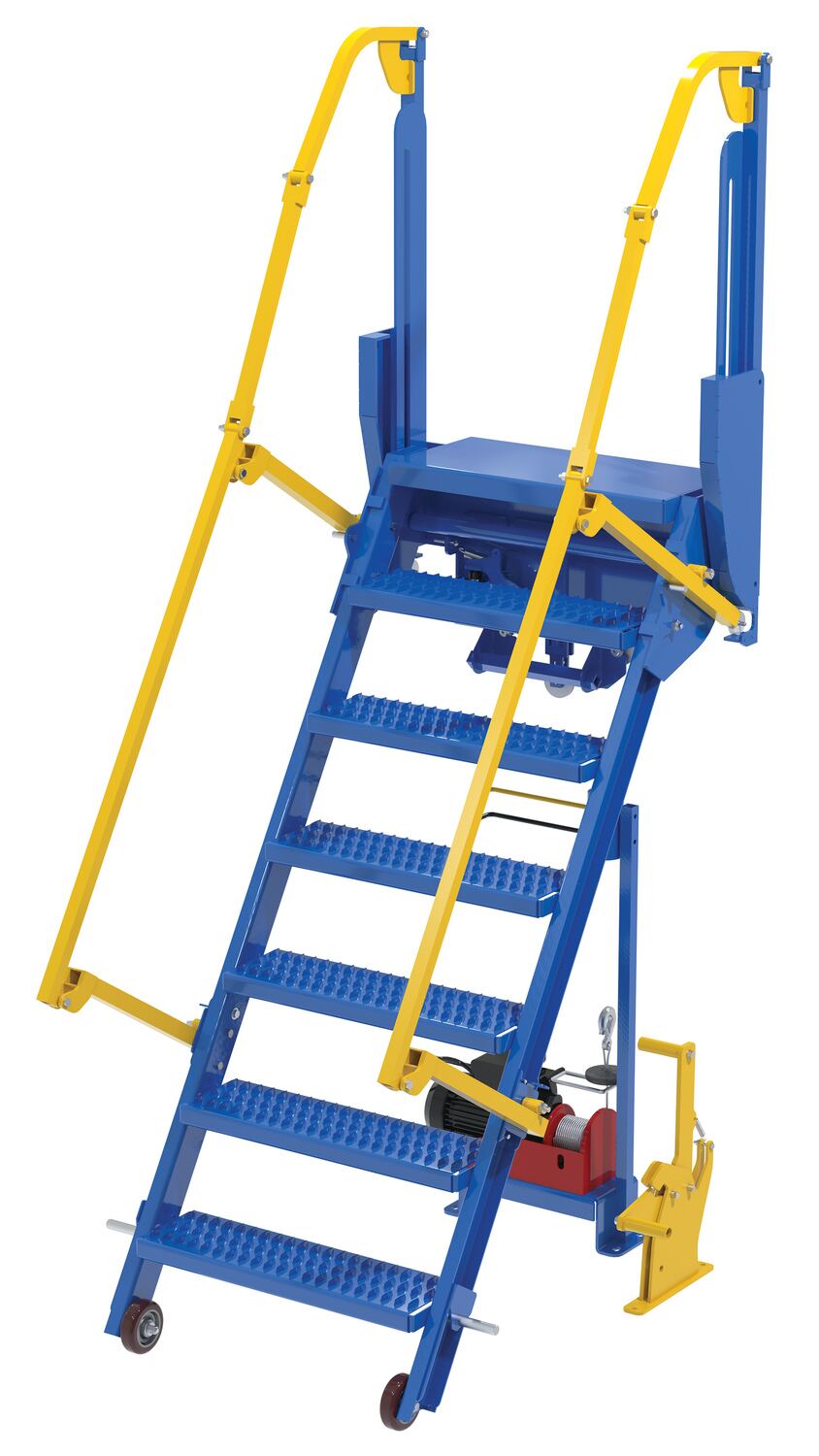

| LAD-FM-60-PSO | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder with 115V Power Storage 60 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue | Base Length (in: 46.0625 Base Width (in): 32.25 | 374 | |

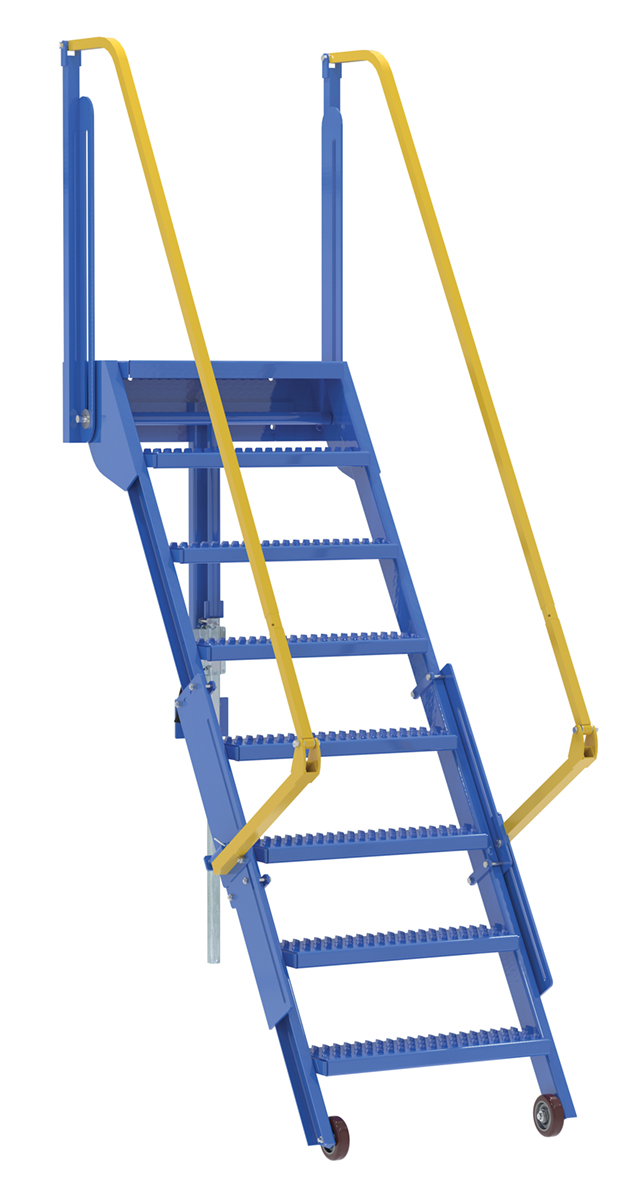

| LAD-FM-72 | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder 72 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity Blue | Uniform Capacity (lb.): 350 Incline Angle (degree): 58 | 282 | |

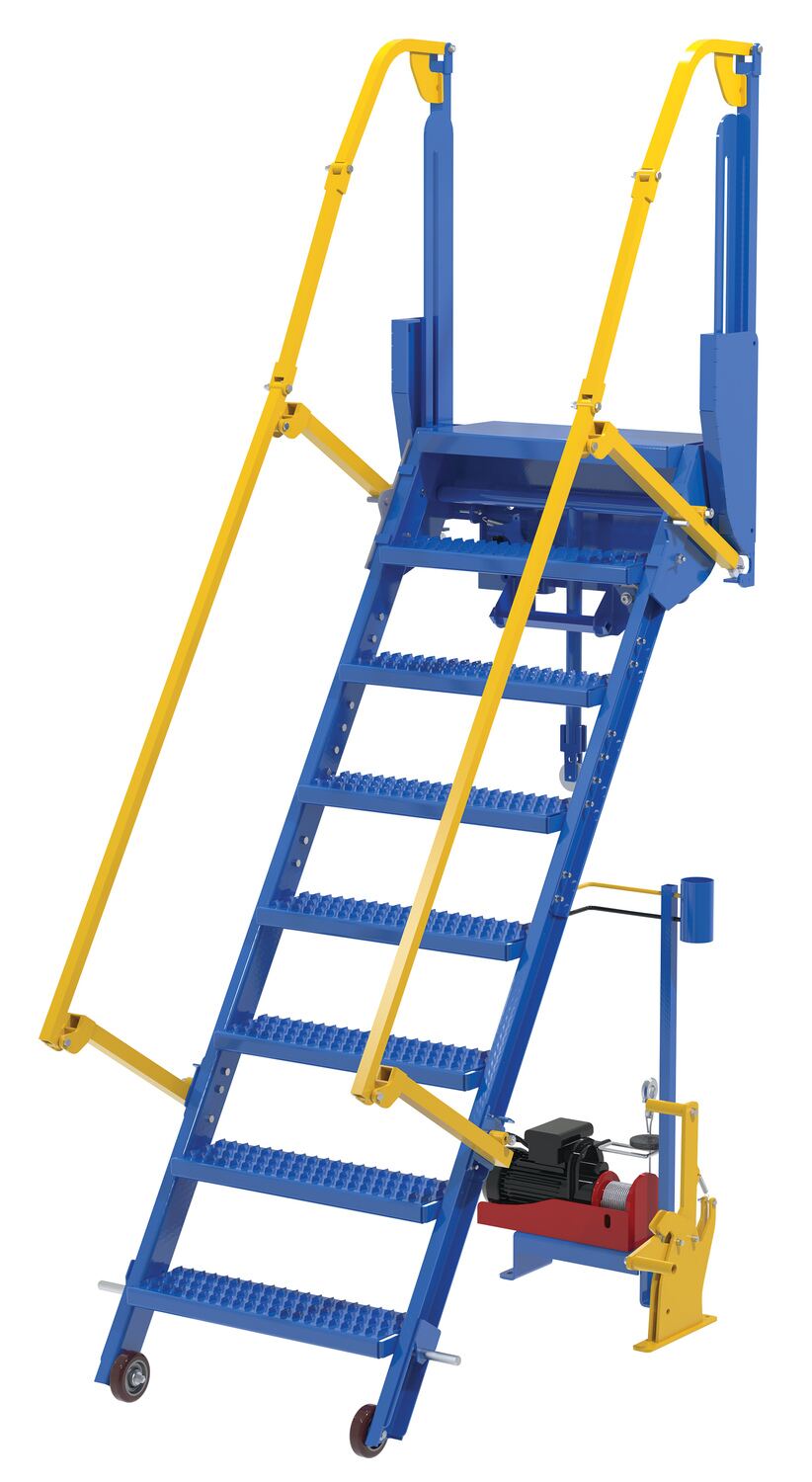

| LAD-FM-72-PSO | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder with 115V Power Storage 72 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue | Base Length (in): 53.25 Base Width (in): 32.25 | 398 | |

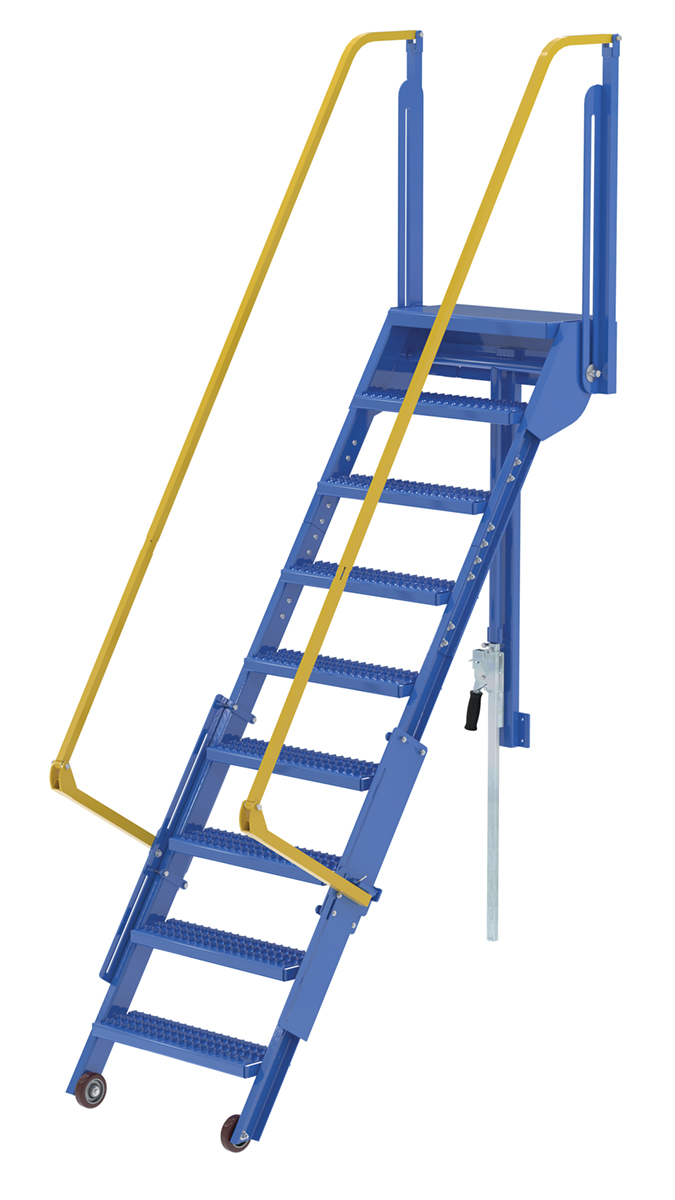

| LAD-FM-84 | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder 84 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity Blue | Uniform Capacity (lb.): 350 Incline Angle (degree): 58 | 360 | |

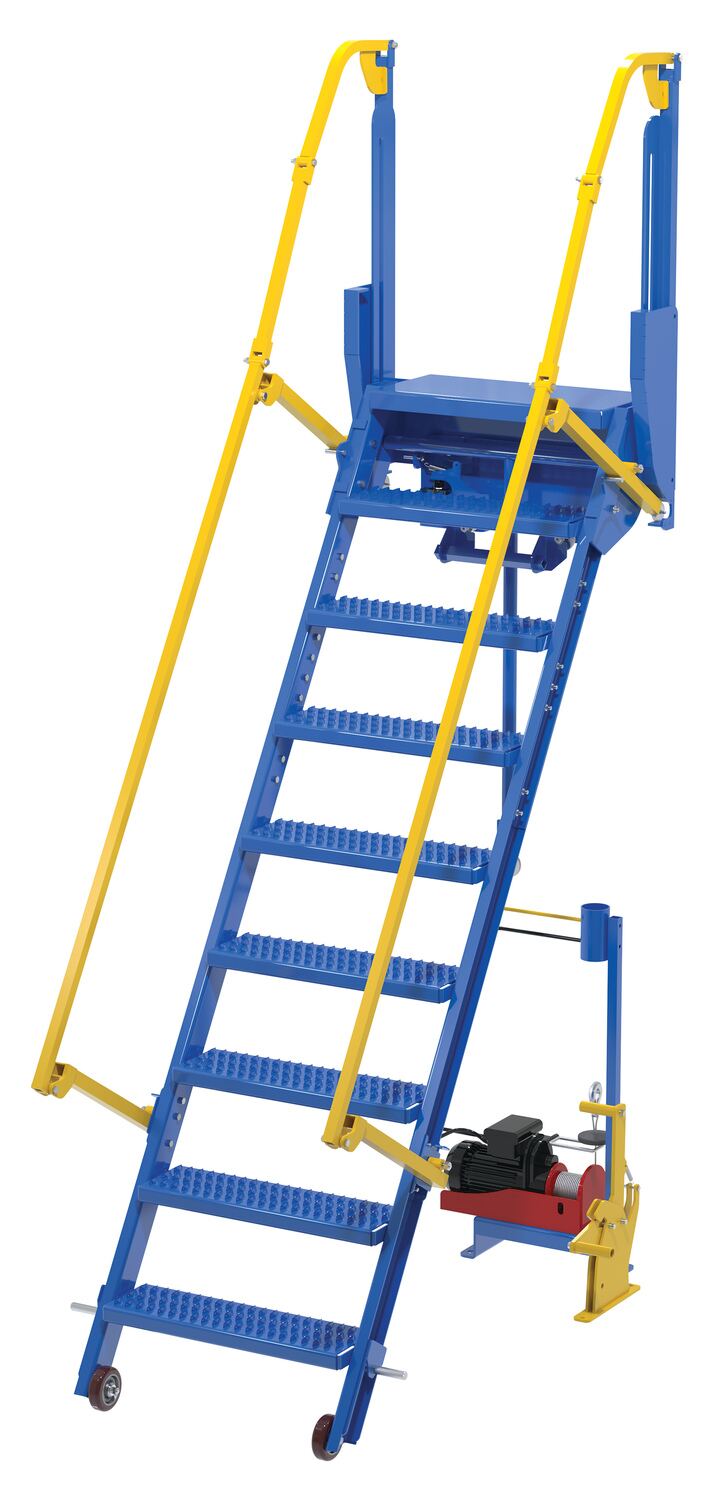

| LAD-FM-84-PSO | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder with 115V Power Storage 84 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue | Base Length (in): 60.25 Base Width (in): 32.25 | 434 | |

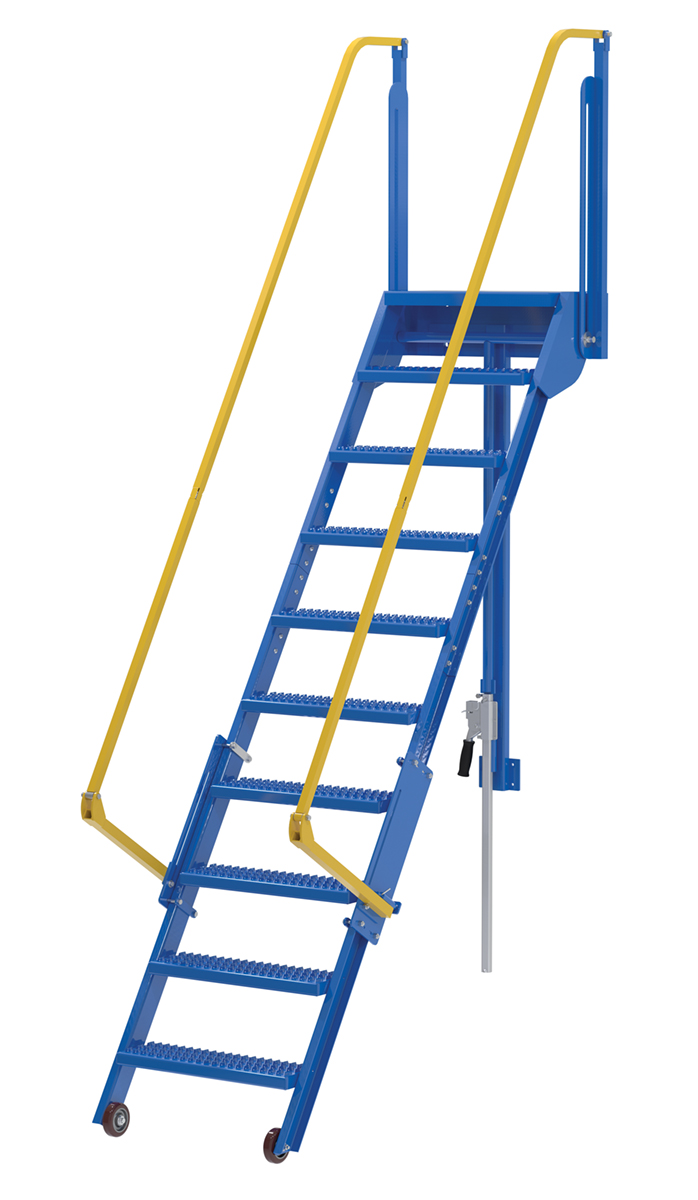

| LAD-FM-96 | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder 96 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity Blue | Uniform Capacity (lb.): 350 Incline Angle (degree): 58 | 365 | |

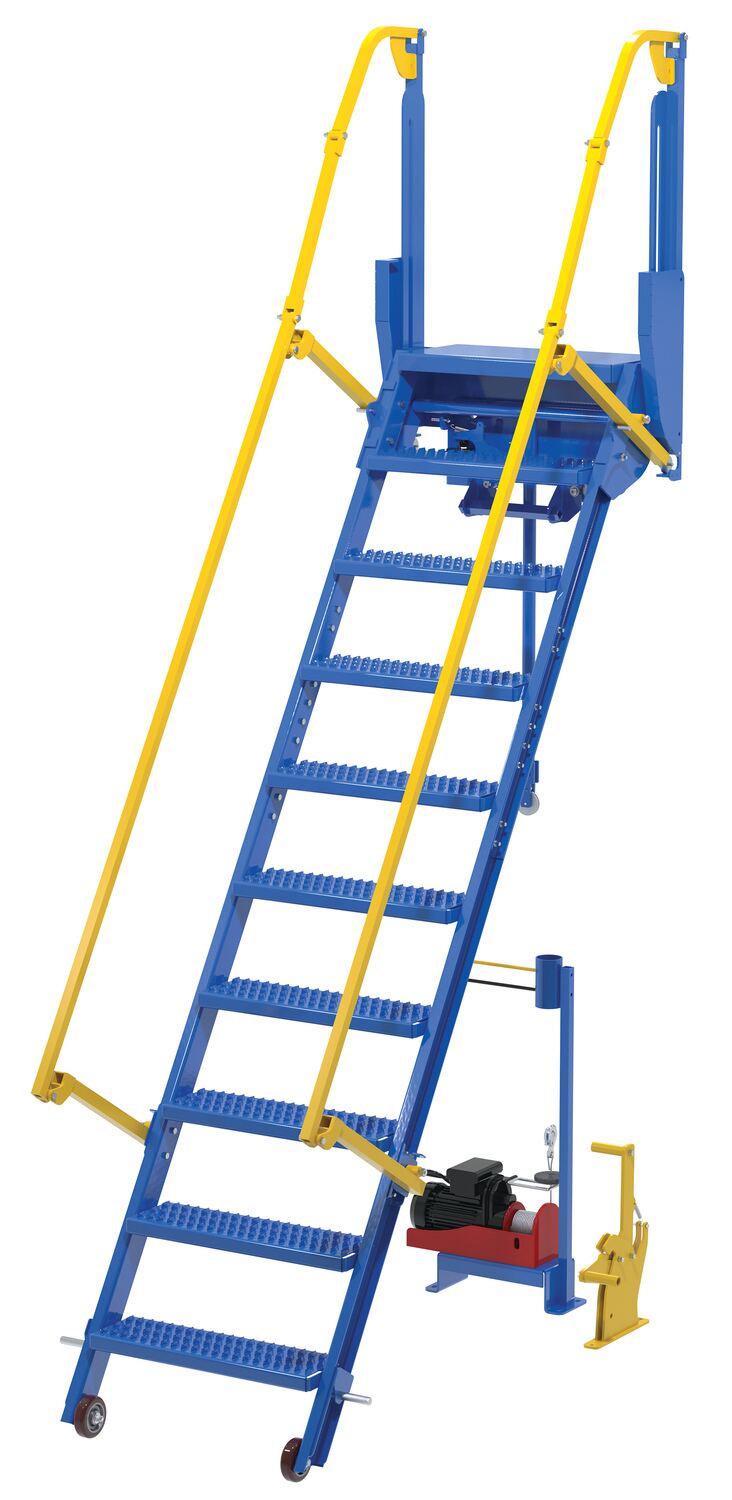

| LAD-FM-96-PSO | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder with 115V Power Storage 96 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue | Base Length (in): 67.75 Base Width (in): 32.25 | 465 | |

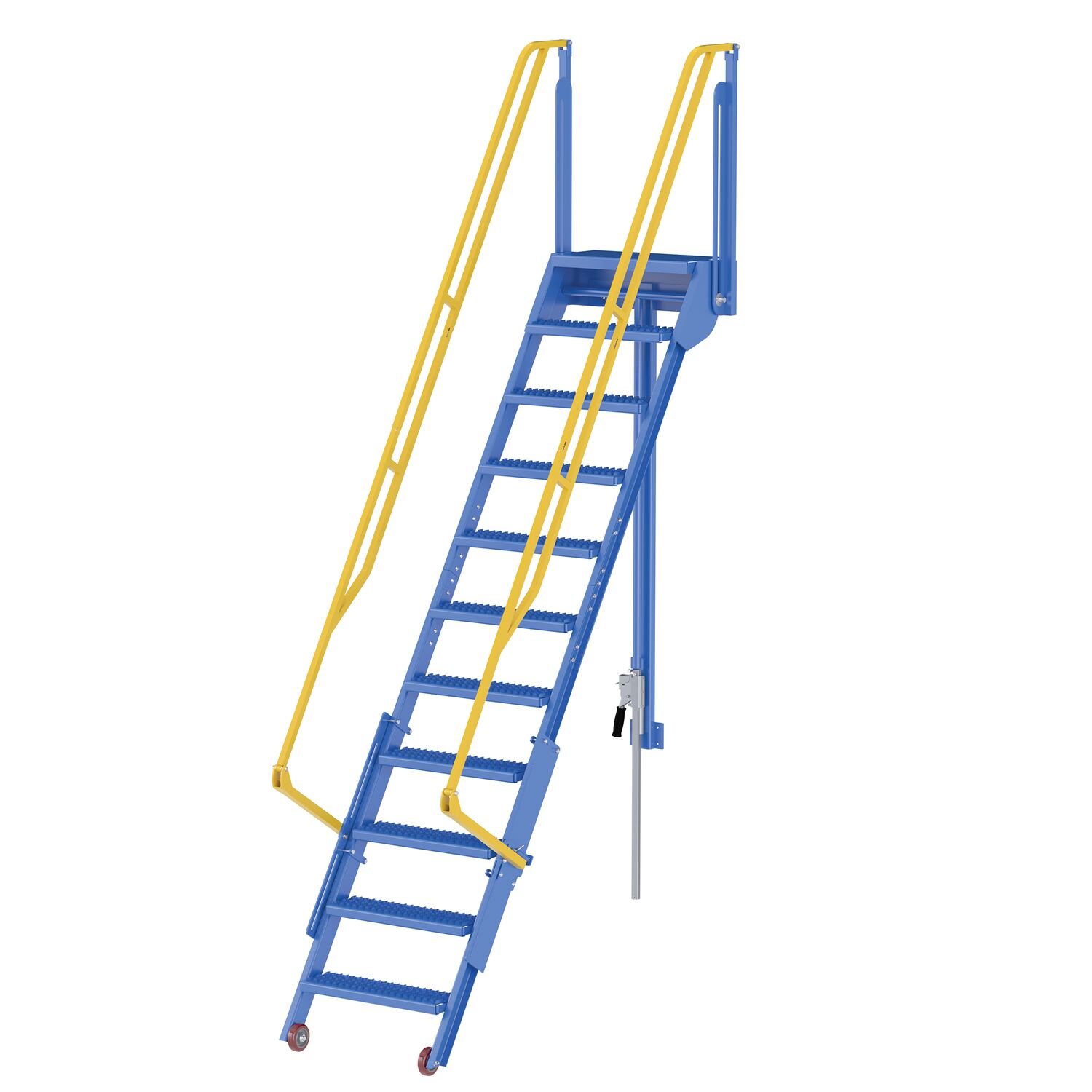

| LAD-FM-108 | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder 108 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity Blue | Uniform Capacity (lb.): 350 Incline Angle (degree): 58 | 375 | |

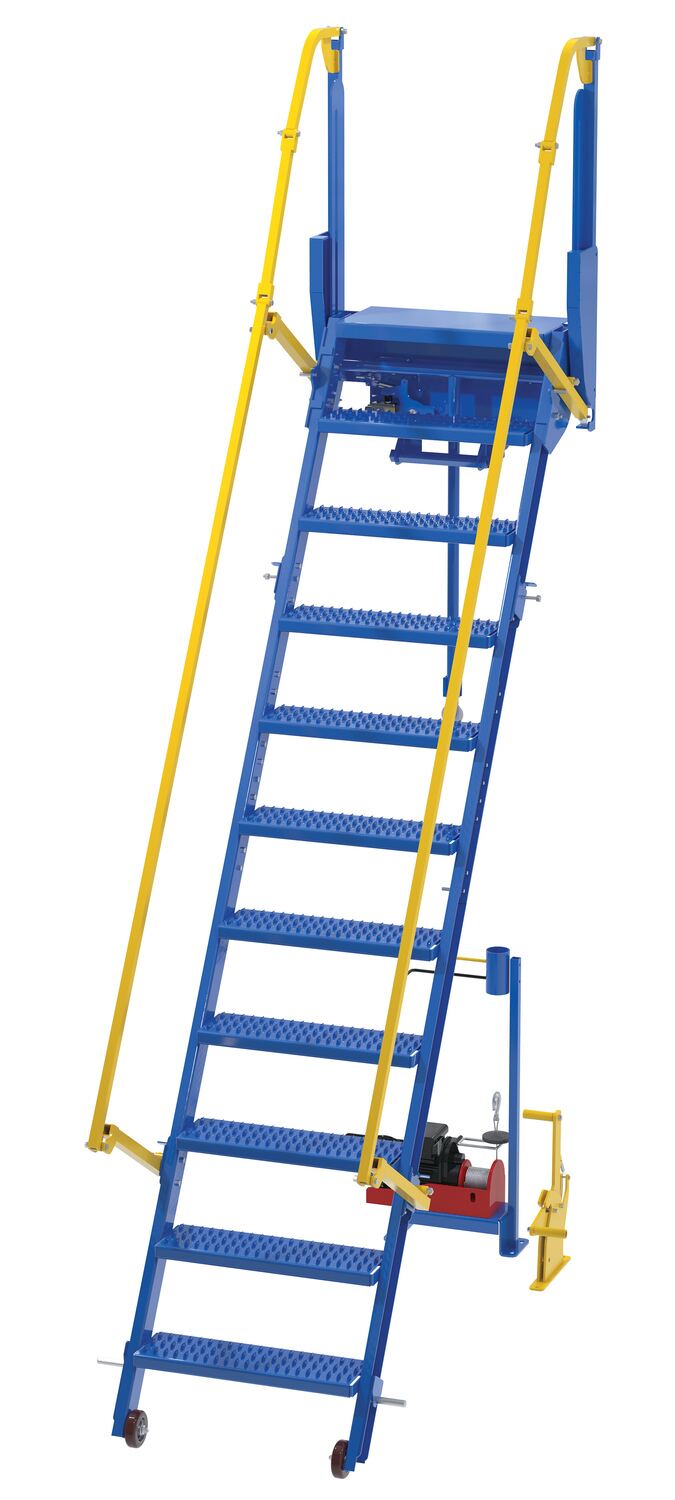

| LAD-FM-108-PSO | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder with 115V Power Storage 108 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue | Base Length (in): 75.25 Base Width (in): 32.25 | 485 | |

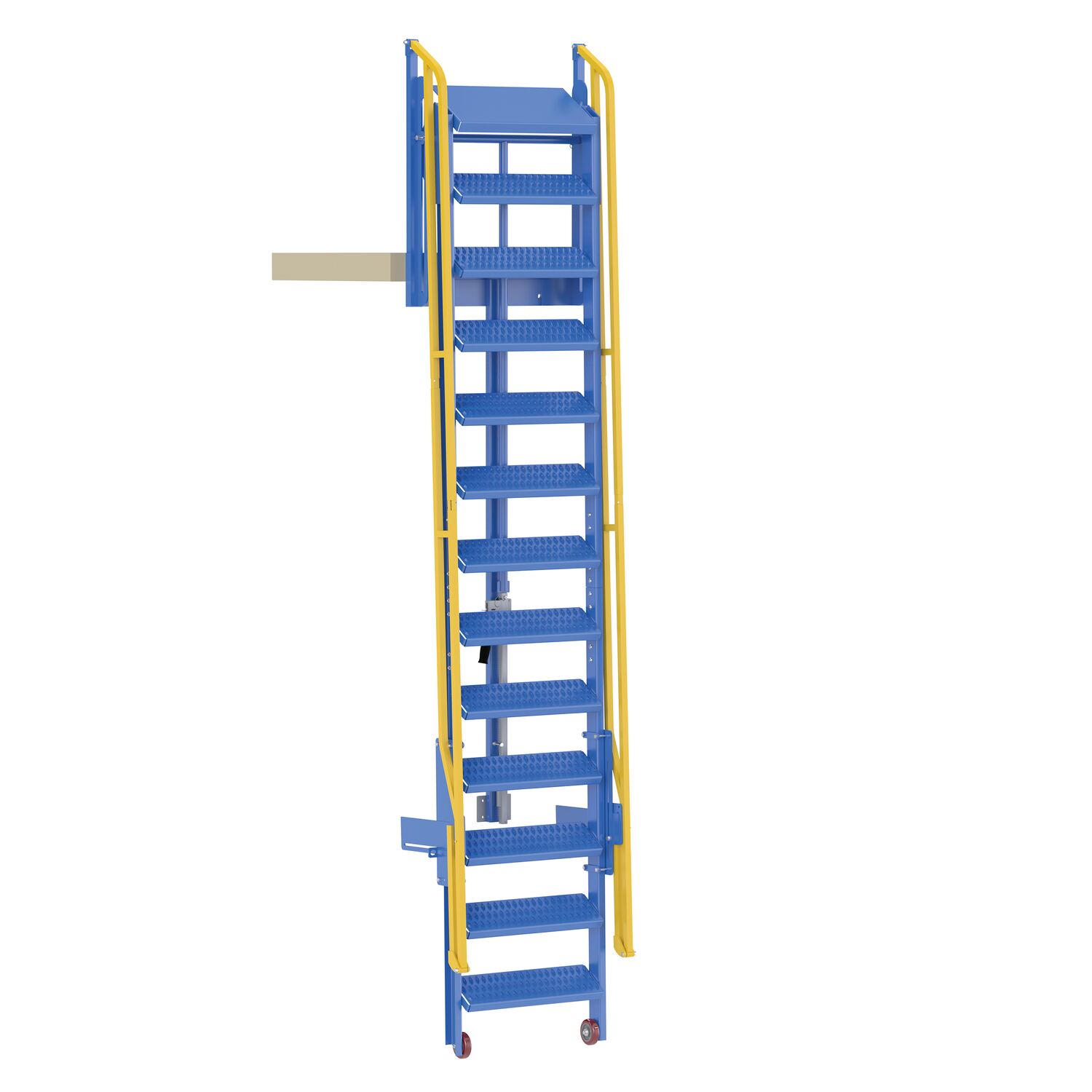

| LAD-FM-120 | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder 120 In. Mezzanine Height 24-1/4 In. Step Width 350 Lb. Capacity Blue | Uniform Capacity (lb.): 350 Incline Angle (degree): 58 | 410 | |

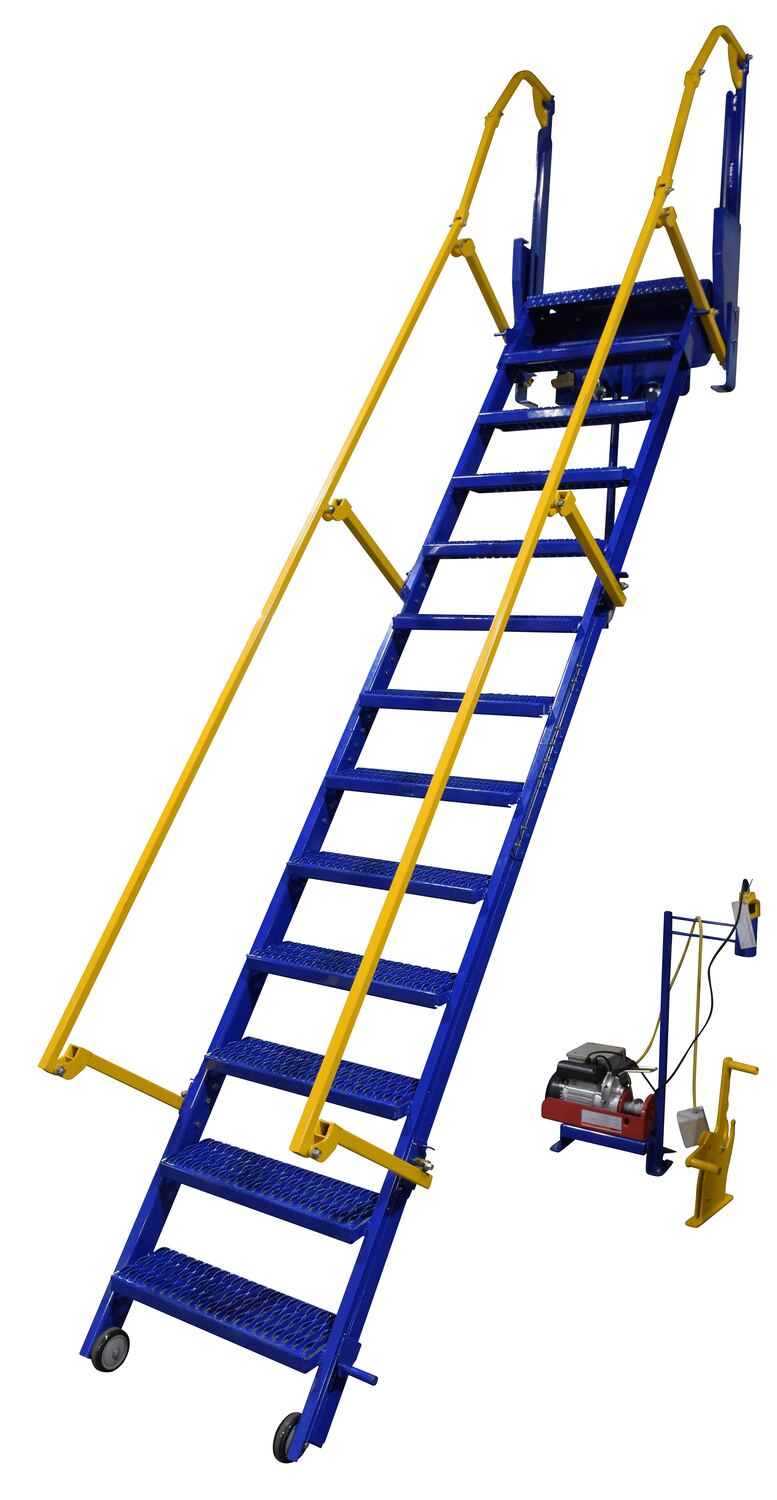

| LAD-FM-120-PSO | |  | 1 Year Limited Warranty | Steel Folding Mezzanine Ladder with 115V Power Storage 120 In. Mezzanine Height 23-5/8 In. Step Width 350 Lb. Capacity Blue | Base Length (in): 82.75 Base Width (in): 32.25 | 514 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in: 46.0625
Base Width (in): 32.25
Base Length (in: 46.0625
Base Width (in): 32.25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in): 53.25
Base Width (in): 32.25
Base Length (in): 53.25
Base Width (in): 32.25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in): 60.25
Base Width (in): 32.25
Base Length (in): 60.25
Base Width (in): 32.25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in): 67.75
Base Width (in): 32.25
Base Length (in): 67.75
Base Width (in): 32.25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in): 75.25
Base Width (in): 32.25
Base Length (in): 75.25
Base Width (in): 32.25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Uniform Capacity (lb.): 350
Incline Angle (degree): 58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Length (in): 82.75
Base Width (in): 32.25
Base Length (in): 82.75
Base Width (in): 32.25
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What material are the wheels on the ladder made of and what diameter?
A: The 4 x 1-1/4" wheels are poly on poly.
Q: Can the LAD-FM series be converted in the field to a powered LAD-FM-PSO?
A: No, you cannot purchase or retrofit the LAD-FM series to be powered.
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
