Forklift Lifting Beam

- - - -

Description
Model Chart
PDF's
Image Gallery

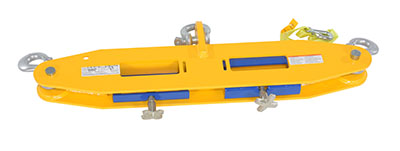

FLB-D-10_D.jpg FLB-D-10_A.jpg FLB-D-10_B.jpg FLB-D-10_E.jpg

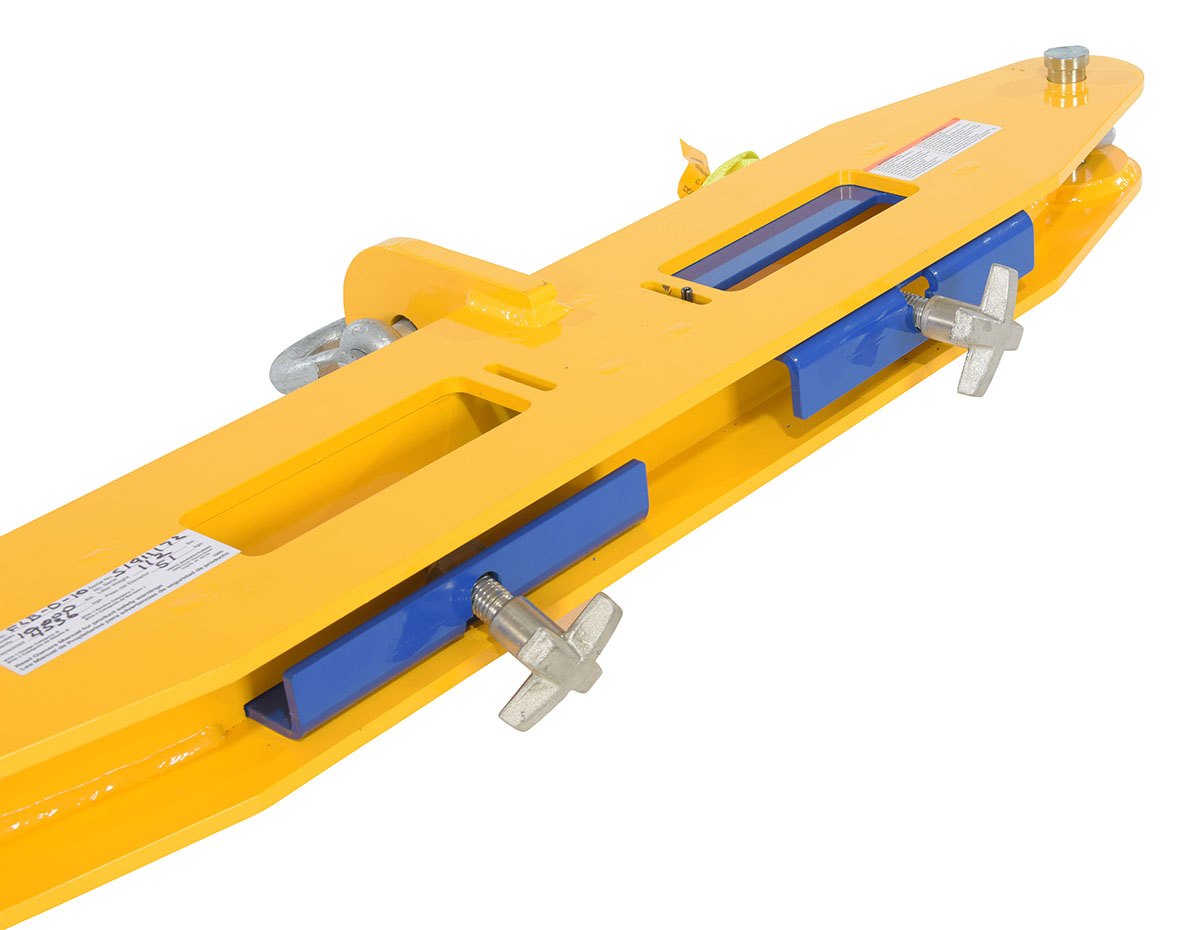

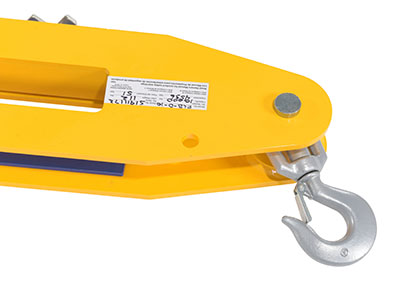

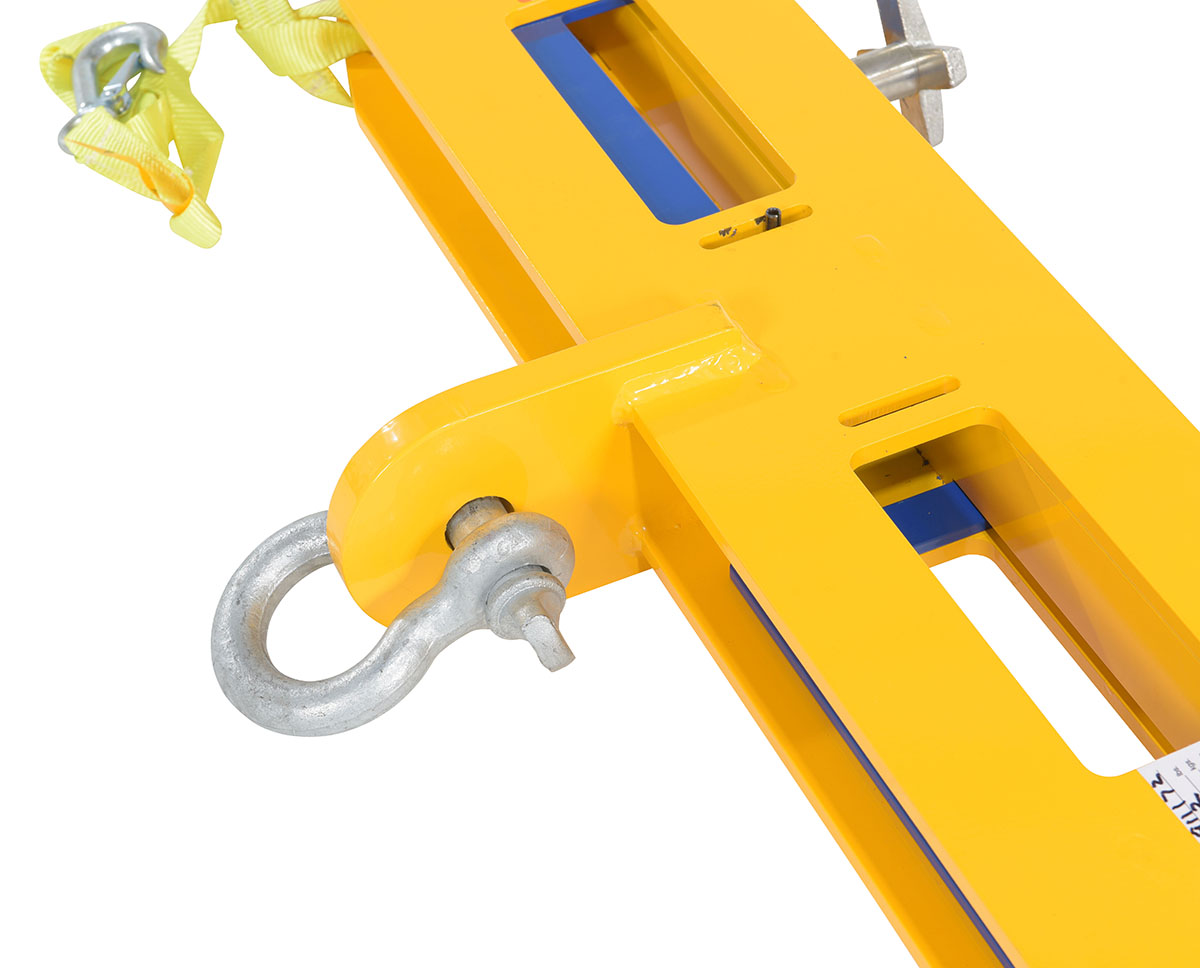

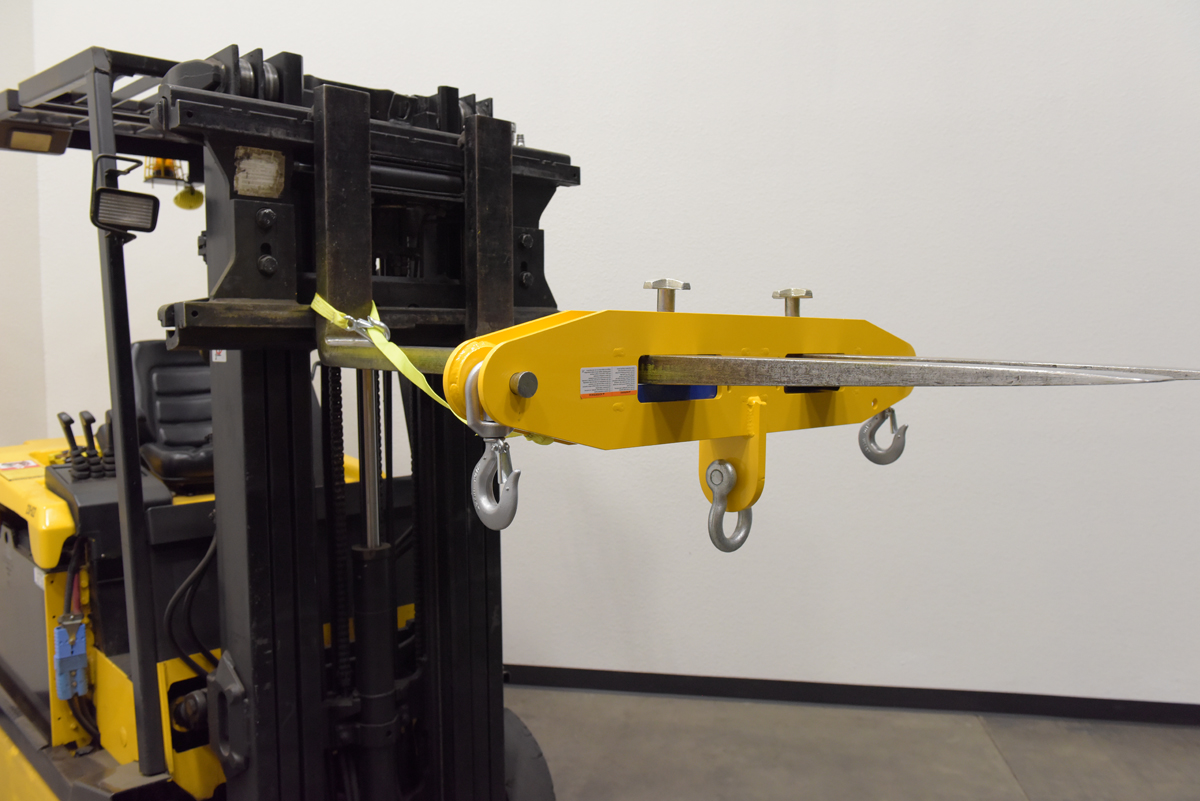

FLB-D-10_F.jpg FLB-D-10_G.jpg FLB-D-10_H.jpg FLB-D-10_I.jpg

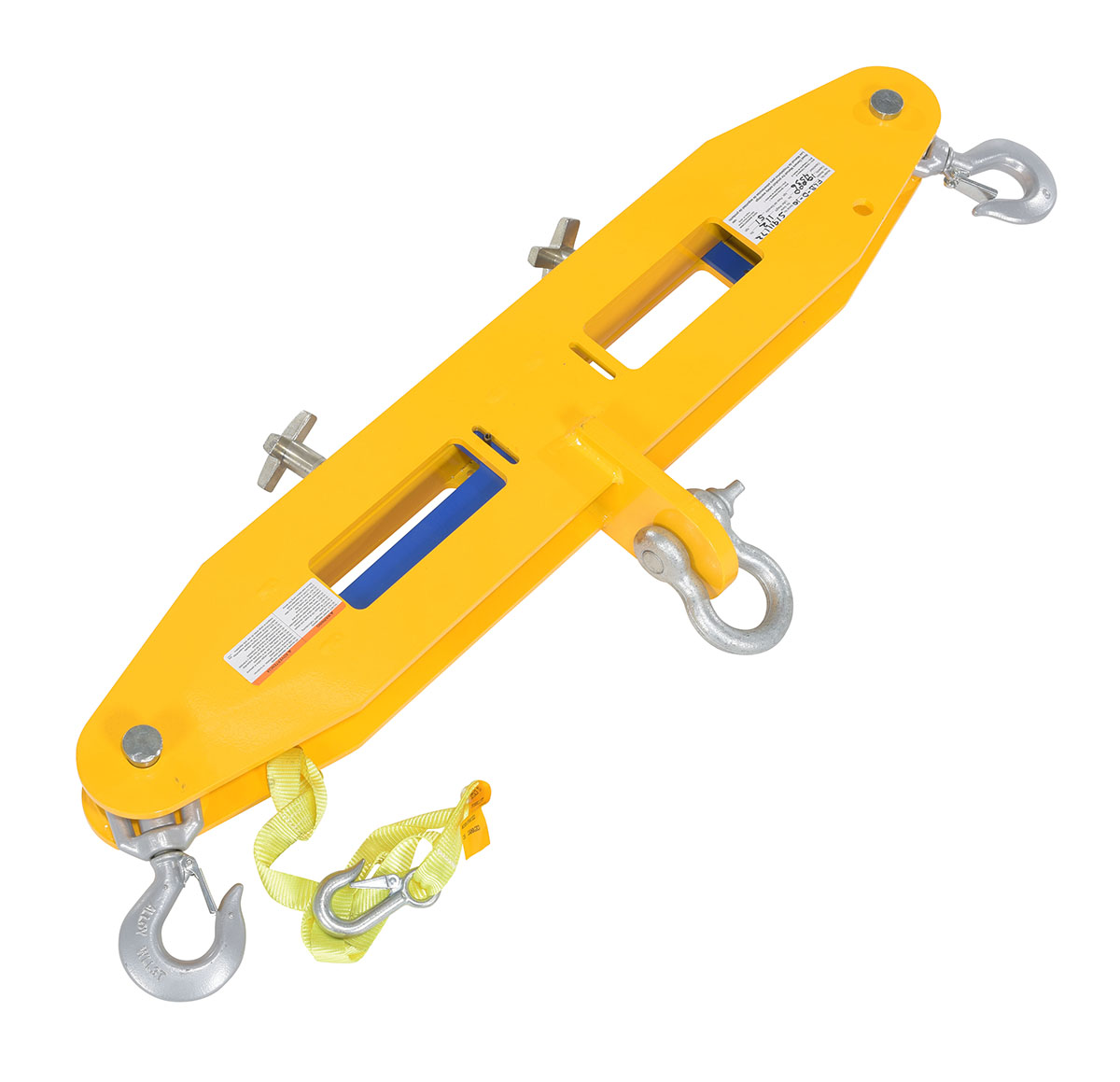

Forklift Lifting Beam

model: FLB-D-10



Featured Fork Truck Attachments


Portable Steel Hopper with Power Traction Drive
Fork Truck Safety & Warning Light
Fork Truck Fork Caddy
Overhead Drum Lifter
Work Platforms
Forklift Hitch
DC Power Trash Can Dumper
Fork Truck Snow Plow / Pusher
Fork Truck Grapple Attachment
model chart

Product Family Overview

Print Friendly
Forklift Lifting Beam
SERIES: FLB

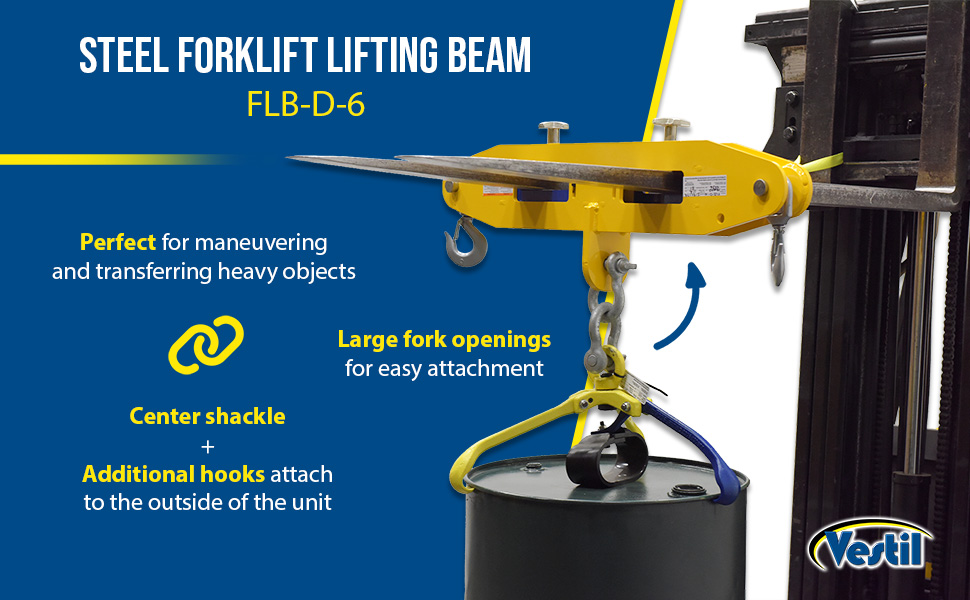

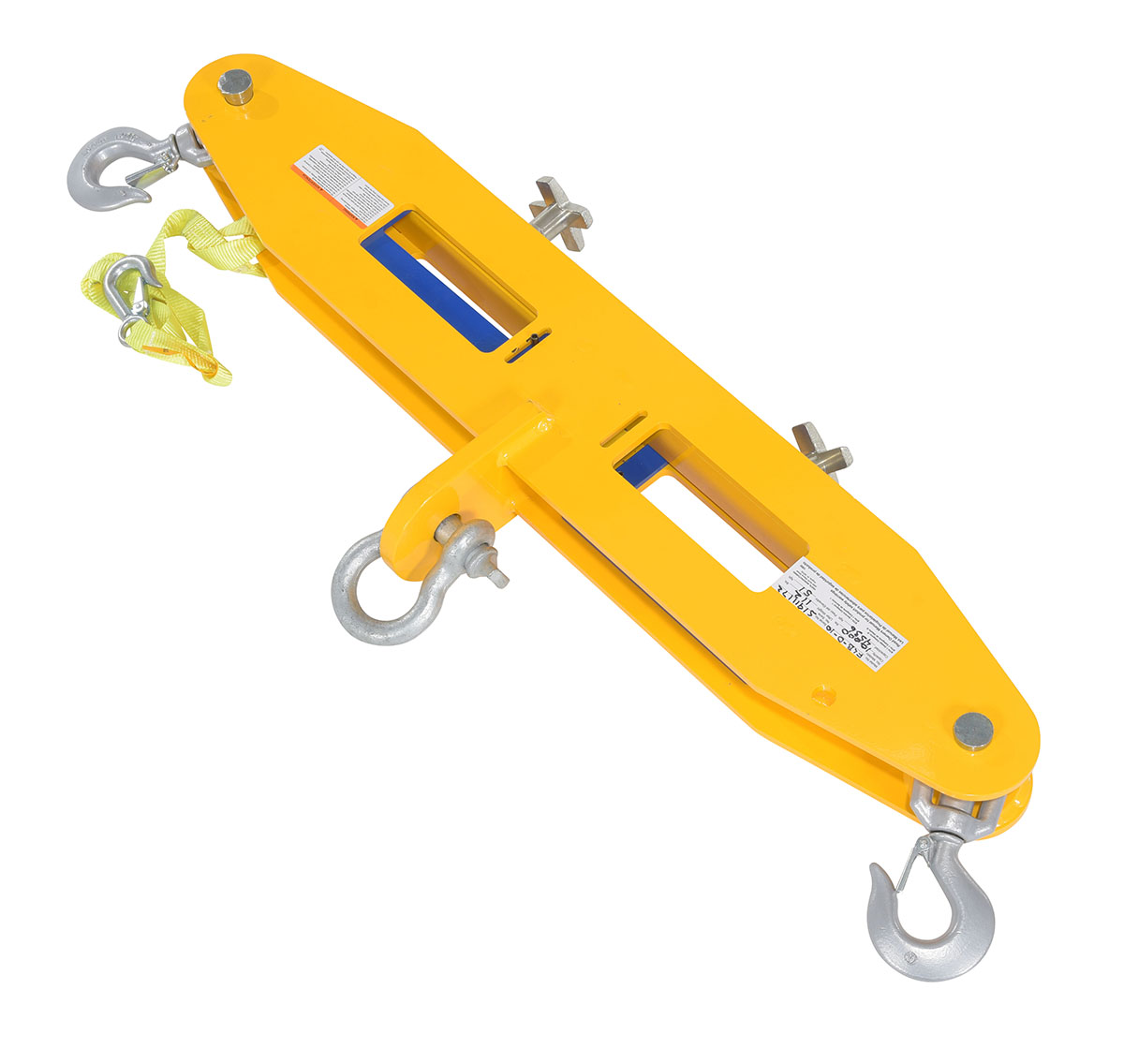

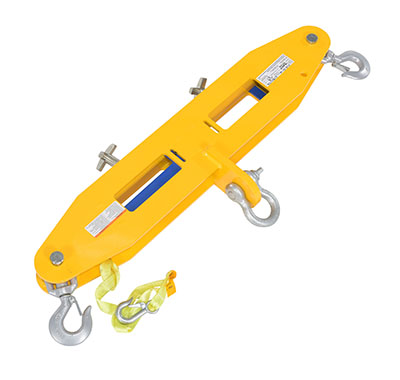

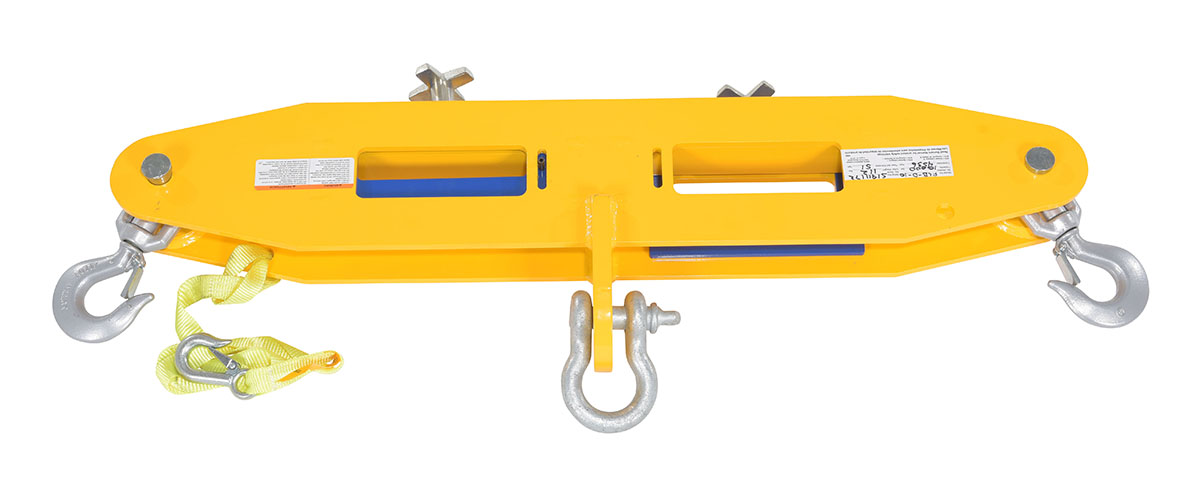

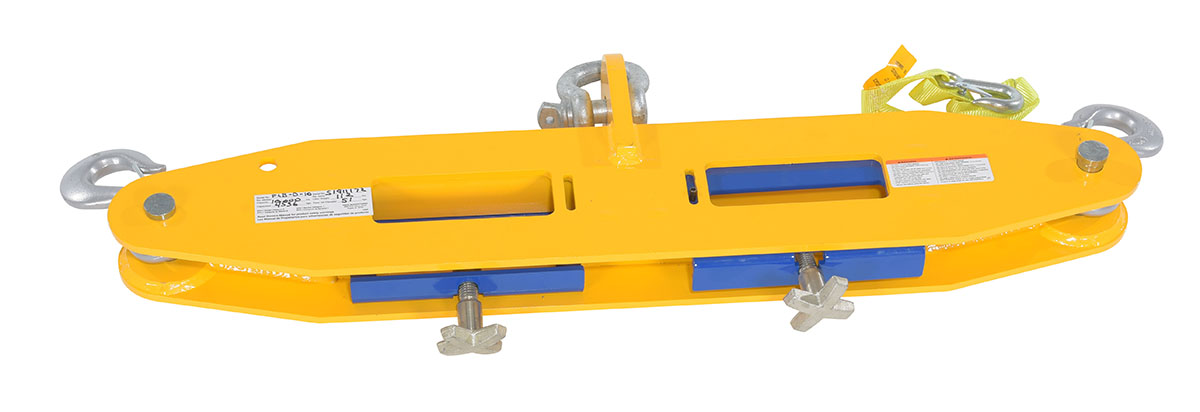

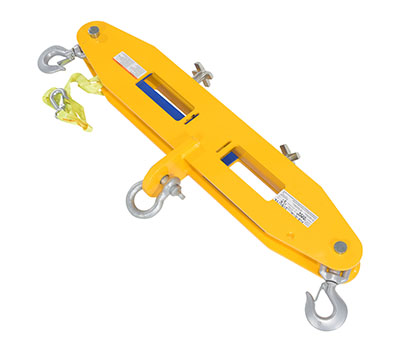

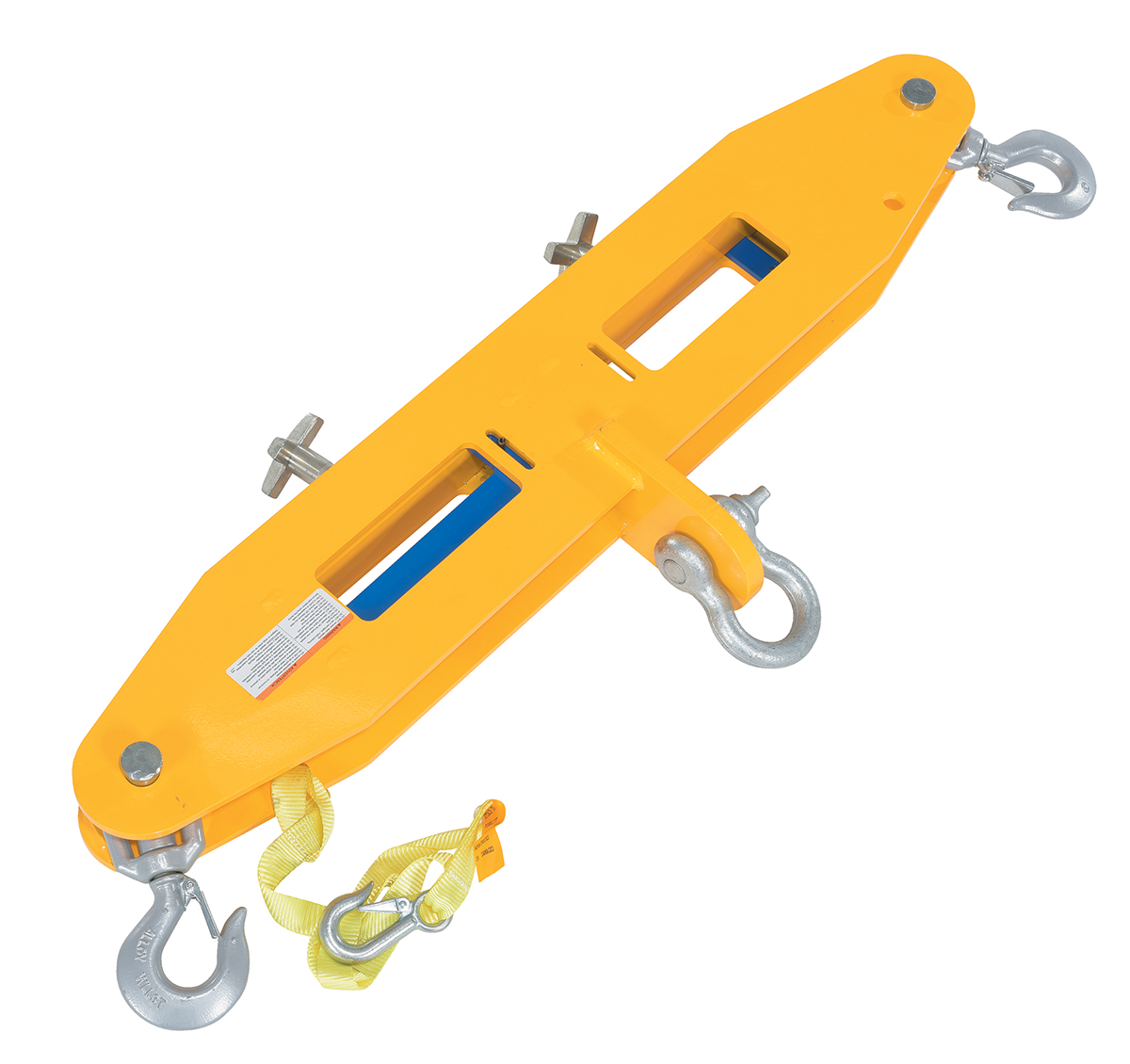

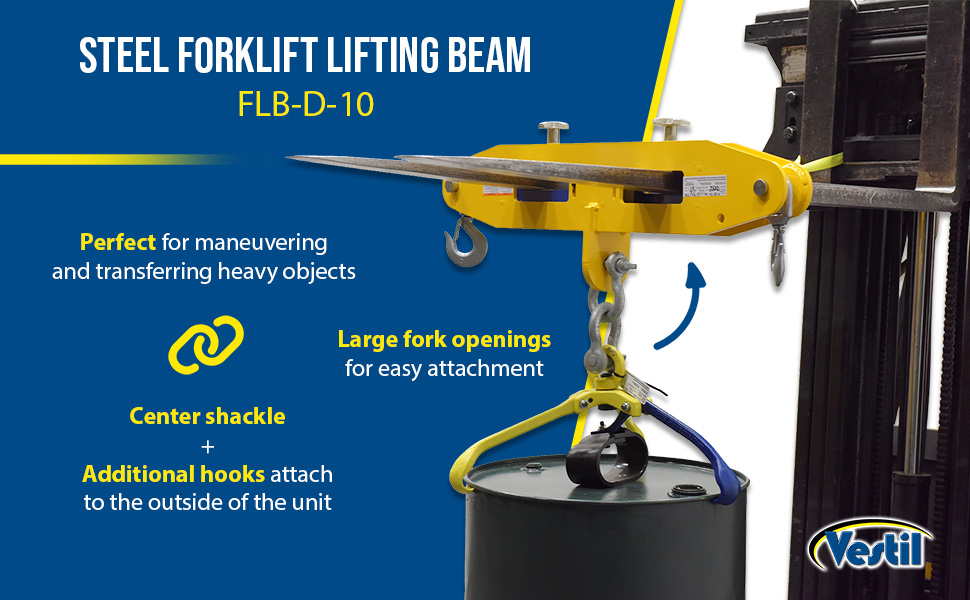

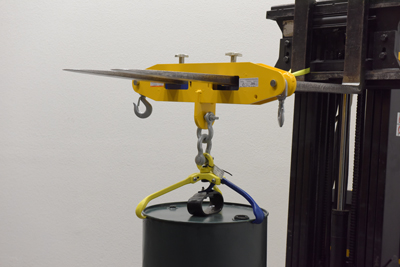

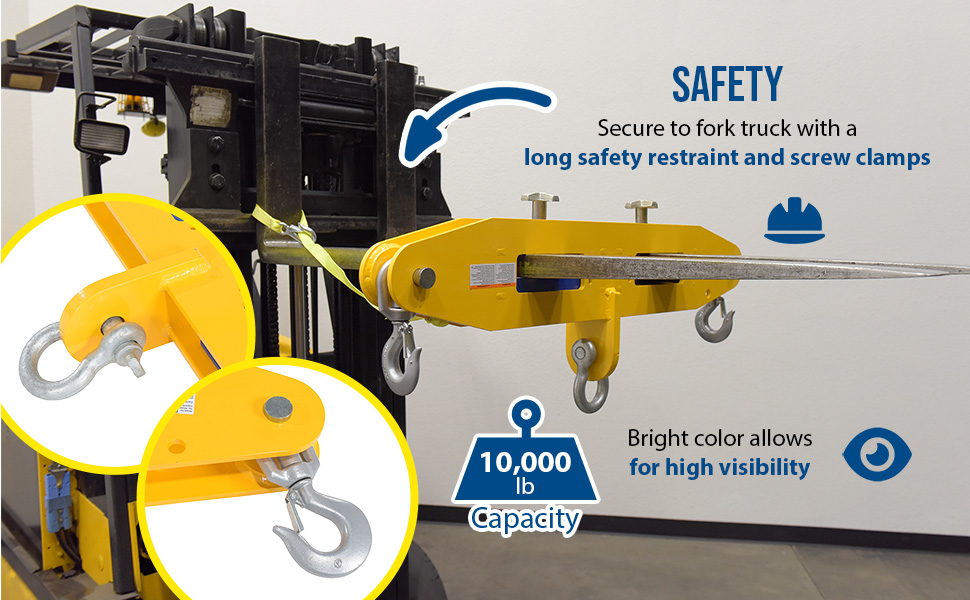

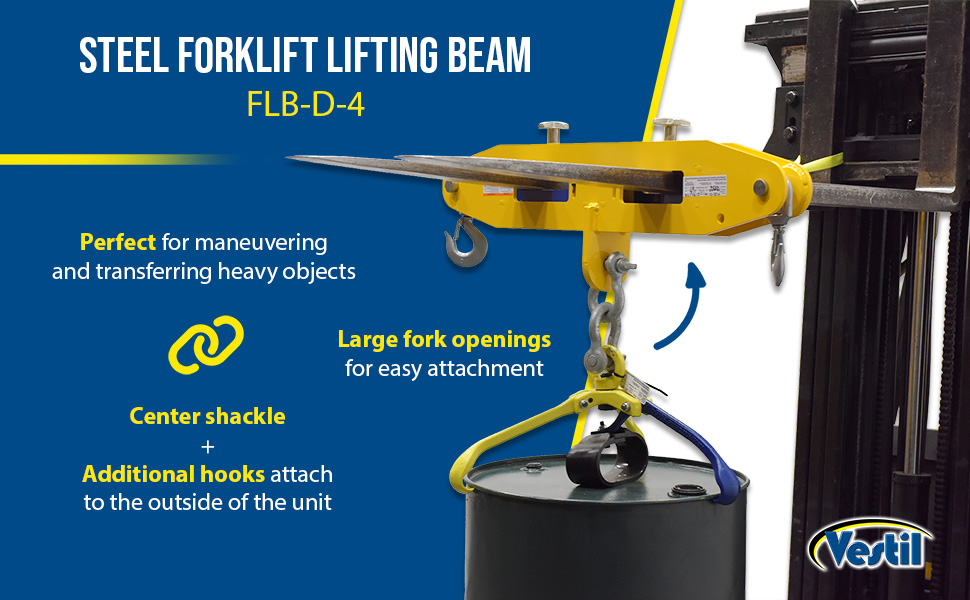

A Forklift Lifting Beam is the perfect asset for maneuvering and transferring heavy objects. The centrally located hook between two fork pockets allow the user to safely attach to the unit and transport to the desired location. Hooks are also attached to the outside of the unit for a more secure lifting experience. The strong steel construction with a bright finish enables high visibility from both near and far. Secure to the fork truck by means of a 48" long safety restraint and screw clamps.

  • Large fork openings for easy attachment
  • Durable construction for long term use
  • Smooth finish for easy handling
  • Yellow surface color for clear visibility

A Forklift Lifting Beam is the perfect asset for maneuvering and transferring heavy objects. The centrally located hook between two fork pockets allow the user to safely attach to the unit and transport to the desired location. Hooks are also attached to the outside of the unit for a more secure lifting experience. The strong steel construction with a bright finish enables high visibility from both near and far. Secure to the fork truck by means of a 48" long safety restraint and screw clamps.

  • Large fork openings for easy attachment
  • Durable construction for long term use
  • Smooth finish for easy handling
  • Yellow surface color for clear visibility

Other Hoisting Hooks & Hitch

 Forklift Lifting Beam Bulk Bag Filling Station Fork Truck Bases with Optional Tow Balls & Pintle Hook Hooks with Shackle

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
FLB-D-10 POPULAR FLB-D-1090 Days Limited WarrantySteel Forklift Lifting Beam 40 In. x 4-3/4 In. x 15 In. 10,000 Lb. Capacity YellowUniform Capacity (lb.): 10000
Fork Pocket Width/Height (in.): 7 x 2-1/2		85
FLB-D-4 FLB-D-490 Days Limited WarrantySteel Forklift Lifting Beam 40 In. x 4-7/8 In. x 17-1/16 In. 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4000
Fork Pocket Width/Height (in.): 7 x 2-1/2		63
FLB-D-6 FLB-D-690 Days Limited WarrantySteel Forklift Lifting Beam 40 In. x 4-7/8 In. x 17-1/16 In. 6,000 Lb. Capacity YellowUniform Capacity (lb.): 6000
Fork Pocket Width/Height (in.): 7 x 2-1/2		64

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

FLB-D-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Fork Pocket Width/Height (in.): 7 x 2-1/2
Uniform Capacity (lb.): 10000
Fork Pocket Width/Height (in.): 7 x 2-1/2

FLB-D-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Fork Pocket Width/Height (in.): 7 x 2-1/2
Uniform Capacity (lb.): 4000
Fork Pocket Width/Height (in.): 7 x 2-1/2

FLB-D-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Fork Pocket Width/Height (in.): 7 x 2-1/2
Uniform Capacity (lb.): 6000
Fork Pocket Width/Height (in.): 7 x 2-1/2
Forklift Lifting Beam PDF's will open in a new window when clicked.

Manuals


FLB-D
Owners Manual

FLB-D-10
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


FLB-D-10

FLB-D-4

FLB-D-6

Testing Certificates


FLB-D-10

FLB-D-4

FLB-D-6

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Forklift Lifting Beam Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: The FLB-D-10 is symmetrical and the hooks on the ends appear to rotate 18+ degrees. Can the beam be used upside down with a load cell on a central hook upwards and the load below from outer hooks?

A: Yes this product can be used “upside down”, using the center bail to either pick up the load or use it to hang the beam from a hoist to use the outer hooks to lift the load.
