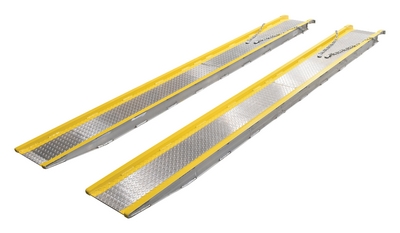

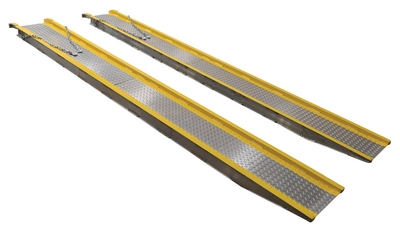

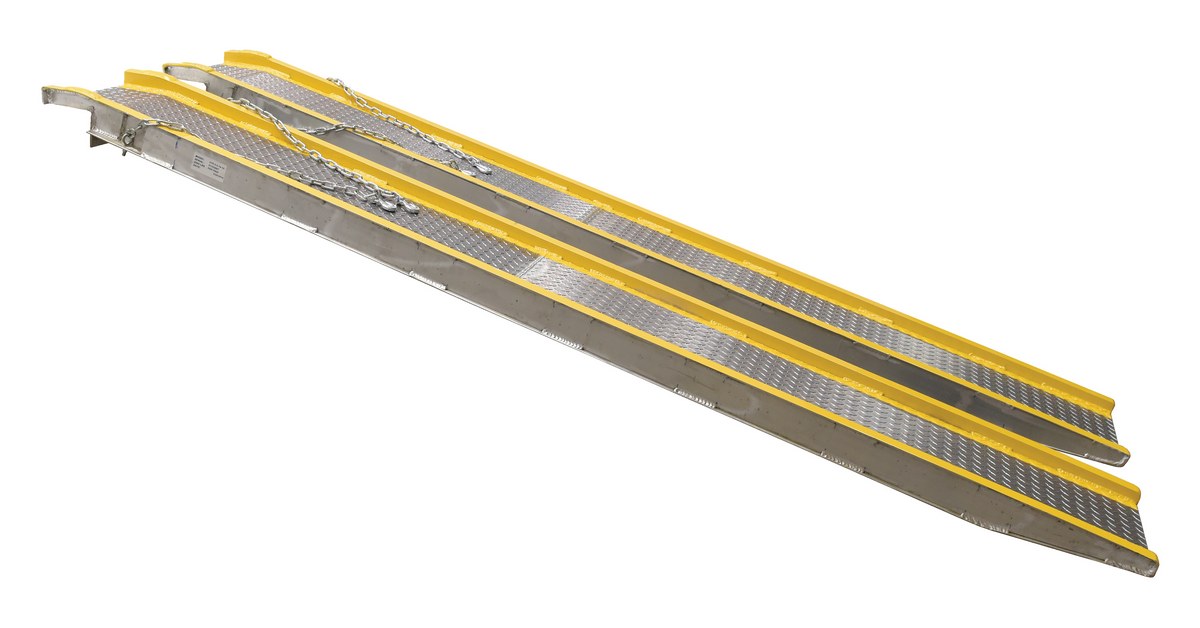

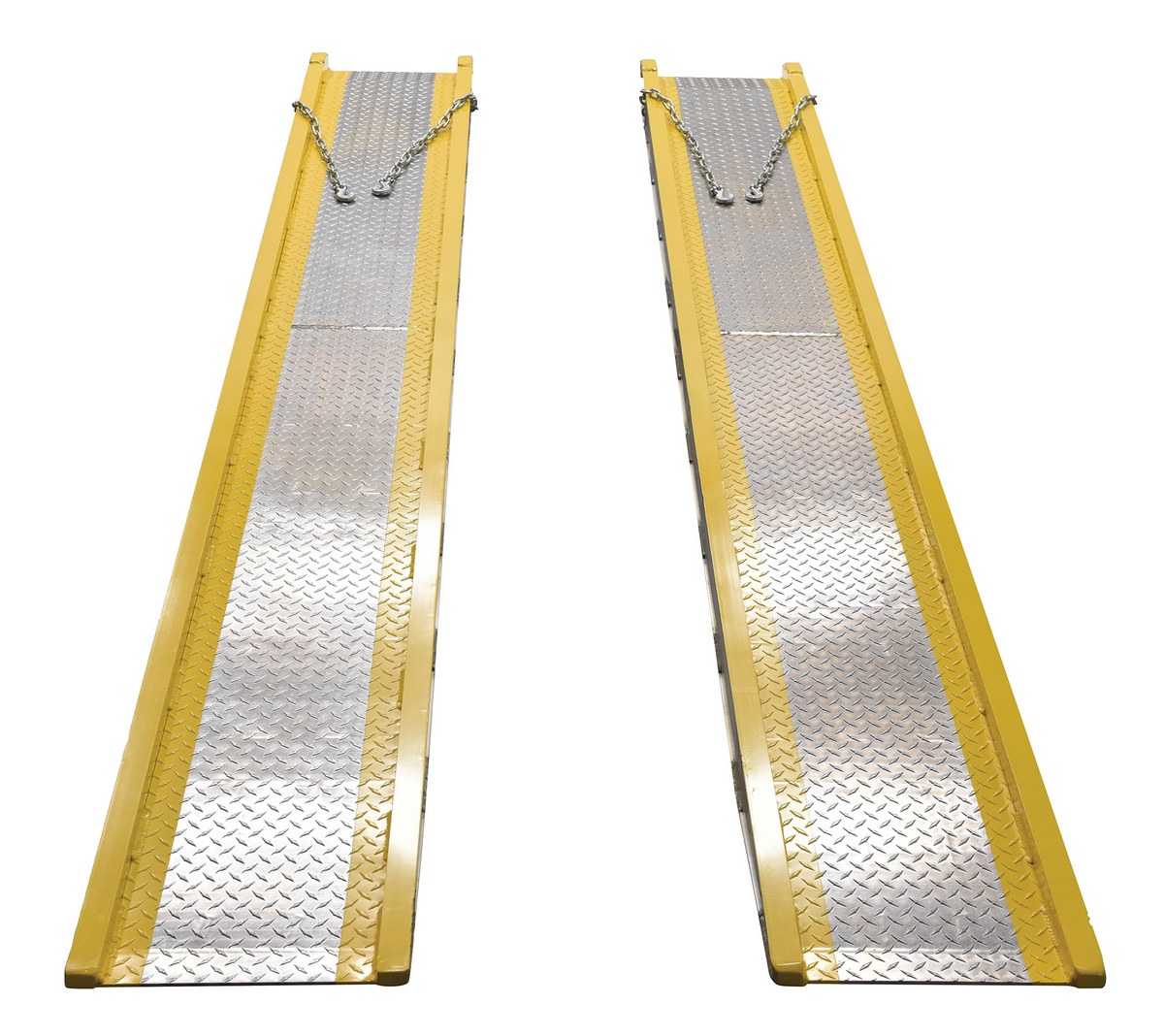

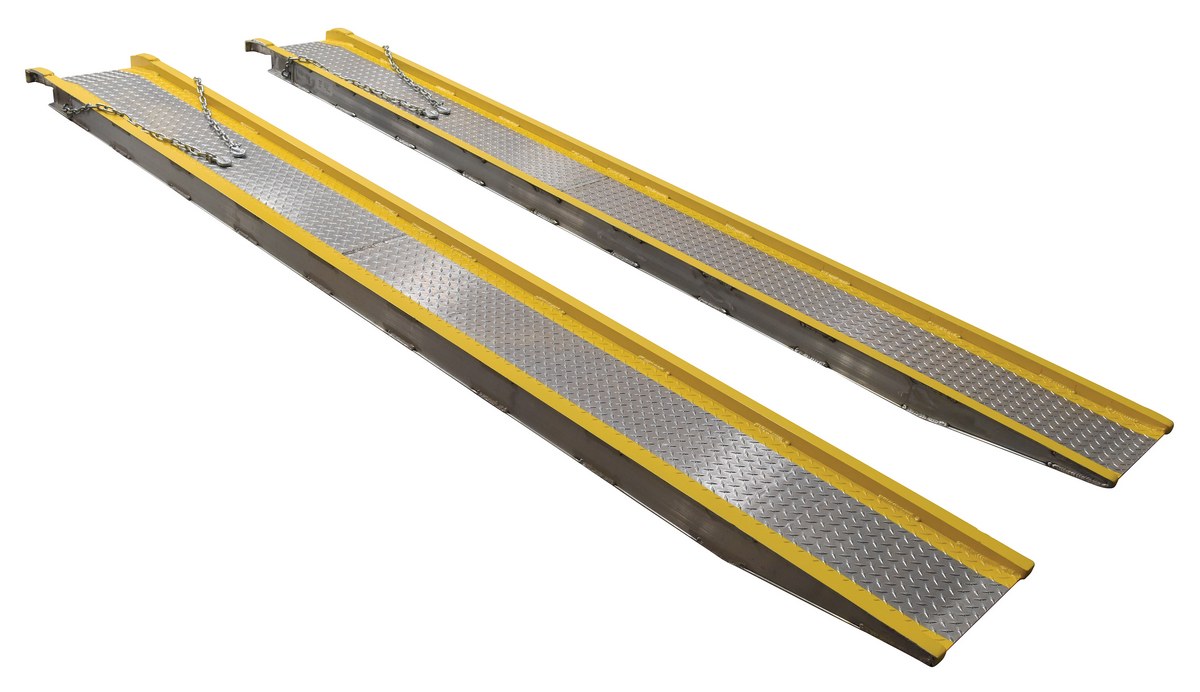

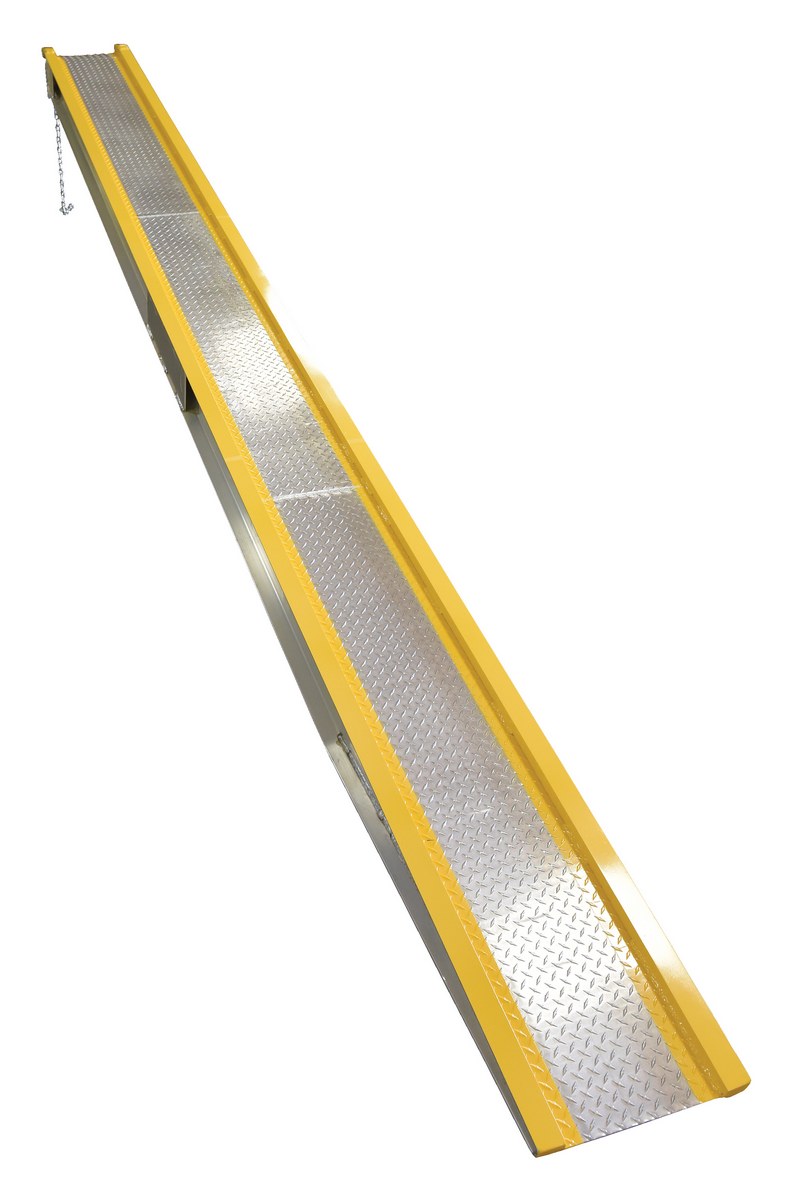

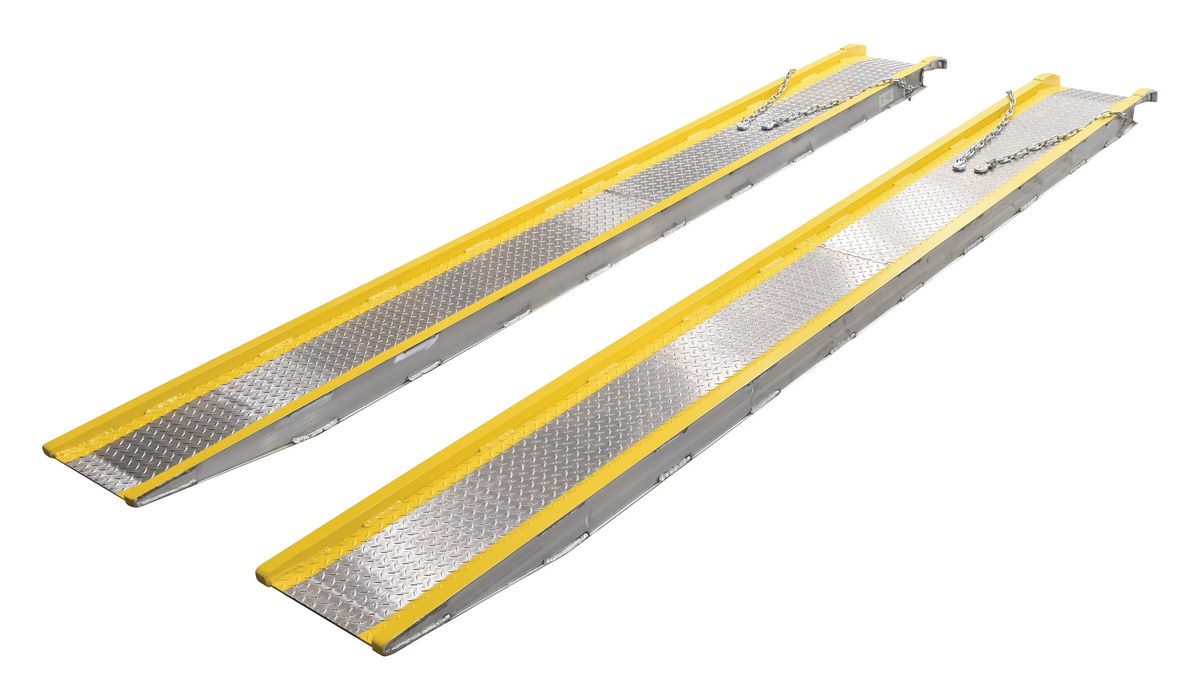

Aluminum Vehicle Twin RampsProvide a safe means for driving vans, pick-up trucks and some passenger vehicles from ground level into and out of high building entrances. Ramps can be securely fastened to dock with w/ chains (34") attached to ramps with hook on the end. To avoid hang-ups measure under clearance and wheelbase of vehicle. The usable width is 14". Side curbs are 1-1/4" high. Welded aluminum construction. Models are sold in pairs.
- 5,500 lb to 7,000 lb capacity available
- 1-1/4" high steel curbs help keep wheels centered on ramps

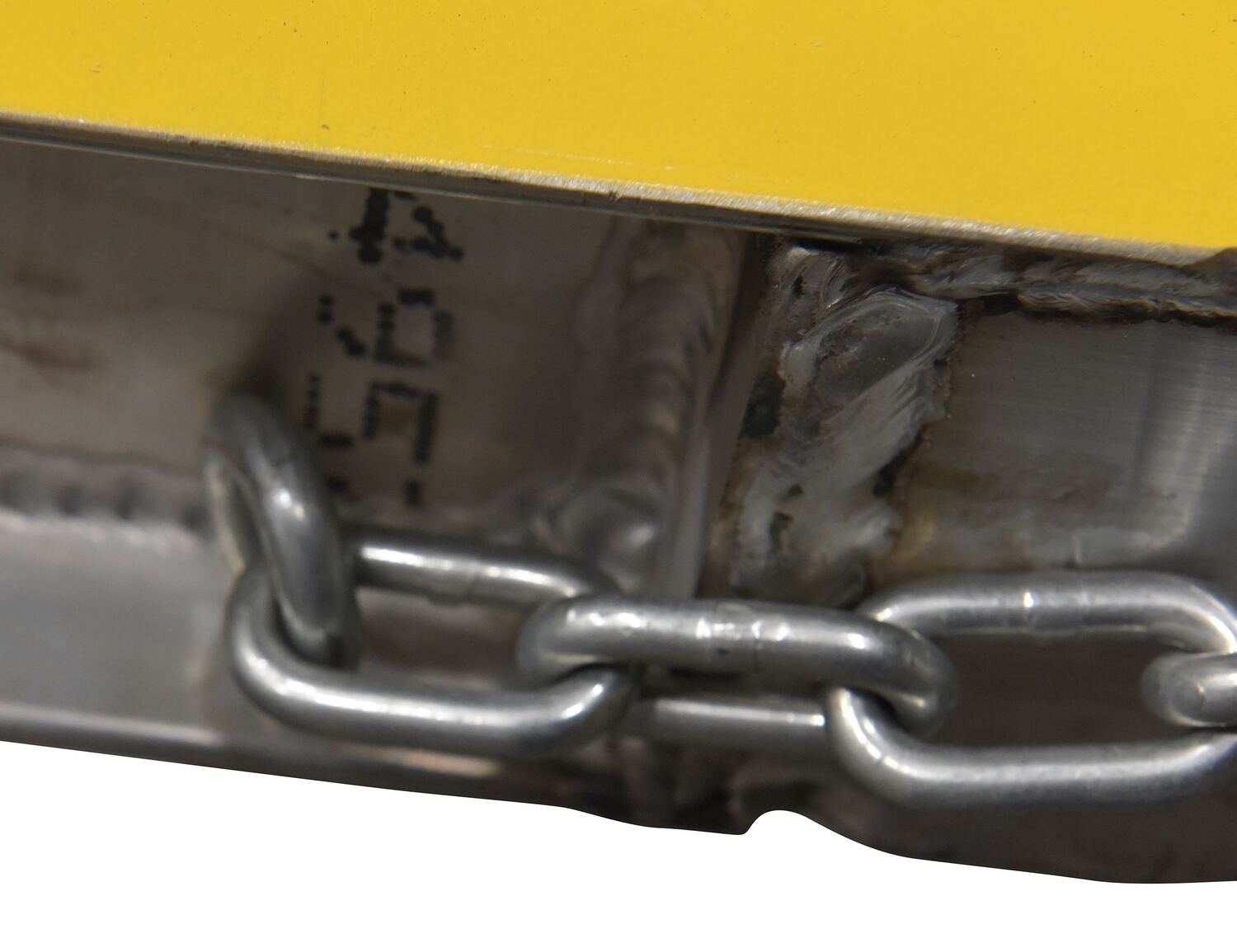

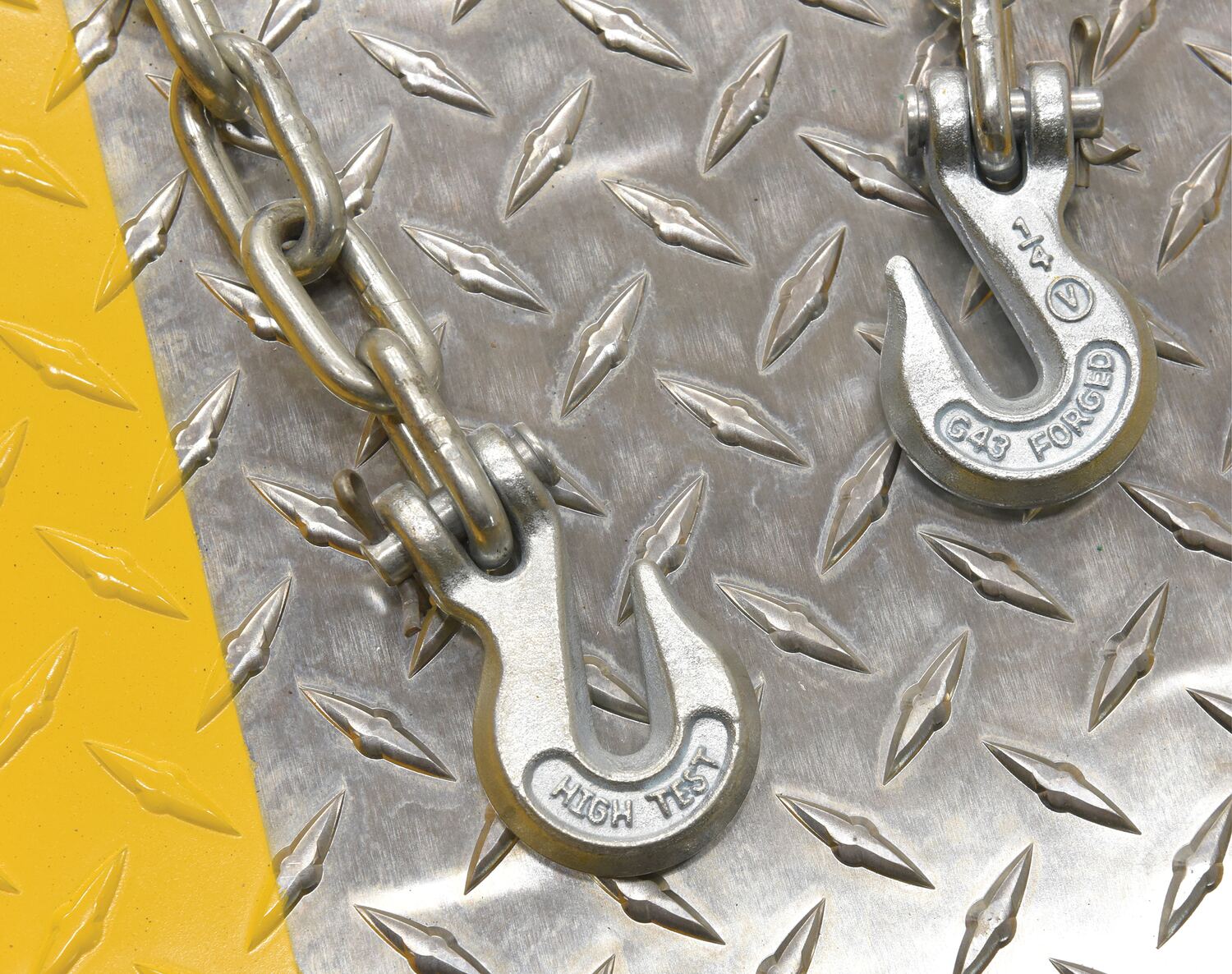

- Hooks and chains are included to stabilize ramps when in use

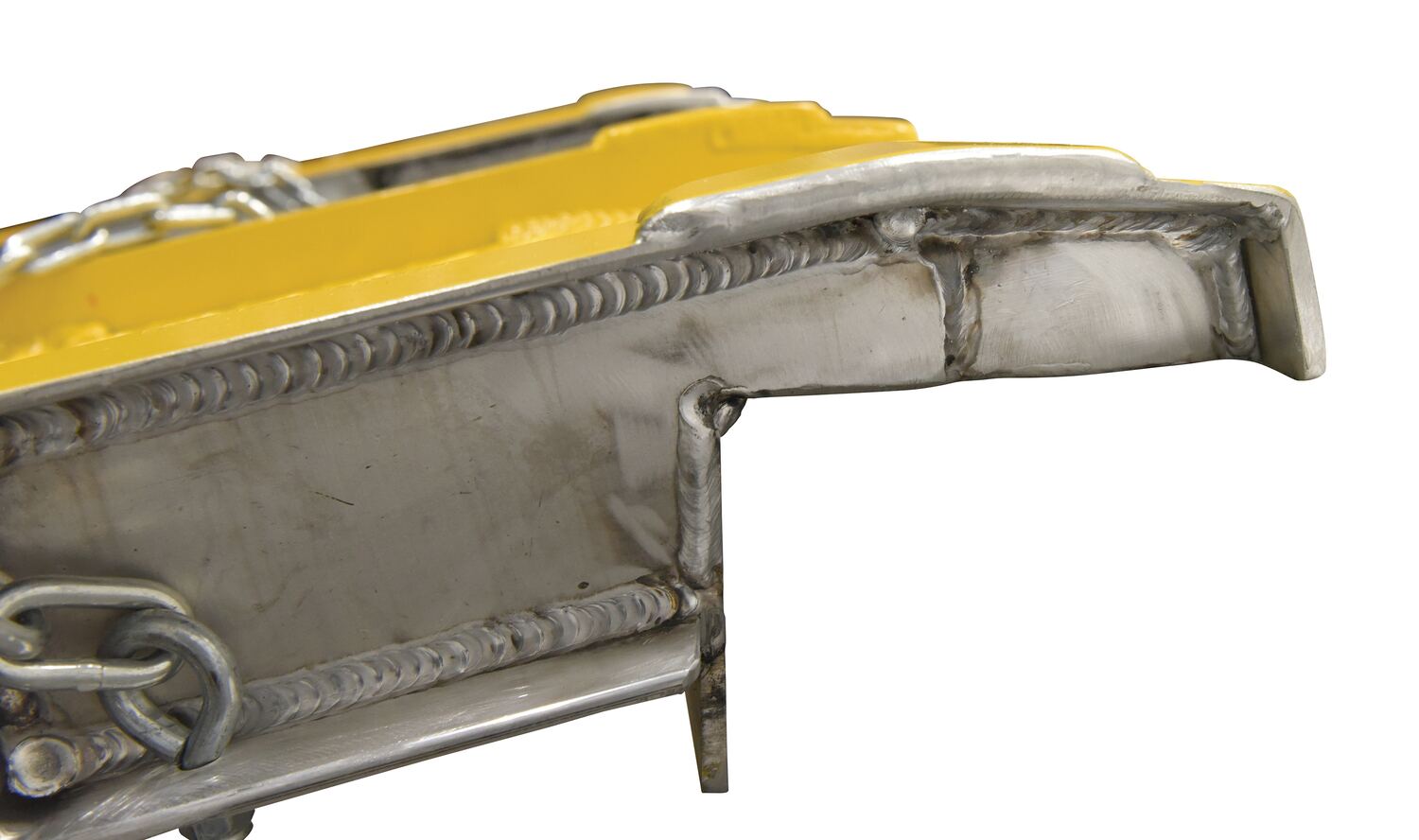

- Constructed of robust welded aluminum tread plate for maximum strength and durability
Steel Container Ramps with Flip-Over Bridge
Steel Container Ramps with Side Rails
Steel Pick-Up/Van Ramps
Heavy-Duty Fiberglass Walk Ramps
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| VTR-5.5-14-10 | |  | 90 Days Limited Warranty | Portable Aluminum Twin Vehicle Ramp 120 In. x 18 In. 5,500 Lb. Capacity Silver | Uniform Capacity Per Pair (lb.): 5500 Working Height Minimum (in.): 16 | 382 | |
| VTR-5.5-14-16 | |  | 90 Days Limited Warranty | Portable Aluminum Twin Vehicle Ramp 192 In. x 18 In. 5,500 Lb. Capacity Silver | Uniform Capacity Per Pair (lb.): 5500 Working Height Minimum (in.): 25-1/2 | 586 | |
| VTR-5.5-14-20 | |  | 90 Days Limited Warranty | Portable Aluminum Twin Vehicle Ramp 240 In. x 18 In. 5,500 Lb. Capacity Silver | Uniform Capacity Per Pair (lb.): 5500 Working Height Minimum (in.): 32-1/2 | 889 | |
| VTR-6-14-14 | |  | 90 Days Limited Warranty | Portable Aluminum Twin Vehicle Ramp 168 In. x 18 In. 6,000 Lb. Capacity Silver | Uniform Capacity Per Pair (lb.): 6000 Working Height Minimum (in.): 22-1/2 | 487 | |
| VTR-6-14-18 | |  | 90 Days Limited Warranty | Portable Aluminum Twin Vehicle Ramp 216 In. x 18 In. 6,000 Lb. Capacity Silver | Uniform Capacity Per Pair (lb.): 6000 Working Height Minimum (in.): 29 | 801 | |
| VTR-7-14-8 | |  | 90 Days Limited Warranty | Portable Aluminum Twin Vehicle Ramp 96 In. x 18 In. 7,000 Lb. Capacity Silver | Uniform Capacity Per Pair (lb.): 7000 Working Height Minimum (in.): 12-1/2 | 226 | |
| VTR-7-14-12 | |  | 90 Days Limited Warranty | Portable Aluminum Twin Vehicle Ramp 144 In. x 18 In. 7,000 Lb. Capacity Silver | Uniform Capacity Per Pair (lb.): 7000 Working Height Minimum (in.): 19 | 417 | |
| VTR-5.5-14-24 | |  | 90 Days Limited Warranty | Portable Aluminum Twin Vehicle Ramp 288 In. x 18 In. 5,500 Lb. Capacity Silver | Uniform Capacity Per Pair (lb.): 5500 Working Height Minimum (in.): 39 | 1083 |
