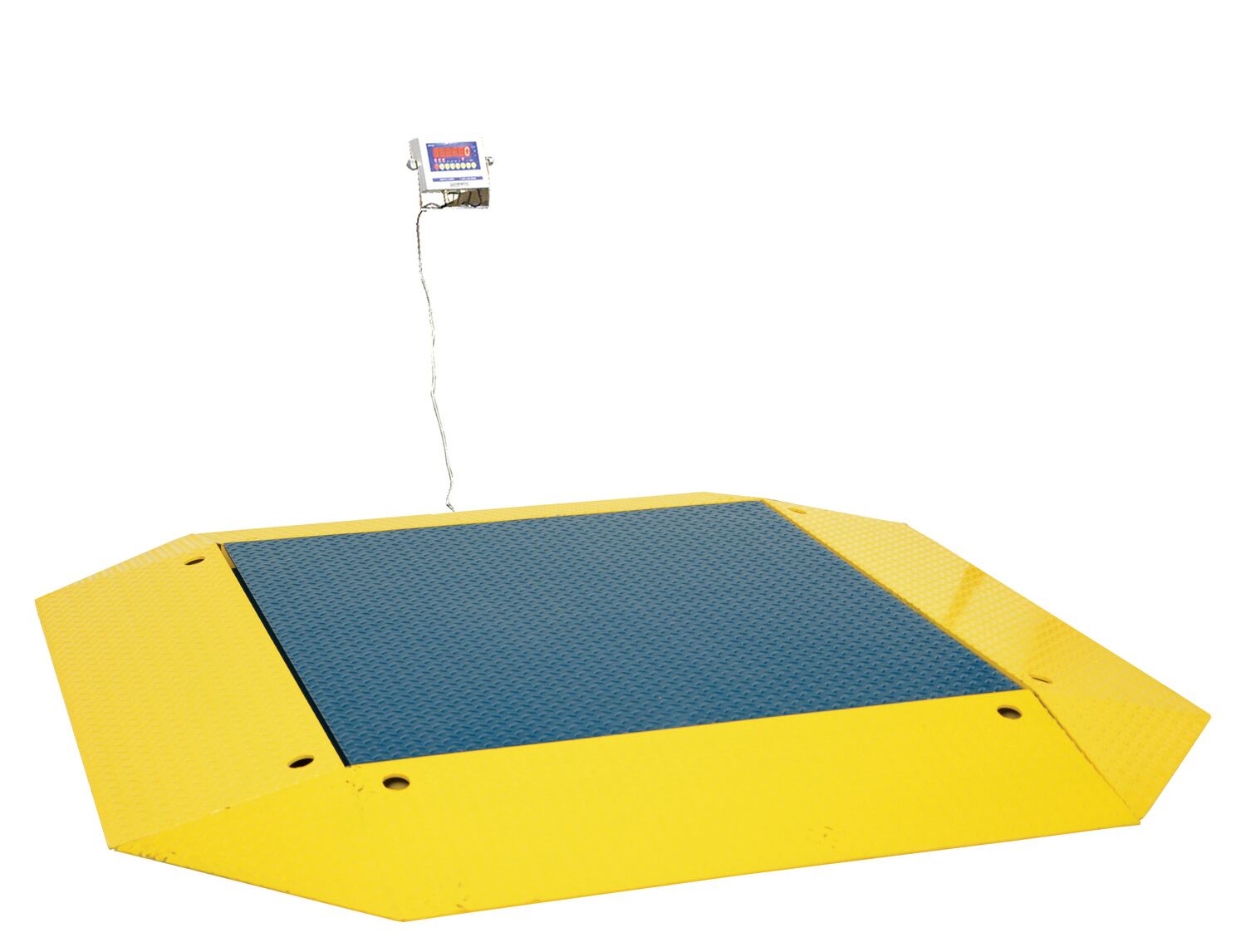

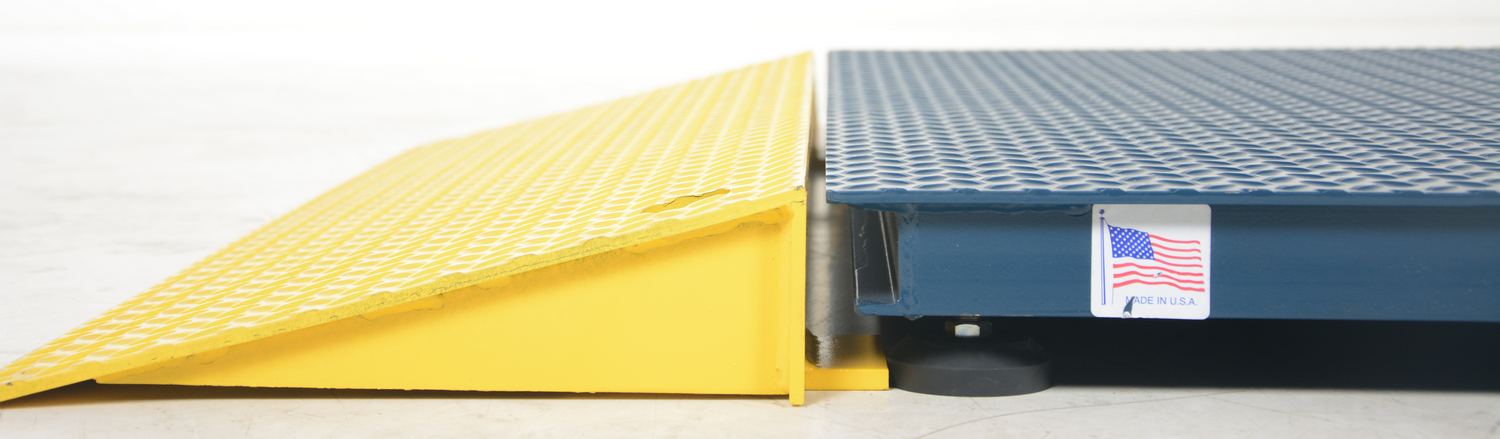

Low Profile Scales & RampsLow Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature 1/2 deck plate, grid core, and a 3/8 bottom skin with three center supports to prevent sagging. Suspension consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of heavy duty diamond plate with a 10 degree or 20 percent slope. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stands 42" high and is 115V, 1 phase AC power, cord included.
- Low profile air freight scales with wrap-around ramps for ideal operation
- Bottom skin with three center supports prevent sagging for maximum efficiency
- Features durable construction for added strength and long life
- Fully electronic load cells on shock absorbing spherical washers are ideal for optimal results
Low Profile Floor Scales
U Shaped Platform Scales
Stainless Steel Bench Scales - Legal for Trade
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| SCALE-LP-44-10K |  | 1 Year Limited Warranty | Low Profile Scale 78 In. x 78 In. x 3-1/2 In. 10,000 Lb. Capacity Yellow | Capacity (lbs): 10000 Legal For Trade: Yes | 700 | ||
| SCALE-LP-44-20K |  | 1 Year Limited Warranty | Low Profile Scale 150 In. x 150 In. x 3-1/2 In. 20,000 Lb. Capacity Yellow | Capacity (lbs): 20000 Legal For Trade: Yes | 1480 | ||
| SCALE-LP-44-5K |  | 1 Year Limited Warranty | Low Profile Scale 78 In. x 78 In. x 3-1/2 In. 5,000 Lb. Capacity Yellow | Capacity (lbs): 5000 Legal For Trade: Yes | 700 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Capacity (lbs): 10000
Legal For Trade: Yes
Capacity (lbs): 10000
Legal For Trade: Yes
Unit:
Size: W x L x H
Weight:
Limited Warranty
Capacity (lbs): 20000
Legal For Trade: Yes
Capacity (lbs): 20000
Legal For Trade: Yes
Unit:
Size: W x L x H
Weight:
Limited Warranty
Capacity (lbs): 5000
Legal For Trade: Yes
Capacity (lbs): 5000
Legal For Trade: Yes
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Does this scale read in 0.2 or 0.5 increments?
A: The scale would automatically come calibrated in 1 lb. increments, but can be modified to 0.5 lb. increments.
 |
||||||||||||||||||||||
Low Profile Scales & Ramps |
||||||||||||||||||||||
 |
||||||||||||||||||||||
Low Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature 1/2 deck plate, grid core, and a 3/8 bottom skin with three center supports to prevent sagging. Suspension consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of heavy duty diamond plate with a 10 degree or 20 percent slope. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stands 42" high and is 115V, 1 phase AC power, cord included.
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
