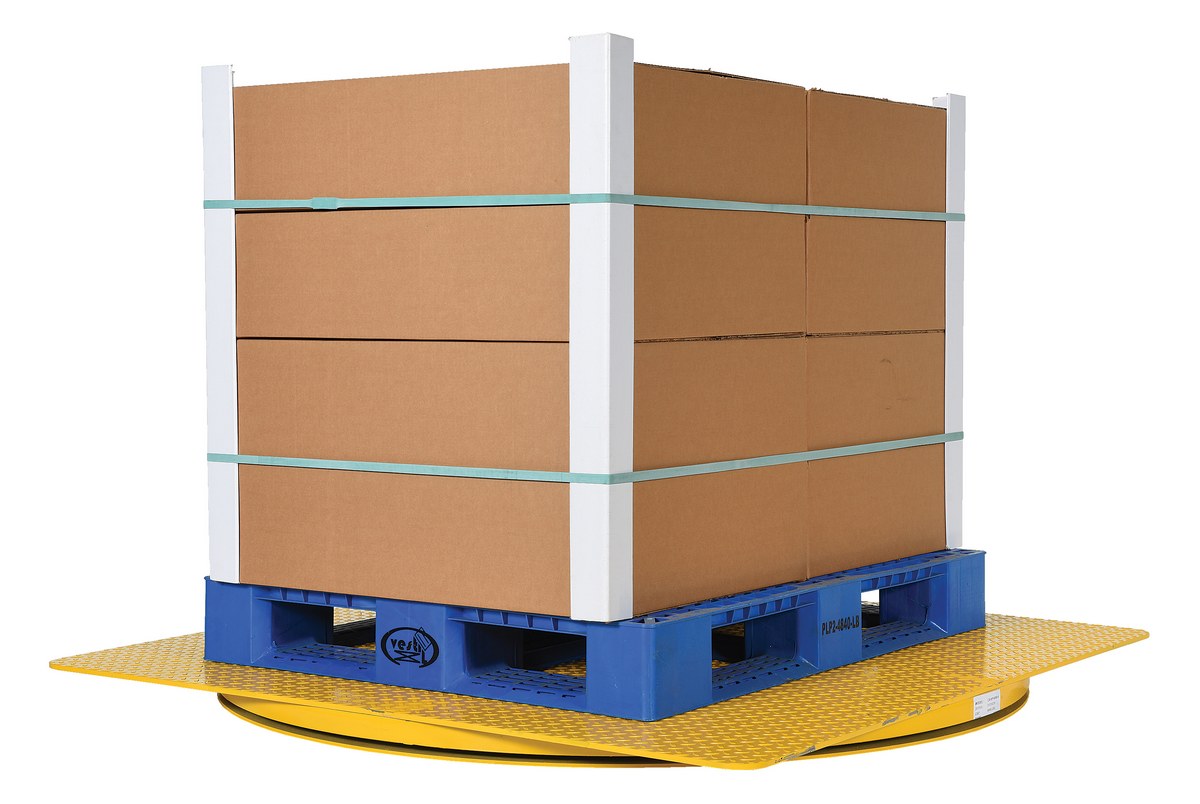

Heavy-Duty King Pin CarouselsThe Heavy Duty King Pin Carousel has all the ergonomic benefits of the standard carousel with a top plate and stabilizing center pin. Unit will handle a wider variety of loads. Features include 1/4" tread plate top on 4,000 lbs. and 3/8" tread plate top on 6,000 lbs. models. Also includes a heavy-duty maintenance free bearing. The king pin design allows off set loading up to 50% of the capacity on at least 50% of the deck.
- Center kingpin design allows for precise rotation of top plate
- Maintenance-free bearings allow for smooth rotation

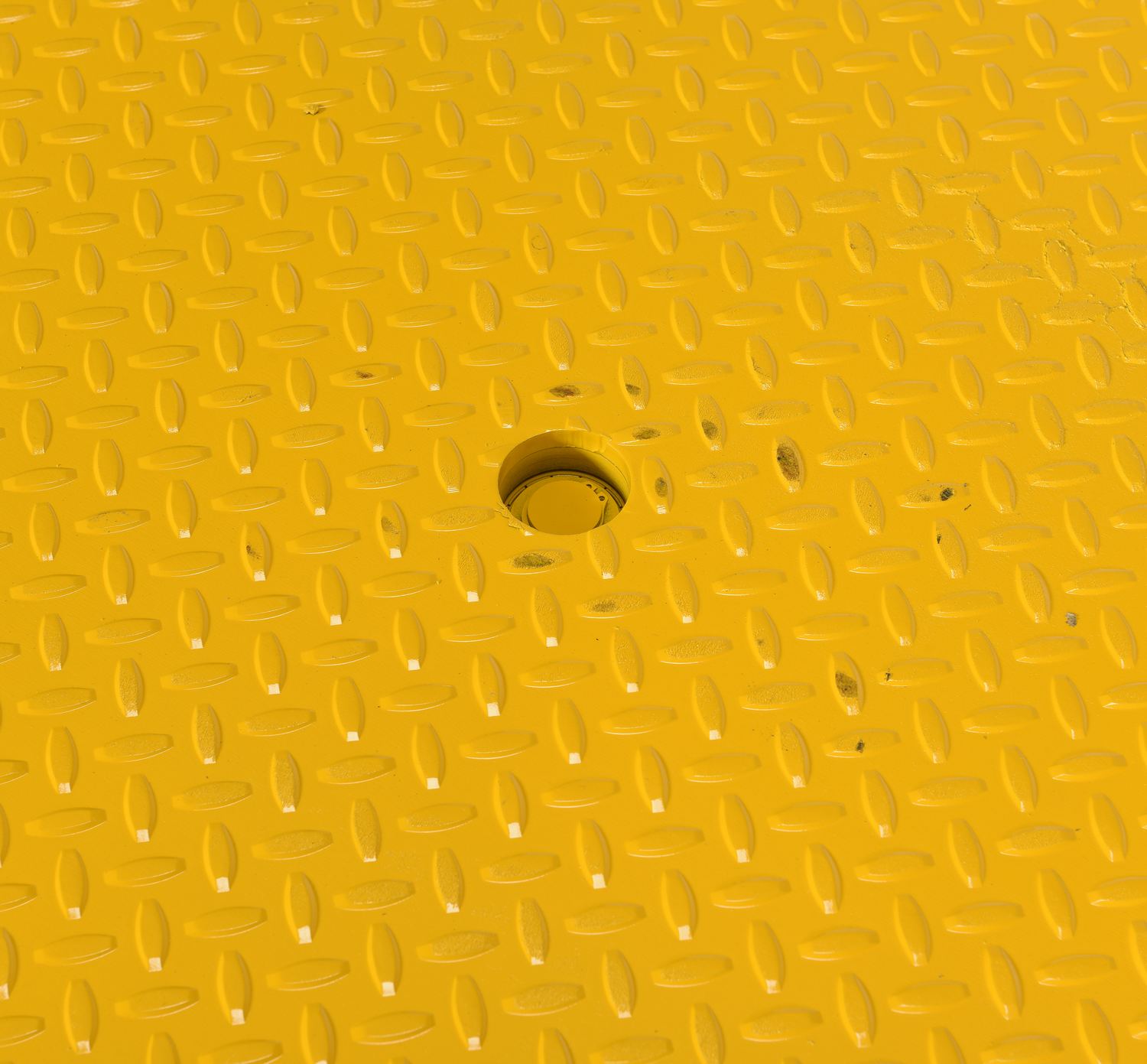

- Diamond tread plate surface provides added traction
- Rounded corner top plate provides user safety
Stainless Steel Manual Carousels
Aluminum Mini Carousels
Powered Photography CarouselAdditional Models In This Family
CA-KP-36R-6
CA-KP-4848-4
CA-KP-3636-4
CA-KP-6060-6
CA-KP-3636-6
CA-KP-4848-6
CA-KP-48R-4
CA-KP-3636-6
CA-KP-4848-4
CA-KP-60R-4
CA-KP-60R-6
CA-KP-6060-4
CA-KP-36R-4
CA-KP-4848-6
CA-KP-4848-6
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

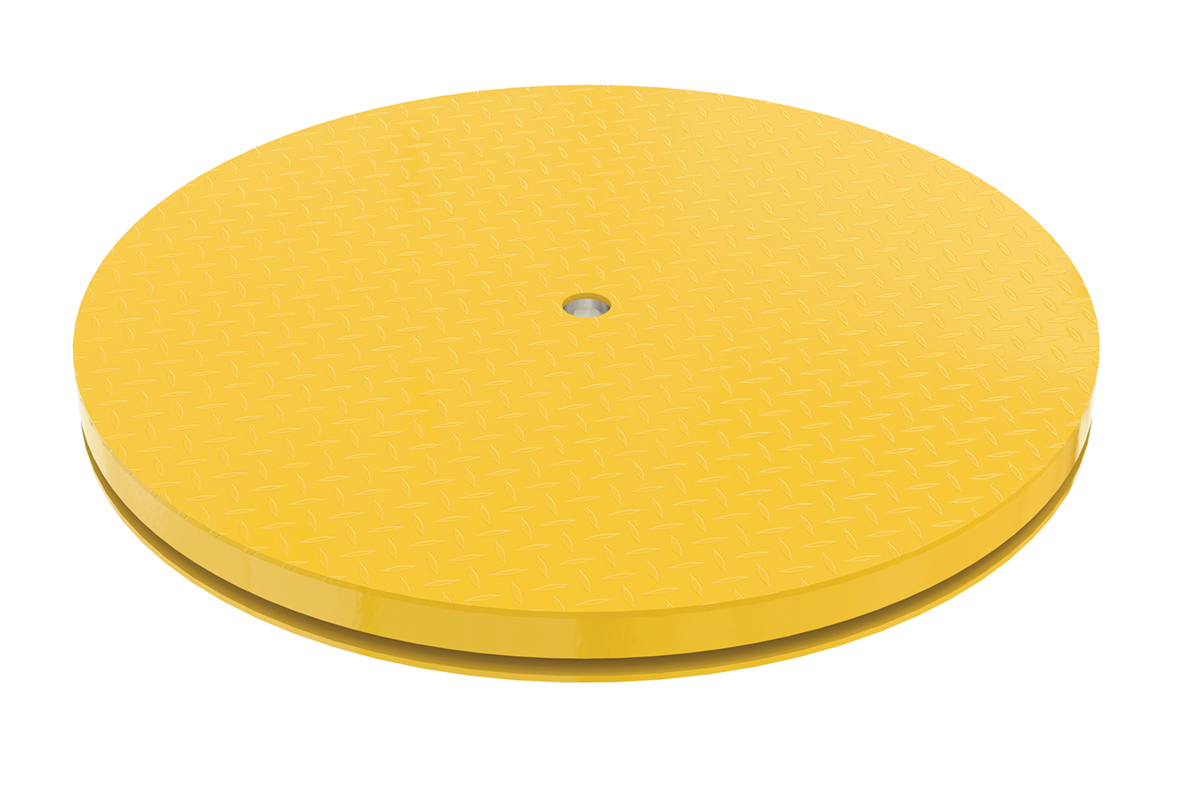

| CA-KP-36R-4 | | 90 Days Limited Warranty | Heavy Duty Round King Pin Carousel 36 In. 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Tread Plate Height (in.): 1/4 | 224 | ||

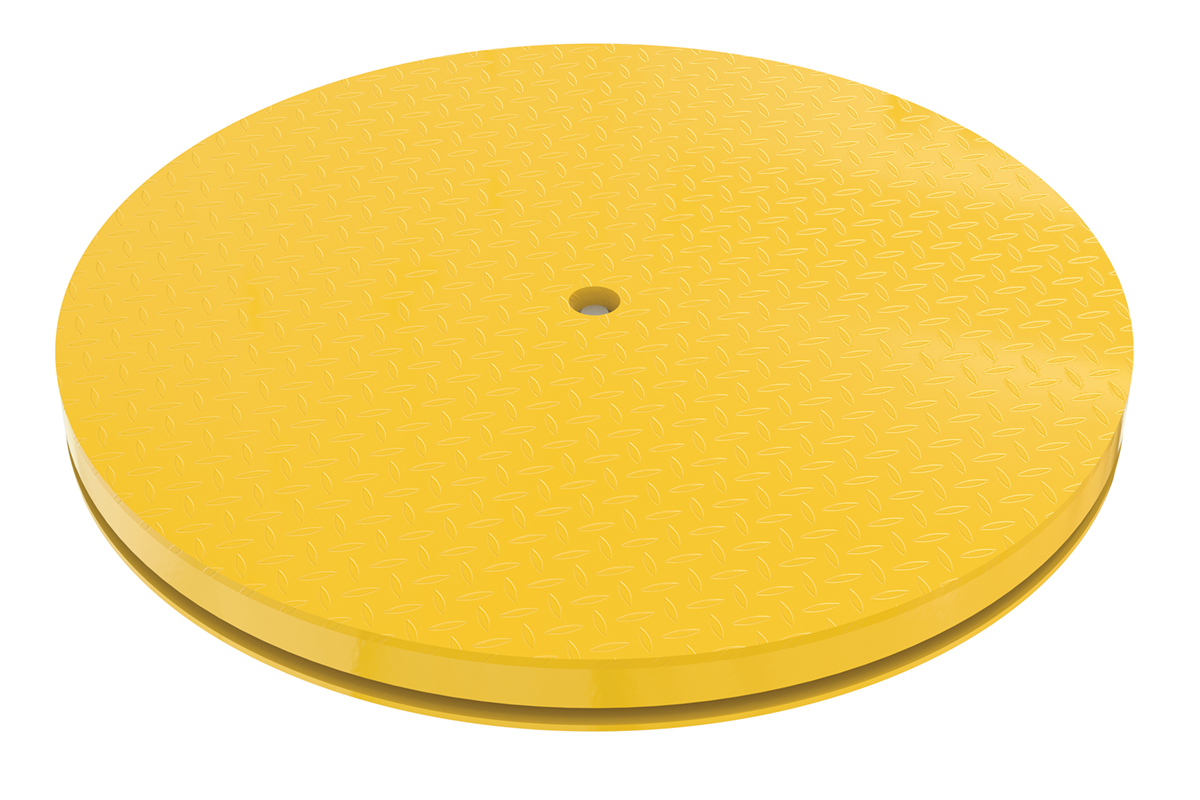

| CA-KP-36R-6 | | 90 Days Limited Warranty | Heavy Duty Round King Pin Carousel 36 In. 6000 Lb. Capacity Yellow | Uniform Capacity (lb.): 6,000 Tread Plate Height (in.): 3/8 | 267 | ||

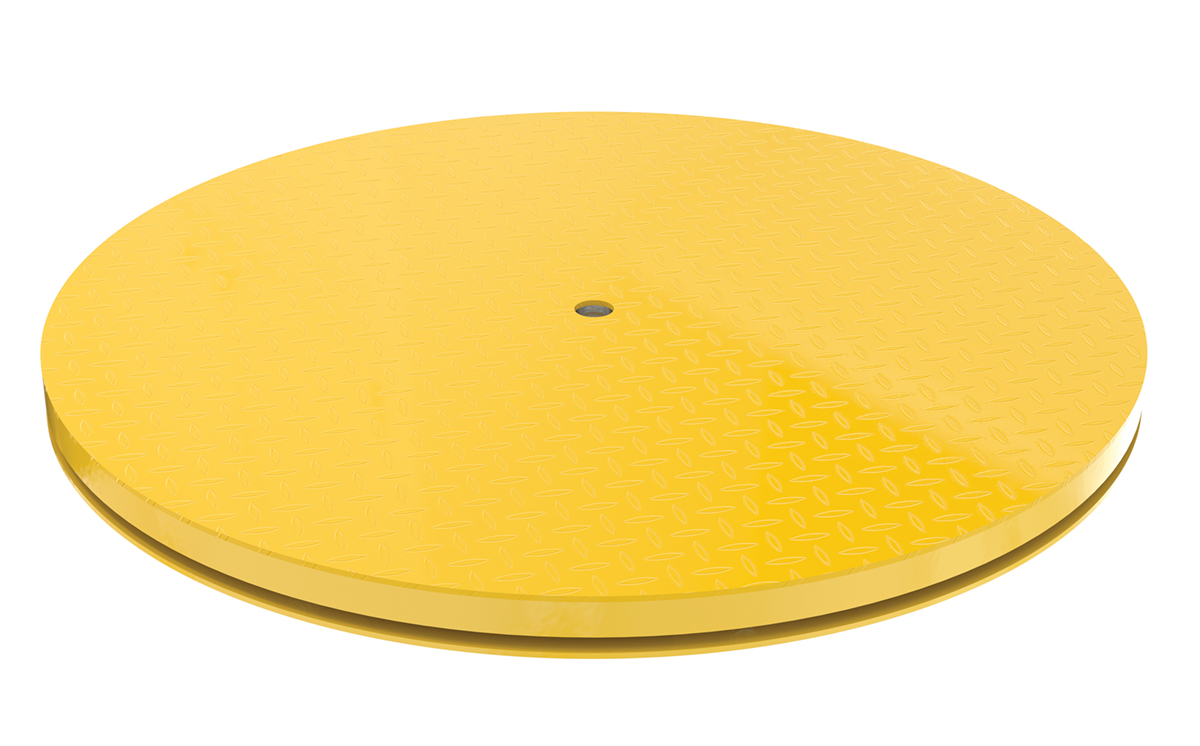

| CA-KP-48R-4 | | 90 Days Limited Warranty | Heavy Duty Round King Pin Carousel 48 In. 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Tread Plate Height (in.): 1/4 | 400 | ||

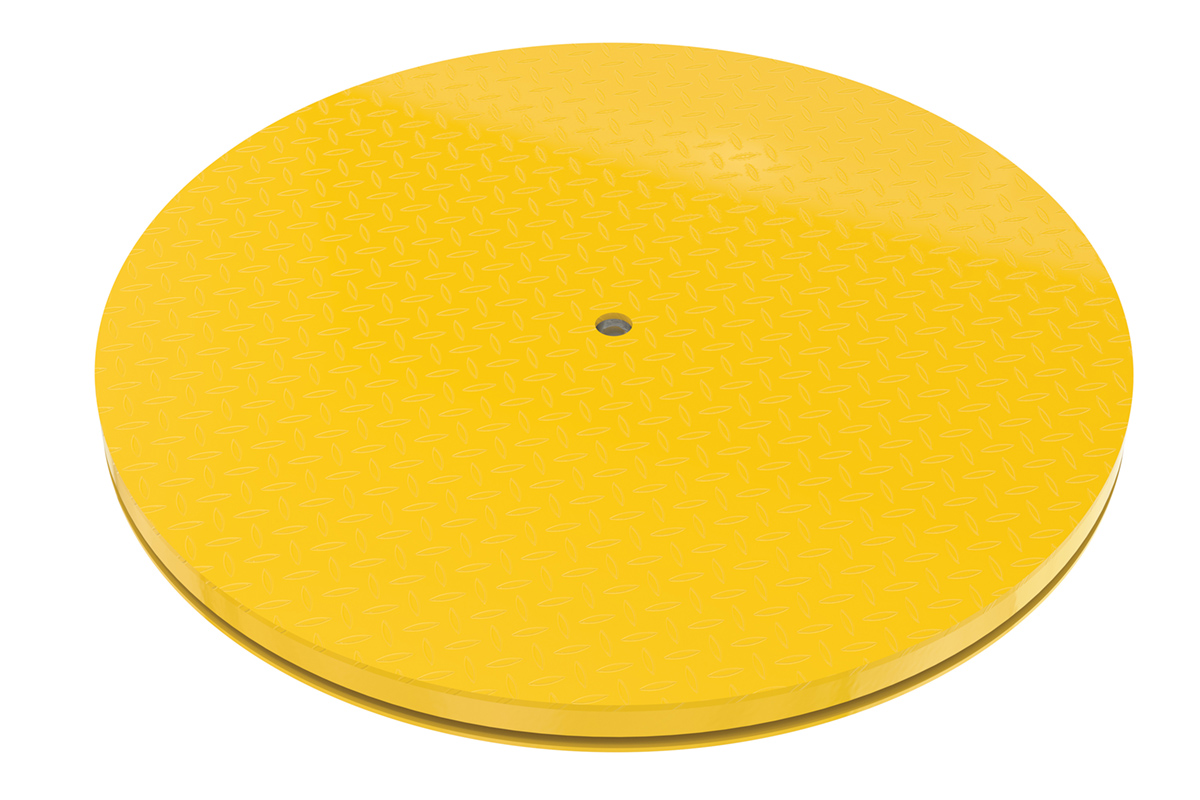

| CA-KP-48R-6 |  | 90 Days Limited Warranty | Heavy Duty Round King Pin Carousel 48 In. 6000 Lb. Capacity Yellow | Uniform Capacity (lb.): 6,000 Tread Plate Height (in.): 3/8 | 478 | ||

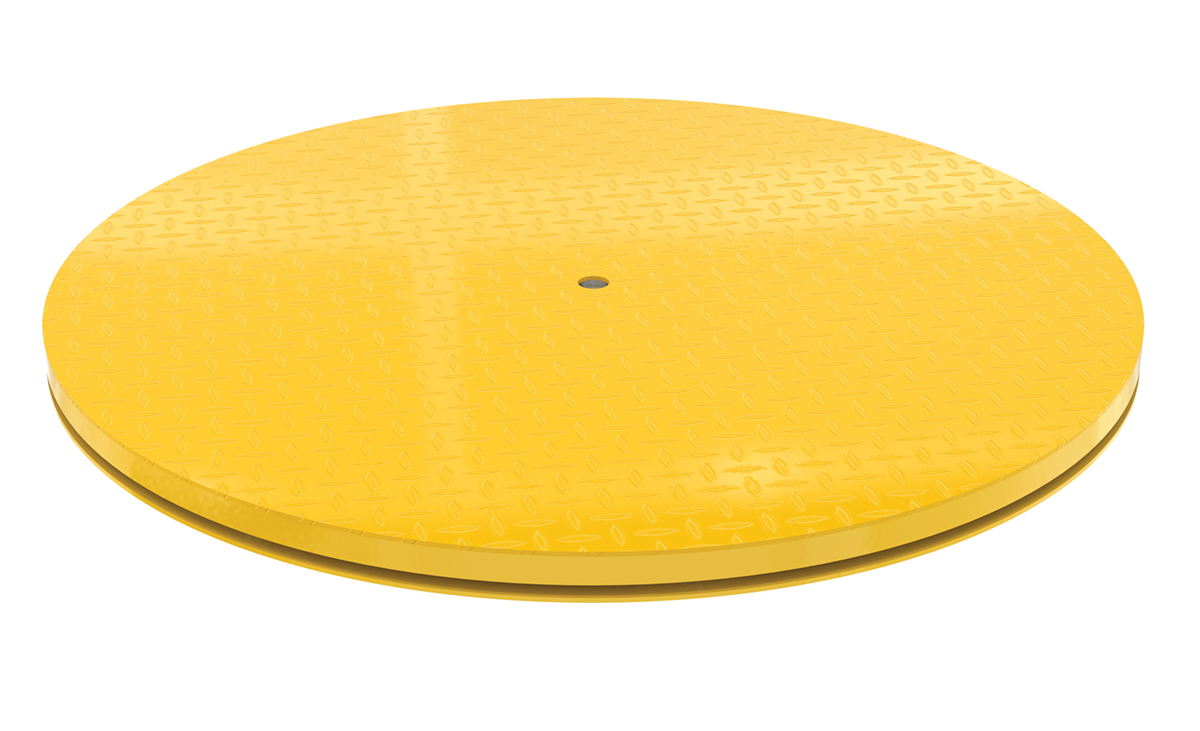

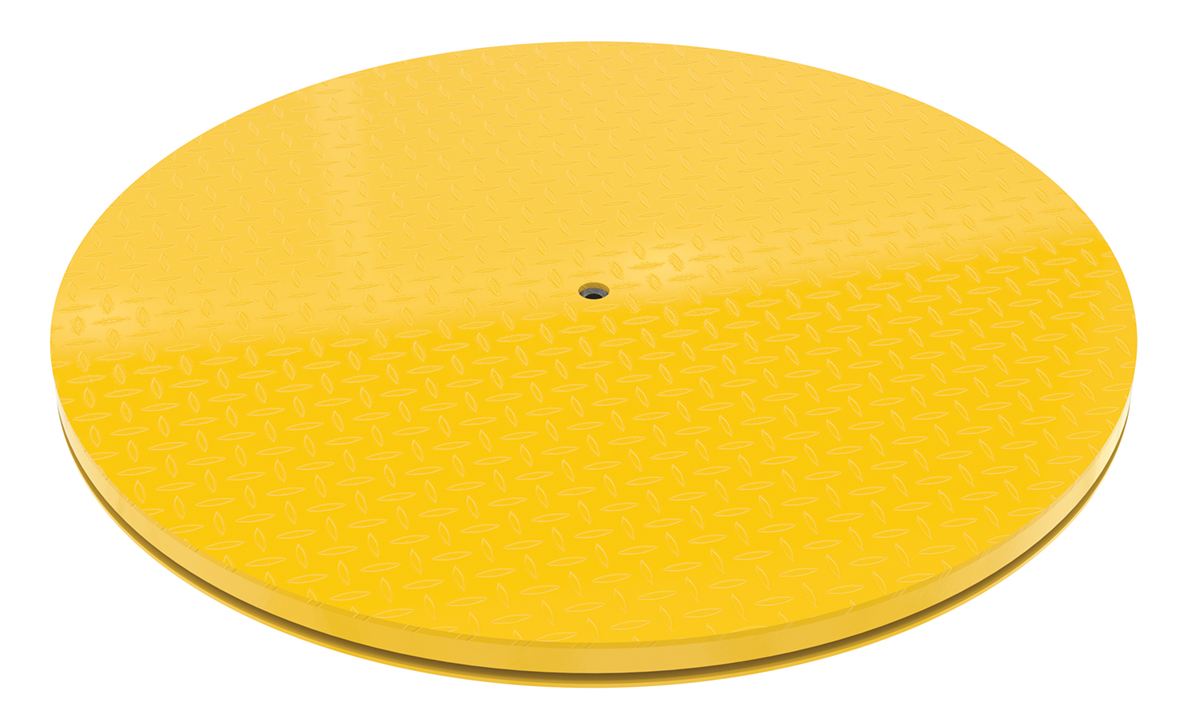

| CA-KP-60R-4 | | 90 Days Limited Warranty | Heavy Duty Round King Pin Carousel 60 In. 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Tread Plate Height (in.): 1/4 | 568 | ||
| CA-KP-60R-6 | | 90 Days Limited Warranty | Heavy Duty Round King Pin Carousel 60 In. 6000 Lb. Capacity Yellow | Uniform Capacity (lb.): 6,000 Tread Plate Height (in.): 3/8 | 694 | ||

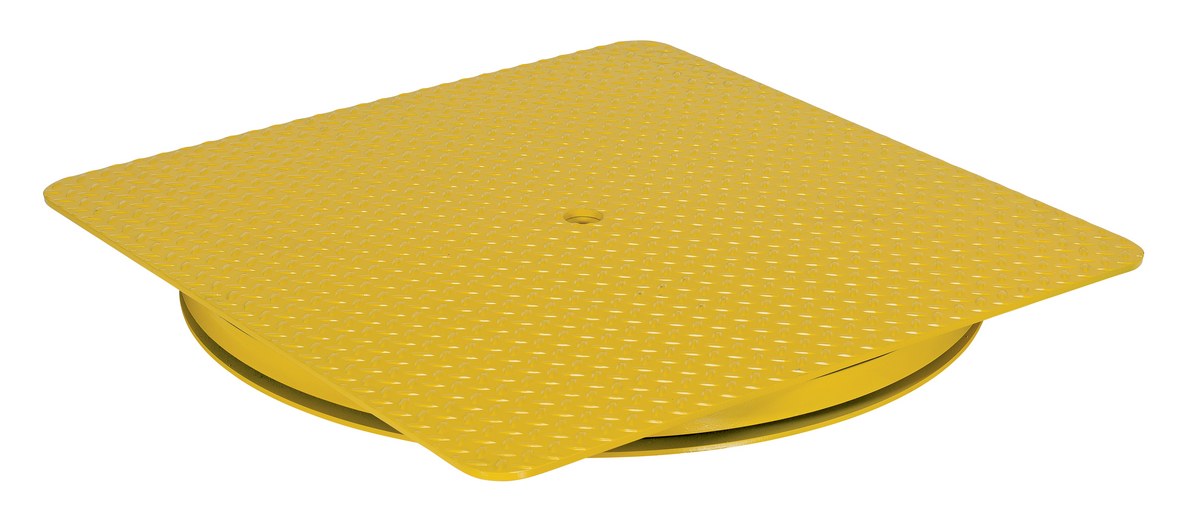

| CA-KP-3636-4 | | 90 Days Limited Warranty | Heavy Duty Square King Pin Carousel 36 In. x 36 In. 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Tread Plate Height (in.): 1/4 | 269 | ||
| CA-KP-3636-6 |  | 90 Days Limited Warranty | Heavy Duty Square King Pin Carousel 36 In. x 36 In. 6000 Lb. Capacity Yellow | Uniform Capacity (lb.): 6,000 Tread Plate Height (in.): 3/8 | 306 | ||

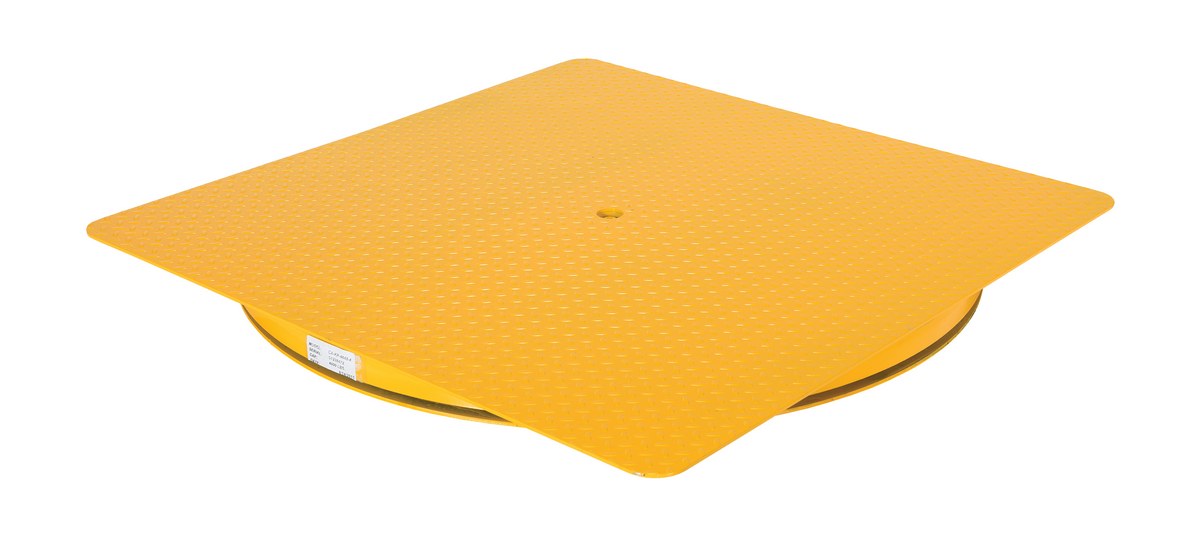

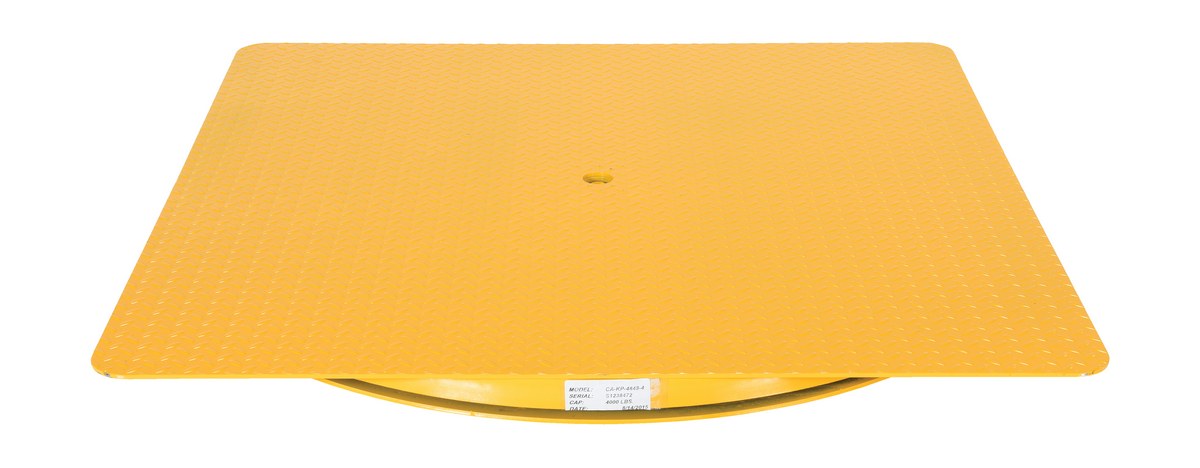

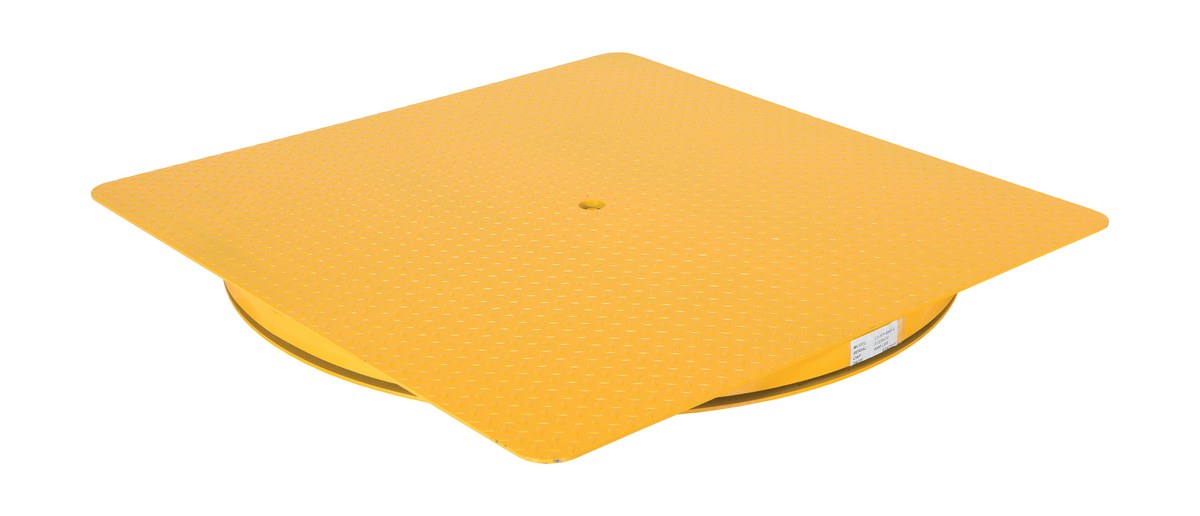

| CA-KP-4848-4 |  | 90 Days Limited Warranty | Heavy Duty Square King Pin Carousel 48 In. x 48 In. 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Tread Plate Height (in.): 1/4 | 422 | ||

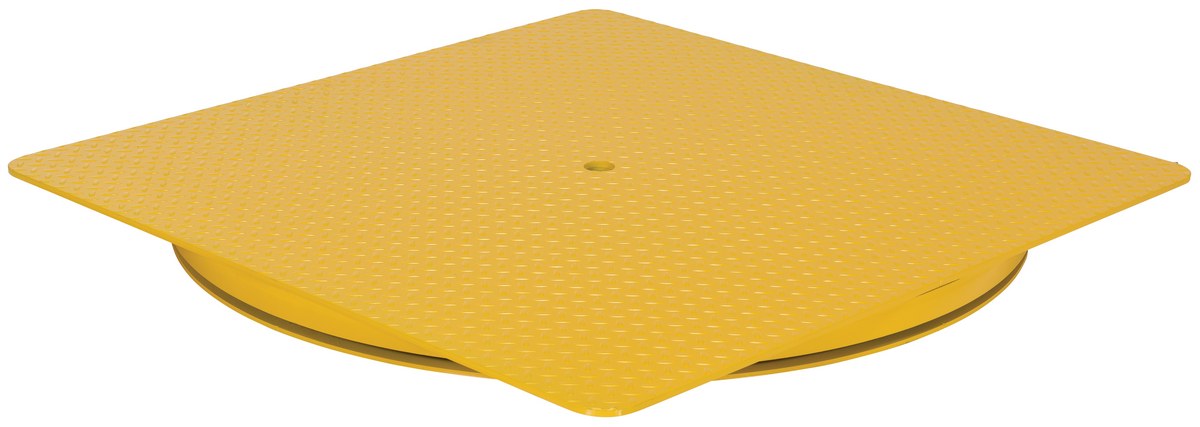

| CA-KP-4848-6 | | 90 Days Limited Warranty | Heavy Duty Square King Pin Carousel 48 In. x 48 In. 6000 Lb. Capacity Yellow | Uniform Capacity (lb.): 6,000 Tread Plate Height (in.): 3/8 | 506 | ||

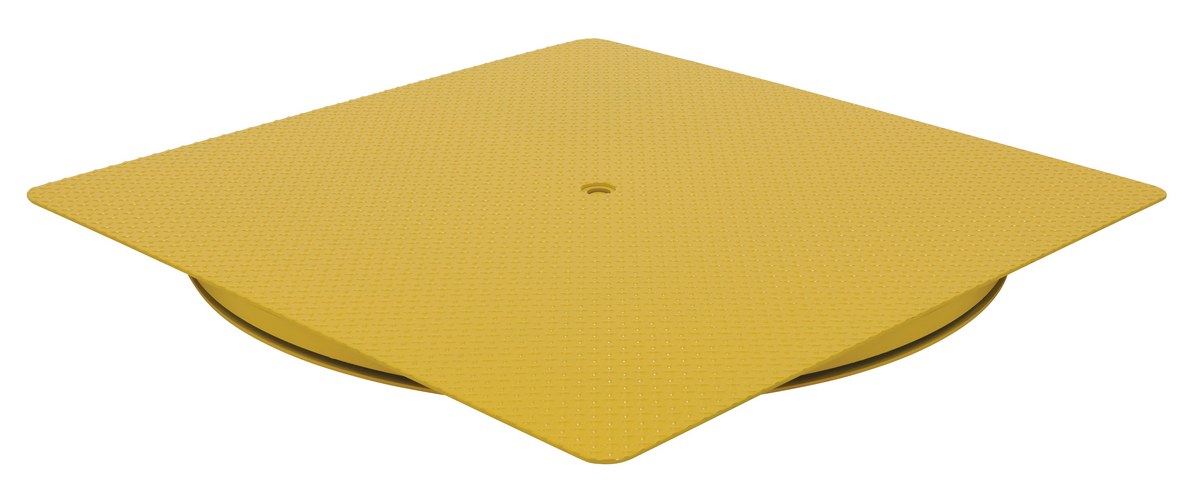

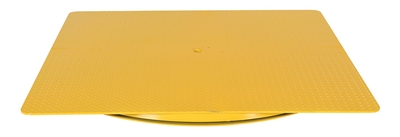

| CA-KP-6060-4 |  | 90 Days Limited Warranty | Heavy Duty Square King Pin Carousel 60 In. x 60 In. 4000 Lb. Capacity Yellow | Uniform Capacity (lb.): 4,000 Tread Plate Height (in.): 1/4 | 641 | ||

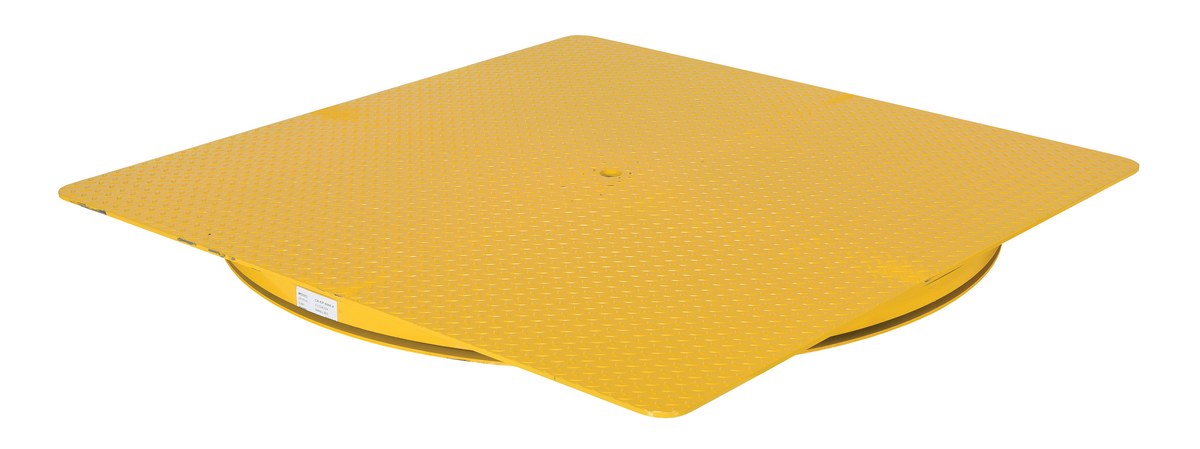

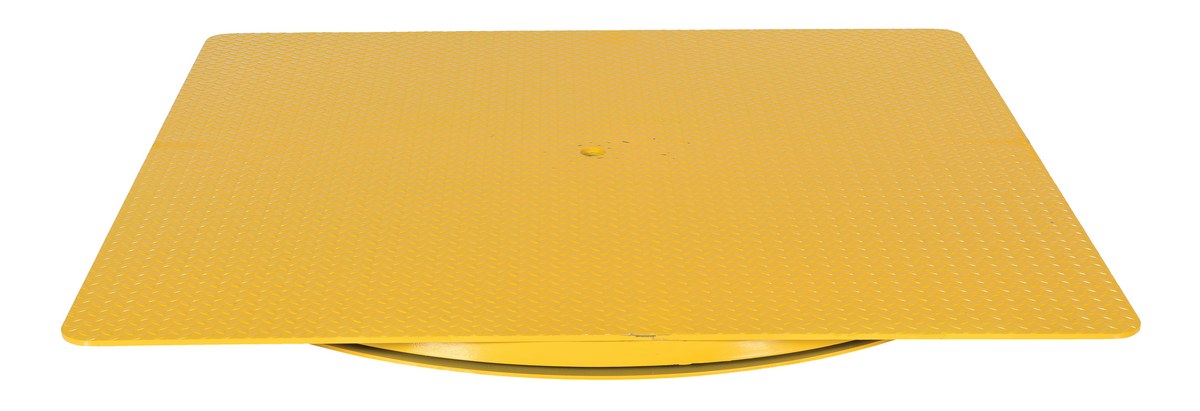

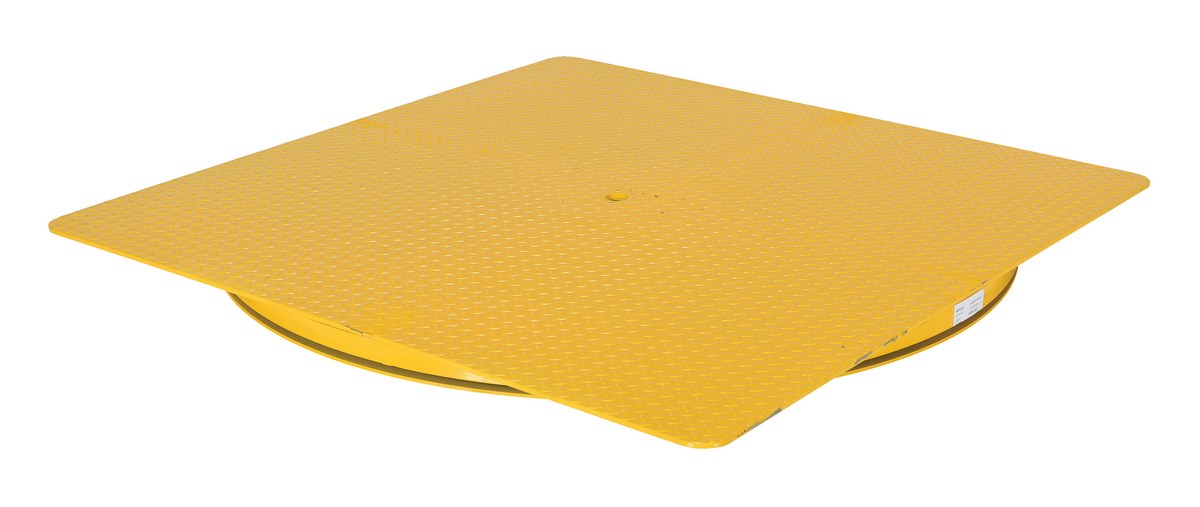

| CA-KP-6060-6 |  | 90 Days Limited Warranty | Heavy Duty Square King Pin Carousel 60 In. x 60 In. 6000 Lb. Capacity Yellow | Uniform Capacity (lb.): 6,000 Tread Plate Height (in.): 3/8 | 749 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
For More Details of the Option Click the Red Model Button
| Carousel Options (In Addition to the Carousel) | ||||||
| Model | Image | Description | Wt. | |||
| CA-HBK* |  |
Manual Brake (field installed) | 3 | |||
| CA-HOD |  |
Hand Operated Locking Detent (Factory Installed) | 2 | |||
| CA-FTK* | |
Foot Operated Locking Detent (factory Installed) | 3 | |||
| PLATF-MTG-CA | |
Mounting of conveyor or CA-Series Carousel to platform | - | |||
| *Only Available with round top | ||||||
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Heavy-Duty King Pin Carousels PDF's will open in a new window when clicked.
Manuals
No Owners Manuals For This Product
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: How many detents (CA-HOD) are there if we add that option to the king pin carousel?
A: There will be one locking detent welded to the base, and (4) locking positions welded to the top plate, 90° apart.
