Tote Lifters
Designed to raise open bottom skids, boxes, and baskets. Two operations available: hand pump or DC power with rocker switch to raise or lower. Hand pump design features an ergonomic pump handle with two lifting speeds to accommodate for light or heavy loads. DC power units include one (1) 12V battery and on-board battery charger. Side stabilizers lock lift in place when load is raised above 20-1/2". Rolls smoothly on poly-on-steel wheels. Suffix "SS" stands for stainless steel units. Stainless steel units roll on nylon wheels.
Power Traction Drive
 |
 |

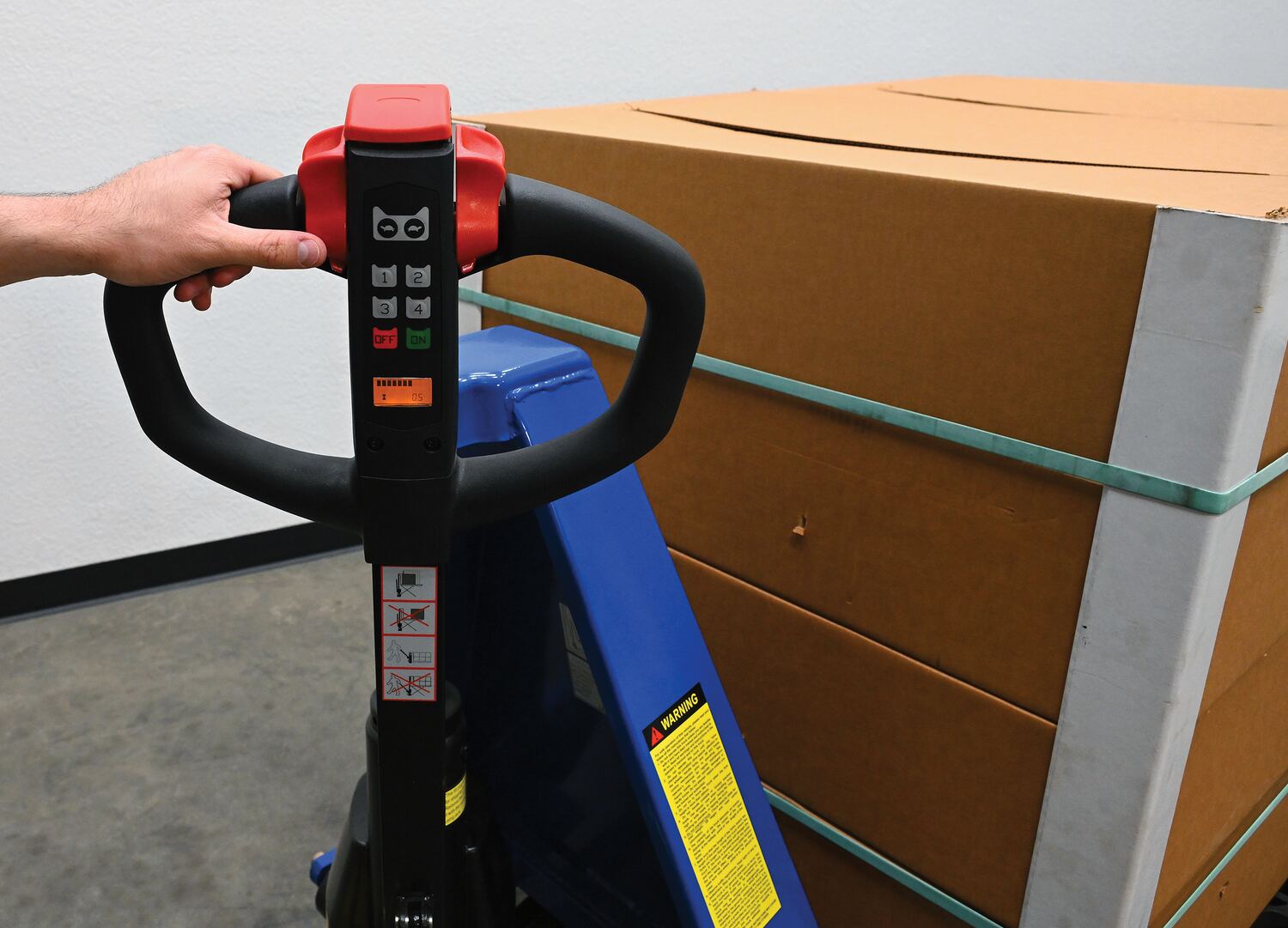

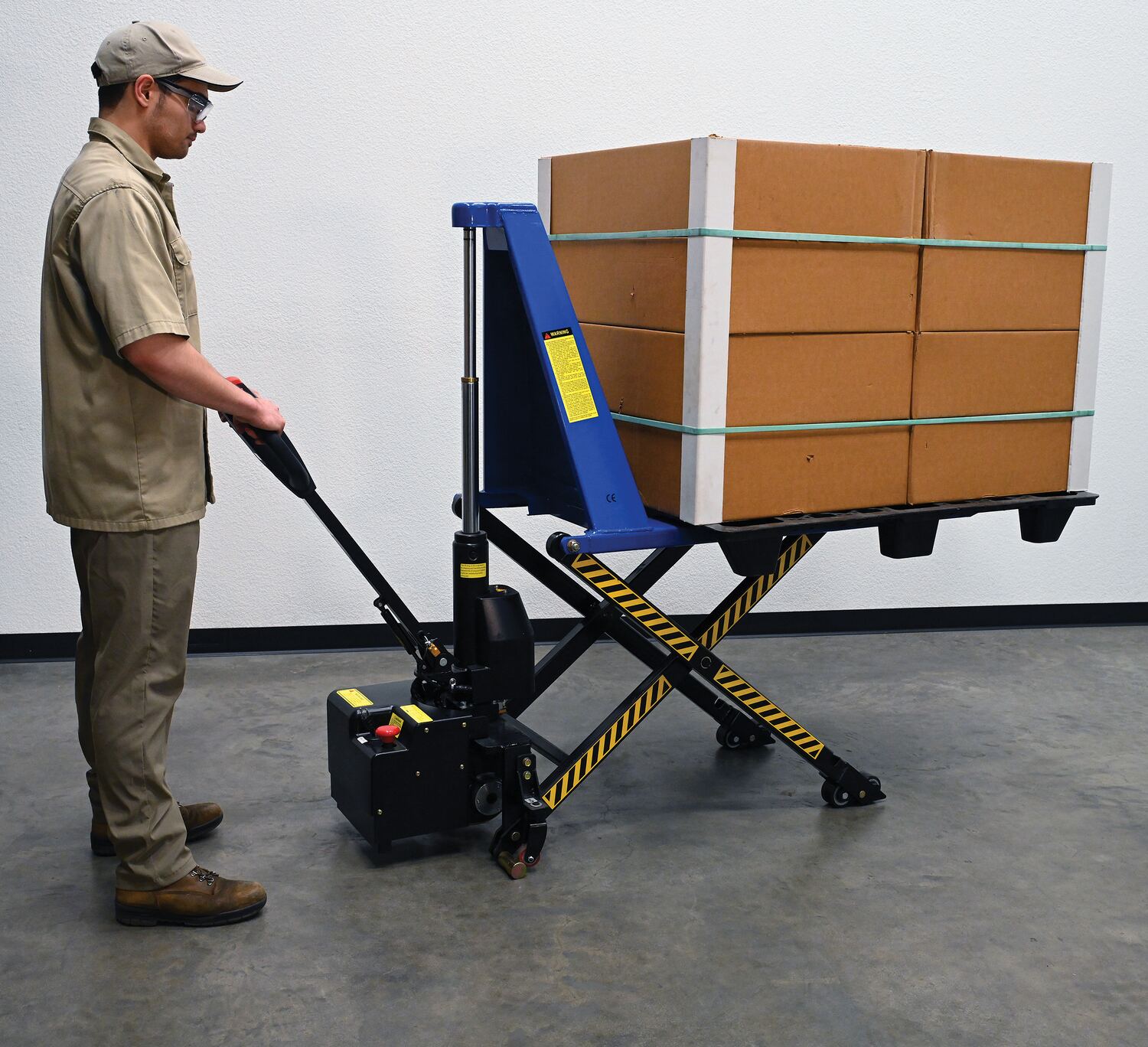

| Model L-270-DC-HD-CTD has a power traction drive system to move unit with a 8-1/4"x3" drive wheel. | |
| Photo Eye Sensor | |

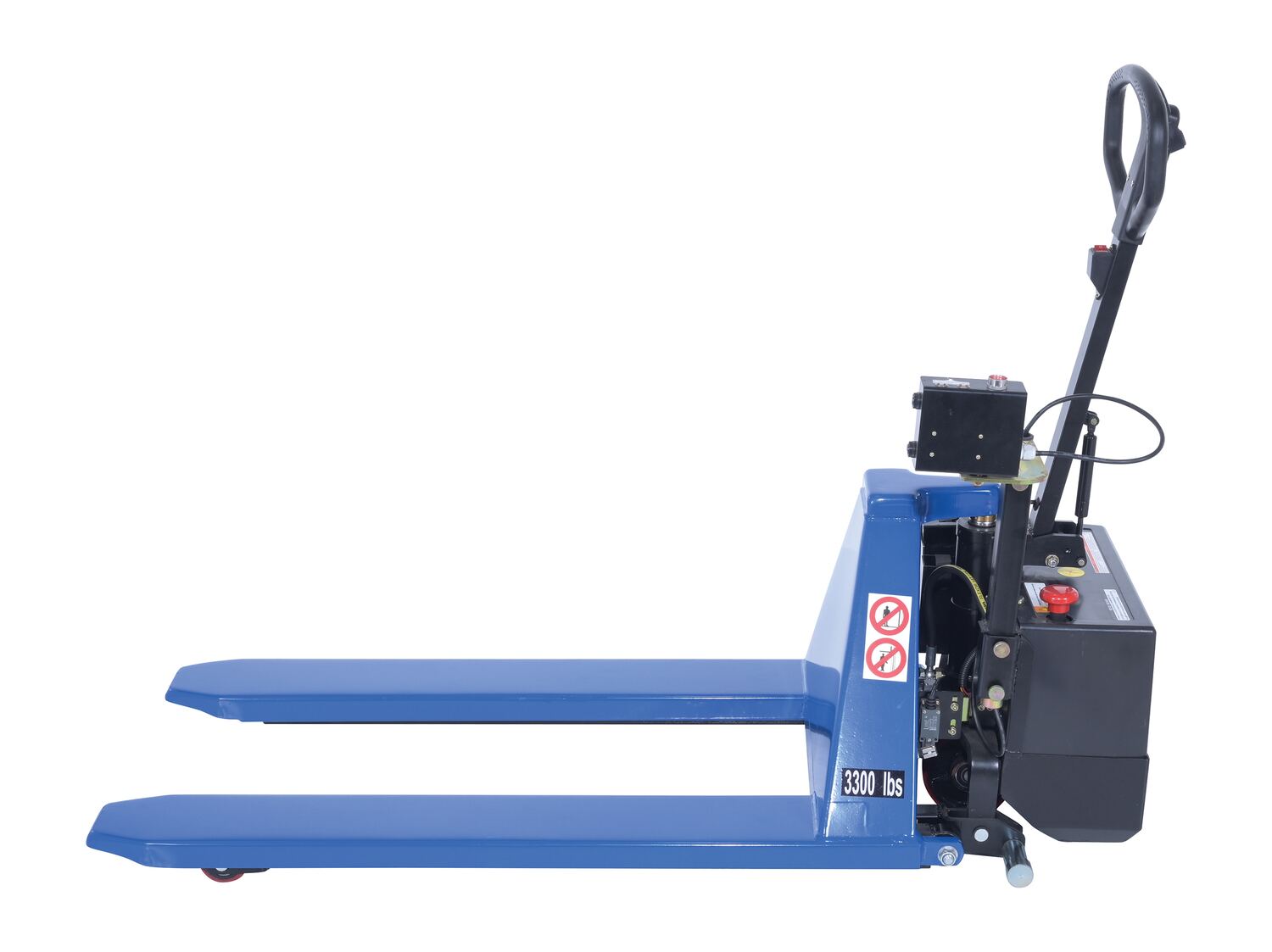

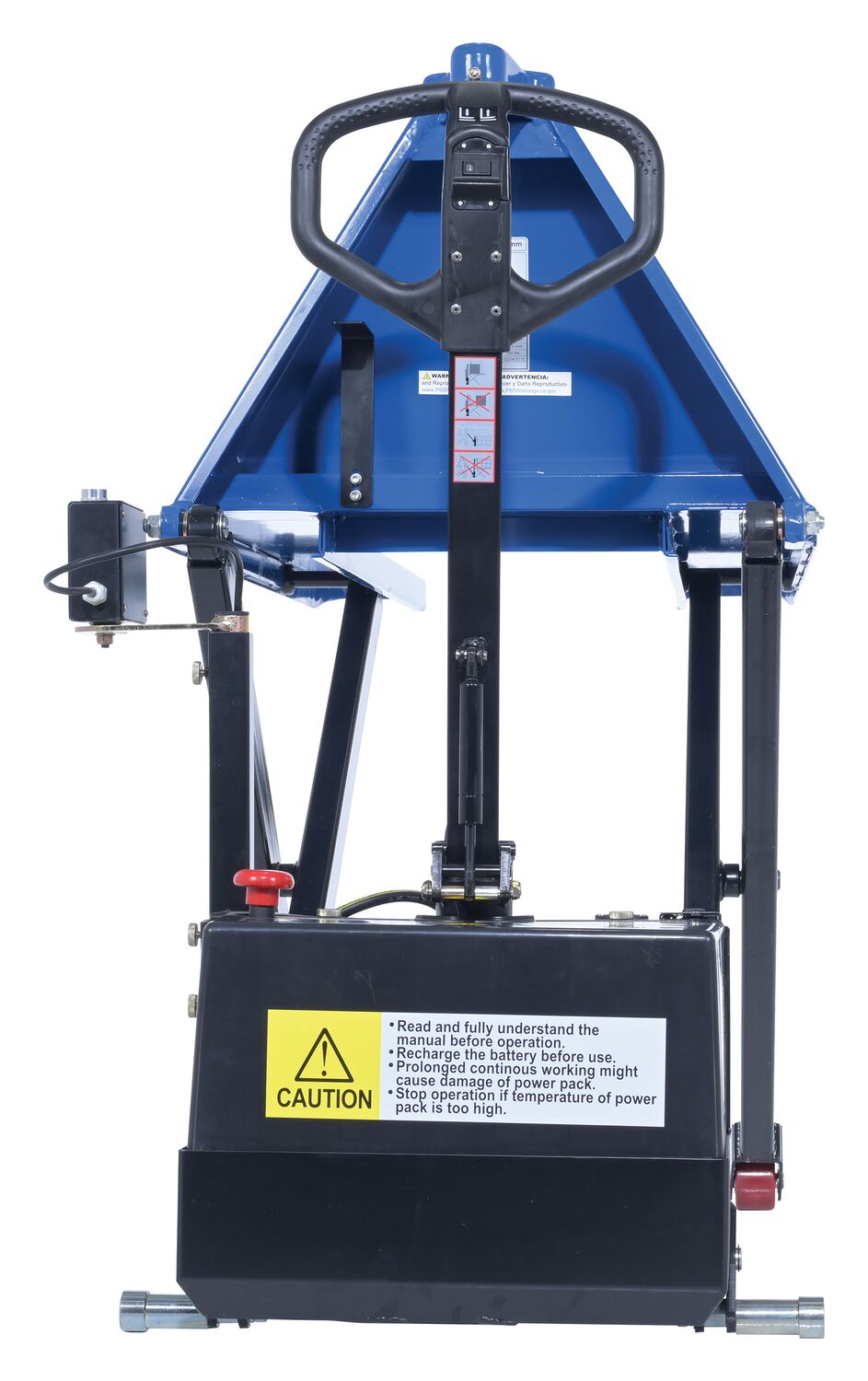

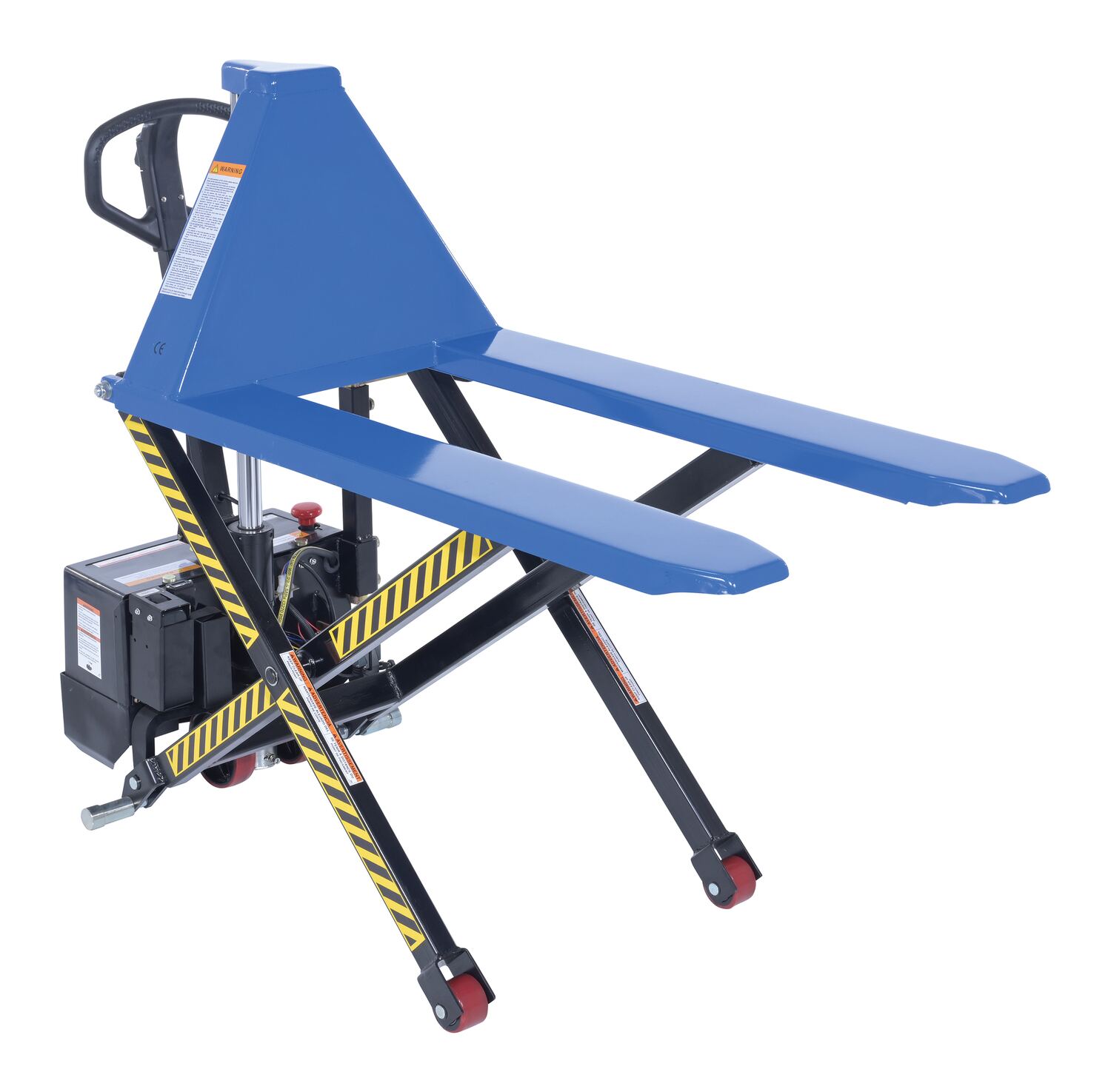

 Model L-270-DC-HD-PE has the attached photo eye sensor, adjusting load heights has seldom been easier or more accurate. The photo eye sensor provides a visual representation of the tote lifters height while in the raising, lowering, or stationary process. |
|
Tote-A-Loads
Dual Power Tote Lifter
High Lift Trucks (Pramac)Additional Models In This Family
L-270-DC-HD-PE
L-270-DC-HD-SS
L-270-DC-HD-CTD
L-270-DC-HD-SS
L-270-DC-HD-PE
L-220-DC-HD
L-270-DC-HD-CTD
L-270-DC-HD-PE
L-270-DC-HD-SS
L-270-DC-HD-SS
L-270-DC-HD-CTD
L-270-DC-HD-PE
L-220-HD
L-270-DC-HD-CTD
L-270-HD-SS
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

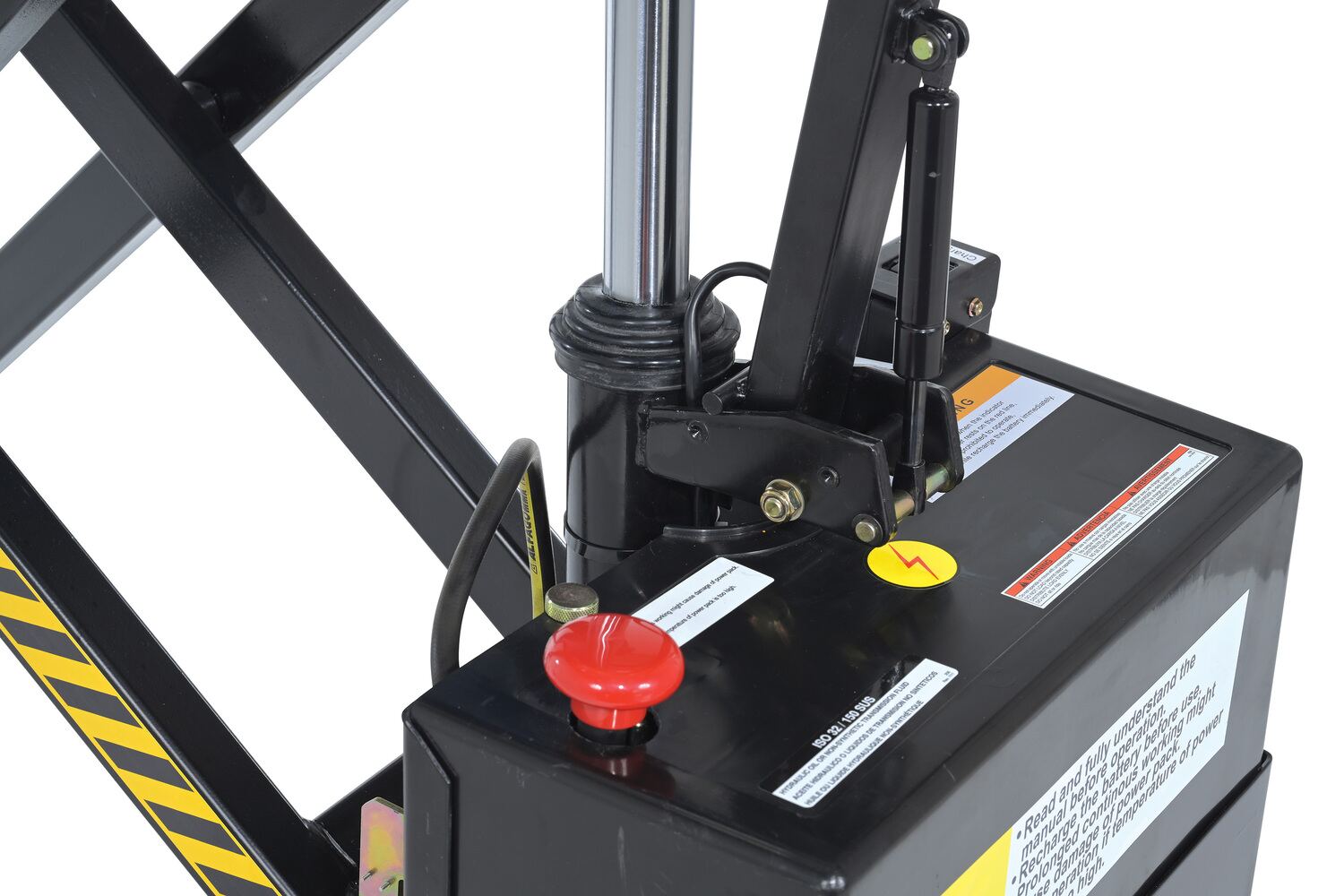

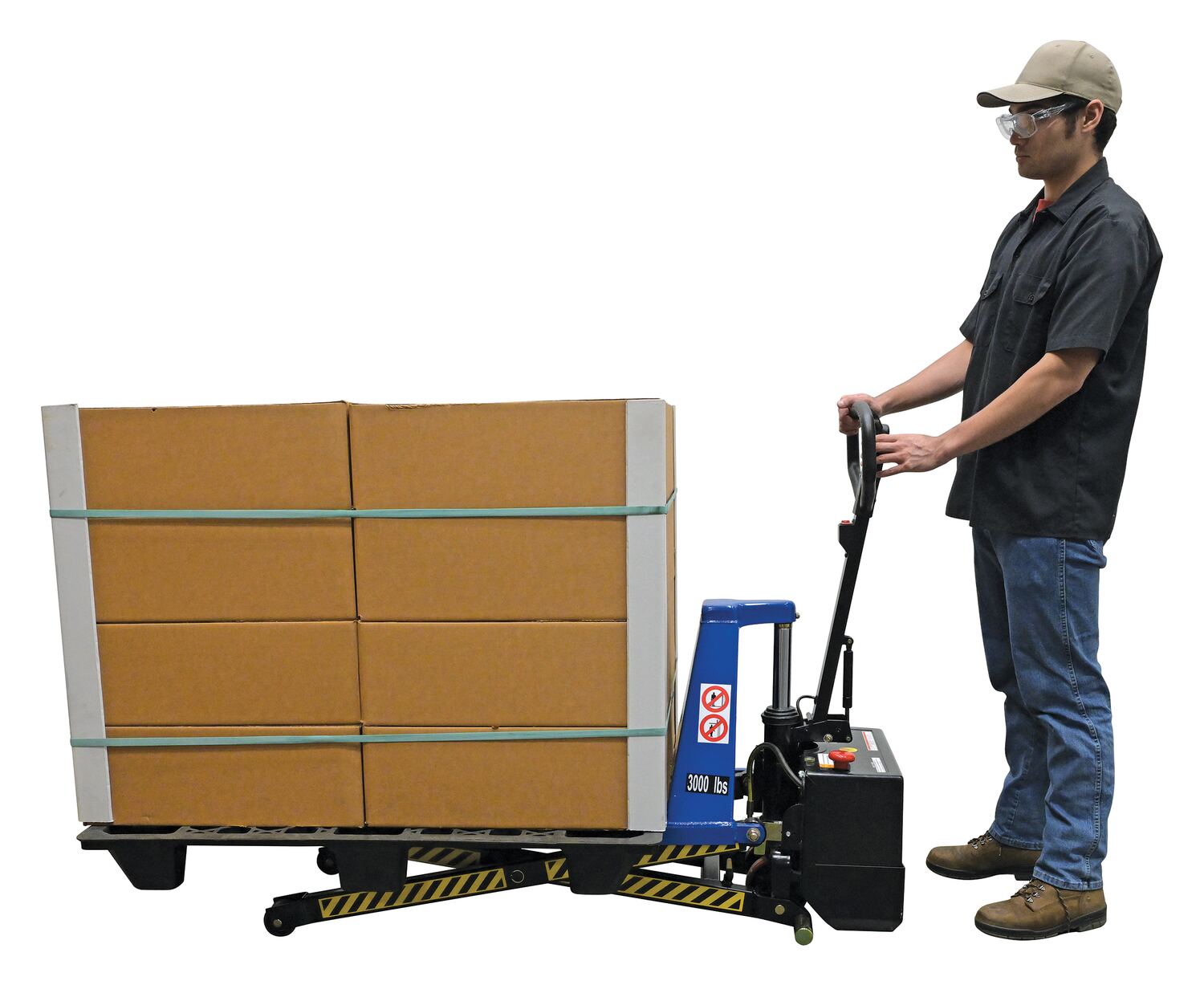

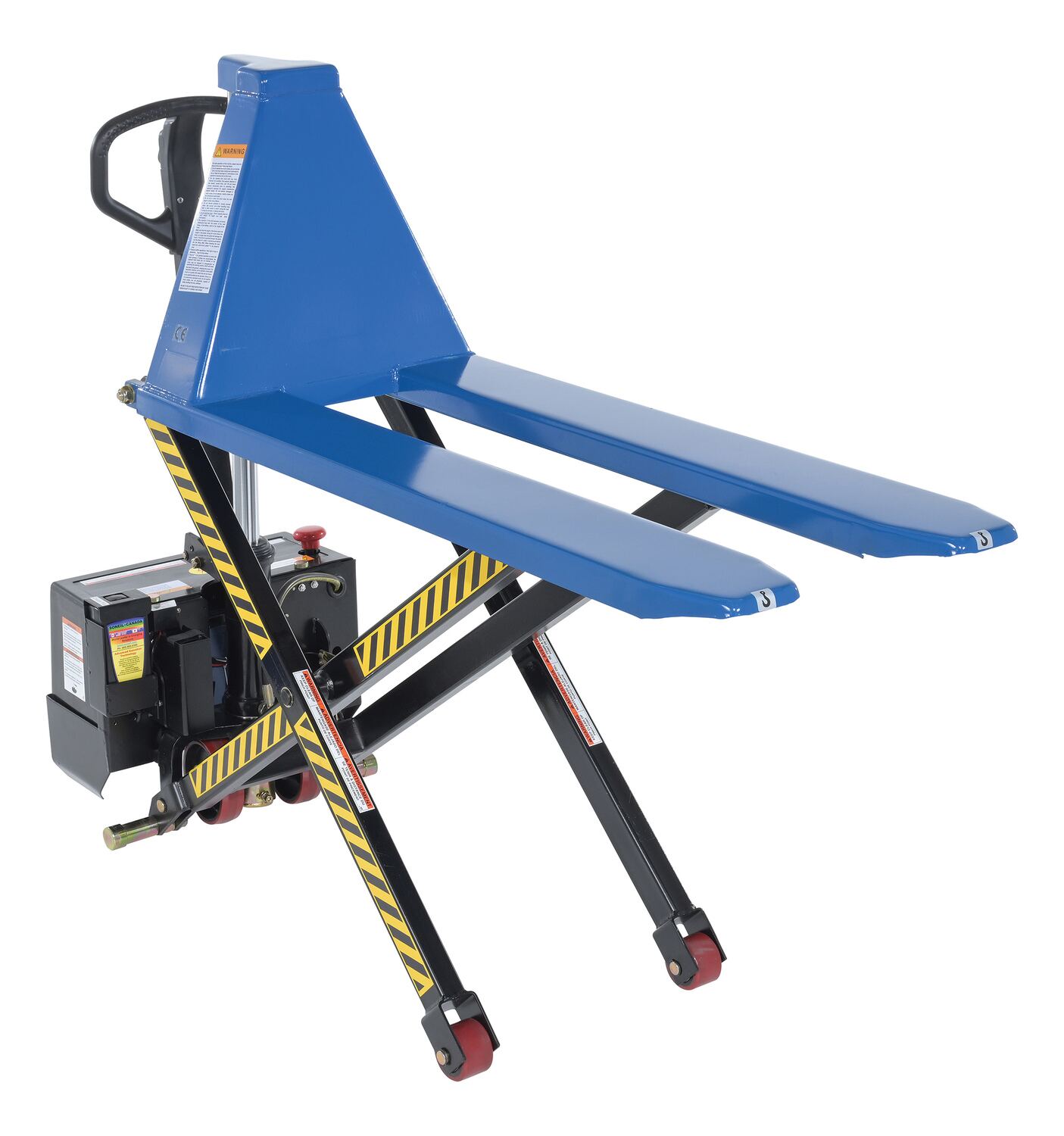

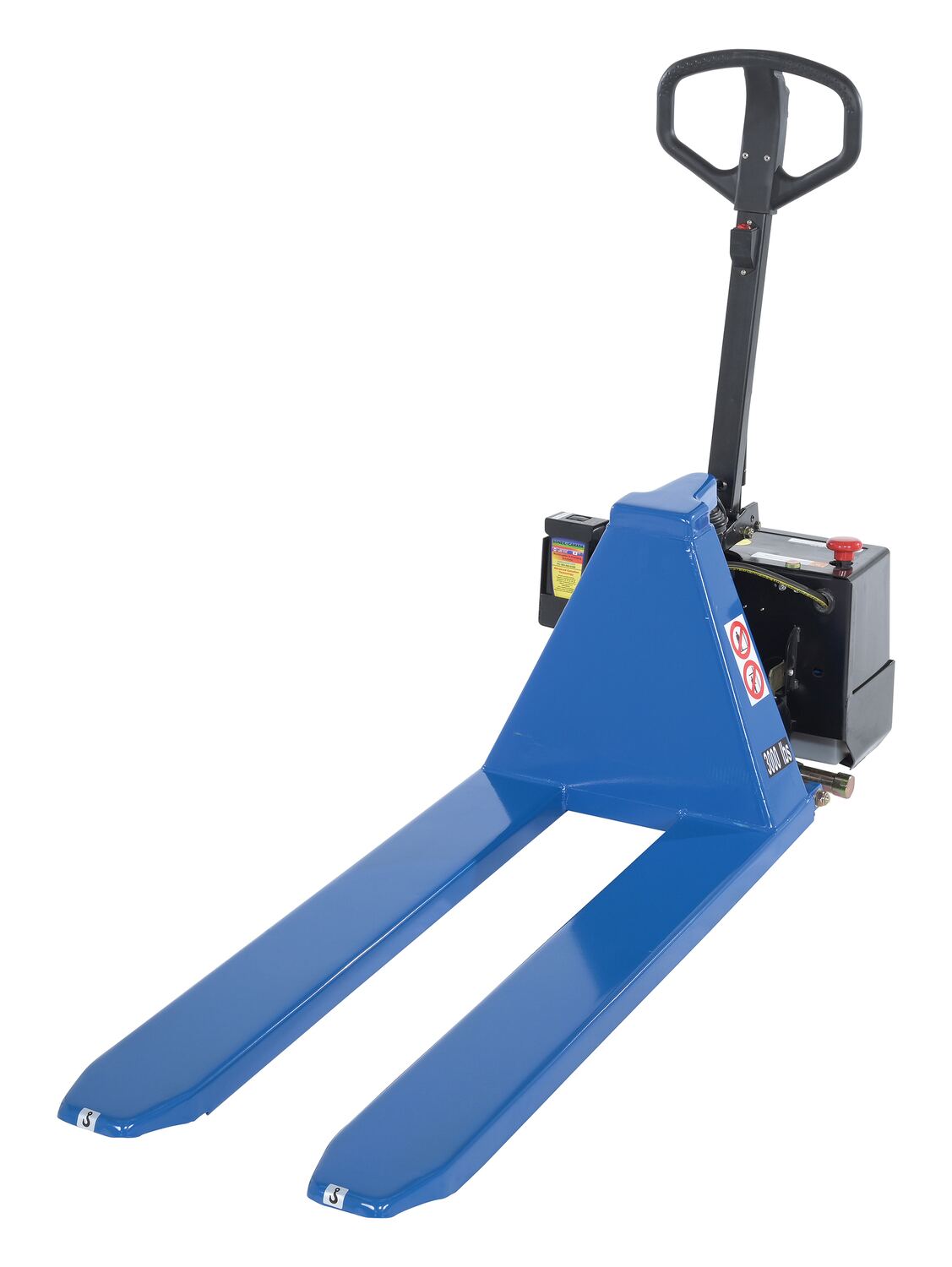

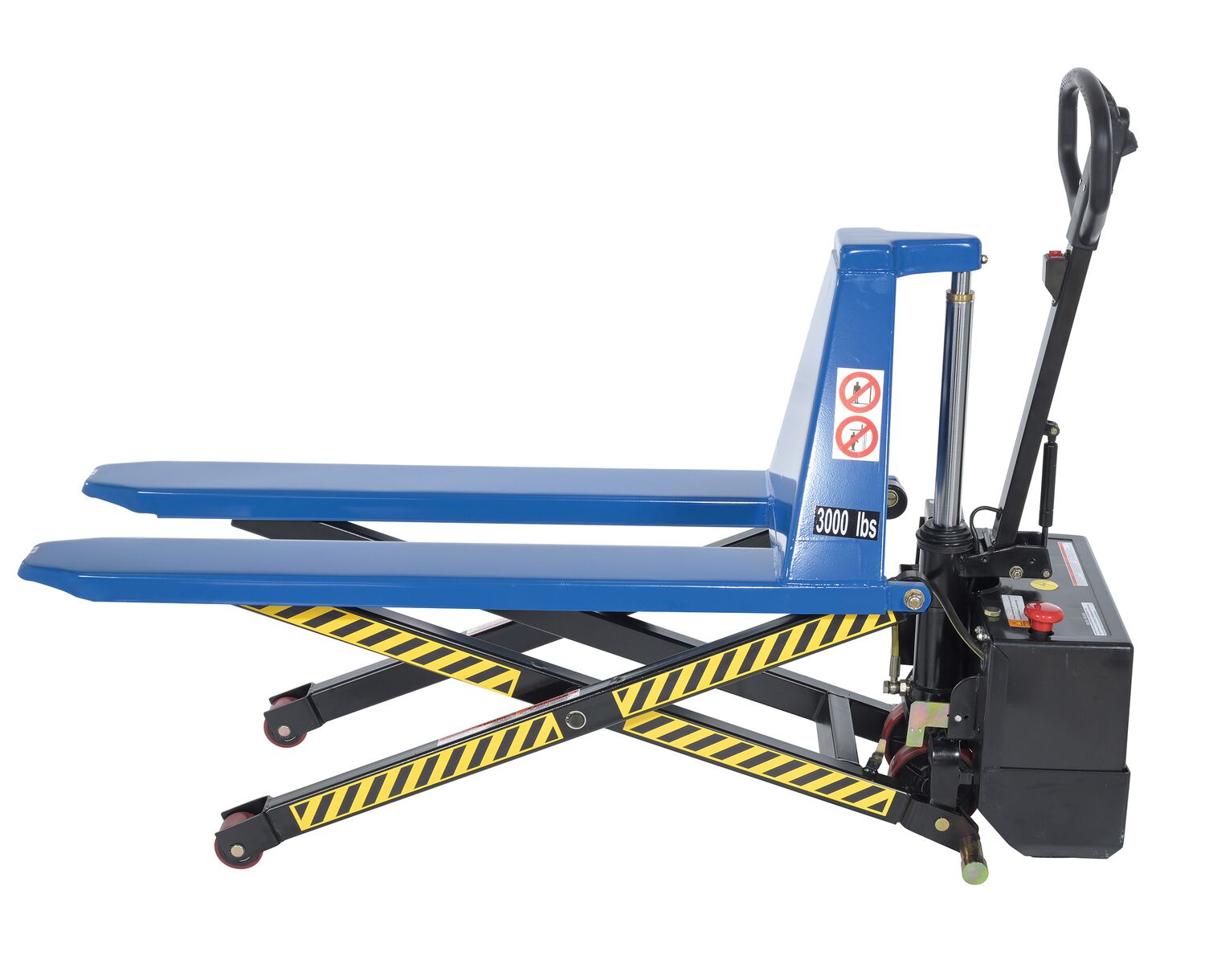

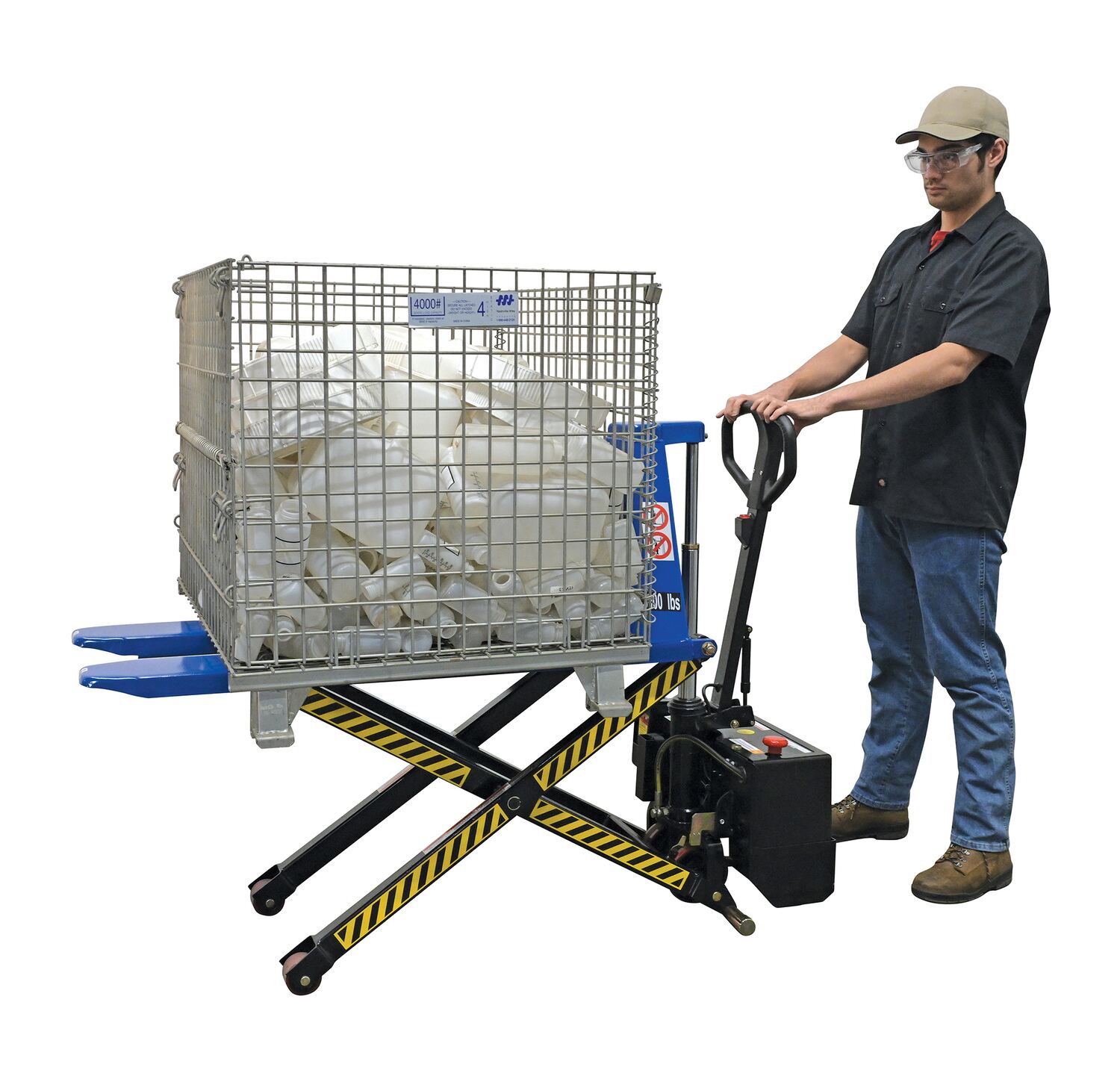

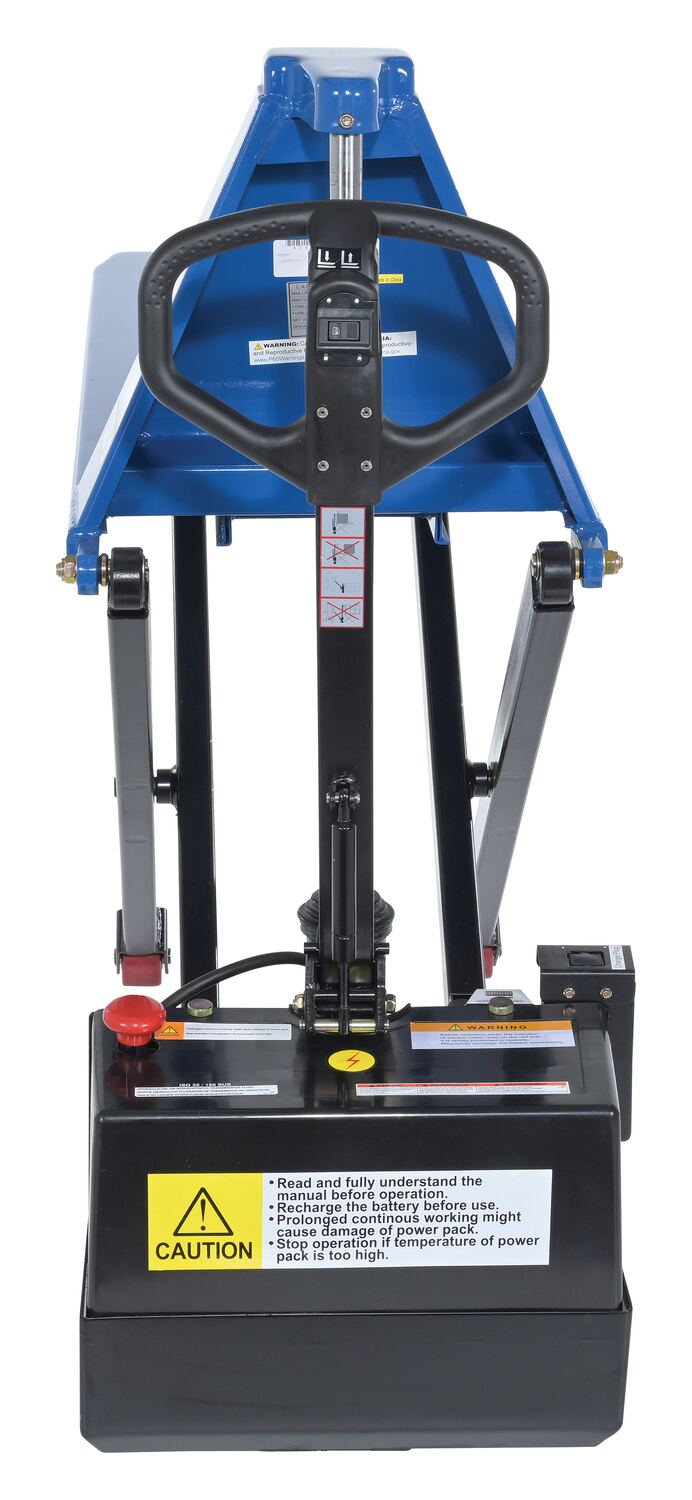

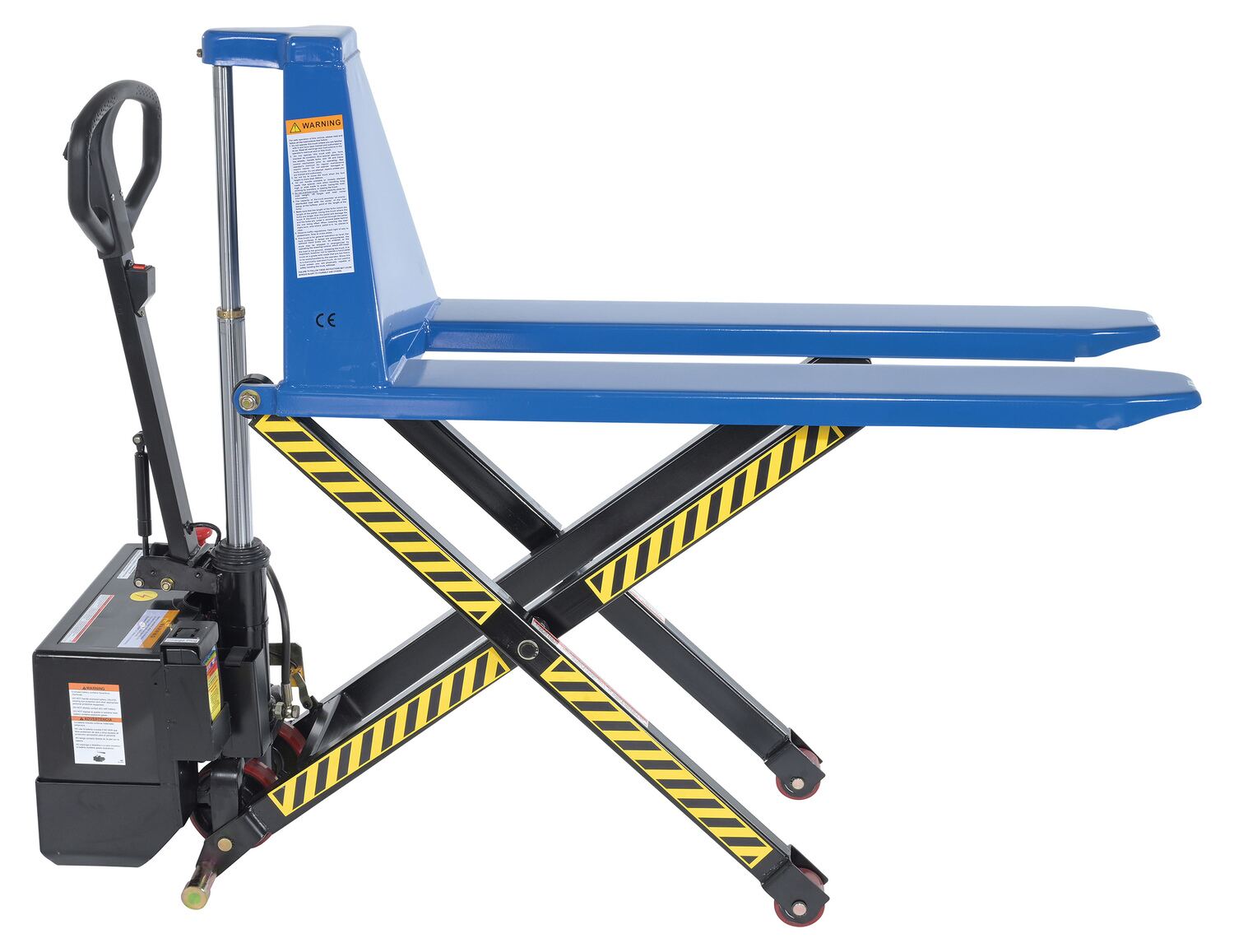

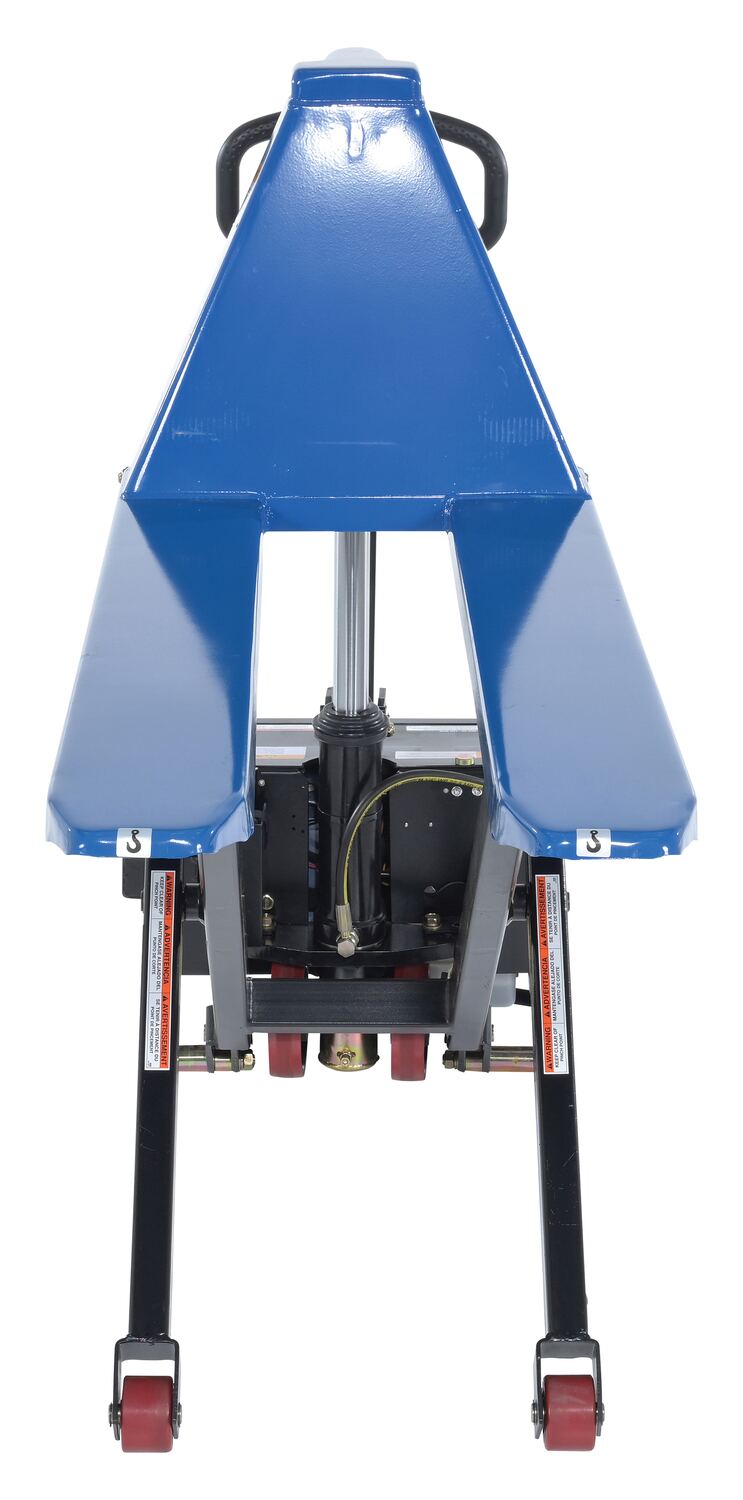

| L-220-DC-HD | | 1 Year Limited Warranty | Steel DC Powered Tote Lift 62-3/4 In. x 20-1/2 In. x 46-1/2 In. 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Operation: 12 Volt DC Power | 406 | ||

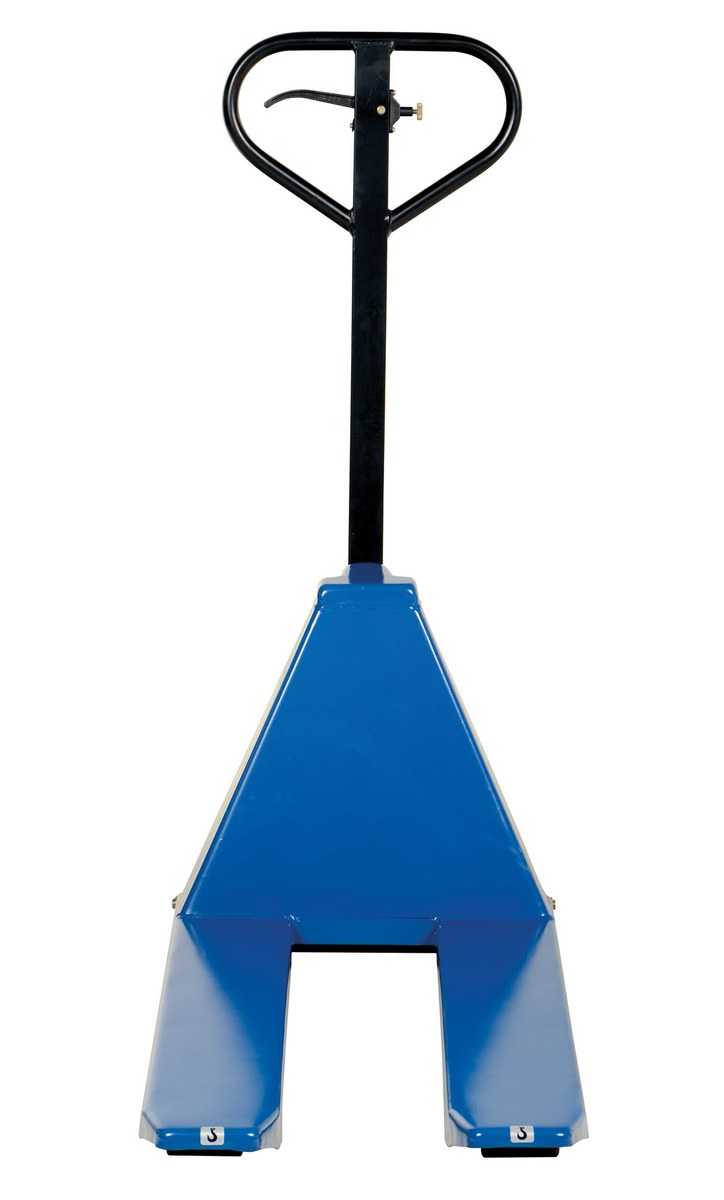

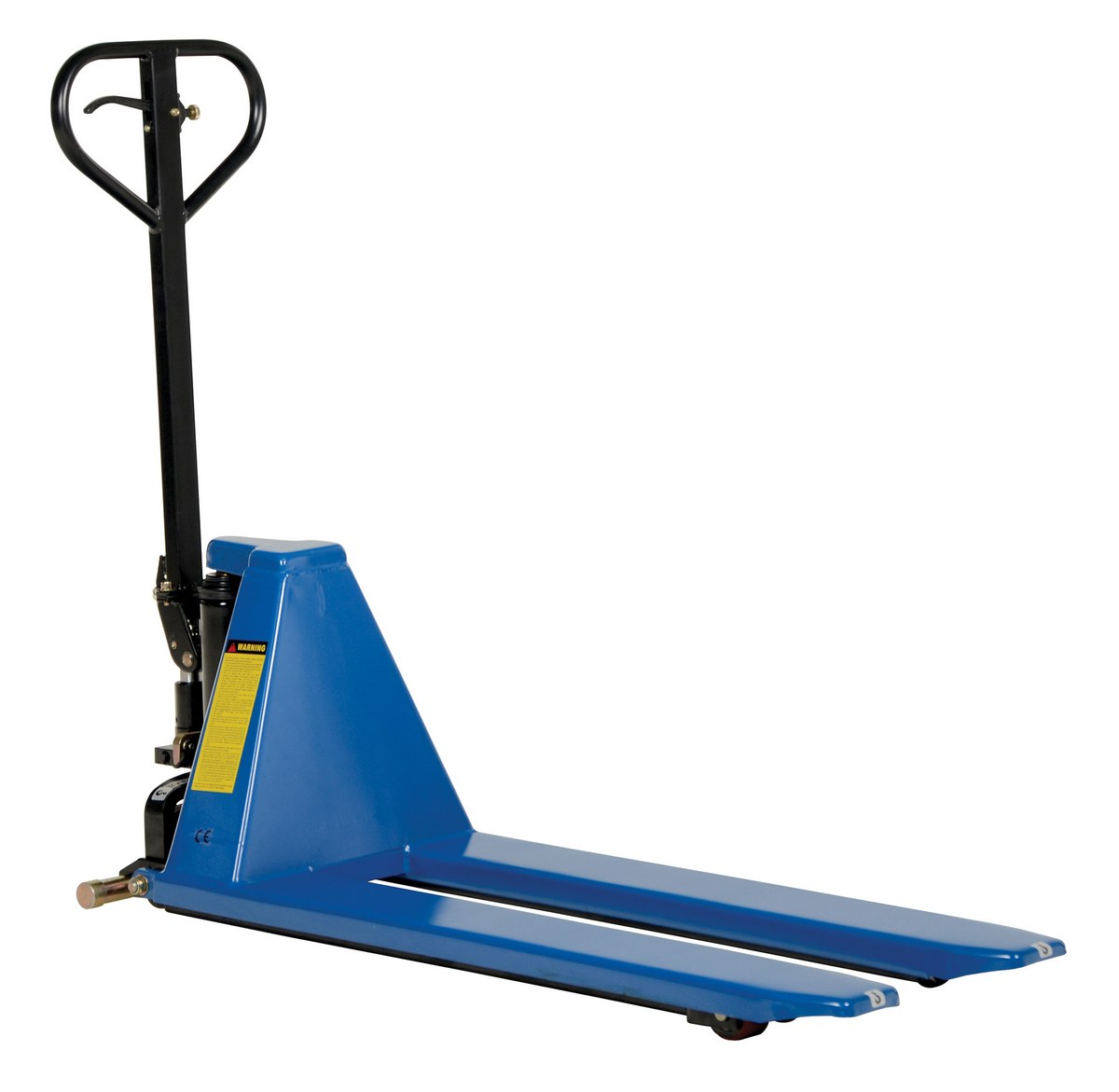

| L-220-HD |  | 1 Year Limited Warranty | Steel Hand Pump Tote Lift 58 In. x 21 In. x 50 In. 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Operation: Hand Pump | 275 | ||

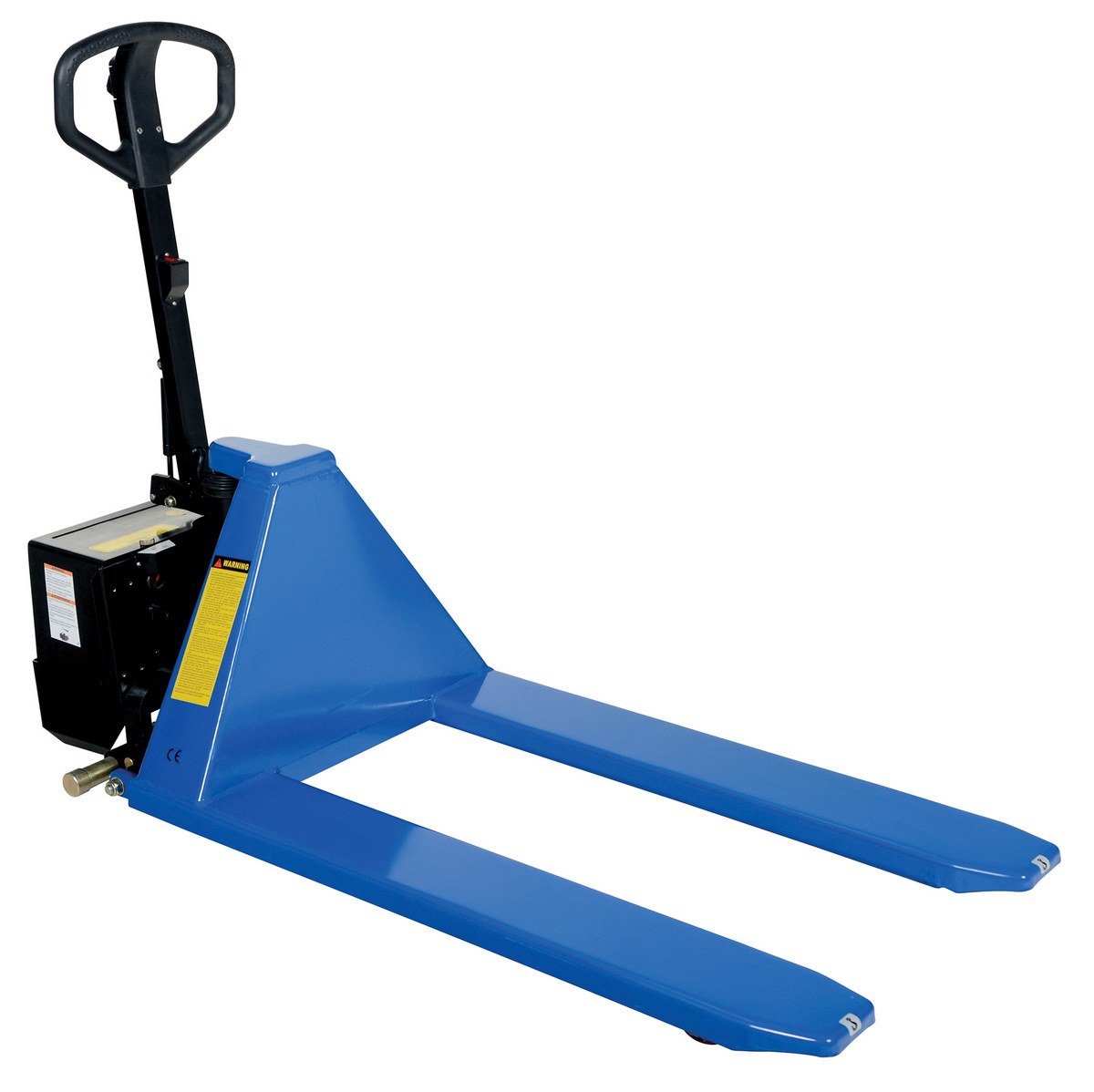

| L-270-DC-HD | POPULAR |  | 1 Year Limited Warranty | Steel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46-1/2 In. 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Operation: 12 Volt DC Power | 428 | |

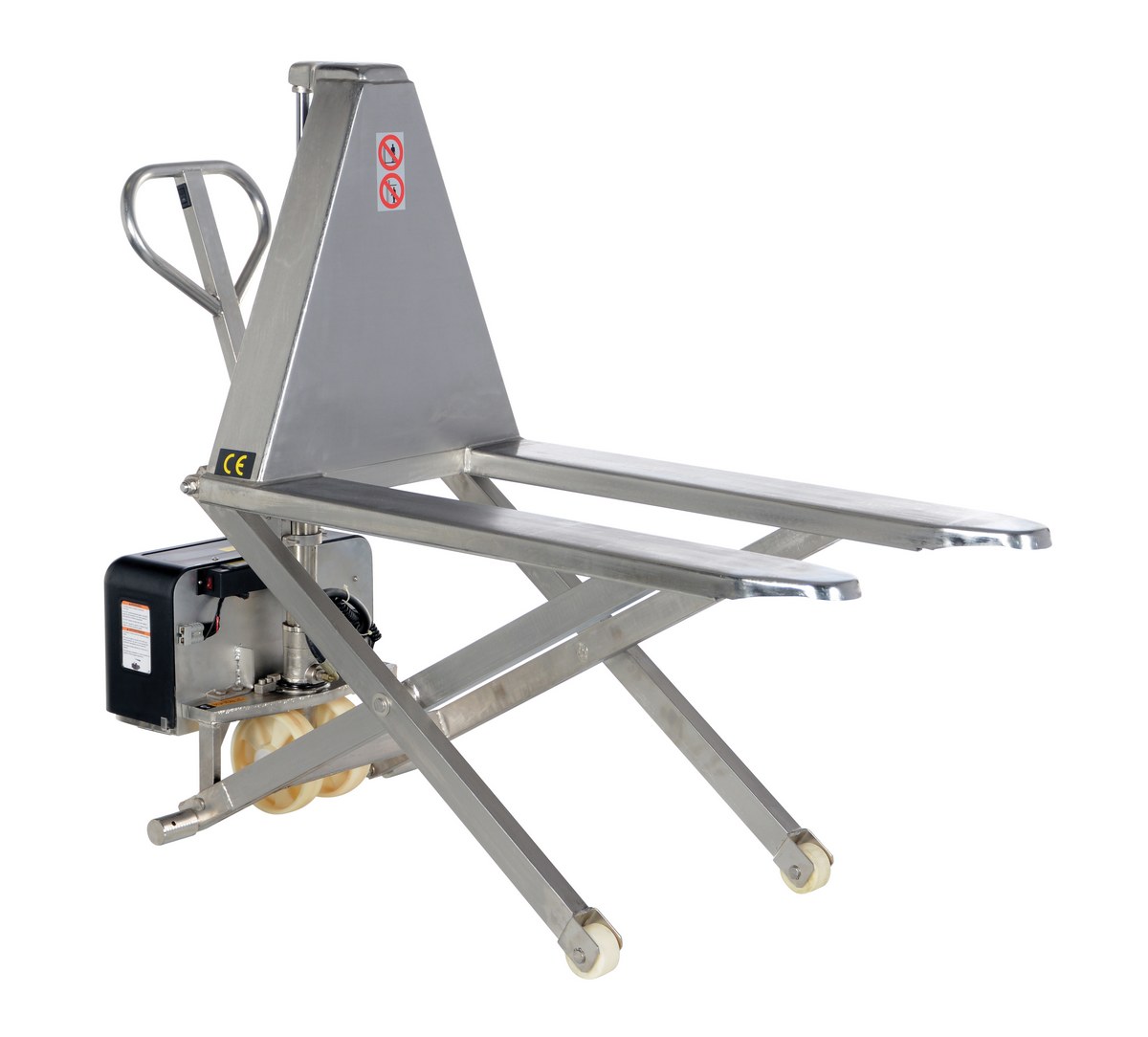

| L-270-DC-HD-SS | | | 1 Year Limited Warranty | Stainless Steel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46 In. 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2000 Operation: 12 Volt DC Power | 366 | |

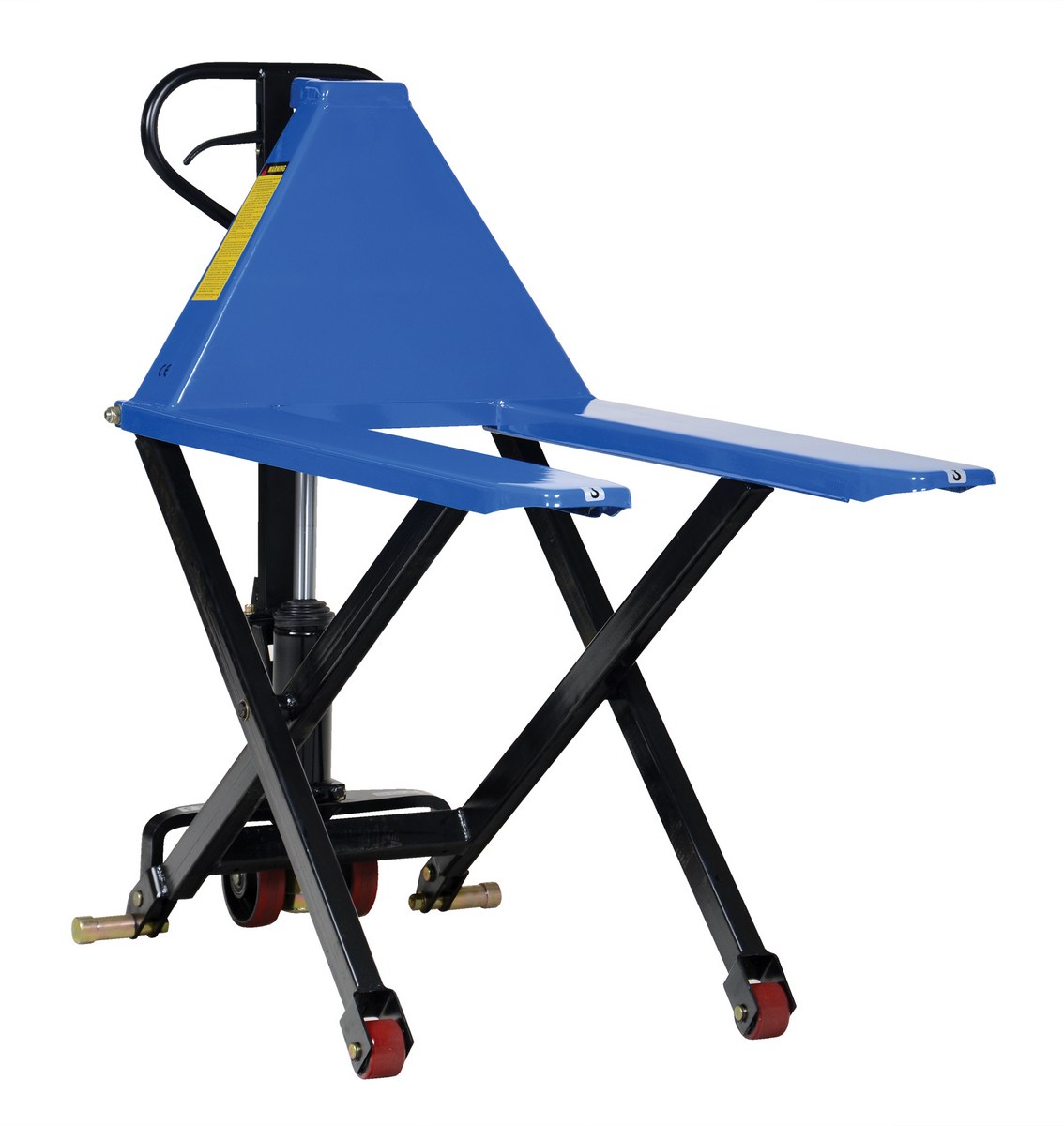

| L-270-HD |  | 1 Year Limited Warranty | Steel Hand Pump Tote Lift 58 In. x 27 In. x 50 In. 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Operation: Hand Pump | 292 | ||

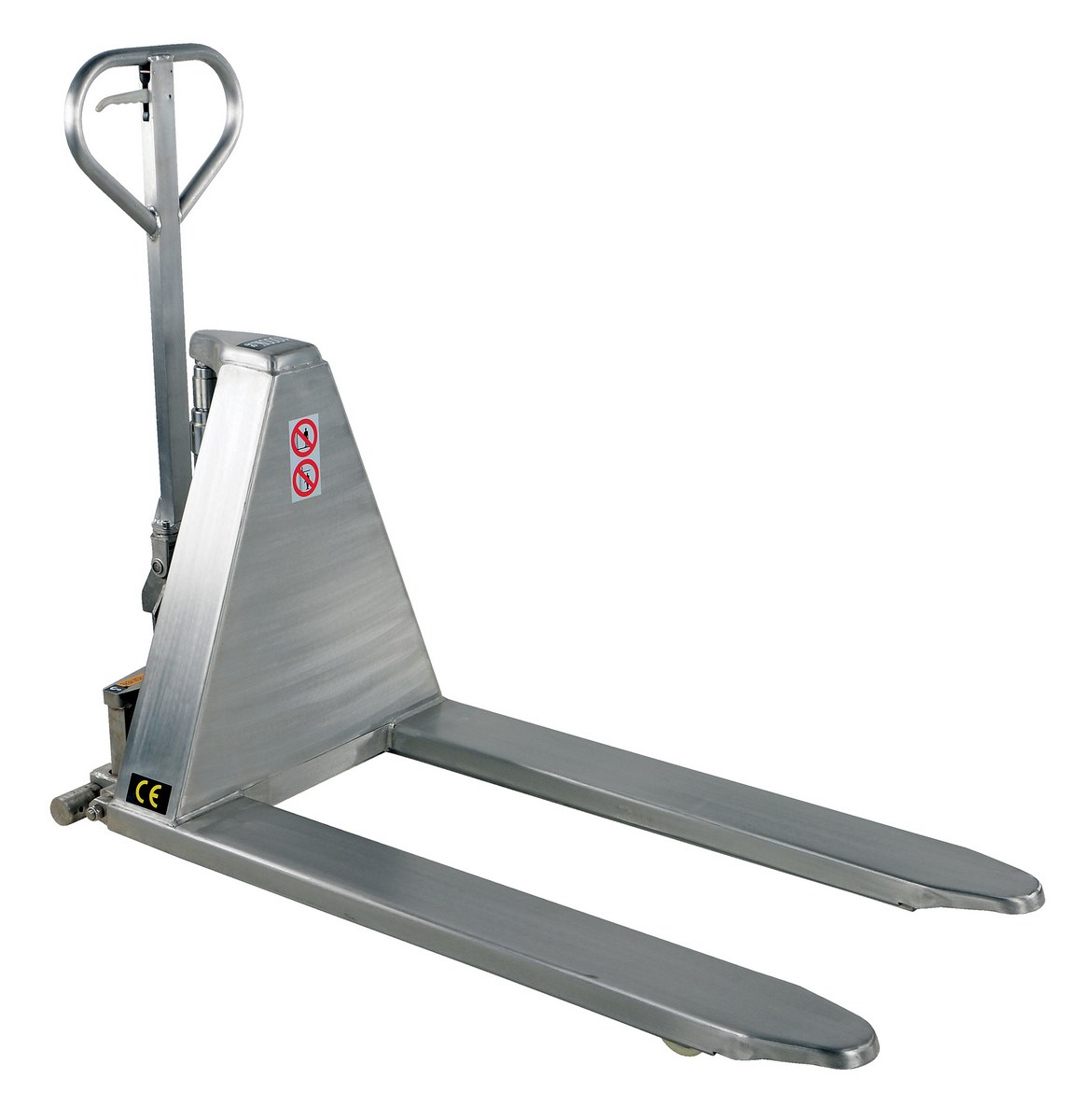

| L-270-HD-SS | |  | 1 Year Limited Warranty | Stainless Steel Hand Pump Tote Lift 60 In. x 27 In. x 48 In. 2000 Lb. Capacity | Uniform Capacity (lb.): 2000 Operation: Hand Pump | 310 | |
| L-270-DC-HD-CTD | NEW |  | 1 Year Limited Warranty | Steel DC Powered Tote Lift 27x45 Traction Drive 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Operation: 12 Volt DC Power | 410 | |
| L-270-DC-HD-PE | NEW |  | 1 Year Limited Warranty | Steel DC Powered Tote Lift Photo Eye 62-1/4 In. x 29 In. x 51-1/4 In. 3000 Lb. Capacity Blue | Uniform Capacity (lb.): 3000 Photo Eye?: Yes | 435 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Operation: Hand Pump
Uniform Capacity (lb.): 3000
Operation: Hand Pump
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 2000
Operation: 12 Volt DC Power
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Operation: Hand Pump
Uniform Capacity (lb.): 3000
Operation: Hand Pump
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Operation: Hand Pump
Uniform Capacity (lb.): 2000
Operation: Hand Pump
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 3000
Operation: 12 Volt DC Power
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Photo Eye?: Yes
Uniform Capacity (lb.): 3000
Photo Eye?: Yes
For More Details of the Option Click the Red Model Button

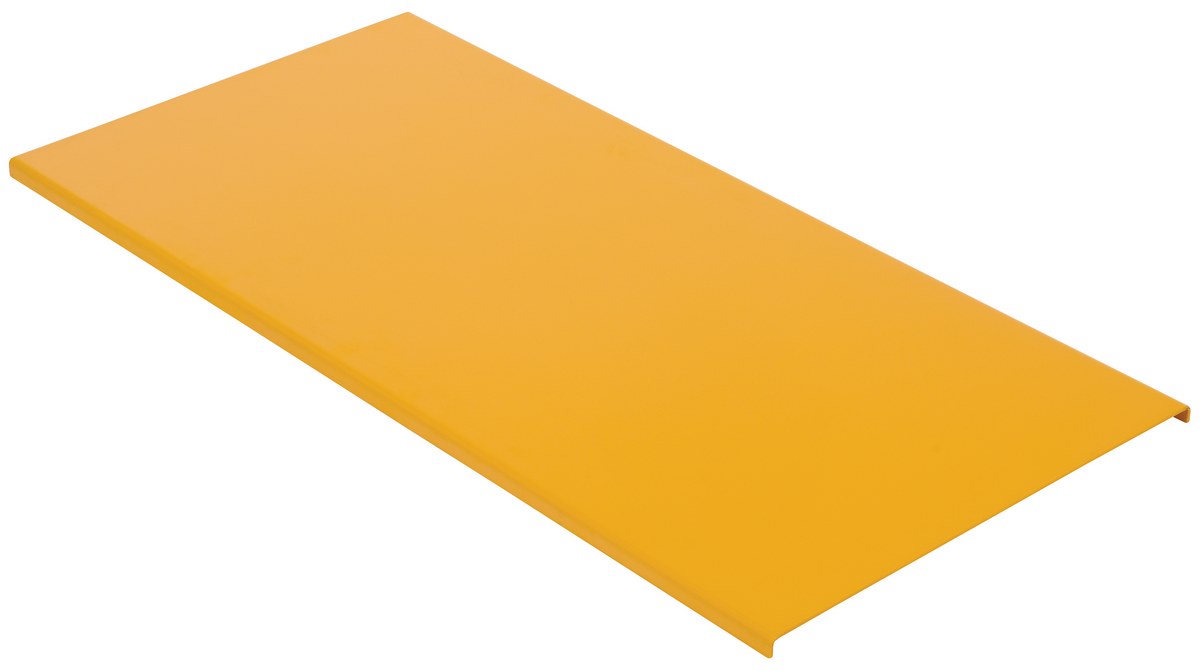

| L-PLATE-20 |  | 30 Days Limited Warranty | Steel Solid Platform 44 In. x 21-1/4 In. x 7/8 In. For Tote Lifters Yellow | Weight Capacity (lbs): 3000 Attachment Method: Bolt on | 36 | |

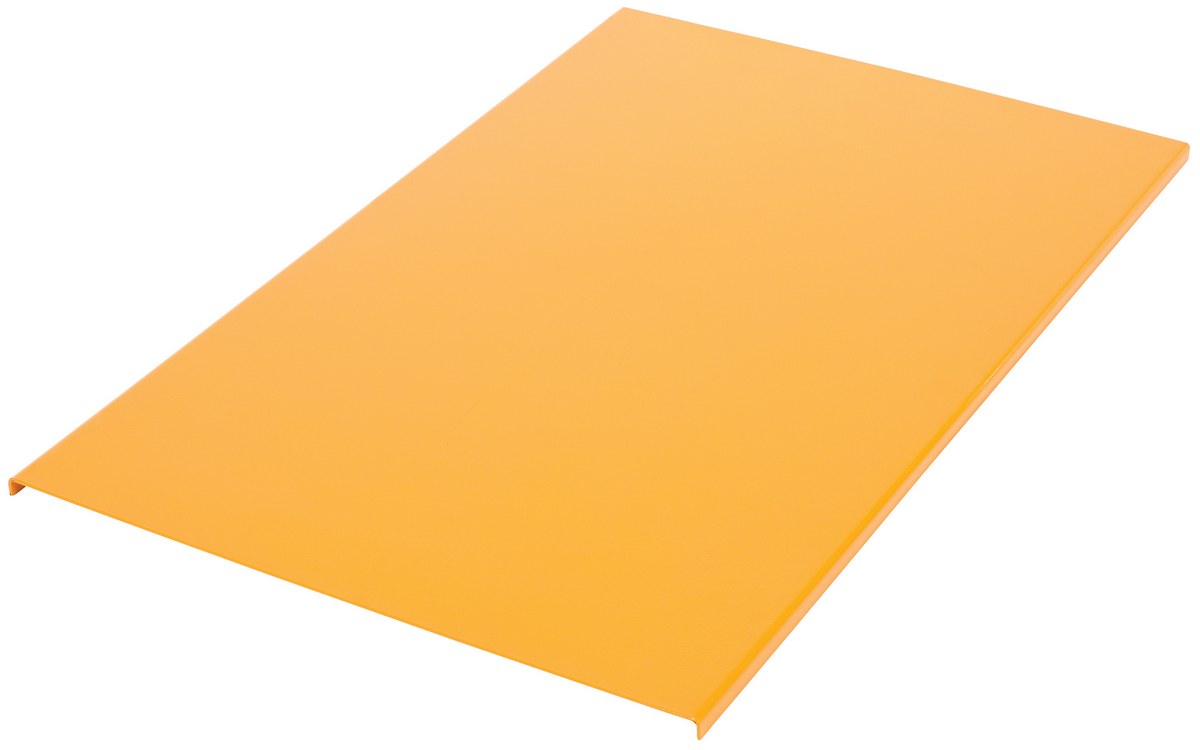

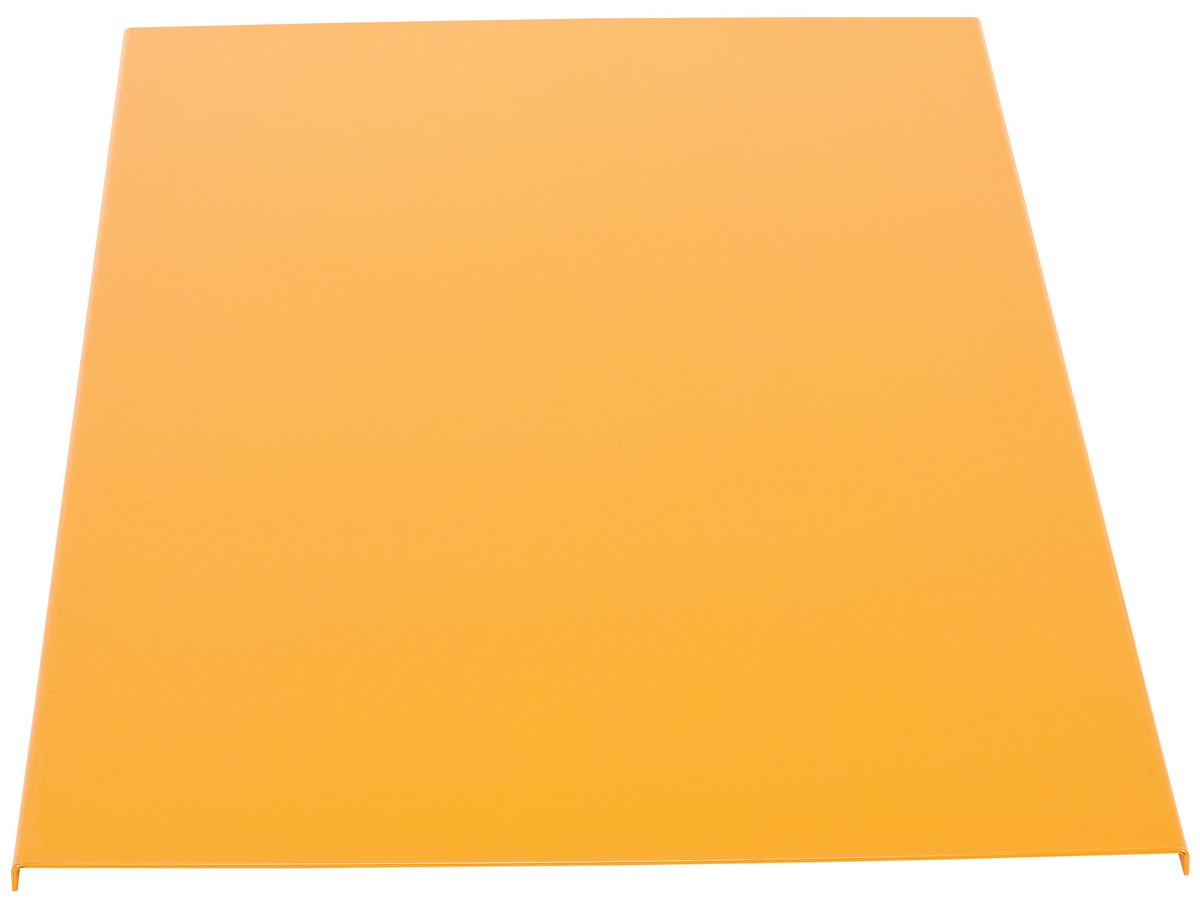

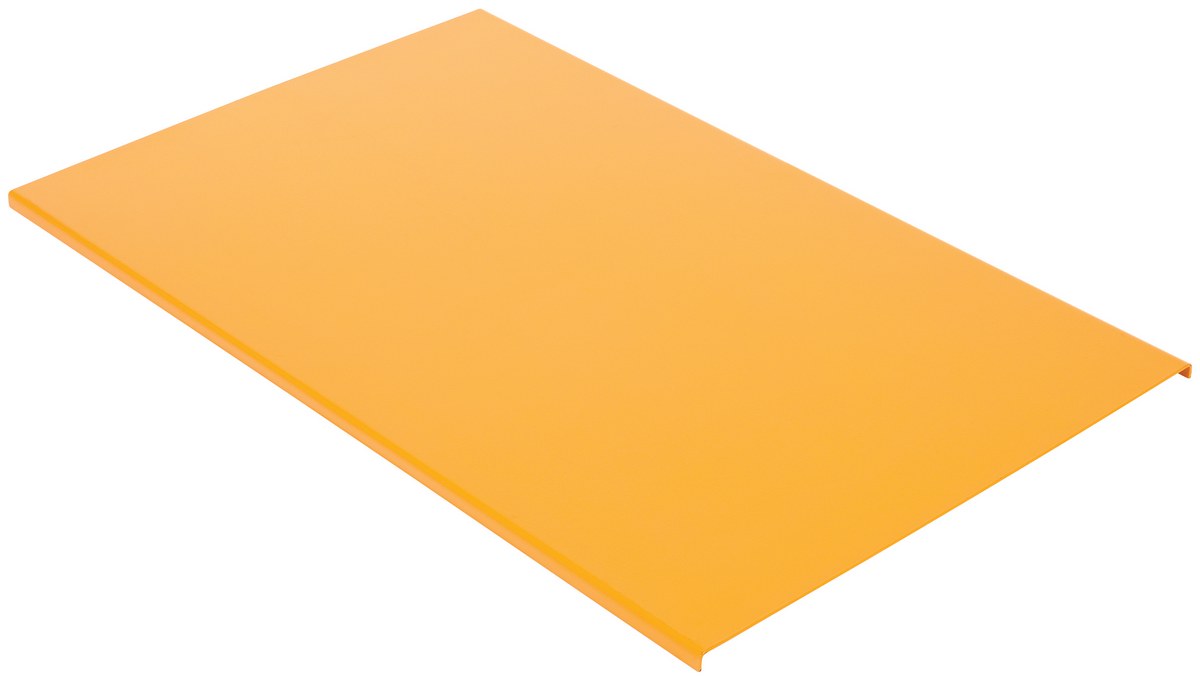

| L-PLATE-27 |  | 30 Days Limited Warranty | Steel Solid Platform 43-7/8 In. x 27-3/4 In. x 7/8 In. For Tote Lifters Yellow | Weight Capacity (lbs): 2200 Attachment Method: Bolt on | 48 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Non-Spillable Lead Acid Battery SDS Sheet for: L-220-DC-HD
Hydraulic Oil SDS Sheet for: L-220-DC-HD
Hydraulic Oil SDS Sheet for: L-220-HD
Hydraulic Oil SDS Sheet for: L-270-DC-HD
MSE Valve Regulated Lead Acid Battery Series SDS Sheet for: L-270-DC-HD-SS
Hydraulic Oil SDS Sheet for: L-270-DC-HD-SS
Hydraulic Oil SDS Sheet for: L-270-DP-HD
Hydraulic Oil SDS Sheet for: L-270-HD
Hydraulic Oil SDS Sheet for: L-270-HD-SS
Lvdao battery SDS Sheet for: L-270-DP-HD
Lvdao battery SDS Sheet for: L-270-DC-HD
MSE Valve Regulated Lead Acid Battery Series SDS Sheet for: L-270-DC-HD
Hydraulic Oil SDS Sheet for: L-270-DC-HD-CTD
Haufu Lithium Battery SDS Sheet for: L-270-DC-HD-CTD
Hydraulic Oil SDS Sheet for: L-270-DC-HD-PE
Sealed Lead Acid SDS Sheet for: L-270-DC-HD-PE
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Does the L-220-DC-HD have a battery charge indicator on it?
A: The L-220-DC-HD and the L-270-DC-HD come standard with a battery charge indicator.
Q: What is the run time for the pallet jack? How long should a pallet jack battery be charged for without causing damage?
A: Run time depends on the load being lifted but approximately 3-6 hours intermittently. Battery charger will turn off and on automatically as to avoid over charging.
Q: What is the volume of oil inside the hydraulic cylinder of the L-220-HD?
A: The volume of oil is .75 quart.
Q: Can the lift trucks be pushed while in the raised height?
A: No they cannot.
Q: What is the measurement of the "mast" (the triangular piece at the back of the forks)?
A: The "mast" is 18" tall.
Q: What's the space between the forks?
A: Overall fork width is 26.75". Approx. 13 1/4 in between forks on the L-270-DC-HD.
Q: What kind of battery is on the L-220-DC-HD?
A: The L-220-DC-HD has an AGM battery.
 |
|||||||||||||||||||||||||||||||||||||||||||||||
