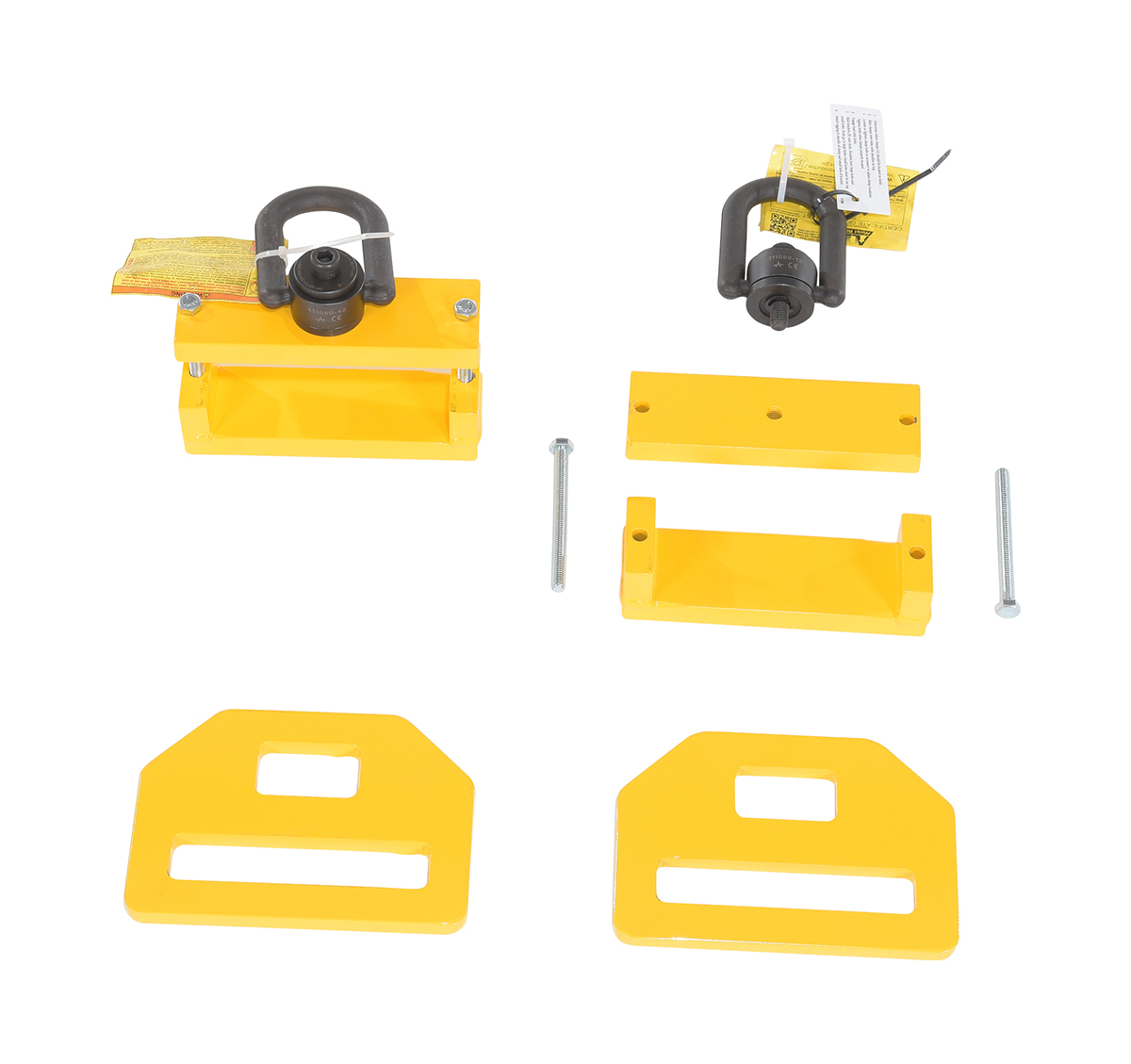

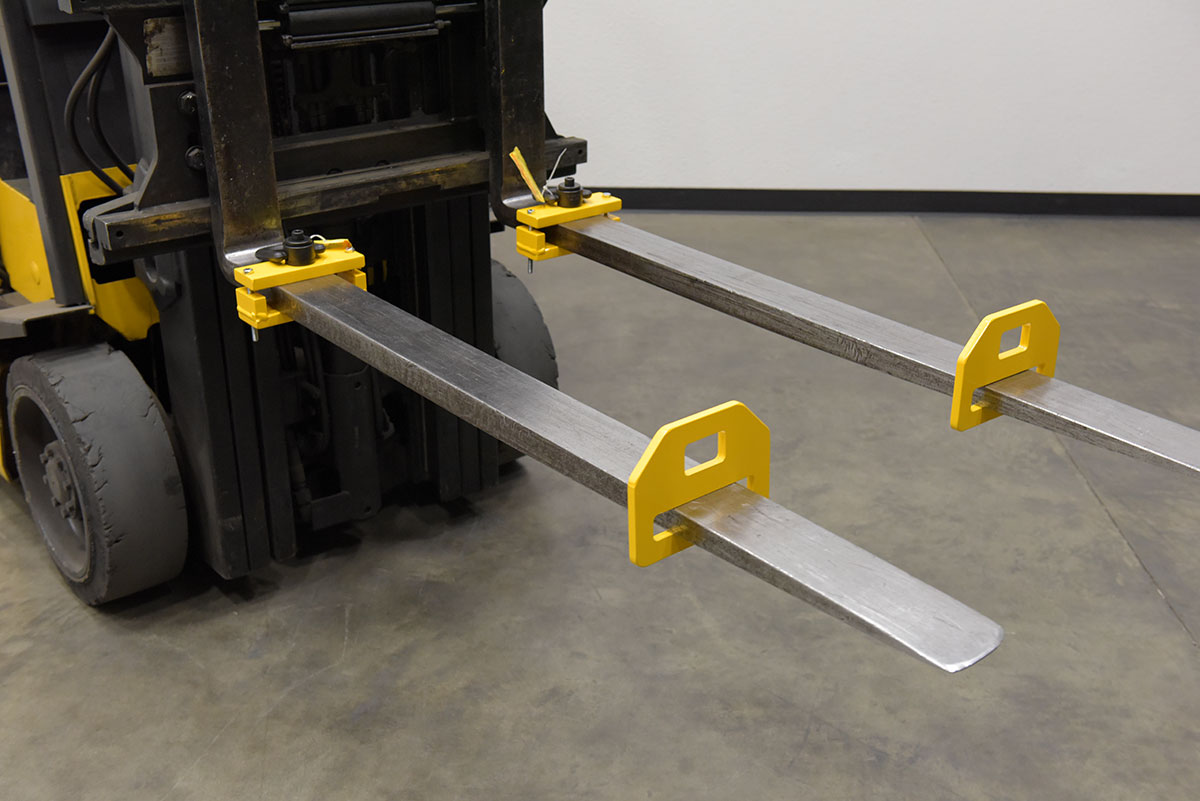

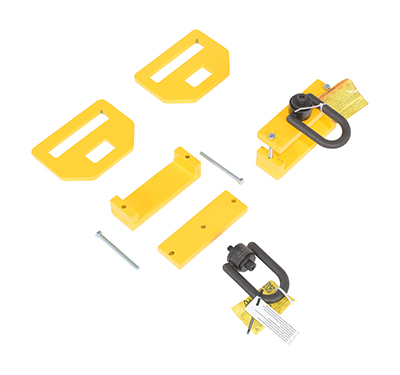

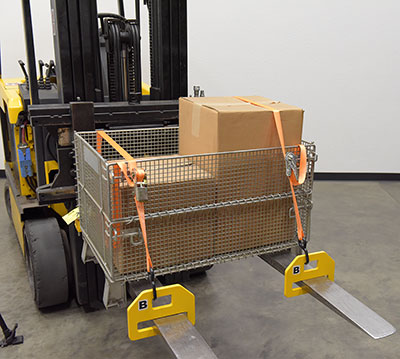

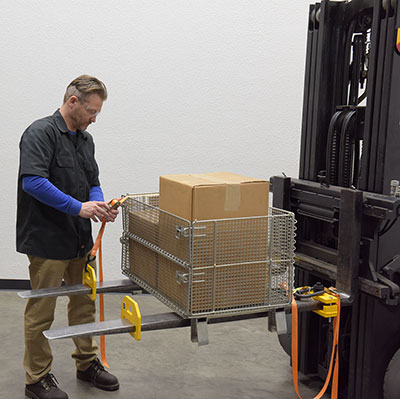

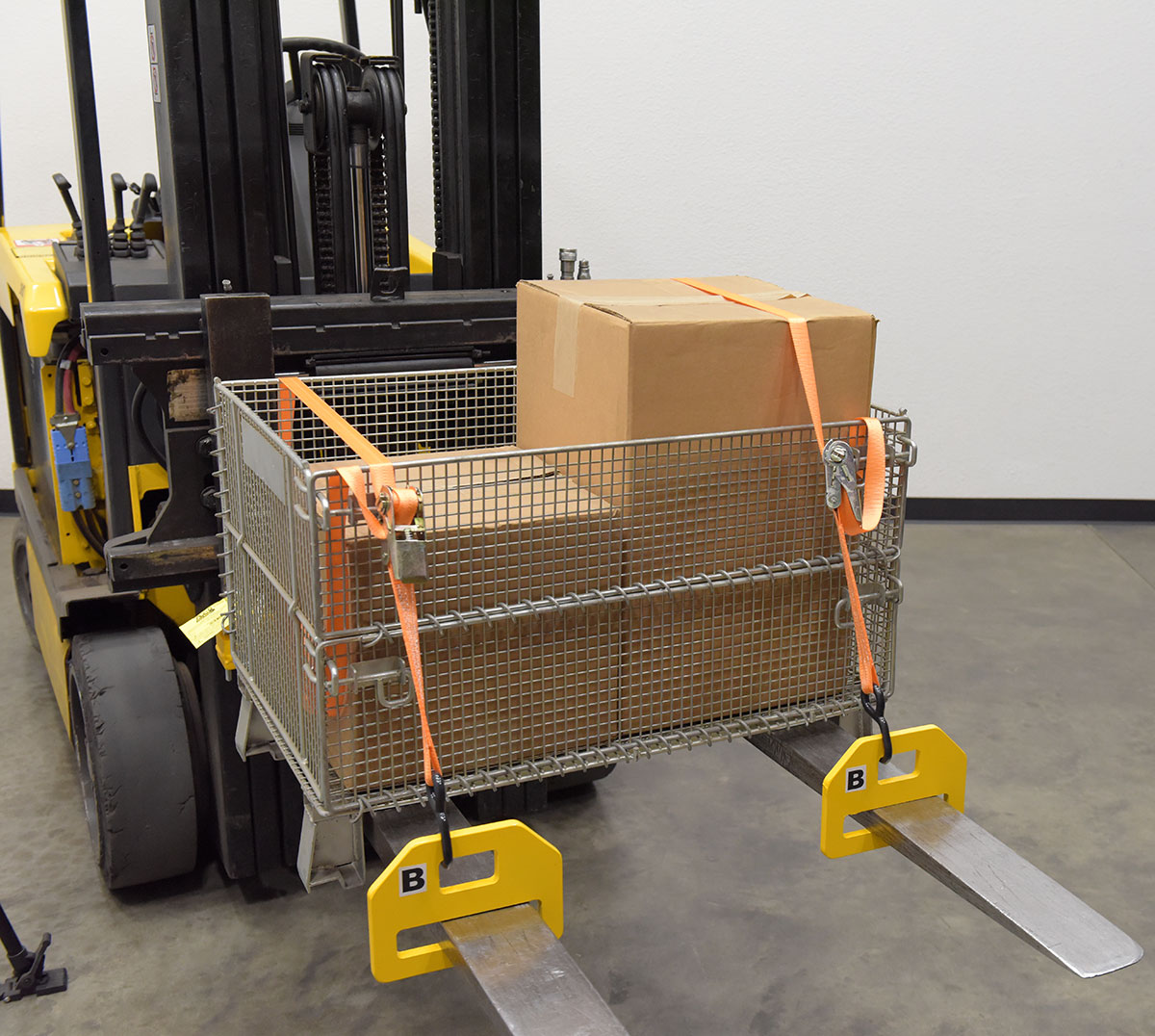

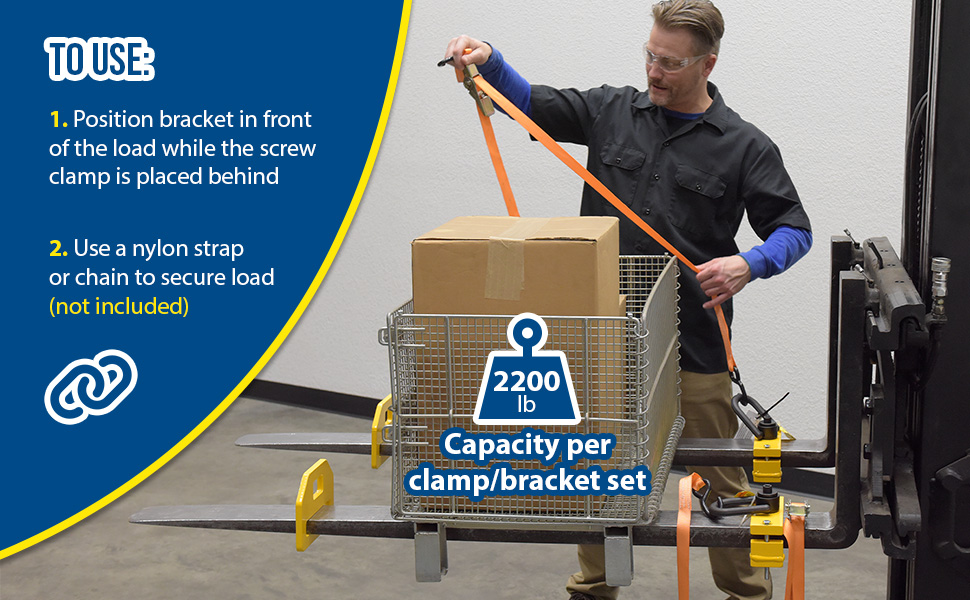

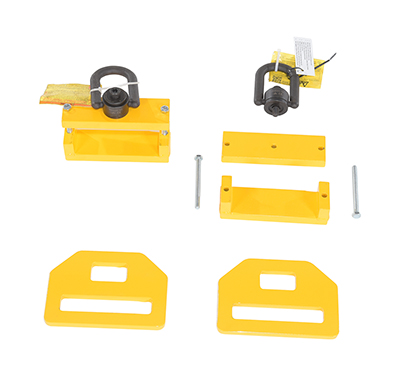

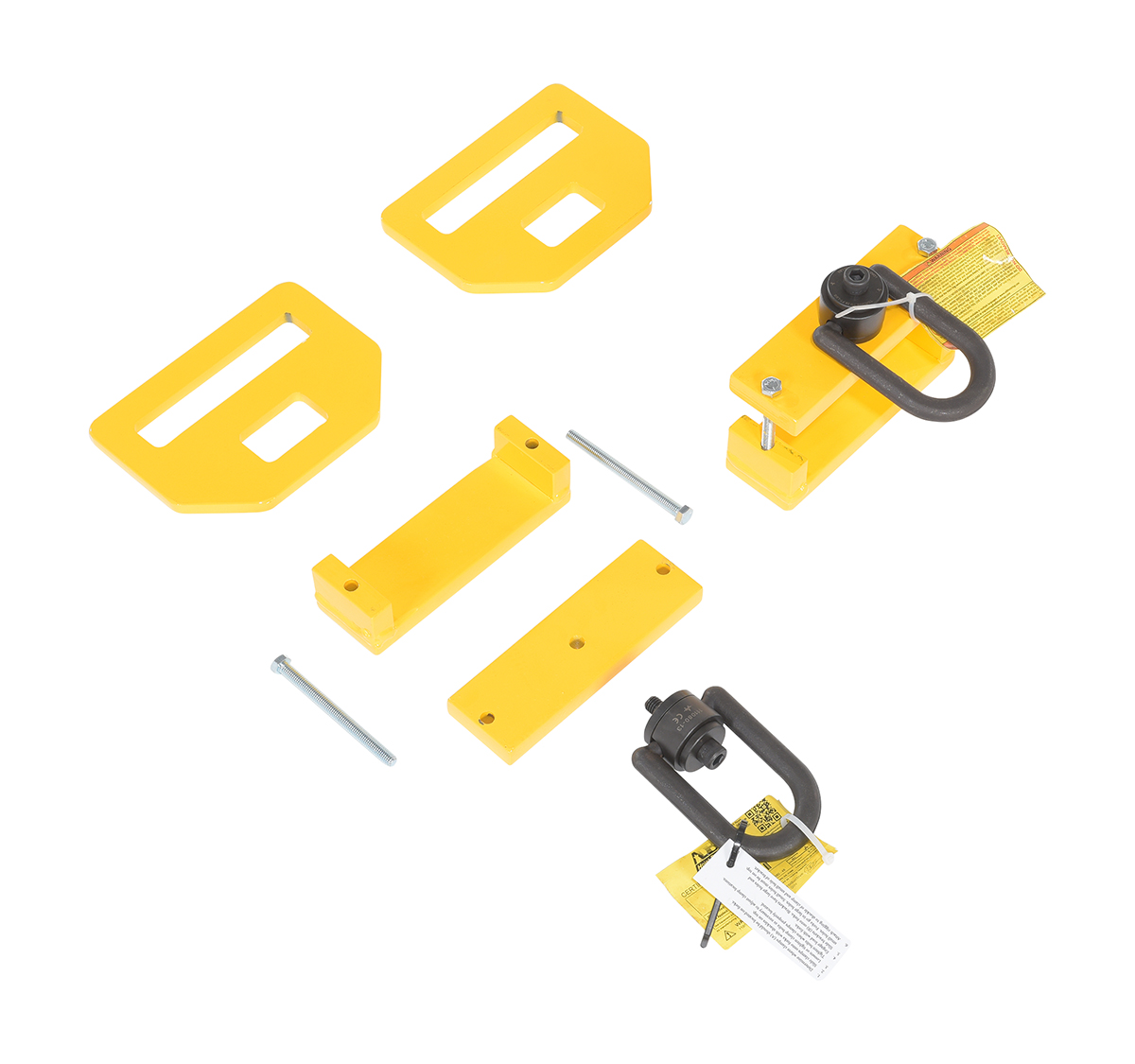

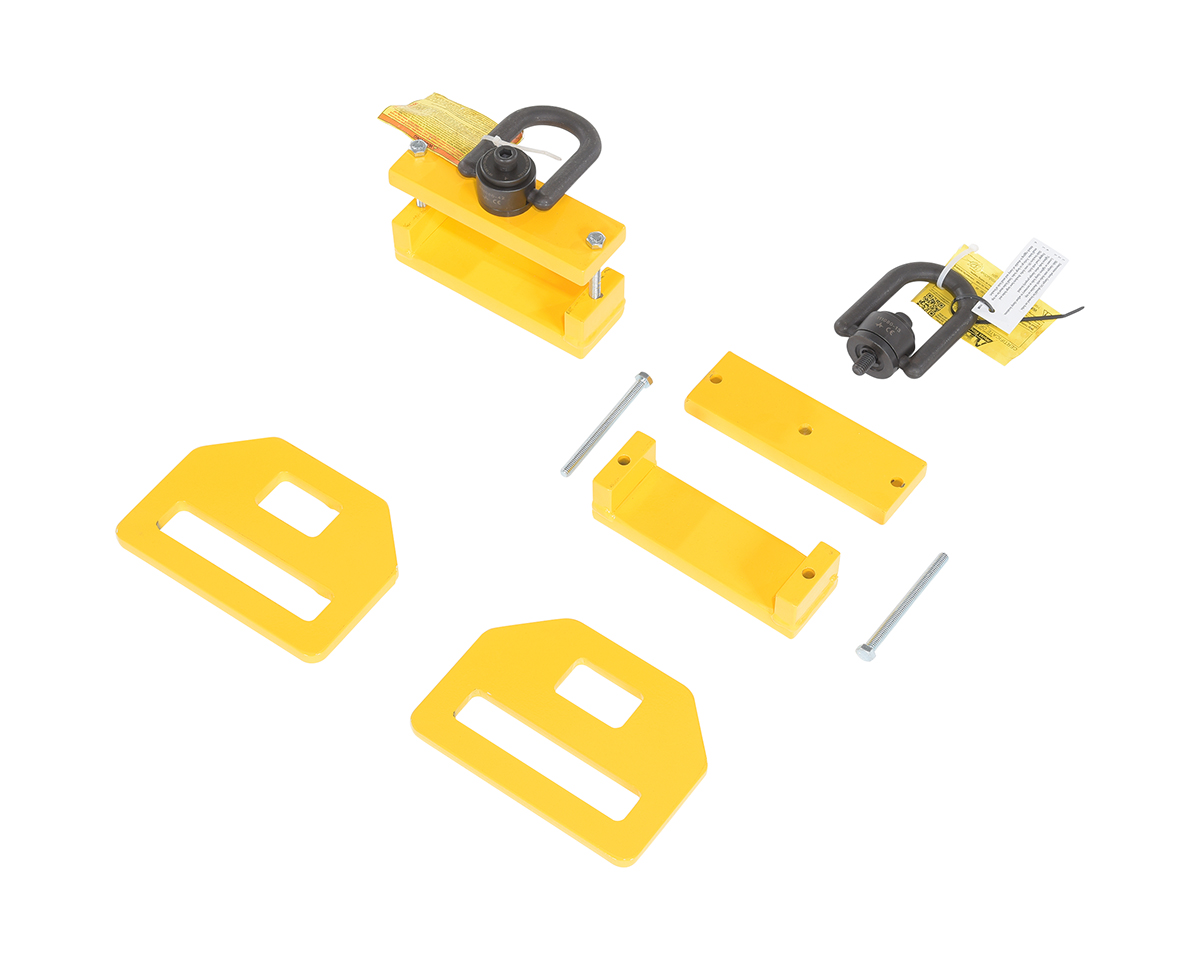

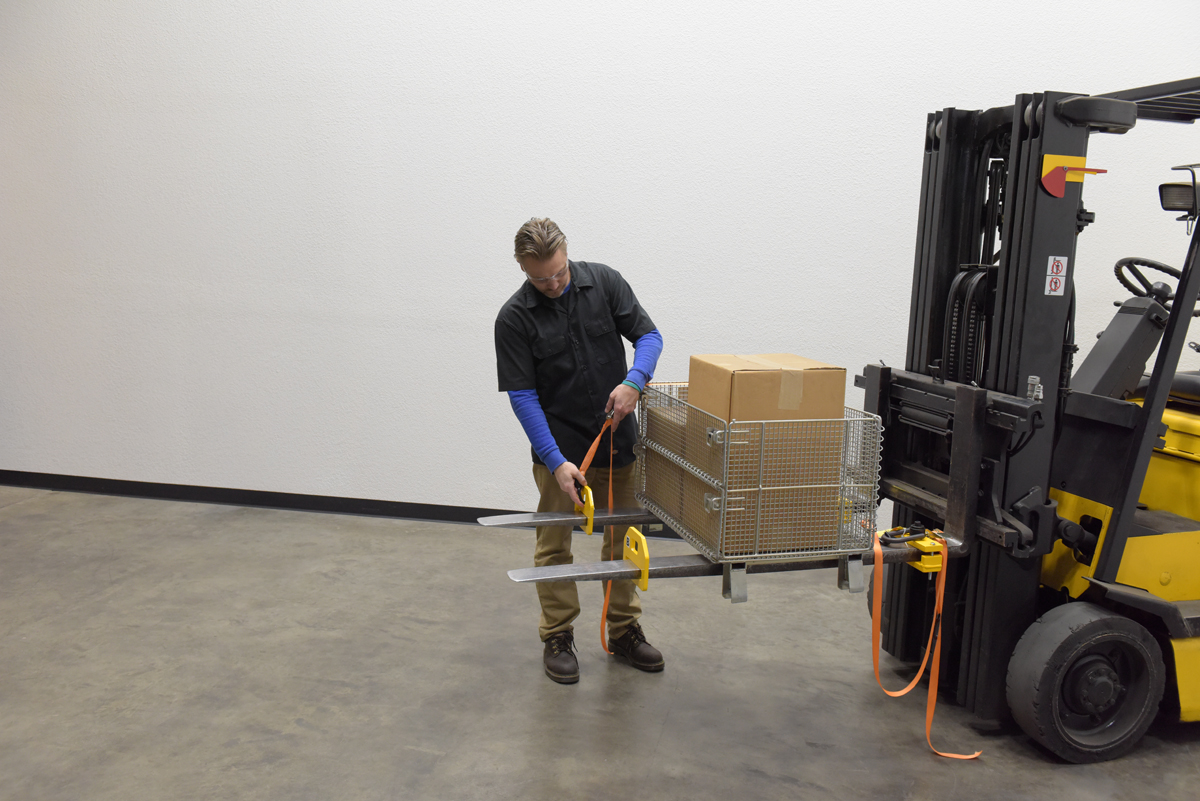

Forklift Tie-Down ClampsForklift tie down clamps are a great asset when securing loads for transport. These are sold in pairs, so the entire unit is comprised of four pieces (2 brackets, 2 clamps). An eye bracket is positioned in front of the load while the screw clamp is placed behind the unit, closest to the forklift driver. These are put in place by sliding over the forks. Simply use the preferred type of tie down such as a nylon strap or chain to secure the load (chain and strap not included).
PRODUCT DETAILS
- Uniform Capacity: 4,400 lbs. (2,200 lbs, per clamp/bracket)
- Clamps To Fit Forks: 6"W x 2-3/4"H
- Steel Construction
- Tough Baked In Powder Coated Yellow Finish

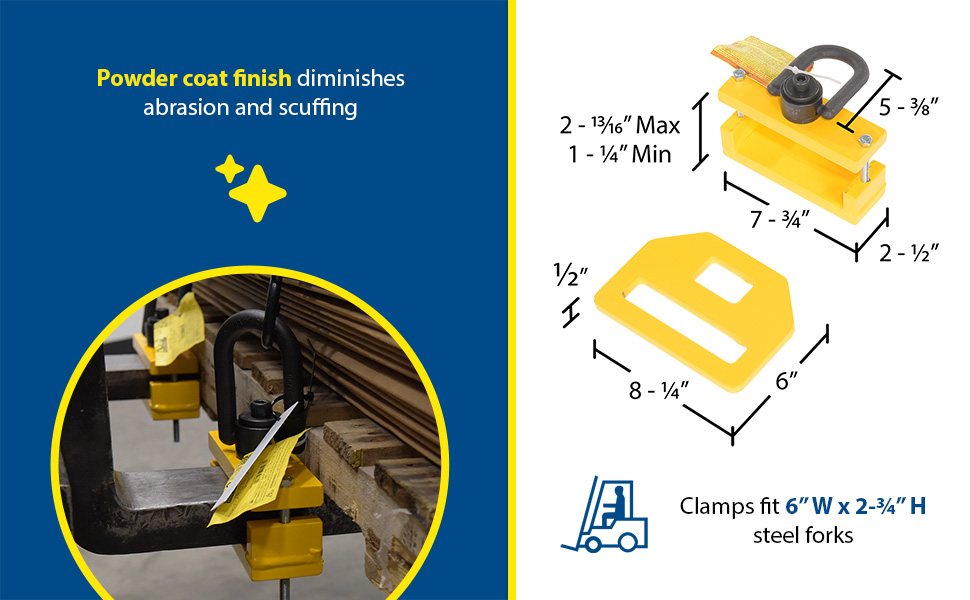

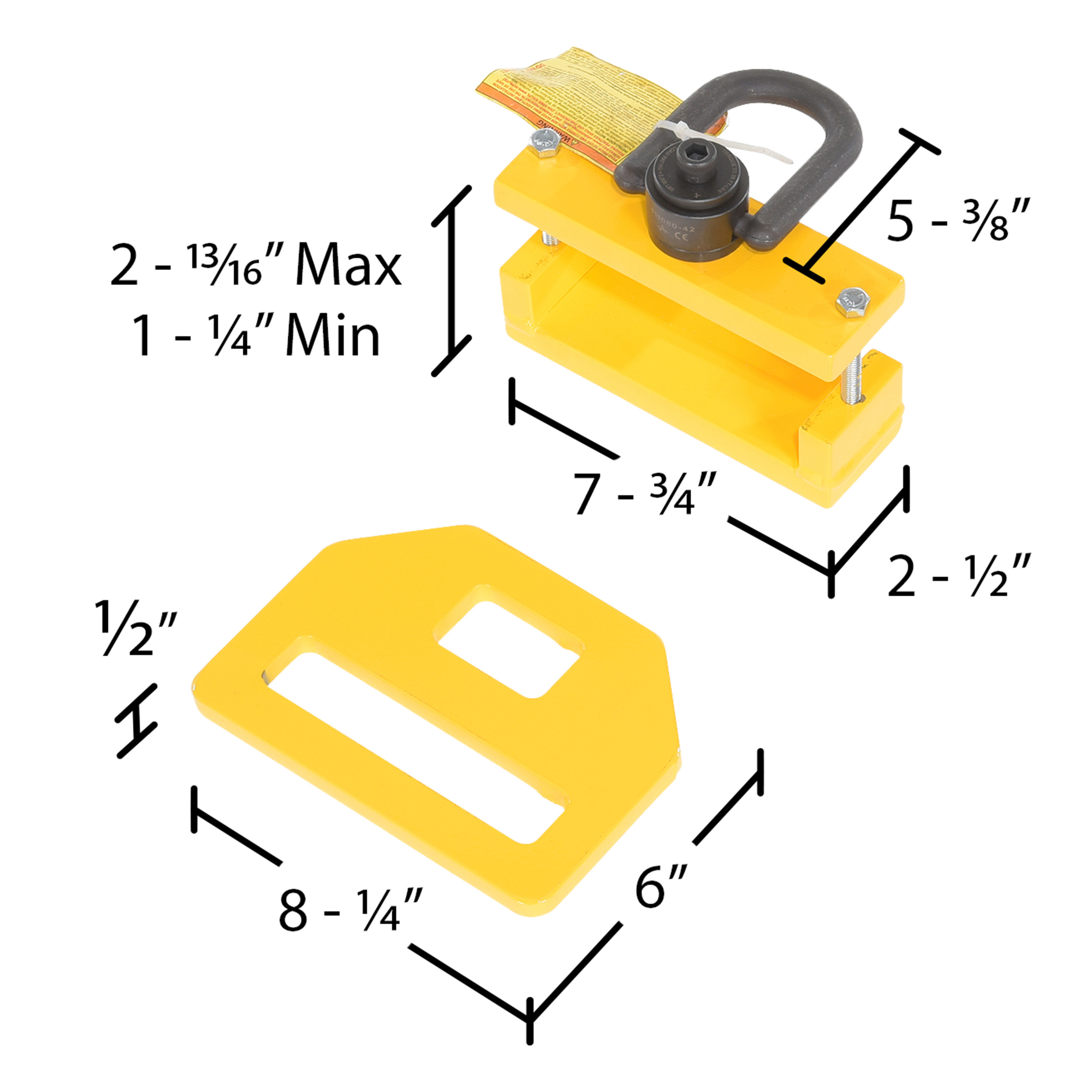

EYE BRACKET FEATURES
- OVERALL EYE BRACKET WIDTH: 8 1/4"
- OVERALL EYE BRACKET HEIGHT: 6"
- EYE BRACKET FORK OPENING: 6 1/4"W x 1 1/4"H
- EYE BRACKET LIFT OPENING: 2 1/2"W x 1 1/2"H
- EYE BRACKET THICKNESS: 1/2"
SCREW CLAMP WITH SWIVEL EYE FEATURES
- OVERALL SCREW CLAMP WIDTH: 7 3/4"
- OVERALL SCREW CLAMP DEPTH: 2 1/2"
- MAX. USABLE HEIGHT: 2 13/16"
- MIN. USABLE HEIGHT: 1 1/4"
- EACH CLAMP INCLUDES SWIVEL EYE
Fork Extensions with Side Brackets For Load Straps
Pin Style Fork Extensions
High Strength Fork Extensions
Fork Extensions with Rear Spacers
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| FTDC-6-4400 | POPULAR |  | 90 Days Limited Warranty | Steel Forklift Tie Down Clamps 2-1/2 In. x 8-1/4 In. x 8-1/2 In. 4400 Lb. Capacity Yellow | Uniform Capacity (lbs.): 4400 (2200 per clamp/bracket set) Clamps to Fit Forks Width/Height (in.): 6 x 2-3/4 | 36 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4400 (2200 per clamp/bracket set)
Clamps to Fit Forks Width/Height (in.): 6 x 2-3/4
Uniform Capacity (lbs.): 4400 (2200 per clamp/bracket set)
Clamps to Fit Forks Width/Height (in.): 6 x 2-3/4
