Model Details

S3-118-AA

Printer Friendly
S3-118-AA

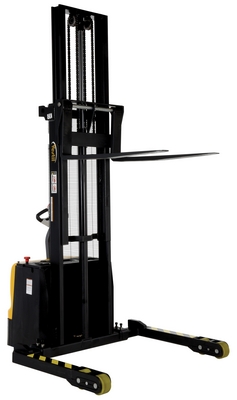

Steel Adjustable Double Mast Stacker 118 In. Raised Height 3,000 Lb. Capacity Black / Yellow

The double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy duty jobs. Ergonomic handle features lift/lower controls, proprietary safety enhancing emergency reverse function, and horn. The unit includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two batteries, integral battery charger, and a battery level gauge. Horn included.

  • Stacker has a bright yellow finish for clear visibility
  • Infinite speed adjustment in forward and reverse
  • Emergency reverse belly switch instantly reverses direction
  • Automatic shut off is applied when handle disengaged
Total Ship Wt.(lbs.): 1868 (only 1 package) Size: 50"W x 76.625"L x 79"H Color: Black / Yellow

Uniform Capacity 0 in to 62 in Raised Height (lb.): 3,000 Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500 Fork Width (in.): 8-5/16 to 26-3/4
Fork Length (in.): 42 Lowered Height (in.): 2-9/16 Raised Height (in.): 118
Battery: (2)12V Steer/Load Wheels Material: Poly-On-Steel Drive Motor: DC 24V
Lift Motor: DC 24V Operation at Full Charge (hrs.): 3-4 Operation at intermittent use (hrs.): 8
Style: Adjustable Forks / Adjustable Support Legs (works with pallets & skids) Width Between Straddle Legs (in.): 40 to 50

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S3-118-AA
S3-118-AA

Steel Adjustable Double Mast Stacker 118 In. Raised Height 3,000 Lb. Capacity Black / Yellow

The double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy duty jobs. Ergonomic handle features lift/lower controls, proprietary safety enhancing emergency reverse function, and horn. The unit includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two batteries, integral battery charger, and a battery level gauge. Horn included.

  • Stacker has a bright yellow finish for clear visibility
  • Infinite speed adjustment in forward and reverse
  • Emergency reverse belly switch instantly reverses direction
  • Automatic shut off is applied when handle disengaged
Dimensions: 50"W x 76.625"L x 79"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215111515 GTIN: 00691215111515
Warranty: -- Shipping Weight: 1868 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity 0 in to 62 in Raised Height (lb.): 3,000 Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500 Fork Width (in.): 8-5/16 to 26-3/4
Fork Length (in.): 42 Lowered Height (in.): 2-9/16 Raised Height (in.): 118
Battery: (2)12V Steer/Load Wheels Material: Poly-On-Steel Drive Motor: DC 24V
Lift Motor: DC 24V Operation at Full Charge (hrs.): 3-4 Operation at intermittent use (hrs.): 8
Style: Adjustable Forks / Adjustable Support Legs (works with pallets & skids) Width Between Straddle Legs (in.): 40 to 50
