Model Details

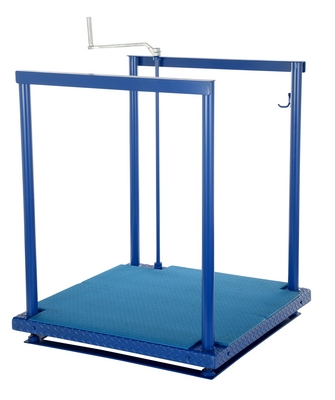

The post-crank worker platform with mat can be adjusted to the optimum ergonomic level suitable for each operator with a simple turn of the crank. It incorporates the use of acme threaded rods and a series of gears for simple yet effective height adjustment. The crank handle may be removed for maximizing the operating space. The deck is constructed of steel tread plate for better traction.
Uniform Capacity (lb.): 500 | Platform Width (in.): 36 | Platform Length (in.): 72 |
Lowered Height (in.): 3 | Raised Height (in.): 19 | Operation: Hand Crank |
Deck Raises Per 1 Revolution of Crank (in.): 1/8 | Lowered Overall Height (in.): 49-5/8 |
Details For Model: POS-3672-MAT |
|||||||||||||||||||||||||
Steel Ergonomic Post-Crank Worker Platform With Mat 72 In. x 36 In. x 65-5/8 In. 500 Lb. Capacity BlueThe post-crank worker platform with mat can be adjusted to the optimum ergonomic level suitable for each operator with a simple turn of the crank. It incorporates the use of acme threaded rods and a series of gears for simple yet effective height adjustment. The crank handle may be removed for maximizing the operating space. The deck is constructed of steel tread plate for better traction.
|
|||||||||||||||||||||||||
|
|||||||||||||||||||||||||
