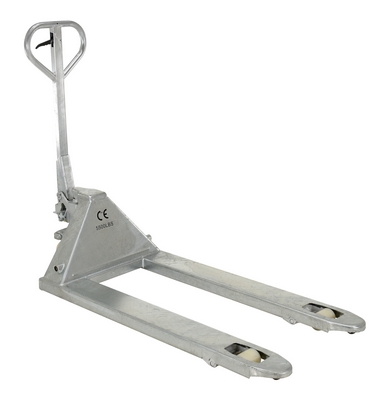

PM5-2748-S-G

Galvanized Steel Pallet Truck 62 In. x 27 In. x 48 In. 5500 Lb. Capacity Gray

The specialized pallet truck is ideal for corrosive environments. The full-featured pallet truck is designed for chemical, pharmaceutical, and wash-down applications.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Total Ship Wt.(lbs.): 197 (only 1 package) Size: 27"W x 62"L x 48"H Color: Gray

Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 27 Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Individual Fork Width (in.): 6-1/2
Steer Caster Material: Nylon Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Nylon Load Roller Diameter (in.): 3 Load Roller Width (in.): 3-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM5-2748-S-G
PM5-2748-S-G

Galvanized Steel Pallet Truck 62 In. x 27 In. x 48 In. 5500 Lb. Capacity Gray

The specialized pallet truck is ideal for corrosive environments. The full-featured pallet truck is designed for chemical, pharmaceutical, and wash-down applications.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Dimensions: 27"W x 62"L x 48"H Sell UOM: EA-Each Color: Gray
Material: Galvanized Steel UPC: 691215030724 GTIN: 00691215030724
Warranty: -- Shipping Weight: 197 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 27 Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Individual Fork Width (in.): 6-1/2
Steer Caster Material: Nylon Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Nylon Load Roller Diameter (in.): 3 Load Roller Width (in.): 3-1/2
