HT-40-3248-DC

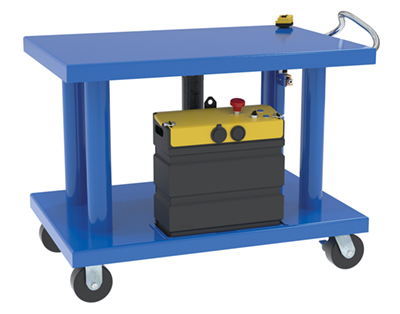

Steel DC Powered Hydraulic Post Table 32 In x 48 In 4,000 Lb. Capacity Blue

The Hydraulic post table is built for heavy-duty shop use. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Patented ergonomic push handle makes pushing the unit safe and easy. Lifting speed is 1-1/4 inch per second.

  • It also includes a battery, on-board charger, and a hand control on a coil cord
  • Flat table top surface, accessible from three sides
  • Units feature two rigid and two swivel casters with brakes for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy
Total Ship Wt.(lbs.): 495 (only 1 package) Size: 32"W x 53.625"L x 42.625"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Platform Width (in.): 32 Platform Length (in.): 48
Lowered Height (in.): 36 Raised Height (in.): 54 Post (qty.): 4
Operation: (1) 12V DC POWER Caster Diameter (in.): 4 Caster Width (in.): 2
Caster Material: Phenolic Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes Application: Ergonomic Lifting
Base Type: Solid Steel Deck Type: Solid Coil Cord Length (in.): 96
Lifting Speed (in.): 1-1/4 per second

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HT-40-3248-DC
HT-40-3248-DC

Steel DC Powered Hydraulic Post Table 32 In x 48 In 4,000 Lb. Capacity Blue

The Hydraulic post table is built for heavy-duty shop use. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Patented ergonomic push handle makes pushing the unit safe and easy. Lifting speed is 1-1/4 inch per second.

  • It also includes a battery, on-board charger, and a hand control on a coil cord
  • Flat table top surface, accessible from three sides
  • Units feature two rigid and two swivel casters with brakes for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy
Dimensions: 32"W x 53.625"L x 42.625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215056281 GTIN: 00691215056281
Warranty: -- Shipping Weight: 495 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4000 Platform Width (in.): 32 Platform Length (in.): 48
Lowered Height (in.): 36 Raised Height (in.): 54 Post (qty.): 4
Operation: (1) 12V DC POWER Caster Diameter (in.): 4 Caster Width (in.): 2
Caster Material: Phenolic Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes Application: Ergonomic Lifting
Base Type: Solid Steel Deck Type: Solid Coil Cord Length (in.): 96
Lifting Speed (in.): 1-1/4 per second
