HT-05-1818A-PSS

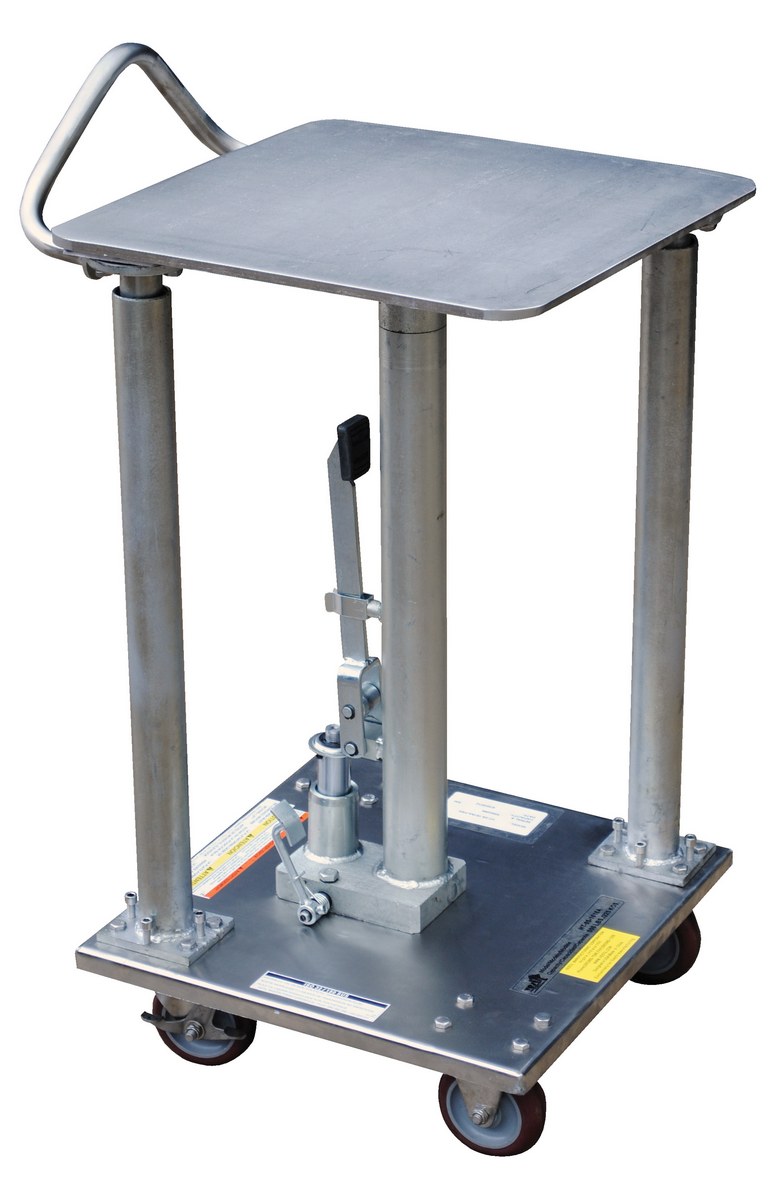

Partially Stainless Steel Hydraulic Post Table 18 In. x 18 In. 500 Lb. Capacity Silver

The Hydraulic post table is built for heavy-duty shop use. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Table includes four casters; two locking swivel with brakes and two rigid. The light duty-units feature a single-speed foot pump. Heavy-duty units feature a two-speed foot pump for maximum operator convenience. All foot pumps include a down speed control valve for safe platform lowering.

  • Heavy-duty construction is ideal for industrial work areas
  • Telescopic posts stabilize loads during use
  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy
Total Ship Wt.(lbs.): 151 (only 1 package) Size: 18"W x 21.75"L x 31"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 500 Platform Width (in.): 18 Platform Length (in.): 18

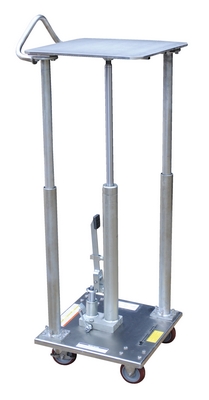

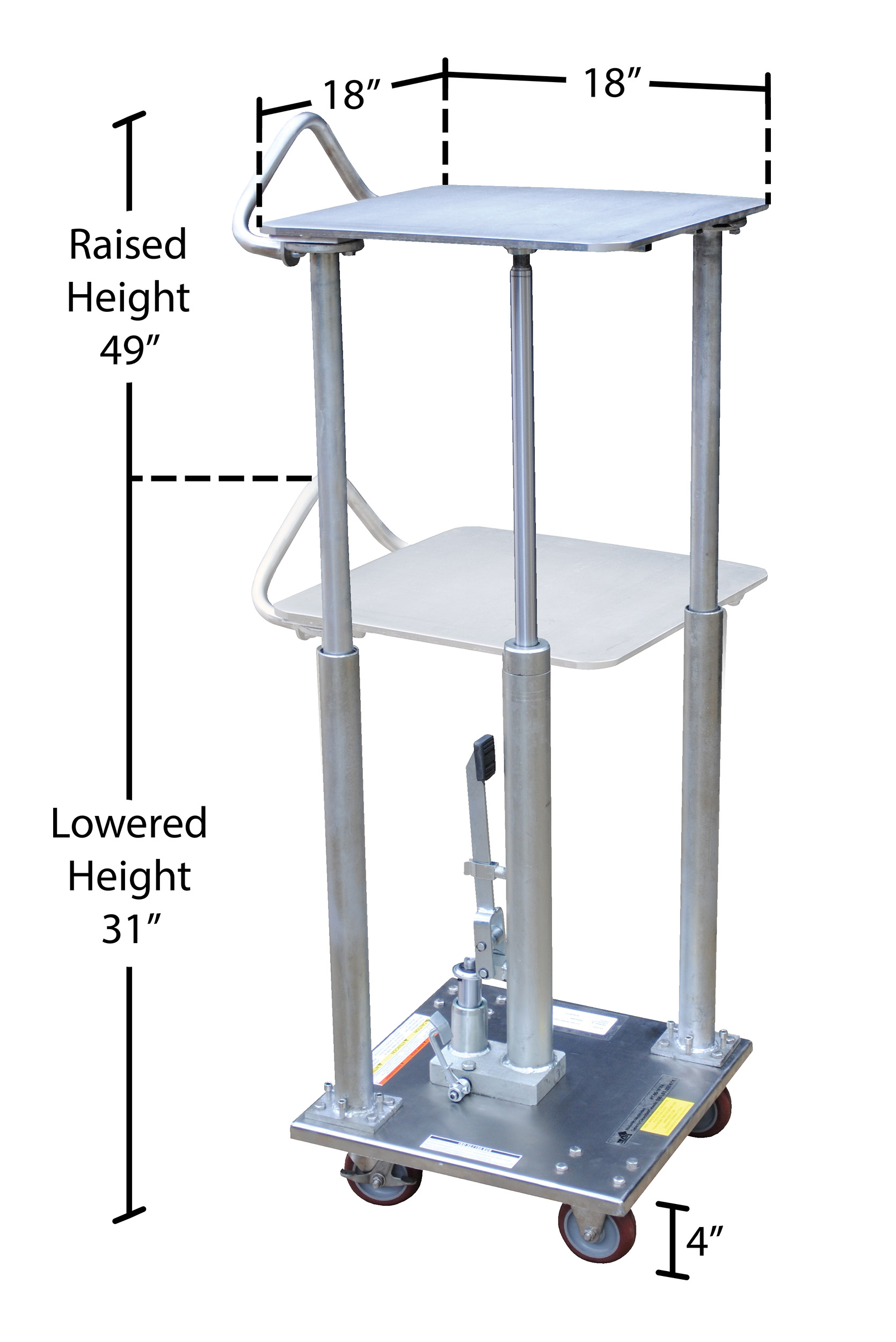

Lowered Height (in.): 31 Raised Height (in.): 49 Post (qty.): 2

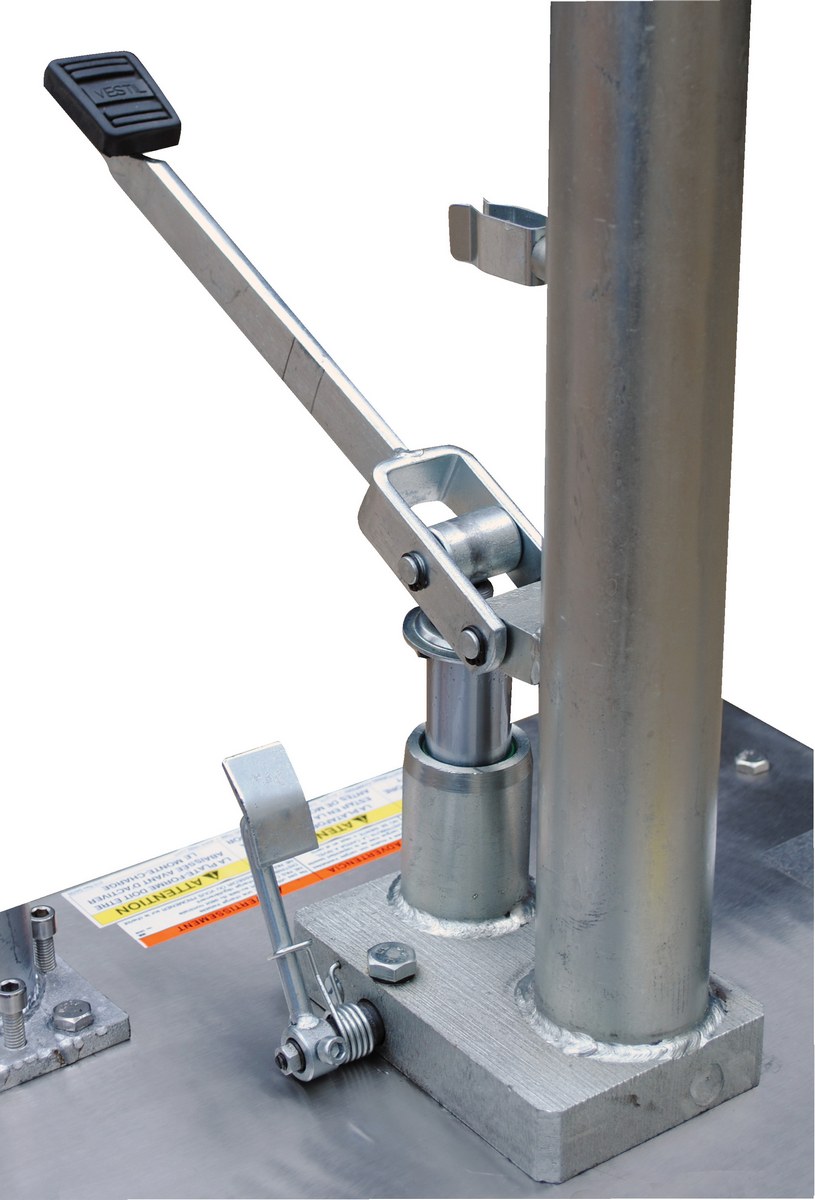

Operation: 1-Speed Foot Pump Caster Diameter (in.): 4 Caster Width (in.): 1-1/4
Caster Material: Poly-on-Poly Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes Application: Ergonomic Lifting
Base Type: Solid Steel Deck Type: Solid

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HT-05-1818A-PSS
HT-05-1818A-PSS

Partially Stainless Steel Hydraulic Post Table 18 In. x 18 In. 500 Lb. Capacity Silver

The Hydraulic post table is built for heavy-duty shop use. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Table includes four casters; two locking swivel with brakes and two rigid. The light duty-units feature a single-speed foot pump. Heavy-duty units feature a two-speed foot pump for maximum operator convenience. All foot pumps include a down speed control valve for safe platform lowering.

  • Heavy-duty construction is ideal for industrial work areas
  • Telescopic posts stabilize loads during use
  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy
Dimensions: 18"W x 21.75"L x 31"H Sell UOM: EA-Each Color: Silver
Material: Partial Stainless Steel UPC: 691215077200 GTIN: 00691215077200
Warranty: -- Shipping Weight: 151 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Platform Width (in.): 18 Platform Length (in.): 18
Lowered Height (in.): 31 Raised Height (in.): 49 Post (qty.): 2
Operation: 1-Speed Foot Pump Caster Diameter (in.): 4 Caster Width (in.): 1-1/4
Caster Material: Poly-on-Poly Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes Application: Ergonomic Lifting
Base Type: Solid Steel Deck Type: Solid
