Model Details

EHLTG-4470-2-48-PSS

Printer Friendly
EHLTG-4470-2-48-PSS

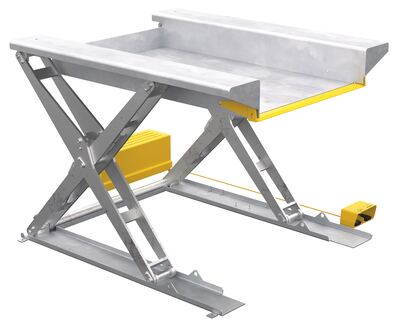

Partially Stainless Steel Ground Lift Scissor Table 44 In. x 70 In. 2000 Lb. Capacity Blue

A ground lift scissor table is a perfect addition to any material handling operation. Products and material can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard protects pinch points during lowering of the table and a safety velocity fuse to maintain platform height in the event of a hose or fitting failure. The motor is totally enclosed and the partially stainless steel construction provides great protection. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting and additional voltage options are available.

  • Perfect for ergonomic alignment
  • Built-in safety features to minimize vulnerability
  • Integral system to maintain platform height
  • Remote power for use away from table
Total Ship Wt.(lbs.): 2231 (only 1 package) Size: 67.0625"W x 73.25"L x 56.5"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 2000 Platform Width (in.): 44 Platform Length (in.): 70
Raised Height (in.): 48 Platform Lowered Height (in.): 1/2 Overall Width (in.): 67-1/16
Overall Length (in.): 78 External Power Unit Length (in.): 32-1/2 External Power Unit Width (in.): 12
External Power Unit Height (in.): 12-1/2 External Power Unit Hose and Cable Length (ft.): 8 Control: Foot Switch 2 Pedal
Deck and Frame Material: Stainless Steel Scissor Leg Finish: Hot Dip Galvanized Motor Voltage/Phase: 460/3
Dedicated Circuit Required (hz.): 60

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLTG-4470-2-48-PSS
EHLTG-4470-2-48-PSS

Partially Stainless Steel Ground Lift Scissor Table 44 In. x 70 In. 2000 Lb. Capacity Blue

A ground lift scissor table is a perfect addition to any material handling operation. Products and material can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard protects pinch points during lowering of the table and a safety velocity fuse to maintain platform height in the event of a hose or fitting failure. The motor is totally enclosed and the partially stainless steel construction provides great protection. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting and additional voltage options are available.

  • Perfect for ergonomic alignment
  • Built-in safety features to minimize vulnerability
  • Integral system to maintain platform height
  • Remote power for use away from table
Dimensions: 67.0625"W x 73.25"L x 56.5"H Sell UOM: EA-Each Color: Blue
Material: Partial Stainless Steel UPC: 691215337021 GTIN: 00691215337021
Warranty: -- Shipping Weight: 2231 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2000 Platform Width (in.): 44 Platform Length (in.): 70
Raised Height (in.): 48 Platform Lowered Height (in.): 1/2 Overall Width (in.): 67-1/16
Overall Length (in.): 78 External Power Unit Length (in.): 32-1/2 External Power Unit Width (in.): 12
External Power Unit Height (in.): 12-1/2 External Power Unit Hose and Cable Length (ft.): 8 Control: Foot Switch 2 Pedal
Deck and Frame Material: Stainless Steel Scissor Leg Finish: Hot Dip Galvanized Motor Voltage/Phase: 460/3
Dedicated Circuit Required (hz.): 60
