Model Details

SSG-9-RD

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
SSG-9-RD

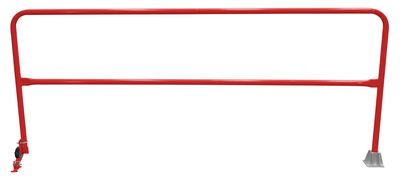

Steel Dock Safety Swing Gate 9 Ft. Length Red

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • Red powder coat finish
  • Foot release lock keeps railing from moving when in use
Total Ship Wt.(lbs.): 78 (only 1 package) Size: 6.5"W x 108.0625"L x 46.25"H Color: Red Non-Returnable

Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4 Wheel Material: Poly-on-Poly Steel Pipe (Schedule): 10
Pipe O.D. (in.): 1-5/8 Midrail (in.): 25 Weight (lbs.): 78

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SSG-9-RD
SSG-9-RD

Steel Dock Safety Swing Gate 9 Ft. Length Red

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • Red powder coat finish
  • Foot release lock keeps railing from moving when in use
Dimensions: 6.5"W x 108.0625"L x 46.25"H Sell UOM: EA-Each Color: Red
Material: Steel UPC: 691215361910 GTIN: 00691215361910
Warranty: -- Shipping Weight: 78 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4 Wheel Material: Poly-on-Poly Steel Pipe (Schedule): 10
Pipe O.D. (in.): 1-5/8 Midrail (in.): 25 Weight (lbs.): 78
