Model Details

SR-SS

Printer Friendly
SR-SS

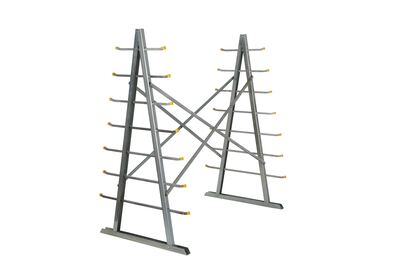

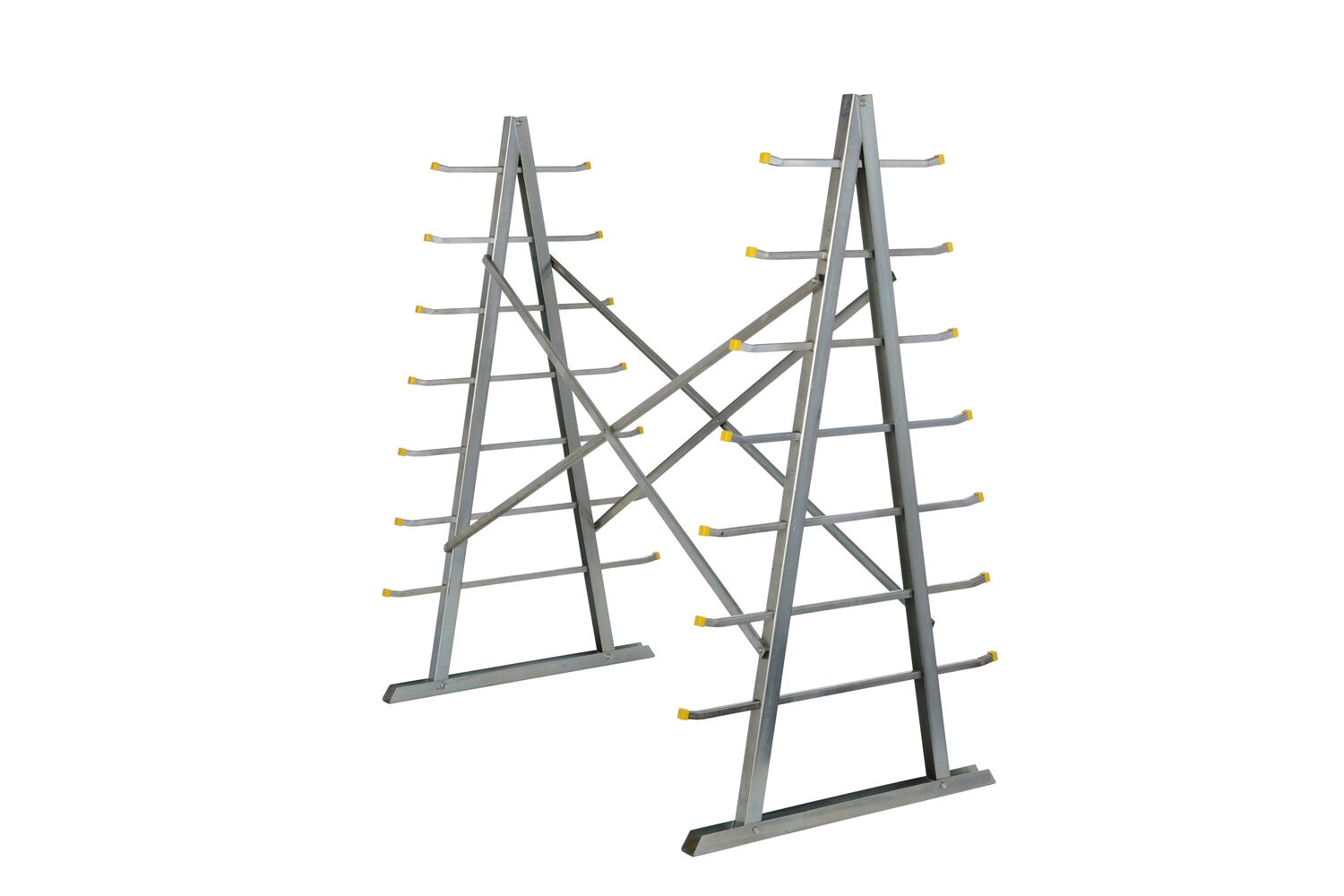

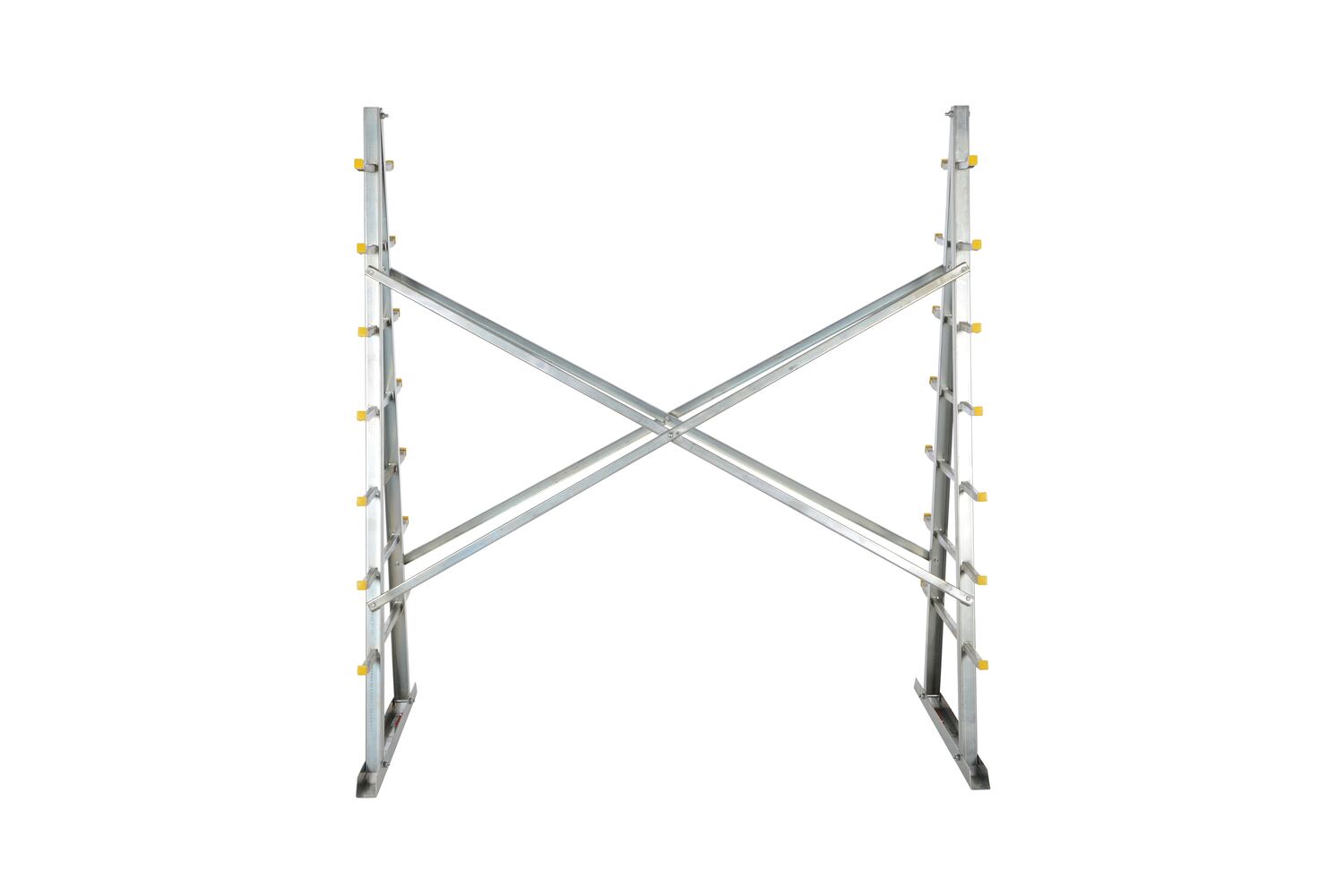

Steel Self Supporting Rack 36 In. x 60 In. x 66 In. 2,000 Lb. Capacity Silver

A self-supporting 66" high A-frame with 7 storage levels. Arms extend up to 12" beyond A-frame. Base dimensions are 60" by 36". Rack must be statically and uniformly loaded, up to had the total system capacity per side. Each support arm must also be statically and uniformly loaded. Shipped knocked down with convenient and quick assembly. Bright zinc plated finish.

  • Back sloping arm limits roll offs
  • Arms extend up to 12" beyond A-Frame
  • Includes assembly hardware
  • Bright zinc plating provides long term attractive appearance
Total Ship Wt.(lbs.): 61 (only 1 package) Size: 36"W x 61.3125"L x 65.6875"H Color: Silver

Uniform Capacity (lb.): 2,000 Arm Extension Beyond A-Frame (in.): 12 Arms (qty.): 7 per side
Arm Design: Straight w/ slight curve Storage Level (qty.): 7 Design: Self Supporting
Base Width (in.): 60 Base Length (in.): 36 Sides (qty.): 4
Includes: Assembly Hardware

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: SR-SS
SR-SS

Steel Self Supporting Rack 36 In. x 60 In. x 66 In. 2,000 Lb. Capacity Silver

A self-supporting 66" high A-frame with 7 storage levels. Arms extend up to 12" beyond A-frame. Base dimensions are 60" by 36". Rack must be statically and uniformly loaded, up to had the total system capacity per side. Each support arm must also be statically and uniformly loaded. Shipped knocked down with convenient and quick assembly. Bright zinc plated finish.

  • Back sloping arm limits roll offs
  • Arms extend up to 12" beyond A-Frame
  • Includes assembly hardware
  • Bright zinc plating provides long term attractive appearance
Dimensions: 36"W x 61.3125"L x 65.6875"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215037105 GTIN: 00691215037105
Warranty: -- Shipping Weight: 61 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Arm Extension Beyond A-Frame (in.): 12 Arms (qty.): 7 per side
Arm Design: Straight w/ slight curve Storage Level (qty.): 7 Design: Self Supporting
Base Width (in.): 60 Base Length (in.): 36 Sides (qty.): 4
Includes: Assembly Hardware
