Model Details

SPG-26-Y

SPG-26-Y

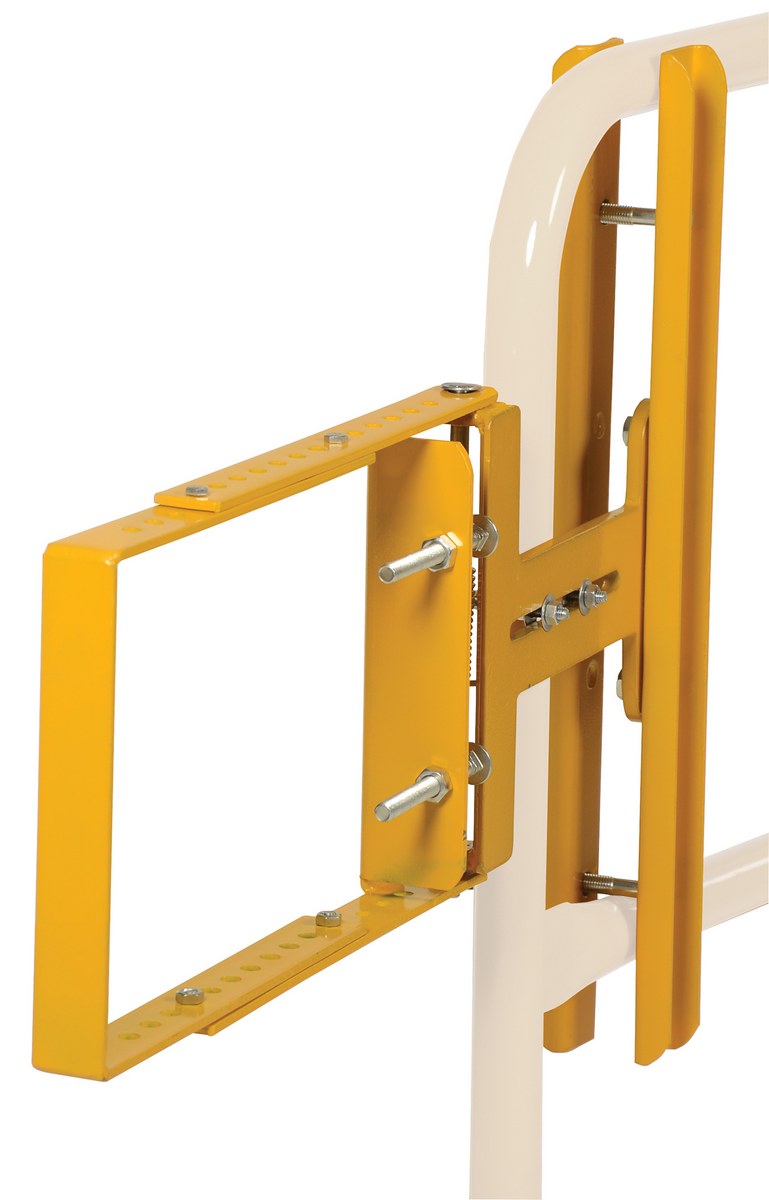

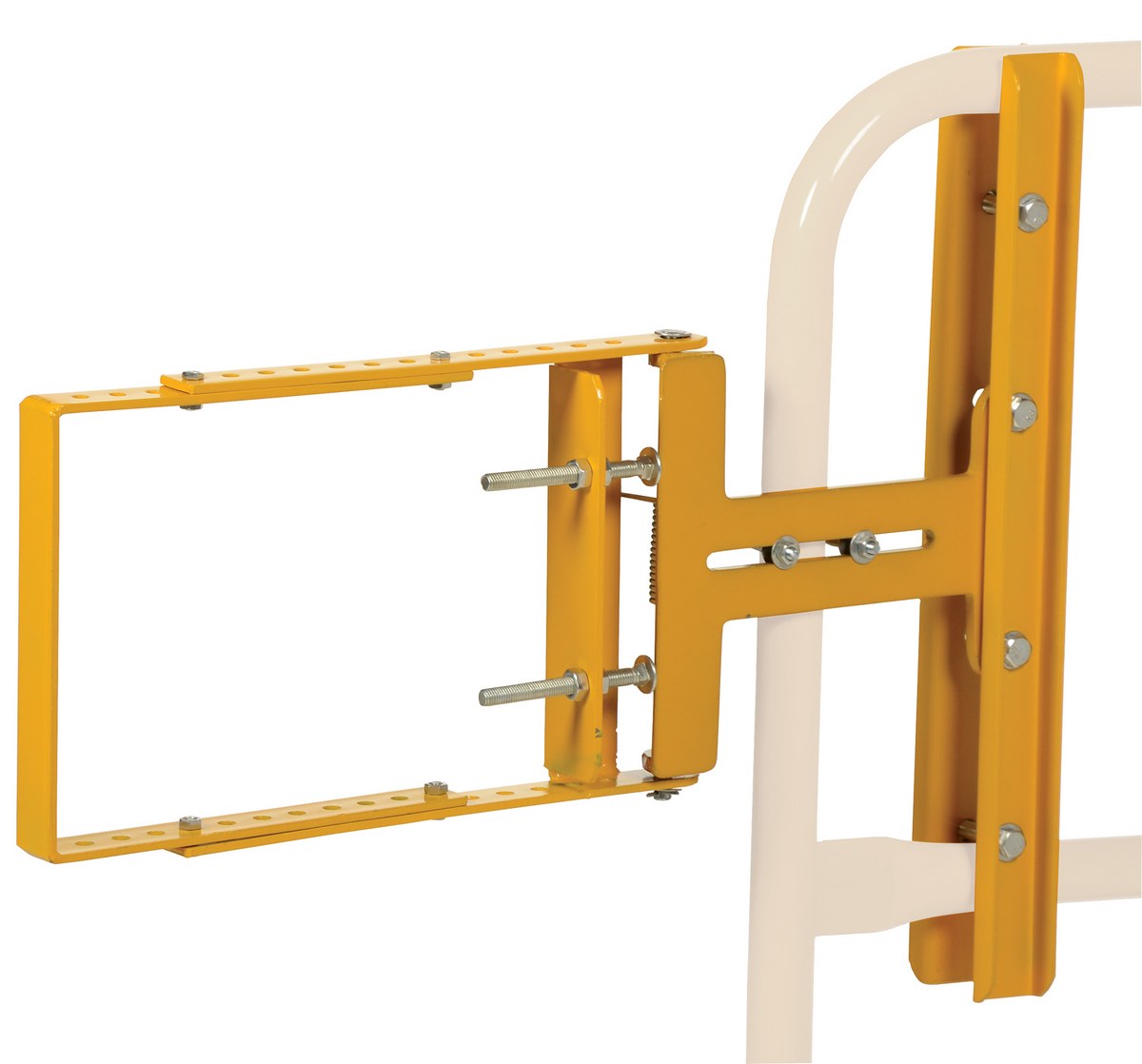

Steel Self-Closing Gate 16 In. to 26 In. Opening Yellow

Customize your safety railings with a self-closing steel gate. The gate can be mounted from the left or right with the included mounting hardware. Mount to horizontal rails. Yellow powder coat finish. (Railing and base not included).

  • Spring-loaded safety gate protects openings in railings
  • Prefect for rails spaced 10"-21" apart, from center to center
  • Adjustable gate width is quick and easy to adjust
  • Complies with OSHA 1910.28(b)(3)(iv) requirements
Total Ship Wt.(lbs.): 30 (only 1 package) Size: 3.6875"W x 34.75"L x 24"H Color: Yellow

Minimum Opening (in.): 16 Maximum Opening Width (in.): 26 Mount to Rail, Maximum Diameter (in.): 2
Mount Rail Spacing Center to Center (in.): 10 to 21 Gate Height (in.): 12 OSHA: 1910.23A

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: SPG-26-Y


SPG-26-Y

Steel Self-Closing Gate 16 In. to 26 In. Opening Yellow

Customize your safety railings with a self-closing steel gate. The gate can be mounted from the left or right with the included mounting hardware. Mount to horizontal rails. Yellow powder coat finish. (Railing and base not included).

  • Spring-loaded safety gate protects openings in railings
  • Prefect for rails spaced 10"-21" apart, from center to center
  • Adjustable gate width is quick and easy to adjust
  • Complies with OSHA 1910.28(b)(3)(iv) requirements
Dimensions: 3.6875"W x 34.75"L x 24"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215062626 GTIN: 00691215062626
Warranty: -- Shipping Weight: 30 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Minimum Opening (in.): 16 Maximum Opening Width (in.): 26 Mount to Rail, Maximum Diameter (in.): 2
Mount Rail Spacing Center to Center (in.): 10 to 21 Gate Height (in.): 12 OSHA: 1910.23A
