SE/HP-63

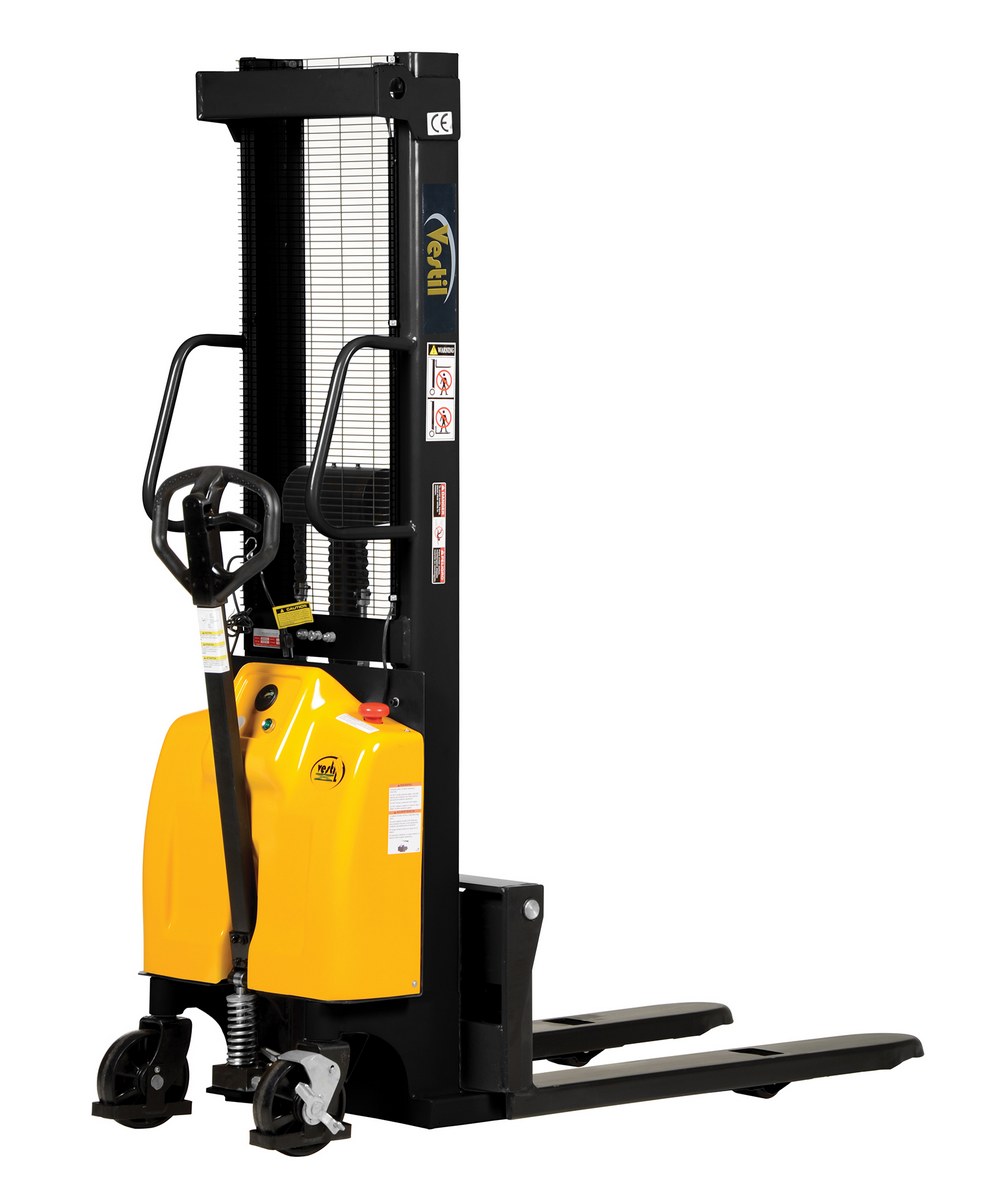

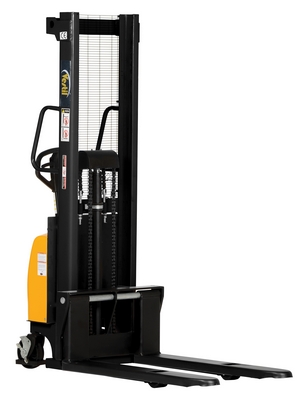

Steel Hand Pump DC Powered Stacker with Fixed Forks and Legs 63 In. Raised Height 2,000 Lb. Capacity Black / Yellow

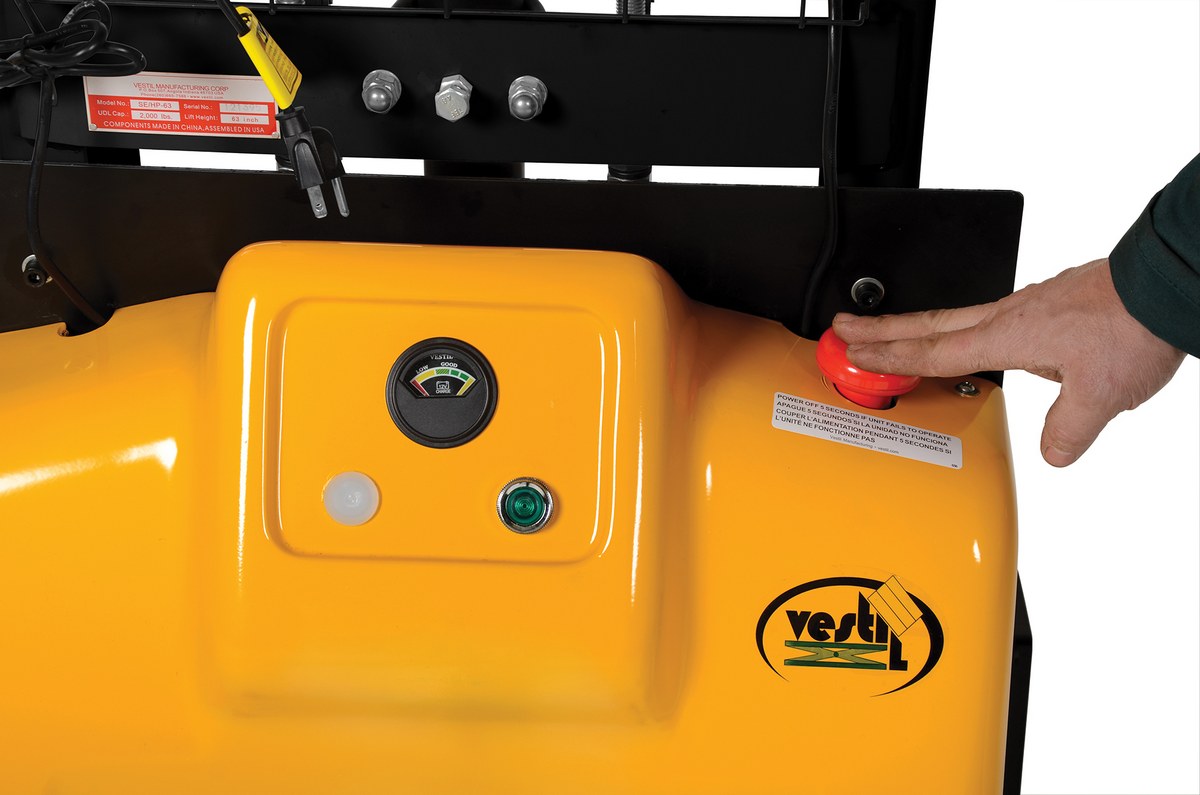

The combination hand pump and electric stacker is an economical alternative to the DC powered lift stacker. It's ideal for maintenance and commercial applications. This unit can be used as a manual hand pump lift or an electric powered lift, which is ideal when power is not available. It has a high quality hydraulic pump and DC lift system. The compact design and strong steel profile construction allows the lift to handle tasks such as transporting dies, molds, and skids. It features an integral battery charger, battery level gauge, and adjustable lowering speed. Easily maneuverable using a standard pull handle.

  • Unique design features manual and powered forks
  • Standard pull handle maneuvers easily
  • Steel construction is ideal for maintenance and commercial applications
  • High quality hydraulic pump and DC lift system conveniently lifts forks when loaded/unloaded
Total Ship Wt.(lbs.): 759 (only 1 package) Size: 26.75"W x 65.375"L x 81.875"H Color: Yellow

Uniform Capacity 0-63" (lb.): 2000 Fork WxL (in.): 26-3/4 x 42 Height Range (in.): 3-3/8 to 63
Individual Fork Width (in.): 6 AGM Battery Quantity/Voltage/Amp Hours: (2) 12V Phase: Single

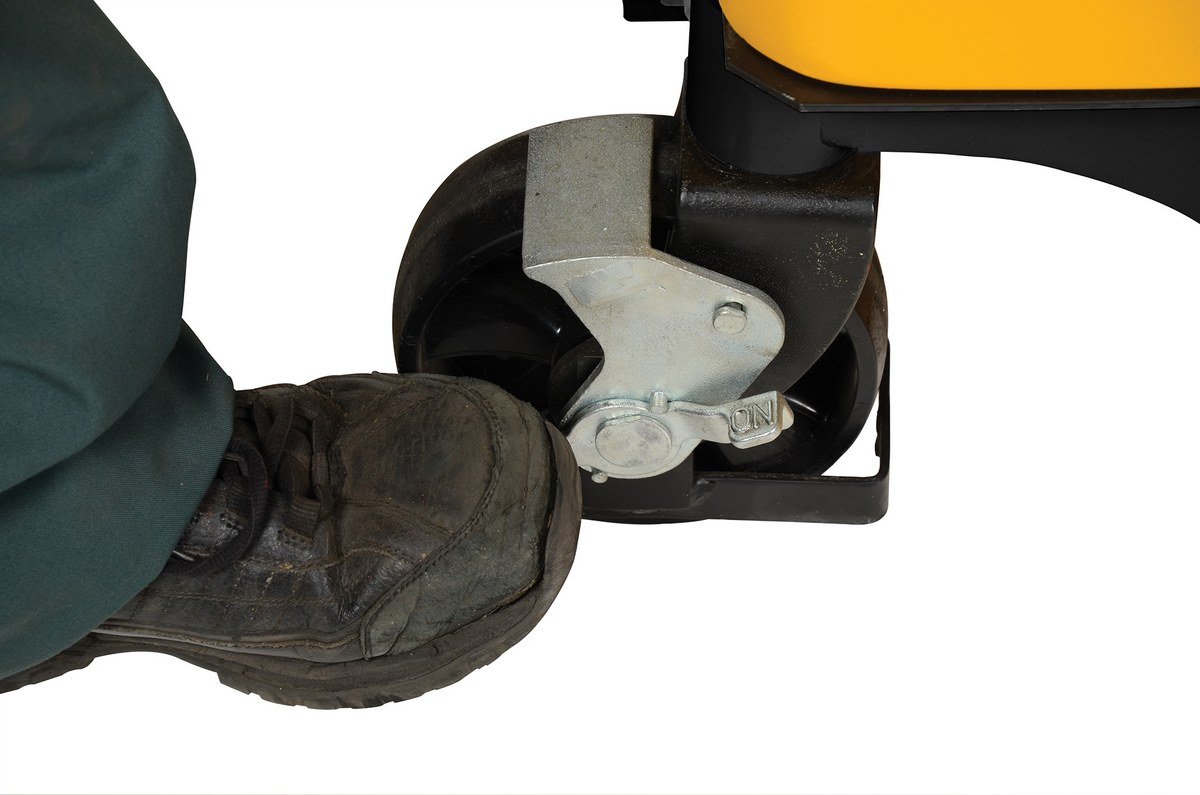

Hertz: 60 Caster Material: Polyurethane Casters (qty.): 4
Front Caster Diameter (in.): 4 Rear Caster Diameter (in.): 6-1/2 Width Between Forks (in.): 17
Leg Width (in.): 24 Horsepower (HP): 2 Maximum Wattage (watts): 1500
Maximum Ampere (amp.): 120 Turning Radius (in.): 51

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SE/HP-63
SE/HP-63

Steel Hand Pump DC Powered Stacker with Fixed Forks and Legs 63 In. Raised Height 2,000 Lb. Capacity Black / Yellow

The combination hand pump and electric stacker is an economical alternative to the DC powered lift stacker. It's ideal for maintenance and commercial applications. This unit can be used as a manual hand pump lift or an electric powered lift, which is ideal when power is not available. It has a high quality hydraulic pump and DC lift system. The compact design and strong steel profile construction allows the lift to handle tasks such as transporting dies, molds, and skids. It features an integral battery charger, battery level gauge, and adjustable lowering speed. Easily maneuverable using a standard pull handle.

  • Unique design features manual and powered forks
  • Standard pull handle maneuvers easily
  • Steel construction is ideal for maintenance and commercial applications
  • High quality hydraulic pump and DC lift system conveniently lifts forks when loaded/unloaded
Dimensions: 26.75"W x 65.375"L x 81.875"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215062503 GTIN: 00691215062503
Warranty: -- Shipping Weight: 759 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity 0-63" (lb.): 2000 Fork WxL (in.): 26-3/4 x 42 Height Range (in.): 3-3/8 to 63
Individual Fork Width (in.): 6 AGM Battery Quantity/Voltage/Amp Hours: (2) 12V Phase: Single
Hertz: 60 Caster Material: Polyurethane Casters (qty.): 4
Front Caster Diameter (in.): 4 Rear Caster Diameter (in.): 6-1/2 Width Between Forks (in.): 17
Leg Width (in.): 24 Horsepower (HP): 2 Maximum Wattage (watts): 1500
Maximum Ampere (amp.): 120 Turning Radius (in.): 51
