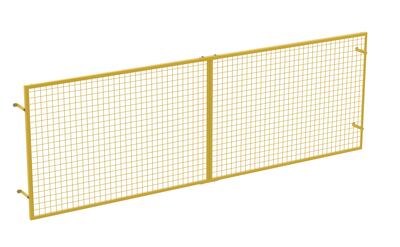

Steel Pallet Rack Back Guard 8-1/16 In. x 147-7/32 In. x 49-7/16 In. Yellow

With a pallet rack back guard the potential hazard of falling products is minimized. The length and height of the design allows a large area with a single guard, decreasing additional input costs. Built of durable steel with a powder coat finish. Hardware is included.

  • Wire mesh back for clear visibility
  • Secured directly to existing pallet racking
  • Rectangular shaped design
  • Spacer brackets included
Assembled Wt.(lbs.): 74 Assembled Size: 8.0625"W x 147.2187"L x 49.4375"H

Total Ship Wt.(lbs.): 114 (only 1 package) Package 1 Size: 48"W x 152"D x 9"H Color: Yellow

Space out Guard (in.): 4 or 6 Angle Frame Width (in.): 1-1/4 Angle Frame Depth (in.): 1-1/4
Angle Frame Thickness (in.): 1/8 Usable Width (in.): 144 Overall Width (in.): 147-7/32
Overall Height (In.): 49-7/16 Overall Depth (in.): 8-1/16 Individual Panel Width (in.): 72
Wire Mesh Guarding (ga.): 9

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

30 Days Limited Warranty

Details For Model: PRSN-144-4
Available
PRSN-144-4

Steel Pallet Rack Back Guard 8-1/16 In. x 147-7/32 In. x 49-7/16 In. Yellow

With a pallet rack back guard the potential hazard of falling products is minimized. The length and height of the design allows a large area with a single guard, decreasing additional input costs. Built of durable steel with a powder coat finish. Hardware is included.

  • Wire mesh back for clear visibility
  • Secured directly to existing pallet racking
  • Rectangular shaped design
  • Spacer brackets included
Dimensions: 8.0625"W x 147.2187"L x 49.4375"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215378178 GTIN: 00691215378178
Warranty: -- Shipping Weight: 114 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Space out Guard (in.): 4 or 6 Angle Frame Width (in.): 1-1/4 Angle Frame Depth (in.): 1-1/4
Angle Frame Thickness (in.): 1/8 Usable Width (in.): 144 Overall Width (in.): 147-7/32
Overall Height (In.): 49-7/16 Overall Depth (in.): 8-1/16 Individual Panel Width (in.): 72
Wire Mesh Guarding (ga.): 9
