Model Details

← All Products- ← Fork Truck Attachments- ← Hoppers -← Portable Steel Hoppers- P-HOP-1

P-HOP-1

Printer Friendly
Available
P-HOP-1
P-HOP-1 P-HOP-1 P-HOP-1 P-HOP-1 P-HOP-1 P-HOP-1

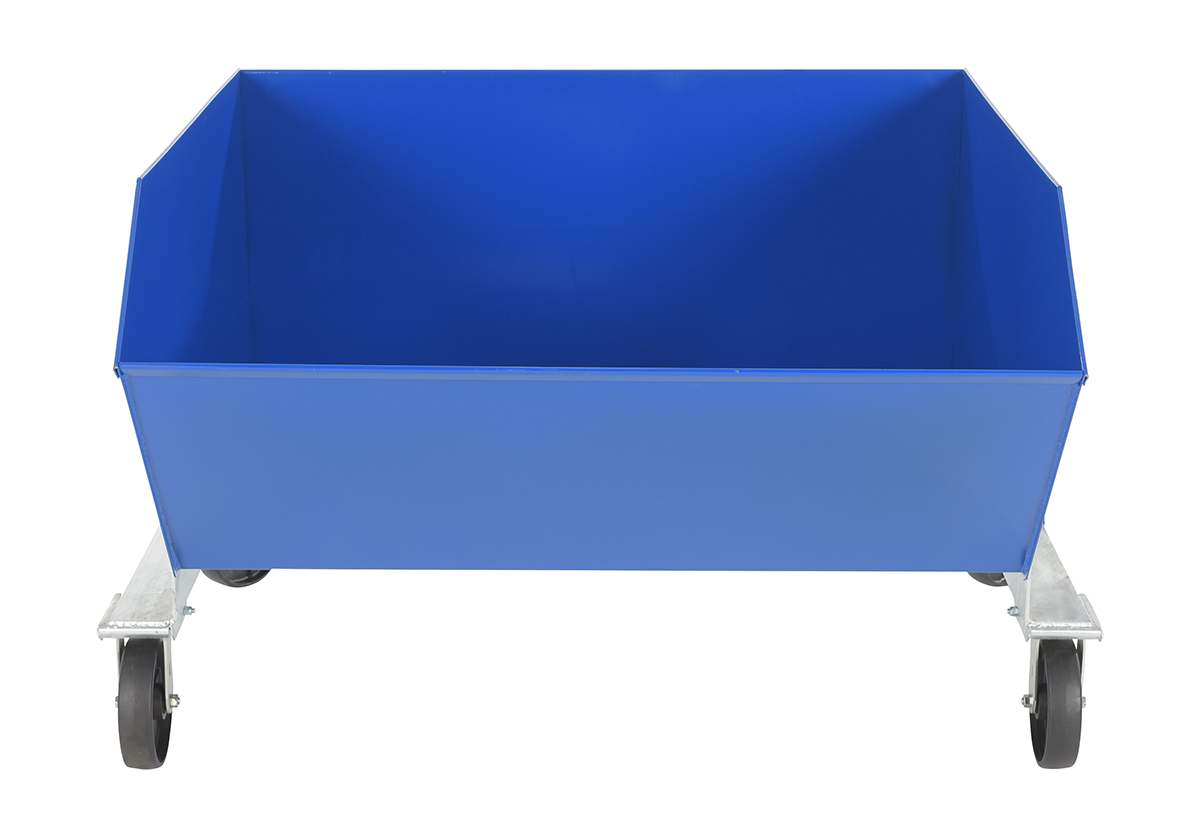

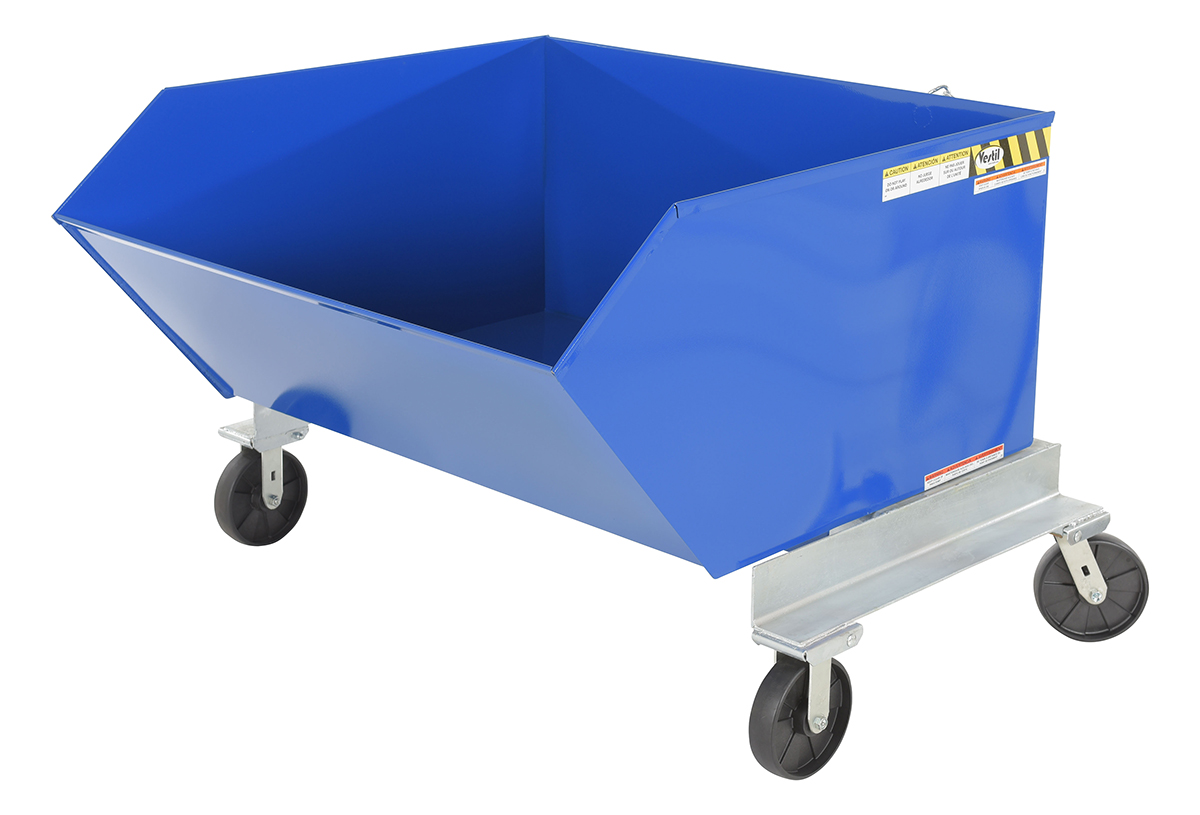

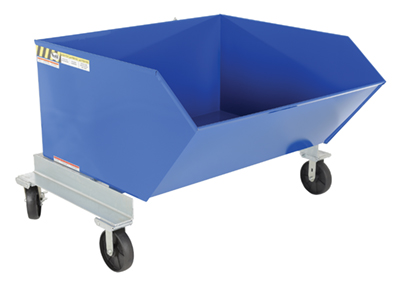

Steel Portable Tilting Hopper 1 Cubic Yard 2,000 Lb. Capacity Blue

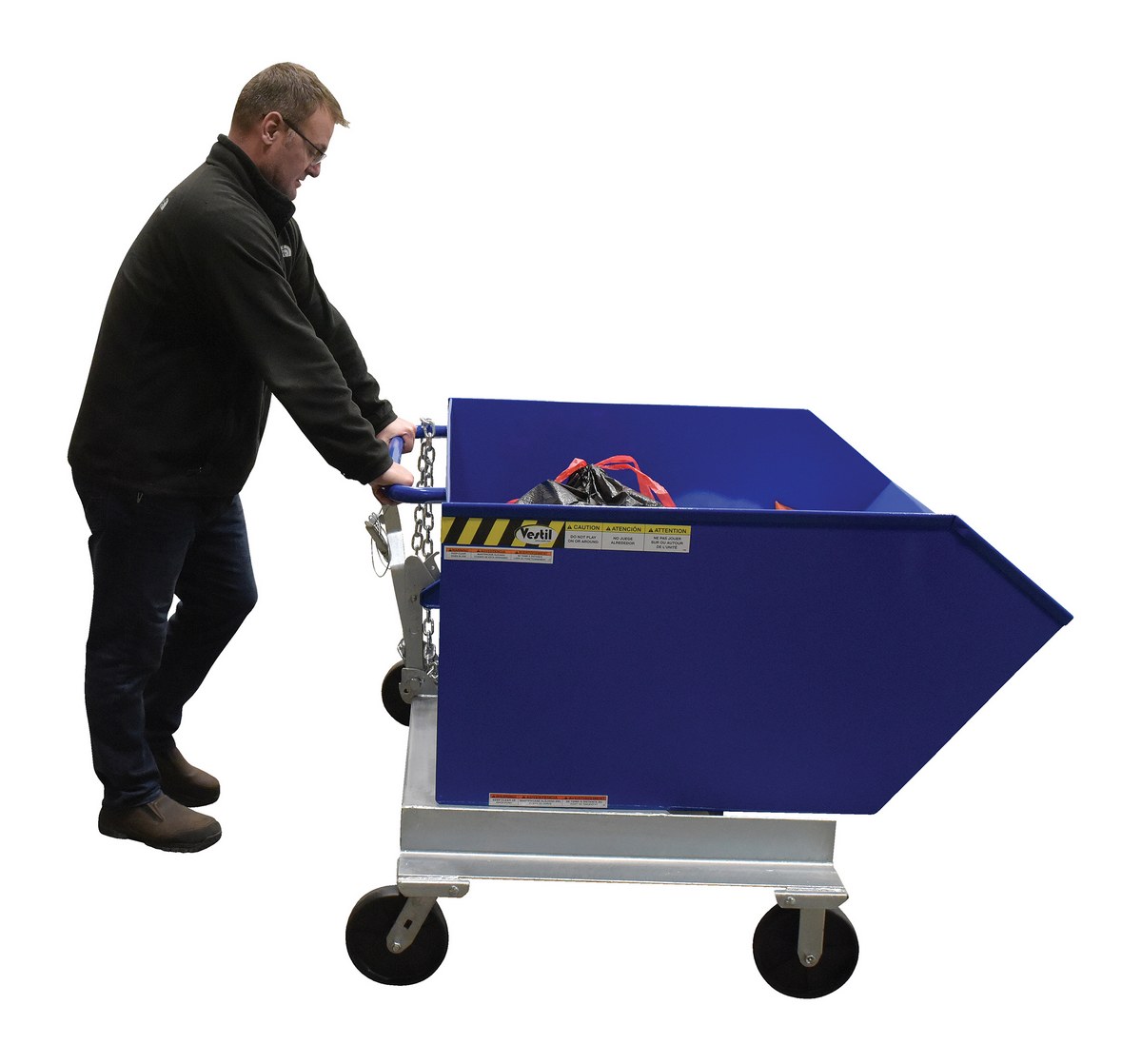

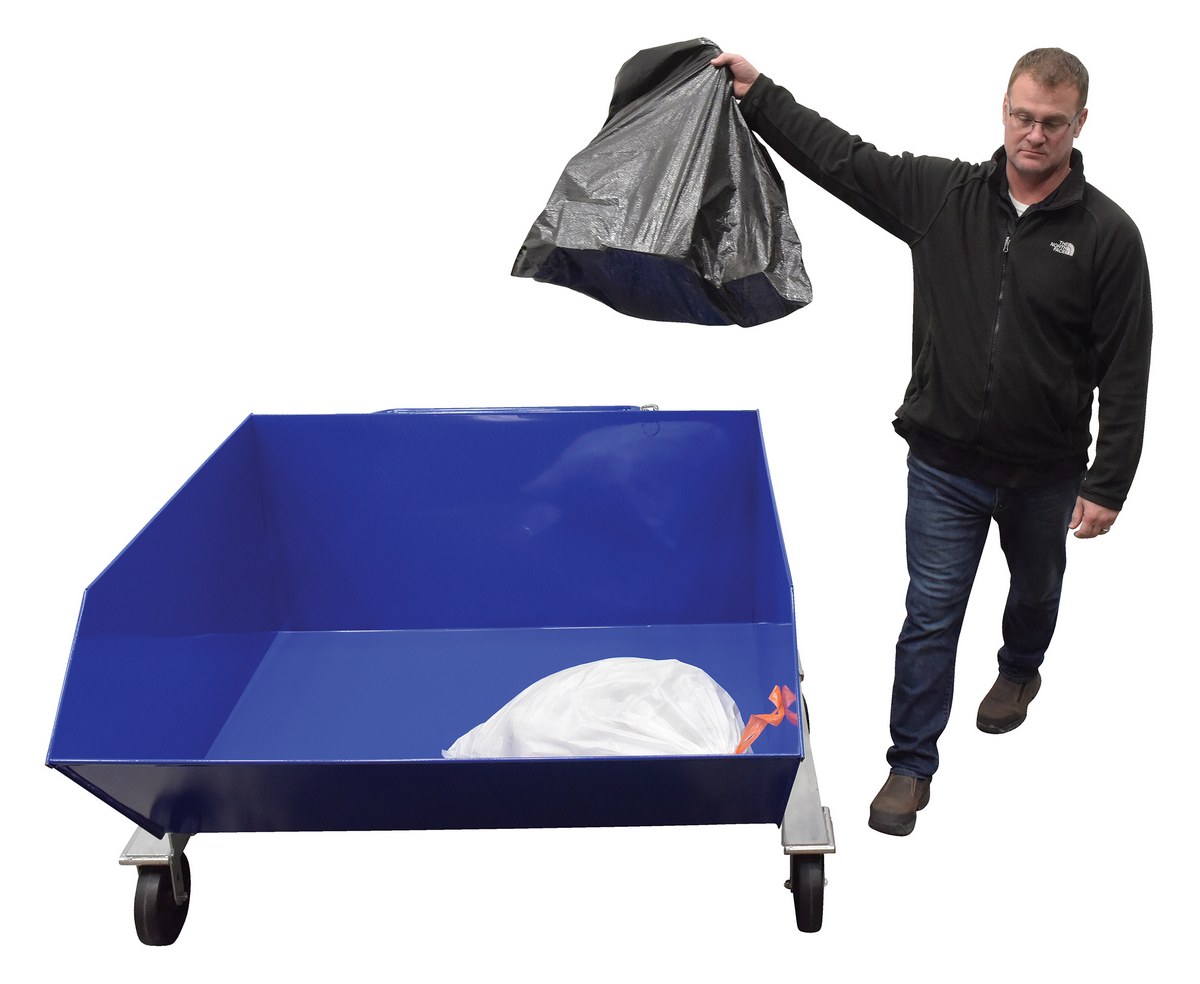

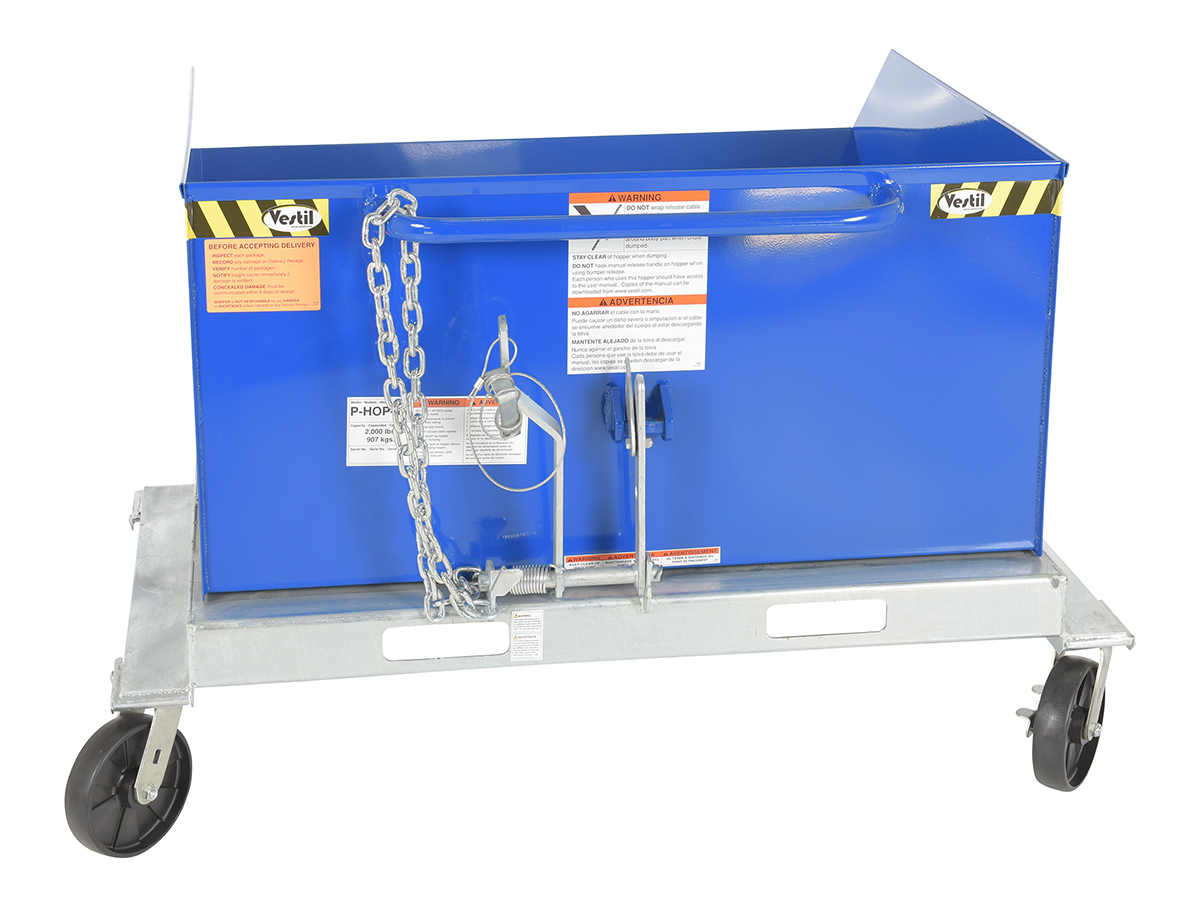

A portable steel Hopper makes handling waste and bulk material safer and more convenient. Fork truck entry openings are designed to move hopper over rough terrain. Foot operated caster lock is included. Unit tilts with assistance from operator while seated on fork truck. Handle for transporting. The included safety restraint should be properly secured to a fork truck before dumping. Welded construction makes them durable. Blue baked-in powder-coated toughness with galvanized base.

  • Powder coat blue offers a tough durable finish
  • Fork openings are designed to move hopper over rough terrain
  • Foot operated caster lock keeps unit from rolling
  • Welded steel construction provides long lasting durability
Assembled Wt.(lbs.): 419 Assembled Size: 58.8125"W x 53.625"L x 37.125"H

Total Ship Wt.(lbs.): 465 (only 1 package) Package 1 Size: 53"W x 58"D x 29"H Color: Blue

Uniform Capacity (lb.): 2,000 Volume (cu. yrd.): 1 Fork Pocket Width (in.): 7
Fork Pocket Height (in.): 2 Fork Pocket Center (in.): 21-5/8 Steel Gauge: 12
Caster Quantity/Diameter/Width (in.): (4) 8x2 Caster Type: (2) Rigid, (1) Swivel, (1) Swivel with Lock Caster Material: Glass Filled Nylon
Overall Width (in.): 58-13/16 Overall Length (in.): 53-5/8 Overall Height (in.): 37-1/8
Dump Angle: 90° Usable Work Envelope (in.): 53-13/16 x 58-3/16 x 52-7/8 Vertical Center of Gravity (in.): 6-3/16
Horizontal Center of Gravity (in.): 16-5/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: P-HOP-1
Available
P-HOP-1

Steel Portable Tilting Hopper 1 Cubic Yard 2,000 Lb. Capacity Blue

A portable steel Hopper makes handling waste and bulk material safer and more convenient. Fork truck entry openings are designed to move hopper over rough terrain. Foot operated caster lock is included. Unit tilts with assistance from operator while seated on fork truck. Handle for transporting. The included safety restraint should be properly secured to a fork truck before dumping. Welded construction makes them durable. Blue baked-in powder-coated toughness with galvanized base.

  • Powder coat blue offers a tough durable finish
  • Fork openings are designed to move hopper over rough terrain
  • Foot operated caster lock keeps unit from rolling
  • Welded steel construction provides long lasting durability
Dimensions: 58.8125"W x 53.625"L x 37.125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215029810 GTIN: 00691215029810
Warranty: -- Shipping Weight: 465 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Volume (cu. yrd.): 1 Fork Pocket Width (in.): 7
Fork Pocket Height (in.): 2 Fork Pocket Center (in.): 21-5/8 Steel Gauge: 12
Caster Quantity/Diameter/Width (in.): (4) 8x2 Caster Type: (2) Rigid, (1) Swivel, (1) Swivel with Lock Caster Material: Glass Filled Nylon
Overall Width (in.): 58-13/16 Overall Length (in.): 53-5/8 Overall Height (in.): 37-1/8
Dump Angle: 90° Usable Work Envelope (in.): 53-13/16 x 58-3/16 x 52-7/8 Vertical Center of Gravity (in.): 6-3/16
Horizontal Center of Gravity (in.): 16-5/8
