Model Details

ELH-60-5

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
ELH-60-5

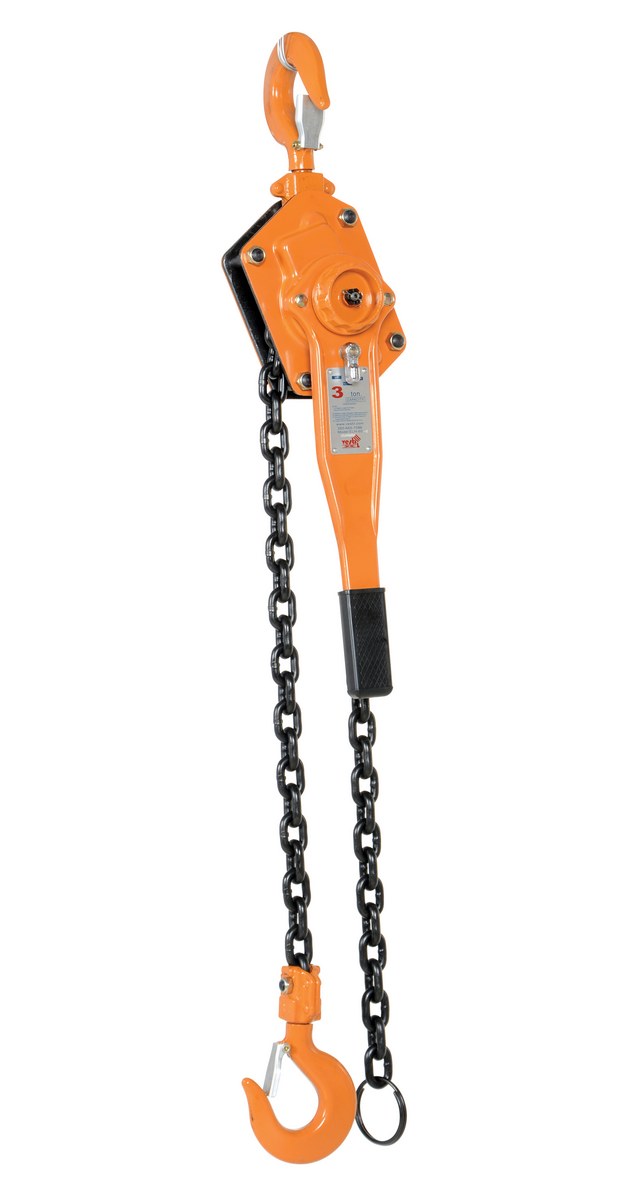

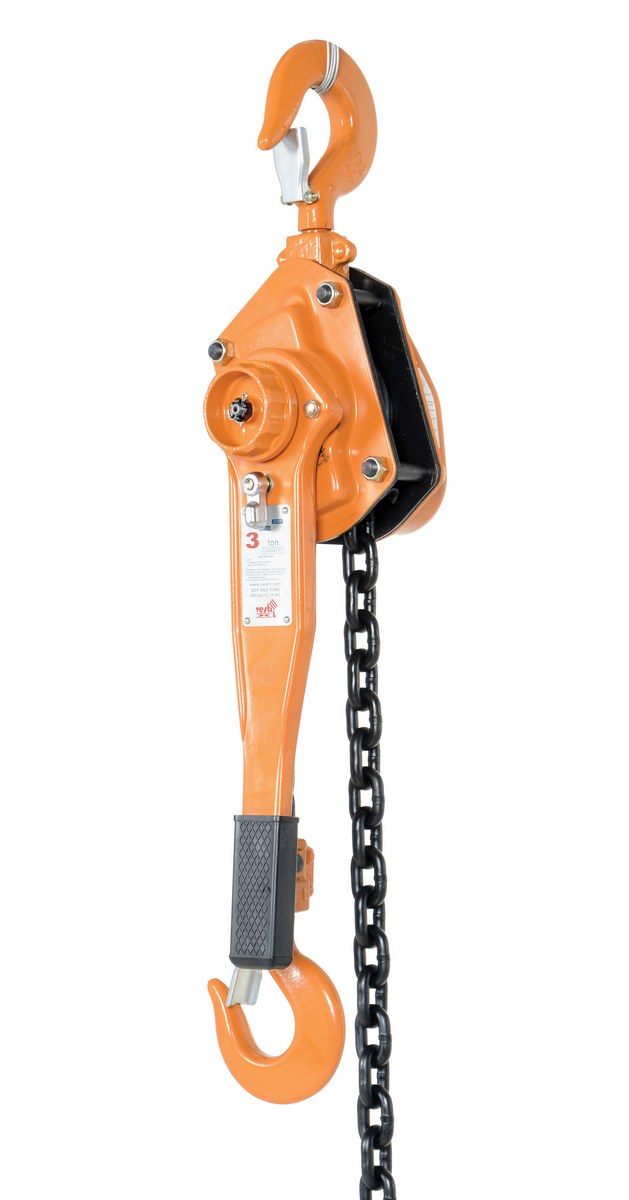

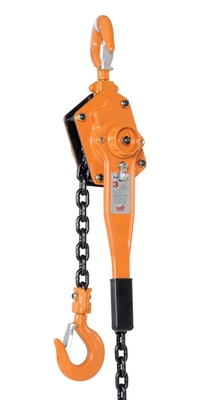

Steel Economy Lever Hoist 5 Ft. Chain Length 6000 Lb. Capacity Orange

The economy lever hoist is ideal for lifting and pulling applications. It features a completely enclosed Weston-type automatic brake system for precise load positioning. This hoist is constructed from cold-formed stamped steel, which confers great strength, impact resistance and long product life. Single-hand "free chaining" is simple and convenient allowing smooth, trouble-free operation in the vertical or horizontal position. Both the swivel hooks include deformation indicators. Every chain hoist is issued with an individual test certificate.

  • 360 degree lever handle rotation
  • Durable baked enamel paint shields non-wearing parts from environmental damage
  • Tested to one-hundred fifty (150) percent of the rated capacity
  • Meets applicable ASME B30.21 specifications
Total Ship Wt.(lbs.): 46 (only 1 package) Size: 7.25"W x 22"L x 9"H Color: Orange

Uniform Capacity (lb.): 6,000 Standard Lift (ft.): 5 Minimum Distance Between Hooks (in.): 19
Handle Length (in.): 16 Rotation (degrees): 360 Brake Type: Weston
Alloy Steel Chain Rated Grade: 80 Lever Resistance (lb.): 70 Head Room (in.): 19

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: ELH-60-5
ELH-60-5

Steel Economy Lever Hoist 5 Ft. Chain Length 6000 Lb. Capacity Orange

The economy lever hoist is ideal for lifting and pulling applications. It features a completely enclosed Weston-type automatic brake system for precise load positioning. This hoist is constructed from cold-formed stamped steel, which confers great strength, impact resistance and long product life. Single-hand "free chaining" is simple and convenient allowing smooth, trouble-free operation in the vertical or horizontal position. Both the swivel hooks include deformation indicators. Every chain hoist is issued with an individual test certificate.

  • 360 degree lever handle rotation
  • Durable baked enamel paint shields non-wearing parts from environmental damage
  • Tested to one-hundred fifty (150) percent of the rated capacity
  • Meets applicable ASME B30.21 specifications
Dimensions: 7.25"W x 22"L x 9"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215018289 GTIN: 00691215018289
Warranty: -- Shipping Weight: 46 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6,000 Standard Lift (ft.): 5 Minimum Distance Between Hooks (in.): 19
Handle Length (in.): 16 Rotation (degrees): 360 Brake Type: Weston
Alloy Steel Chain Rated Grade: 80 Lever Resistance (lb.): 70 Head Room (in.): 19
