Model Details

EHN-40-T

Printer Friendly
EHN-40-T

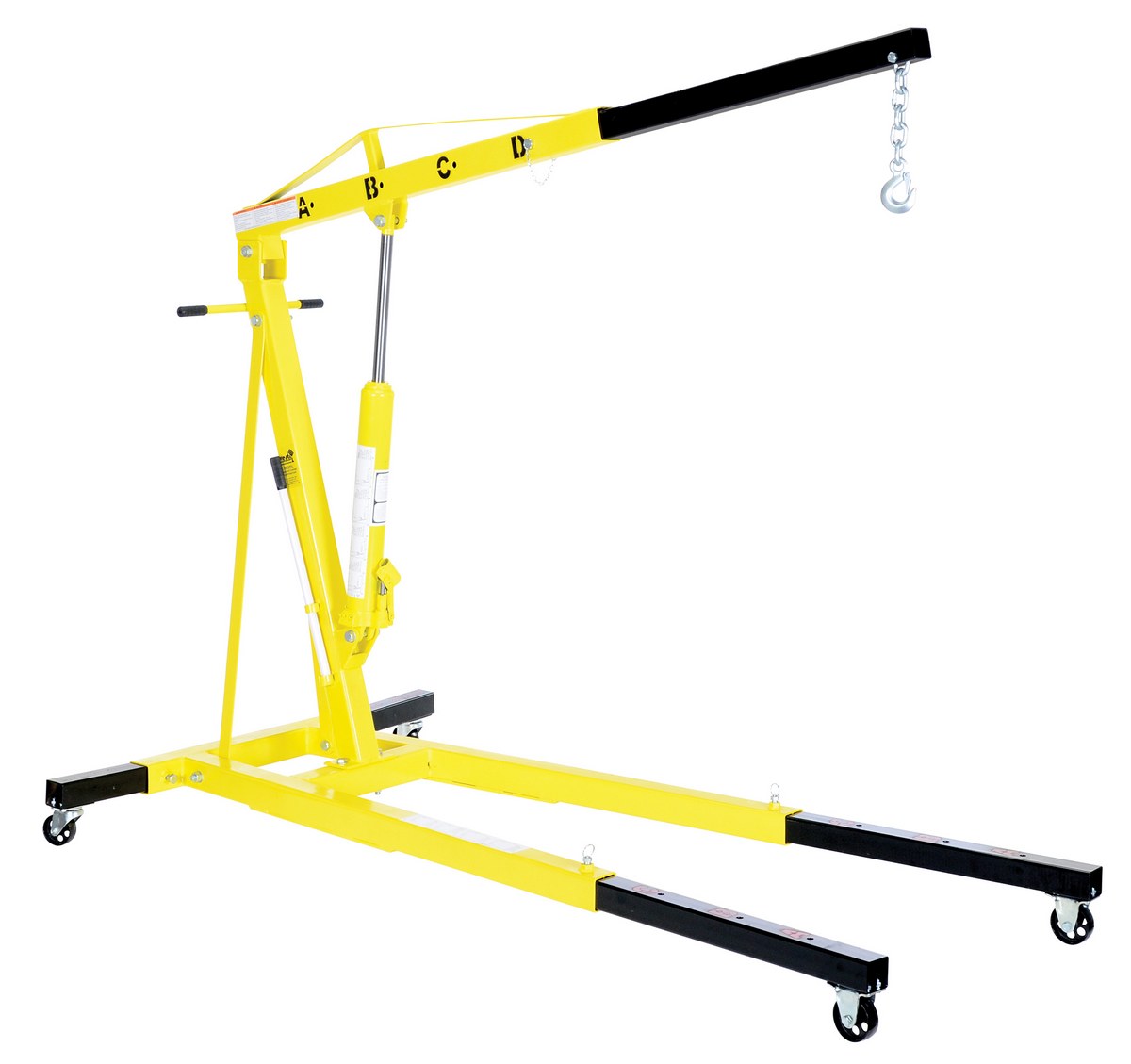

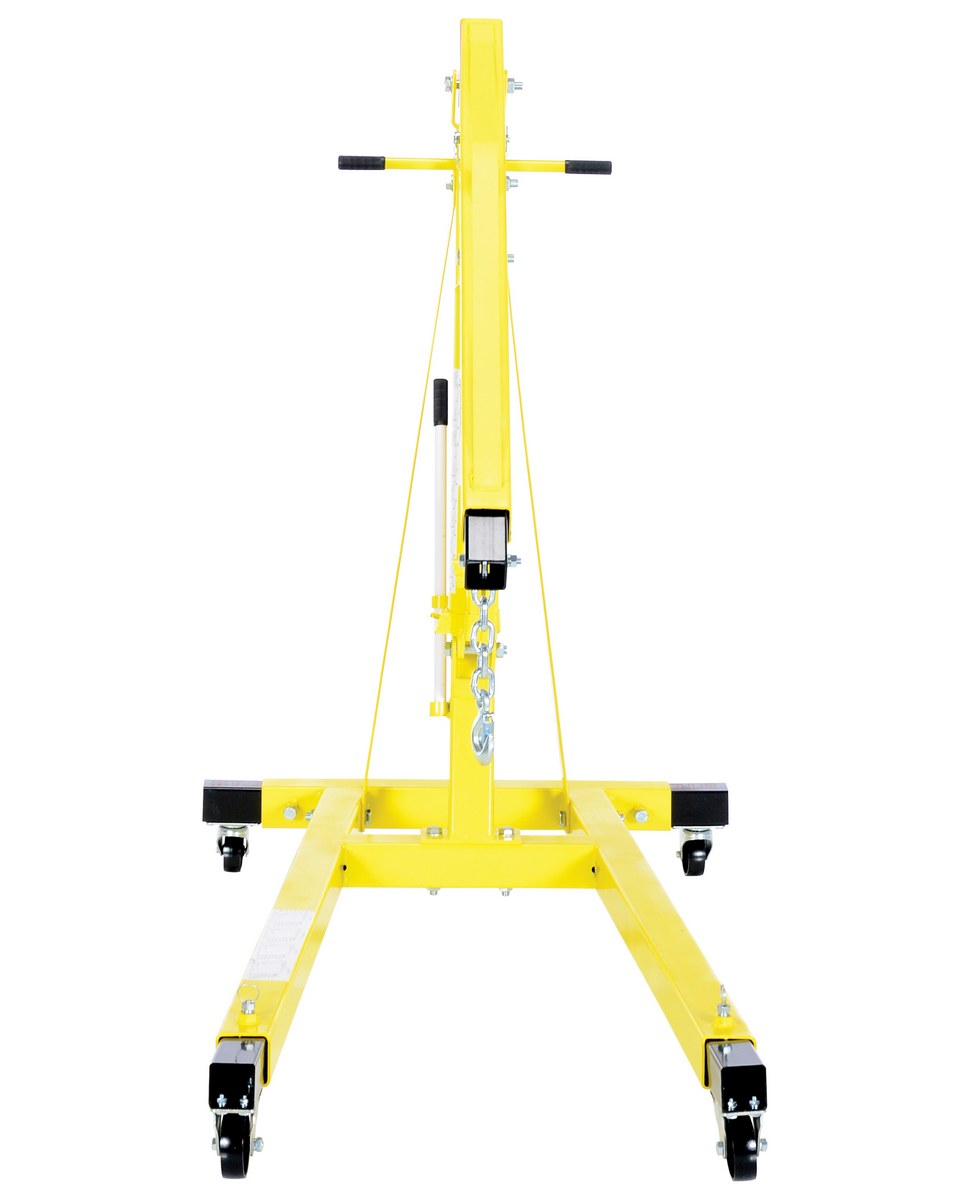

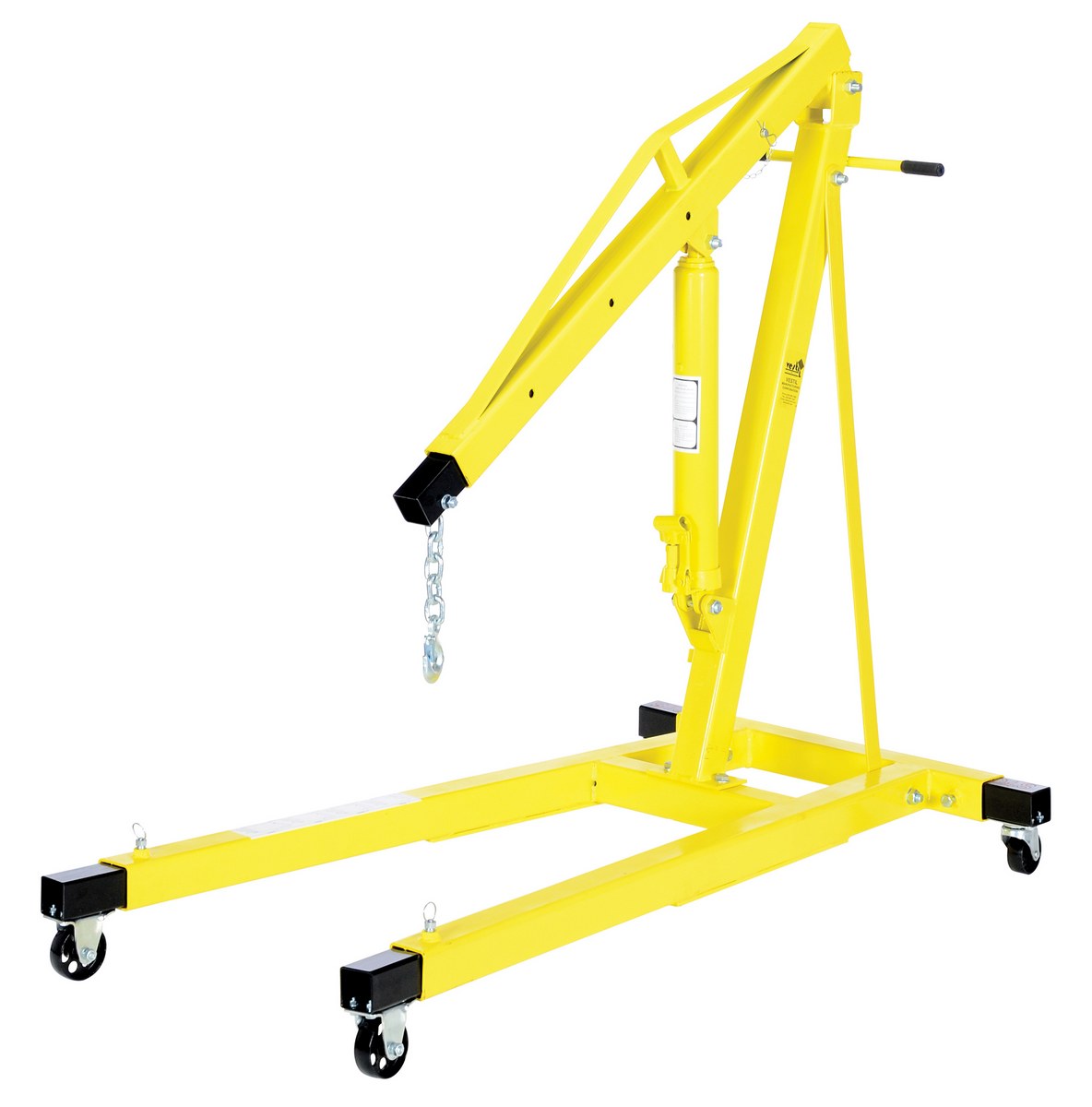

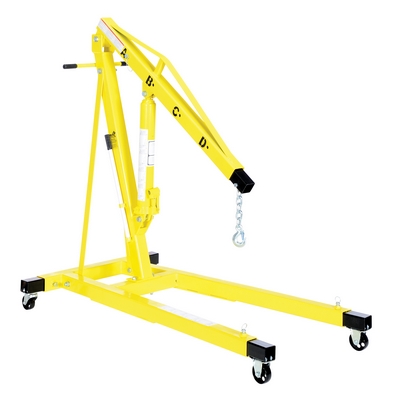

Steel Shop Crane Engine Hoist with Telescopic Legs 4000 Lb. Capacity Yellow

A portable shop crane engine hoist is great for hundreds of lifting applications. It features a telescopic boom, benefiting different lifting heights and capacities. Features a large diameter ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for portability. Heavy-duty steel construction and painted finish.

  • Variable boom lengths
  • Telescoping legs
  • Manual hand pump for raise and lowering
  • High-capacity hydraulic cylinder
Total Ship Wt.(lbs.): 277 (only 1 package) Size: 35"W x 62"L x 57"H Color: Yellow

Uniform Capacity (lb.): 4,000 Leg Design: Telescopic Leg Minimum/Maximum Length (in.): 62 to 85
4,000 Capacity Reach (in.): 49 4,000 Capacity Boom Height (in.): 8-7/8 to 72 3,000 Capacity Reach (in.): 58
3,000 Capacity Boom Height (in.): 3-1/2 to 77 2,000 Capacity Reach (in.): 67 2,000 Capacity Boom Height (in.): 0 to 82
1,000 Capacity Reach (in.): 76 1,000 Capacity Boom Height (in.): 0 to 87 Rear Rubber Swivel Caster Diameter (in.): 3-1/2
Rear Rubber Swivel Caster Width (in.): 1-1/4 Front Rubber Rigid Caster Diameter (in.): 3-1/2 Front Rubber Rigid Caster Width (in.): 1-1/4
Chain Length w/ Hook (in.): 11 Hook Opening (in.): 1 Hook Material: Steel
Hook Type: Eye (Non-Swivel) Crane Brakes: No Compliance: ANSI/ASME PALD - 12 Standards

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHN-40-T
EHN-40-T

Steel Shop Crane Engine Hoist with Telescopic Legs 4000 Lb. Capacity Yellow

A portable shop crane engine hoist is great for hundreds of lifting applications. It features a telescopic boom, benefiting different lifting heights and capacities. Features a large diameter ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for portability. Heavy-duty steel construction and painted finish.

  • Variable boom lengths
  • Telescoping legs
  • Manual hand pump for raise and lowering
  • High-capacity hydraulic cylinder
Dimensions: 35"W x 62"L x 57"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215049559 GTIN: 00691215049559
Warranty: -- Shipping Weight: 277 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Leg Design: Telescopic Leg Minimum/Maximum Length (in.): 62 to 85
4,000 Capacity Reach (in.): 49 4,000 Capacity Boom Height (in.): 8-7/8 to 72 3,000 Capacity Reach (in.): 58
3,000 Capacity Boom Height (in.): 3-1/2 to 77 2,000 Capacity Reach (in.): 67 2,000 Capacity Boom Height (in.): 0 to 82
1,000 Capacity Reach (in.): 76 1,000 Capacity Boom Height (in.): 0 to 87 Rear Rubber Swivel Caster Diameter (in.): 3-1/2
Rear Rubber Swivel Caster Width (in.): 1-1/4 Front Rubber Rigid Caster Diameter (in.): 3-1/2 Front Rubber Rigid Caster Width (in.): 1-1/4
Chain Length w/ Hook (in.): 11 Hook Opening (in.): 1 Hook Material: Steel
Hook Type: Eye (Non-Swivel) Crane Brakes: No Compliance: ANSI/ASME PALD - 12 Standards
