Model Details

CYL-V-4-KD

Printer Friendly
CYL-V-4-KD

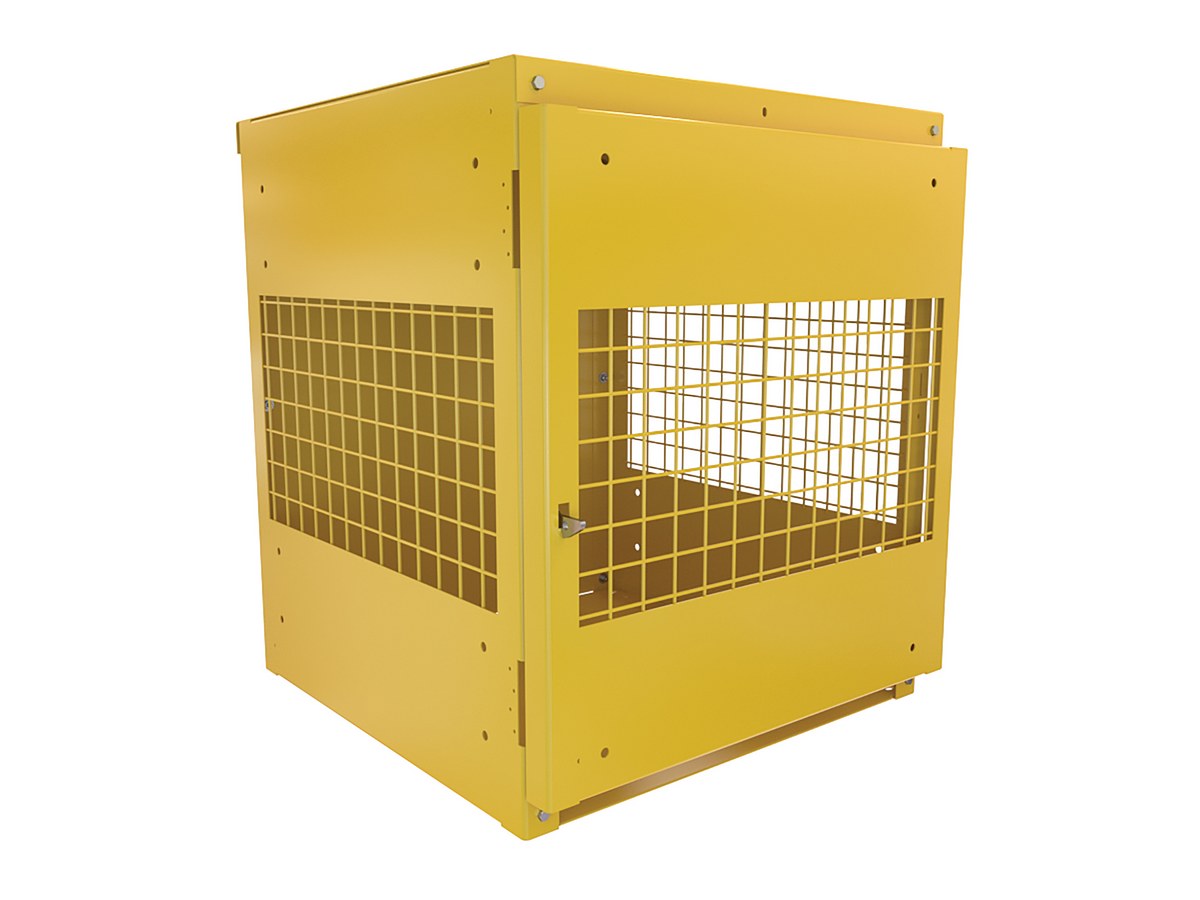

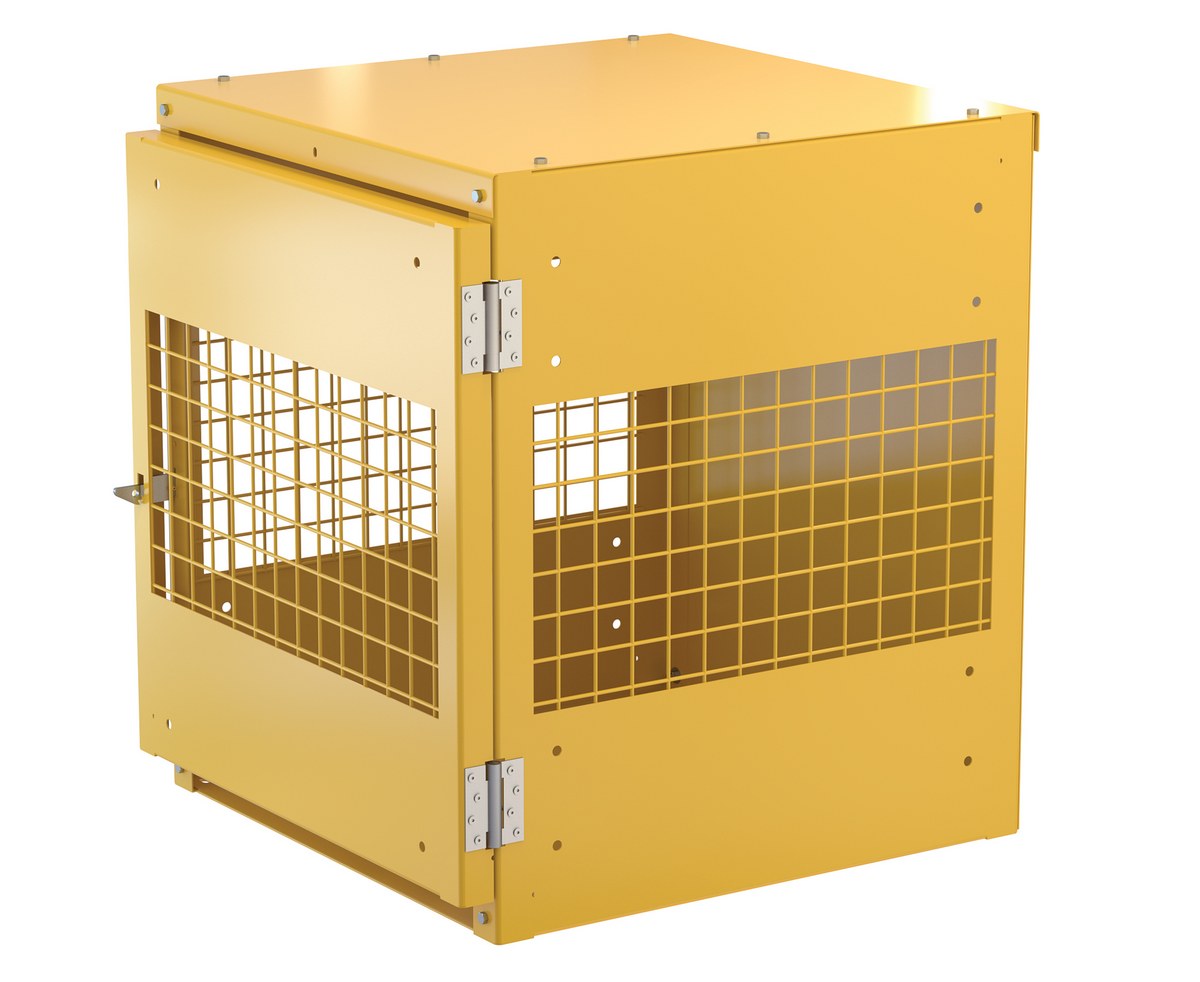

Steel Knockdown Vertical Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel, and the bottom, back, and top are mode of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cabinets. Chains for securing cylinders are included. Meets OSHA sec. 1910.110 (f )(6)(ii), ANSI NFPA 55 + 58, and CGA P-1 design standards. Rugged steel construction with safety yellow baked-in powder-coated toughness. This cabinet is shipped knock down and requires user assembly.

  • Ideal for vertical storage of other gas style cylinders
  • Design allows inside contents to be viewed
  • Includes red lettered signage noting "flammable - no smoking"
  • Meets NFPA 58 and OSHA 1910 110 requirements
Total Ship Wt.(lbs.): 220 (only 1 package) Size: 30"W x 32"L x 35.25"H Color: Yellow

Uniform Cylinder Capacity (qty.): 4 Design: Vertical County of use: USA
OSHA: 1910.110 (f)(6)(ii) ANSI: NFPA 55 + 58 CGA: P-1

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CYL-V-4-KD
CYL-V-4-KD

Steel Knockdown Vertical Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel, and the bottom, back, and top are mode of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cabinets. Chains for securing cylinders are included. Meets OSHA sec. 1910.110 (f )(6)(ii), ANSI NFPA 55 + 58, and CGA P-1 design standards. Rugged steel construction with safety yellow baked-in powder-coated toughness. This cabinet is shipped knock down and requires user assembly.

  • Ideal for vertical storage of other gas style cylinders
  • Design allows inside contents to be viewed
  • Includes red lettered signage noting "flammable - no smoking"
  • Meets NFPA 58 and OSHA 1910 110 requirements
Dimensions: 30"W x 32"L x 35.25"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215133265 GTIN: 00691215133265
Warranty: -- Shipping Weight: 220 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Cylinder Capacity (qty.): 4 Design: Vertical County of use: USA
OSHA: 1910.110 (f)(6)(ii) ANSI: NFPA 55 + 58 CGA: P-1
