CJIB-6

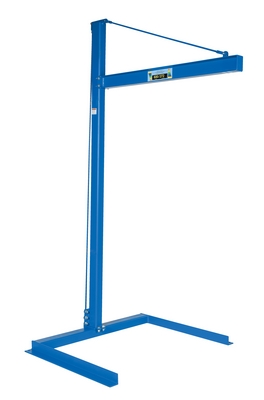

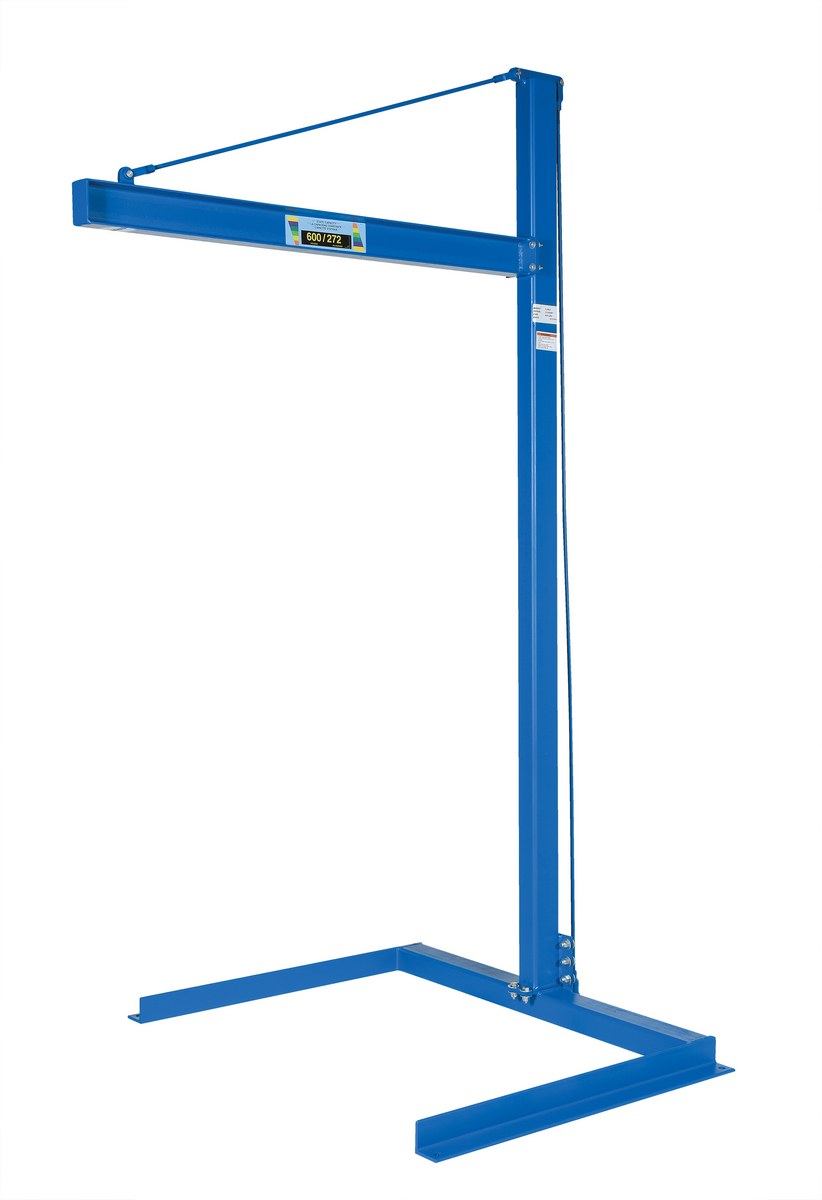

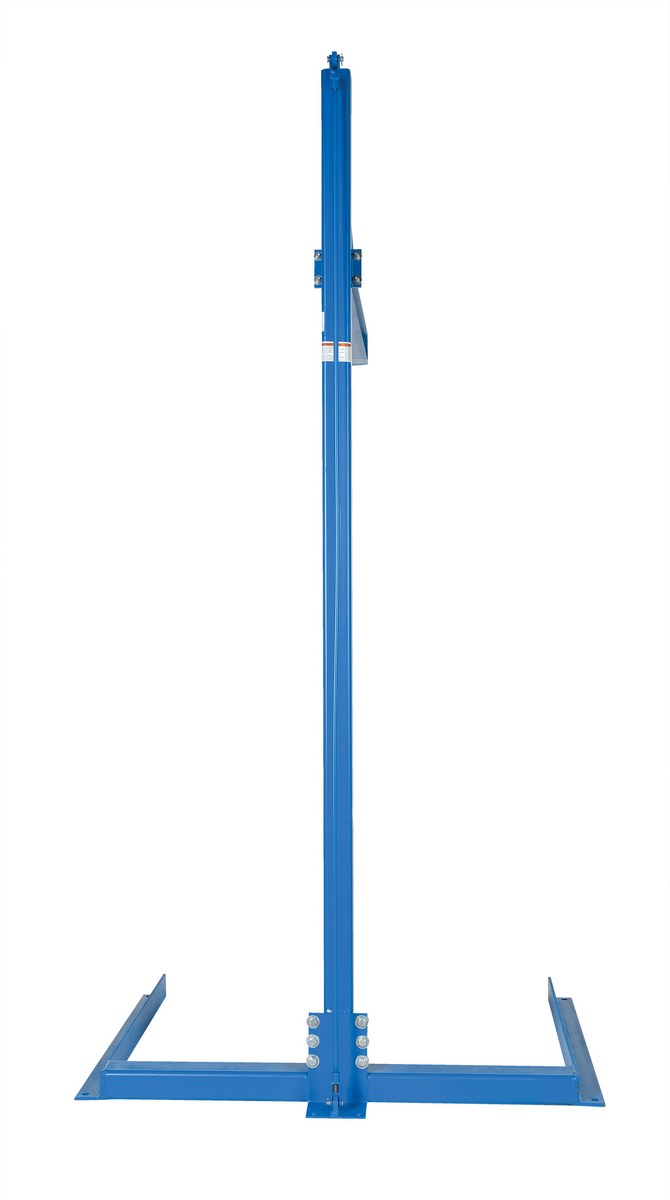

Steel Mini Overhead Cantilever Jib 600 Lb. Capacity Blue

This mini overhead Cantilever Jib works well in a variety of work areas. The unique design allows for outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Hoist, trolley and cart not included.

  • Consistent I-beam flange for secure lifting
  • Straddle leg design
  • Pre-drilled lag down holes
  • Steel construction with a painted blue finish
Total Ship Wt.(lbs.): 327 (only 1 package) Size: 53.75"W x 63.125"L x 106.6875"H Color: Blue

Uniform Capacity (lb.): 600 Under I-Beam to Ground Length (in.): 84 I-Beam (Flange x Height) (in.): 2-11/16 x 4
I-Beam Usable Length (in.): 54 Straddle Width Inside Diameter (in.): 47-3/4 Outrigger Length (in.): 39-3/4
Operation Mode: Manual Mounting Holes Quantity/Diameter (in.): (4) 3/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CJIB-6
CJIB-6

Steel Mini Overhead Cantilever Jib 600 Lb. Capacity Blue

This mini overhead Cantilever Jib works well in a variety of work areas. The unique design allows for outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Hoist, trolley and cart not included.

  • Consistent I-beam flange for secure lifting
  • Straddle leg design
  • Pre-drilled lag down holes
  • Steel construction with a painted blue finish
Dimensions: 53.75"W x 63.125"L x 106.6875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215011136 GTIN: 00691215011136
Warranty: -- Shipping Weight: 327 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 600 Under I-Beam to Ground Length (in.): 84 I-Beam (Flange x Height) (in.): 2-11/16 x 4
I-Beam Usable Length (in.): 54 Straddle Width Inside Diameter (in.): 47-3/4 Outrigger Length (in.): 39-3/4
Operation Mode: Manual Mounting Holes Quantity/Diameter (in.): (4) 3/4
