Model Details

← All Products- ← Protective Barriers- ← Machinery Guards -← Heavy Duty Column Protectors- CGP-36

CGP-36

Printer Friendly
Available
CGP-36
CGP-36 CGP-36 CGP-36 CGP-36

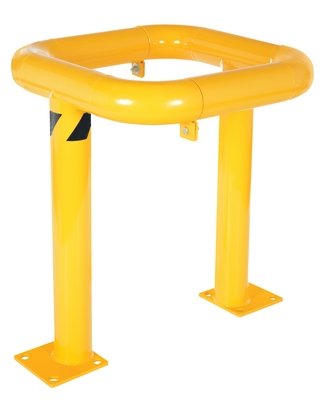

Steel Heavy Duty Column Guard 35-3/4 In. Height Yellow

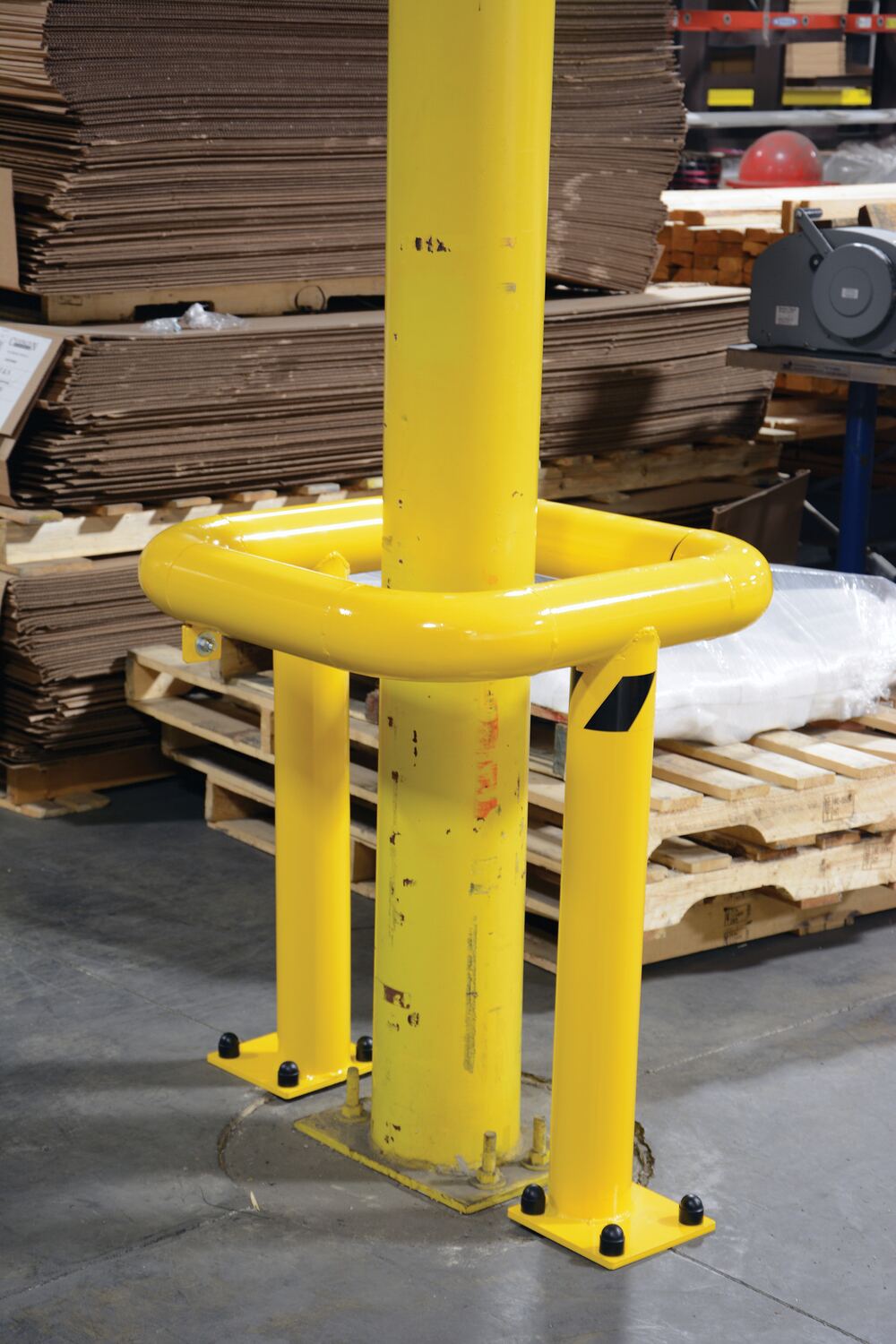

This Heavy Duty column protector is perfect for protecting in-plant columns and other vertical support members. The hardware is included to connect both pieces together around the column. Concrete mounting hardware sold separately.

  • Two piece design for protecting vertical support members
  • Nylon fasteners included
  • Heavy-duty welded steel construction for added strength
  • Base plate includes pre-drilled mounting holes
Assembled Wt.(lbs.): 103 Assembled Size: 29.625"W x 35.625"L x 35.75"H

Total Ship Wt.(lbs.): 137 (only 1 package) Package 1 Size: 40"W x 48"D x 42"H Color: Yellow

Inner Width (in.): 20 Inner Length (in.): 20 Bolt Hole (qty.): 6
Overall Height (in.): 35-3/4 Overall Length (in.): 35-5/8 Overall Depth (in.): 29-5/8
Guard Diameter (in.): 4-1/2 Base Plate Length x Width (in.): 8 x 8 Mounting Hardware Included?: No

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: CGP-36
Available
CGP-36

Steel Heavy Duty Column Guard 35-3/4 In. Height Yellow

This Heavy Duty column protector is perfect for protecting in-plant columns and other vertical support members. The hardware is included to connect both pieces together around the column. Concrete mounting hardware sold separately.

  • Two piece design for protecting vertical support members
  • Nylon fasteners included
  • Heavy-duty welded steel construction for added strength
  • Base plate includes pre-drilled mounting holes
Dimensions: 29.625"W x 35.625"L x 35.75"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215010986 GTIN: 00691215010986
Warranty: -- Shipping Weight: 137 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Inner Width (in.): 20 Inner Length (in.): 20 Bolt Hole (qty.): 6
Overall Height (in.): 35-3/4 Overall Length (in.): 35-5/8 Overall Depth (in.): 29-5/8
Guard Diameter (in.): 4-1/2 Base Plate Length x Width (in.): 8 x 8 Mounting Hardware Included?: No
