BTA-06007872

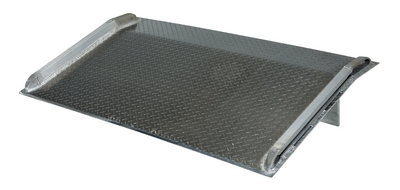

Aluminum Truck Dock Board 78 In. x 72 In. 6000 Lb. Capacity Silver

The Aluminum truck dock board is engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dock board to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

  • 100% Aluminum construction provides rugged long lasting use
  • Raised-diamond tread plate dock board surface
  • Welded aluminum locking legs underneath dock board
  • Beveled entry and exit edges provide a smooth transition
Total Ship Wt.(lbs.): 201 (only 1 package) Size: 78"W x 72"L x 16.75"H Color: Silver

Uniform Capacity (lb.): 6000 Height Difference (in.): 8 degree/17 percent: 8-1/2 Height Difference (in.): 11 degrees/19 percent: 12
Bend Degree: 11 Bend Distance from Edge (in.): 9 Leg Distance from Edge (in.): 12
Usable Width (in.): 73-1/2 Usable Length (in.): 72 Edge Type: Beveled
Equipped With: Welded Aluminum Locking Legs Surface Type: Raised-Diamond Treadplate Plate Thickness (in.): 3/8
Curb Height (in.): 2-3/4 Curb Width (in.): 2-1/4 OSHA : 1910.30 (a)
ANSI : MH 30.2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: BTA-06007872
BTA-06007872

Aluminum Truck Dock Board 78 In. x 72 In. 6000 Lb. Capacity Silver

The Aluminum truck dock board is engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dock board to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

  • 100% Aluminum construction provides rugged long lasting use
  • Raised-diamond tread plate dock board surface
  • Welded aluminum locking legs underneath dock board
  • Beveled entry and exit edges provide a smooth transition
Dimensions: 78"W x 72"L x 16.75"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215006040 GTIN: 00691215006040
Warranty: -- Shipping Weight: 201 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6000 Height Difference (in.): 8 degree/17 percent: 8-1/2 Height Difference (in.): 11 degrees/19 percent: 12
Bend Degree: 11 Bend Distance from Edge (in.): 9 Leg Distance from Edge (in.): 12
Usable Width (in.): 73-1/2 Usable Length (in.): 72 Edge Type: Beveled
Equipped With: Welded Aluminum Locking Legs Surface Type: Raised-Diamond Treadplate Plate Thickness (in.): 3/8
Curb Height (in.): 2-3/4 Curb Width (in.): 2-1/4 OSHA : 1910.30 (a)
ANSI : MH 30.2
