Model Details

ATWR-24-10-72

Printer Friendly
ATWR-24-10-72

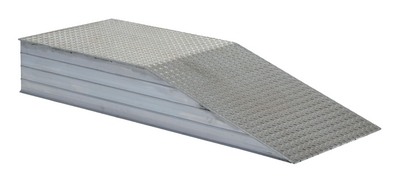

Aluminum Heavy Duty Wheel Riser 72 In. x 24 In. x 9-15/16 In. 30000 Lb. Capacity Silver

Elevate semi-trailers to loading docks for maximum serviceability during loading and unloading operations. Manufactured from heavy-duty aluminum tread plate for positive traction. All welded aluminum construction. 30,000 lbs. uniform capacity per pair (1/4" thick material). Wheel risers are designed to raise the trailer for secure loading and unloading.

  • Ramp design can be stacked for compact storage when not in use
  • Raised diamond tread plate surface provides a non-slip grip
  • Built-in fork pockets allow movement with a fork truck
  • Built in compliance with OSHA/ANSI B56.1 part 3 sec 7
Total Ship Wt.(lbs.): 156 (only 1 package) Size: 24"W x 72"L x 9.9375"H Color: Silver

Uniform Capacity Per Pair - [Sold Each] (lb.): 30,000 Material Thickness (in.): 5/16 Level Length (in.): 42
Ramp Incline (degrees): 18 OSHA : 1910.30 (a) ANSI : B56.1 part 3 sec 7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ATWR-24-10-72
ATWR-24-10-72

Aluminum Heavy Duty Wheel Riser 72 In. x 24 In. x 9-15/16 In. 30000 Lb. Capacity Silver

Elevate semi-trailers to loading docks for maximum serviceability during loading and unloading operations. Manufactured from heavy-duty aluminum tread plate for positive traction. All welded aluminum construction. 30,000 lbs. uniform capacity per pair (1/4" thick material). Wheel risers are designed to raise the trailer for secure loading and unloading.

  • Ramp design can be stacked for compact storage when not in use
  • Raised diamond tread plate surface provides a non-slip grip
  • Built-in fork pockets allow movement with a fork truck
  • Built in compliance with OSHA/ANSI B56.1 part 3 sec 7
Dimensions: 24"W x 72"L x 9.9375"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215003308 GTIN: 00691215003308
Warranty: -- Shipping Weight: 156 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity Per Pair - [Sold Each] (lb.): 30,000 Material Thickness (in.): 5/16 Level Length (in.): 42
Ramp Incline (degrees): 18 OSHA : 1910.30 (a) ANSI : B56.1 part 3 sec 7
