PAL-D/R

Steel Pallet Dumper/Retainer 52 In. Long Forks 2000 Lb. Capacity Blue

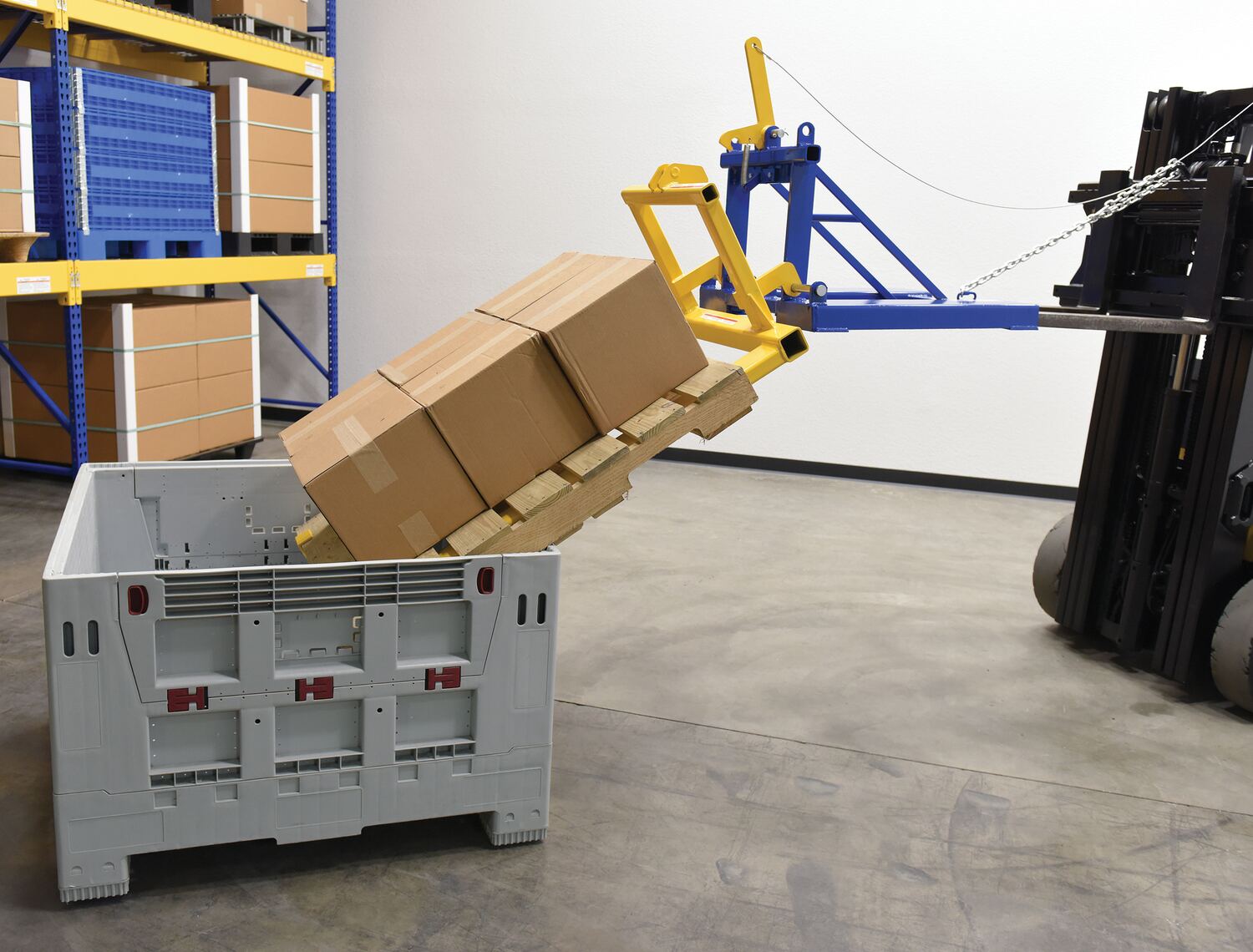

Dump loaded pallets easily without leaving the seat of your fork truck with the all welded steel pallet dumper/retainer. Unit slides onto forks and is secured by a safety restraint. Two (2) retainers hold the pallet in place while dumping the contents into a hopper or dumpster. Once the retainers have cleared the opposite end of the pallet, raise the forks and the retainers will hold the pallet on the forks. Lift the pallet to the dumping height and rest the pallet on the edge of the dumpster. Pull the chain, releasing the fork carriage, allowing the pallet to tilt and dump the load into the hopper or dumpster. When finished, simply lower to the ground until the carriage latches.

  • Dump loaded pallets easily without leaving your seat
  • Two (2) retainers hold the pallet for more stability
  • Pallet tilts and dumps the load into a hopper or dumpster
  • Carriage latches when lowered to the ground
Total Ship Wt.(lbs.): 300 (only 1 package) Size: 33"W x 91"L x 32.375"H Color: Blue

Uniform Capacity (lb.): 2,000 Usable Fork Length (in.): 52 Fork Pocket Width (in.): 7-1/2
Fort Pocket Height (in.): 2-1/2 Fork Drop Angle (degrees): 90 Chain Length (in.): 28

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PAL-D/R
PAL-D/R

Steel Pallet Dumper/Retainer 52 In. Long Forks 2000 Lb. Capacity Blue

Dump loaded pallets easily without leaving the seat of your fork truck with the all welded steel pallet dumper/retainer. Unit slides onto forks and is secured by a safety restraint. Two (2) retainers hold the pallet in place while dumping the contents into a hopper or dumpster. Once the retainers have cleared the opposite end of the pallet, raise the forks and the retainers will hold the pallet on the forks. Lift the pallet to the dumping height and rest the pallet on the edge of the dumpster. Pull the chain, releasing the fork carriage, allowing the pallet to tilt and dump the load into the hopper or dumpster. When finished, simply lower to the ground until the carriage latches.

  • Dump loaded pallets easily without leaving your seat
  • Two (2) retainers hold the pallet for more stability
  • Pallet tilts and dumps the load into a hopper or dumpster
  • Carriage latches when lowered to the ground
Dimensions: 33"W x 91"L x 32.375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215029285 GTIN: 00691215029285
Warranty: -- Shipping Weight: 300 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Usable Fork Length (in.): 52 Fork Pocket Width (in.): 7-1/2
Fort Pocket Height (in.): 2-1/2 Fork Drop Angle (degrees): 90 Chain Length (in.): 28
